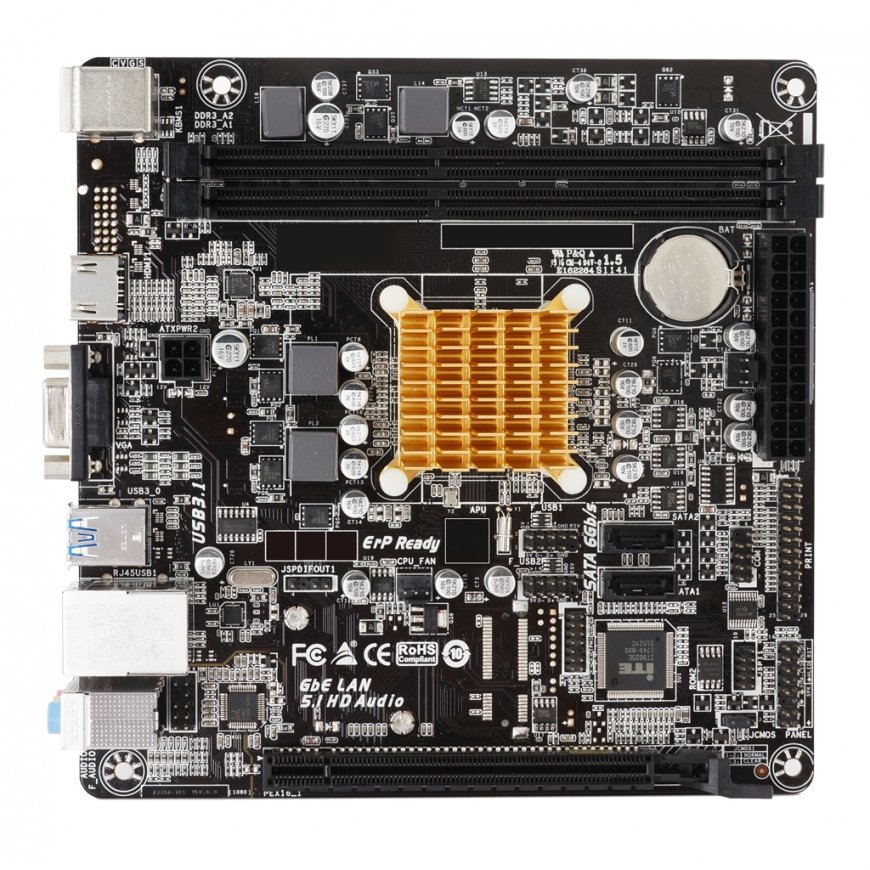

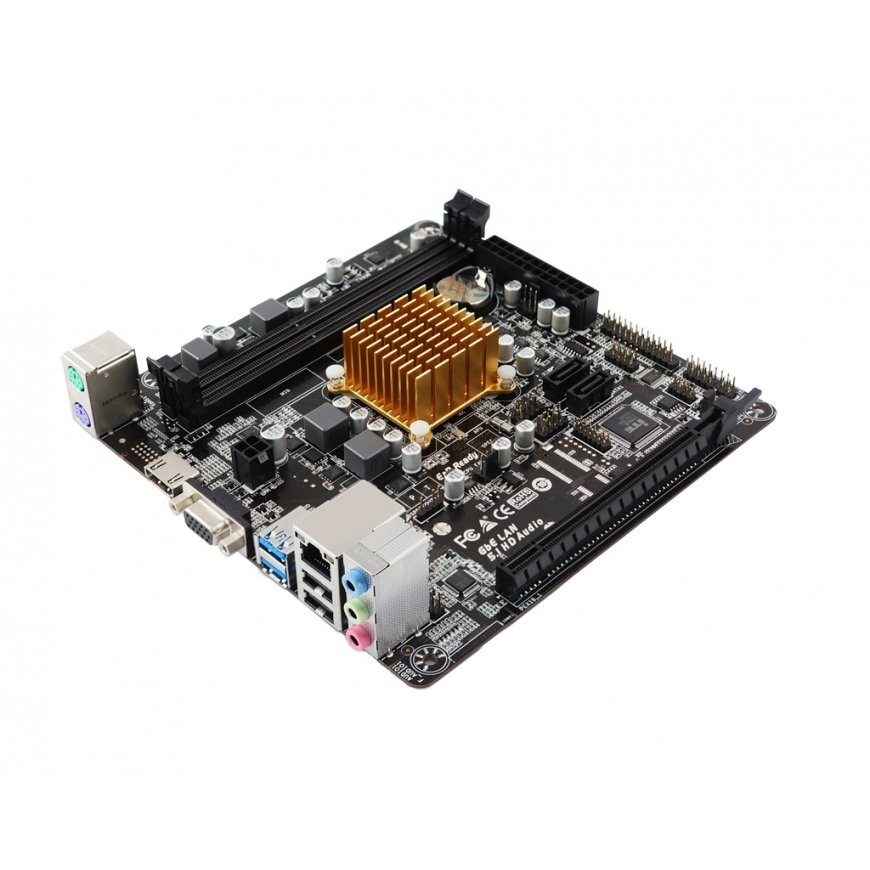

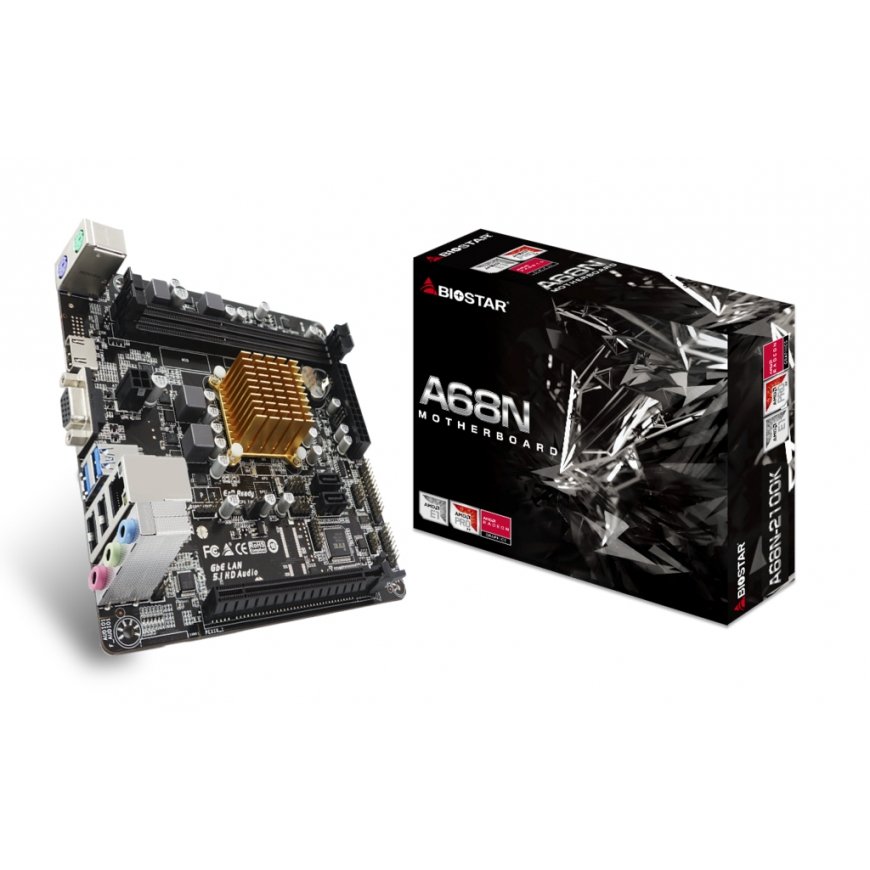

Biostar A68N-2100K motherboard mini ITX
49,00 €
Monthly payment from 2.16 €
868426 A68N-2100K
4712960682399
2026-07-14
You are interested in this product?
HD Audio
Provides high quality sound with minimal loss of audio fidelity.
S/P DIF Output on board
Onboard Optical & Coaxial connector supports your desktop in transferring the non-distortion digital audio output to the AV amplifier and professional speaker system.
Video+
HDMI 4K2KHDMI 4K2K
The new 4K2K resolution enables high-definition image display with four times the resolution of full HD ,4K2K display is faithfully express bright, highly detailed content that fills the entire screen with lifelike images. Connectivity with PCs via a single HDMI cable for displaying 4K2K data.
DX11.1
Direct3D 11.1 enables Direct3D 10 APIs and Direct3D 11 APIs to use one underlying rendering device. And it allows developers to achieve a high speed, fully conformant software rasterizer.
Speed+
SATAIII 6Gbps
SATAIII 6Gbps provides a higher bandwidth to retrieve and transfer HD media. With this super speed data transfer, SATAIII allows an incredible data boost which is 2x faster than the SATA 3G.
USB 3.2 Gen1 Type-A
USB 3.2 Gen1 delivers compelling performance boosts and can be used to connect multiple devices without worrying about compatibility. It is capable of data transfer speeds up to 5Gbps and backwards compatible with all existing USB products.
Durable+
100% Solid Caps
With armor-plated Biostar Technology, all capacitors are placed with 100% solid capacitors that have a lasting life cycle, durability and stability for crucial components.
DIY+
UEFI BIOSUEFI BIOS
Unified Extensible Firmware Interface (UEFI) is a brand new framework that provides a revolutionary interface. It is a modern clear and easy-to-use graphical user interface. The UEFI comes with a colorful easy-understand icons leads users into the setup layer directly.
BIO-Flasher
Update BIOS effortlessly from a USB flash disk before entering the OS.
BIO-Flasher is a convenient BIOS update tool. Just launch this tool and put the BIOS on USB pen driver before entering the OS. You can update your BIOS with only a few clicks without preparing an additional floppy disk or other complicated flash utility.
CPU-Chipset Features
AMD E1-6010
AMD E1-6010 APU with Radeon R2 Graphics
Processor | |
| Maximum number of SMP processors | 1 |
| Processor cores | 2 |
| Processor model | E1-6010 |
| Processor manufacturer | AMD |
Memory | |
| Maximum internal memory | 16 GB |
| Memory voltage | 1.25 V |
| Supported memory clock speeds | 1066, 1333, 800 |
| Supported memory types | DDR3L-SDRAM, DDR3-SDRAM |
| Supported memory module capacities | 2GB, 4GB, 8GB, 1GB, 512MB |
| Memory slots type | DIMM |
| Number of memory slots | 2 |
| ECC сompatibility | Non-ECC |
Storage controllers | |
| Supported storage drive interfaces | SATA III |
Graphics | |
| Parallel processing technology support | Not supported |
| HDCP | Yes |
Internal I/O | |
| USB 2.0 connectors | 2 |
| S/PDIF out connector | Yes |
| CPU fan connector | Yes |
| Number of COM connectors | 1 |
| Number of chassis fan connectors | 1 |
| Front panel audio connector | Yes |
| TPM connector | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 0 |
| Number of SATA II connectors | 0 |
| Number of SATA III connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Front panel connector | Yes |

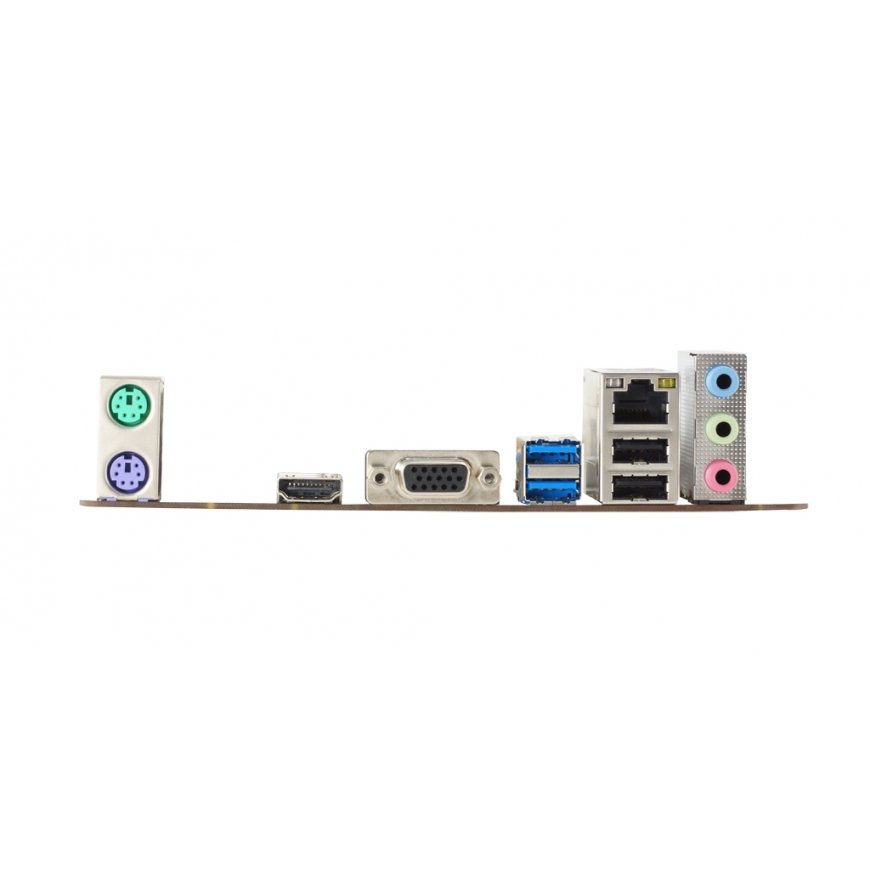

Rear panel I/O ports | |
| PS/2 ports quantity | 2 |
| USB 2.0 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| eSATA ports quantity | 0 |
| DVI-D ports quantity | 0 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
Network | |
| LAN controller | Realtek RTL8111H |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Wi-Fi | No |
Features | |
| Motherboard form factor | mini ITX |
| Audio output channels | 7.1 channels |
| Motherboard chipset family | AMD |
| PC health monitoring | CPU, Fan, Temperature |
| Component for | PC |
| Windows operating systems supported | Windows 7, Windows 10, Windows 8.1 |
| Audio chip | Realtek ALC887 |
Expansion slots | |
| PCI Express x16 (Gen 2.x) slots | 1 |
BIOS | |
| Clear CMOS jumper | Yes |
Weight & dimensions | |
| Width | 170 mm |
| Depth | 170 mm |
Packaging content | |
| Cables included | SATA |
| Bundled software | BullGuard, Smart Speed LAN |
| Drivers included | Yes |
Logistics data | |
| Harmonized System (HS) code | 84733020 |
