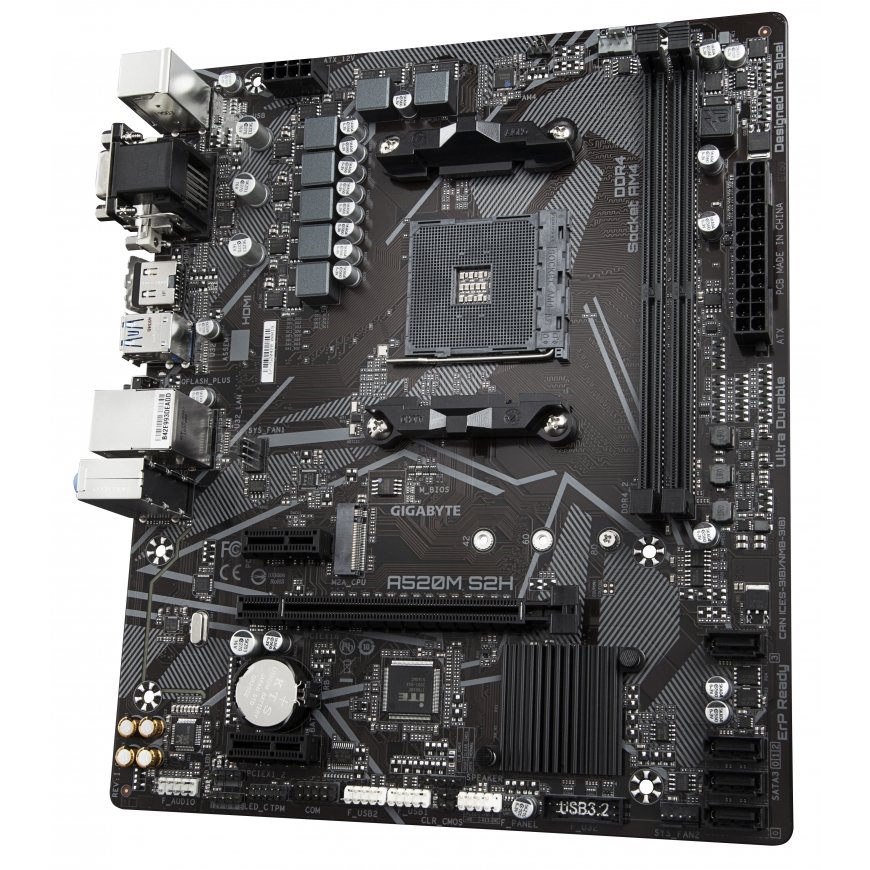

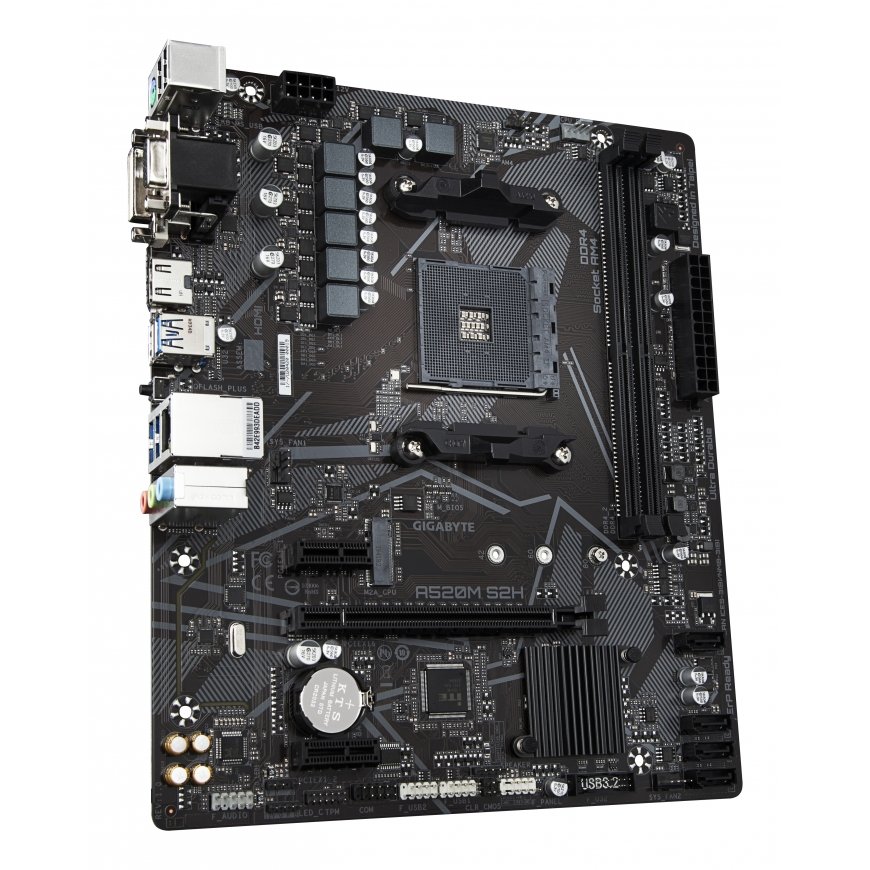

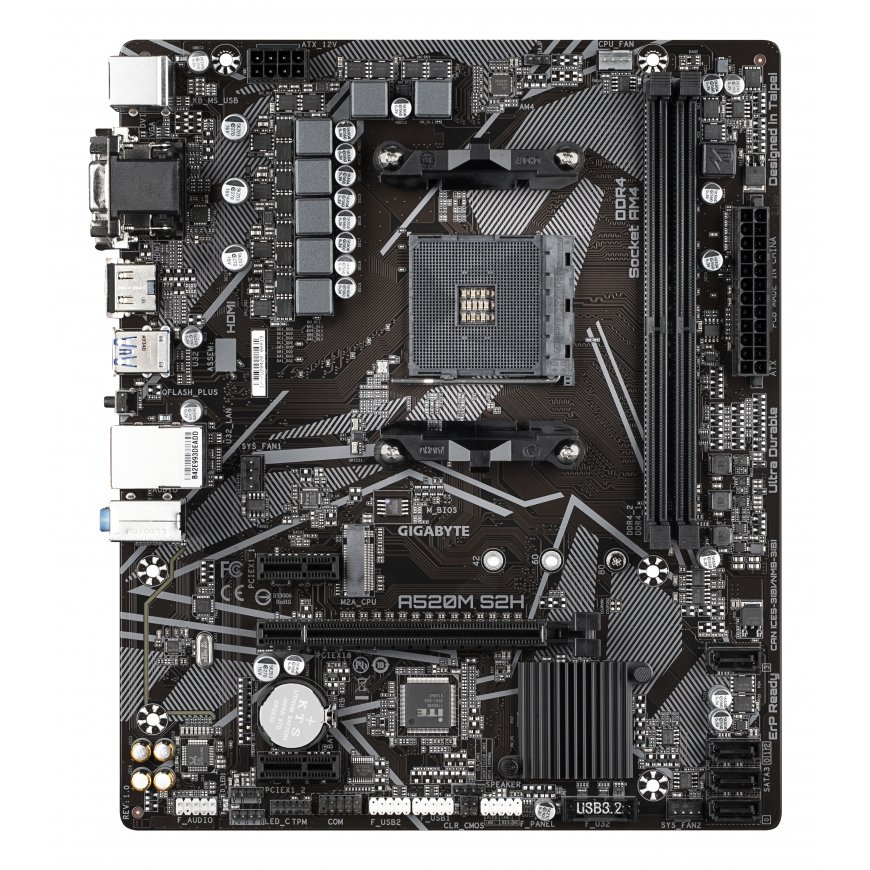

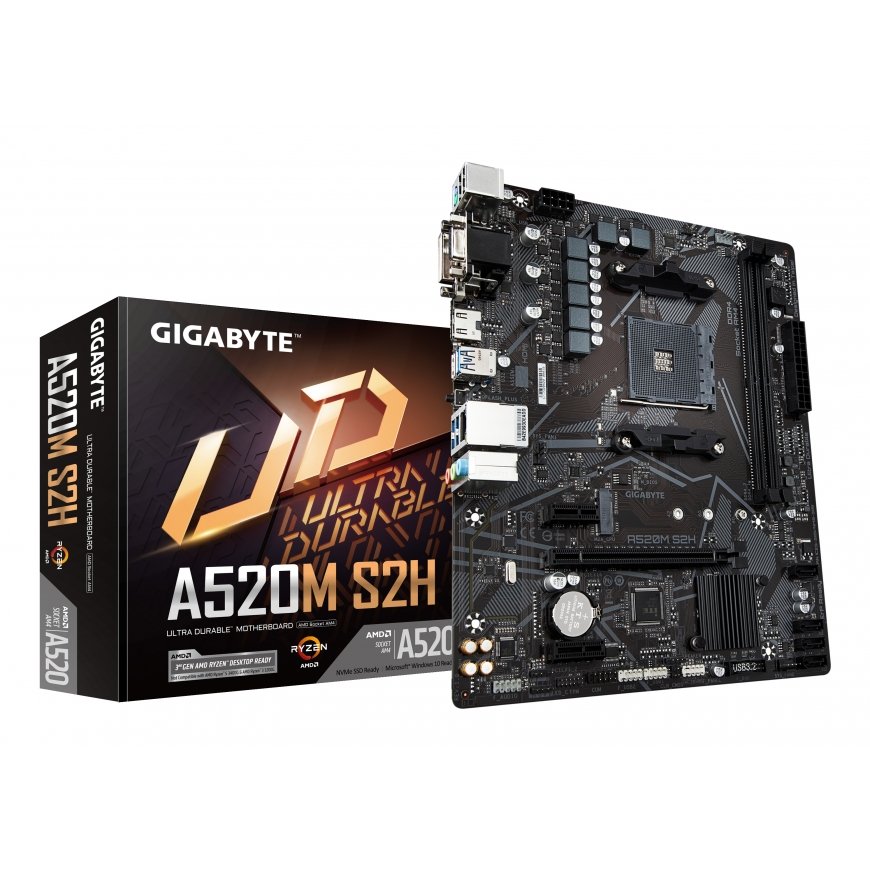

GIGABYTE A520M S2H motherboard
66,33 €
Monthly payment from 2.61 €
808674 A520M S2H
4719331809720, 0889523023594
This product is no longer in stock
You are interested in this product?
Processor | |
| Compatible processor series | AMD Ryzen 3000 Series |
| Maximum number of SMP processors | 1 |
| Processor socket | Socket AM4 |
| Supported processor sockets | Socket AM4 |
| Maximum internal memory supported by processor | 64 GB |
| Processor manufacturer | AMD |
Memory | |
| Maximum internal memory | 64 GB |
| Supported memory clock speeds | 2133, 2400, 2667, 2933, 3200, 3600, 4000, 4400, 4600, 4866, 5000, 3333 |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 2 |
| ECC сompatibility | ECC & Non-ECC |
Storage controllers | |
| RAID levels | 0, 1, 10 |
| Supported storage drive interfaces | Serial ATA, M.2, PCI Express 3.0 |
| RAID support | Yes |
Graphics | |
| HDCP | Yes |
| On-board graphics card | No |
Internal I/O | |
| Number of SATA connectors | 0 |
| USB 2.0 connectors | 2 |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of chassis fan connectors | 2 |
| Power fan connector | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA II connectors | 0 |
| Number of SATA III connectors | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| RGB LED pin header | Yes |

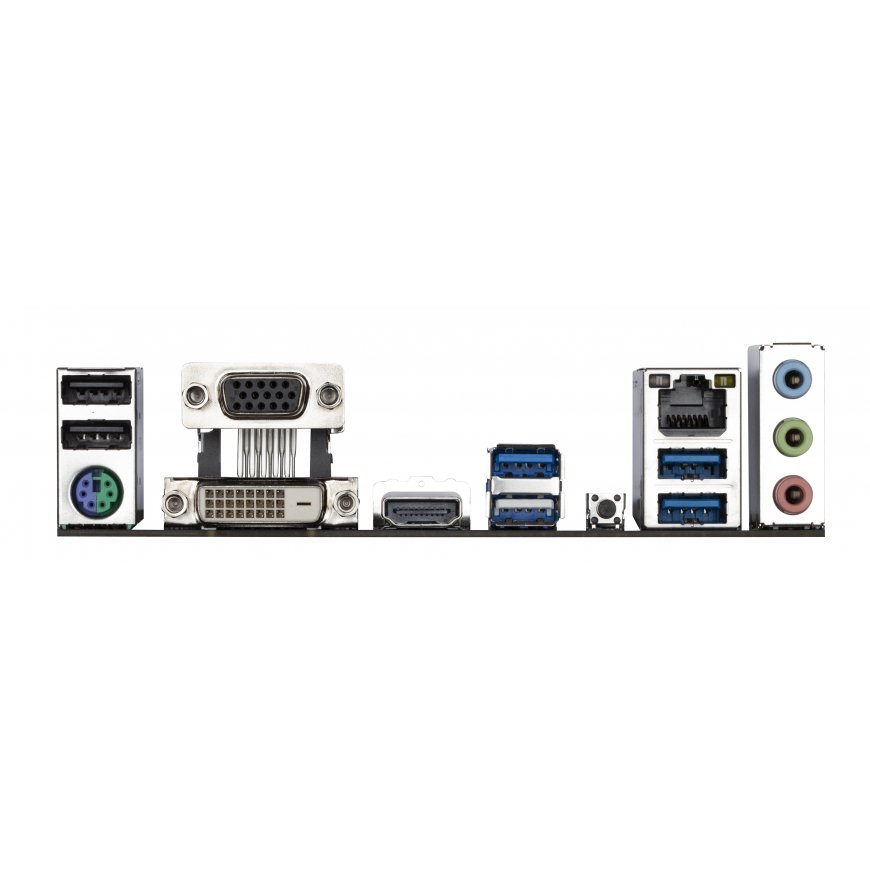

Rear panel I/O ports | |
| PS/2 ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| DVI-D ports quantity | 1 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
Network | |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Wi-Fi | No |
Features | |
| Motherboard form factor | micro ATX |
| Motherboard chipset | AMD A520 |
| Audio output channels | 7.1 channels |
| Motherboard chipset family | AMD |
| Component for | PC |
| Product colour | Black |
Expansion slots | |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| ACPI version | 5.0 |
| Clear CMOS button | Yes |
| Clear CMOS jumper | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
Weight & dimensions | |
| Width | 244 mm |
| Depth | 205 mm |
| Height | 35 mm |
Other features | |
| mSATA ports quantity | 0 |
Technical details | |
| Warranty period | 3 year(s) |
Packaging content | |
| Batteries included | Yes |
Packaging data | |
| Package width | 265 mm |
| Package depth | 235 mm |
| Package height | 52 mm |
| Package weight | 740 g |
Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Country of origin | China |
| Products per shipping (inner) case | 1 pc(s) |
Battery | |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery weight | 3 g |
| Number of battery cells | 1 |
| Lithium weight per battery | 0.07 g |
| Battery type | CR2032 |
