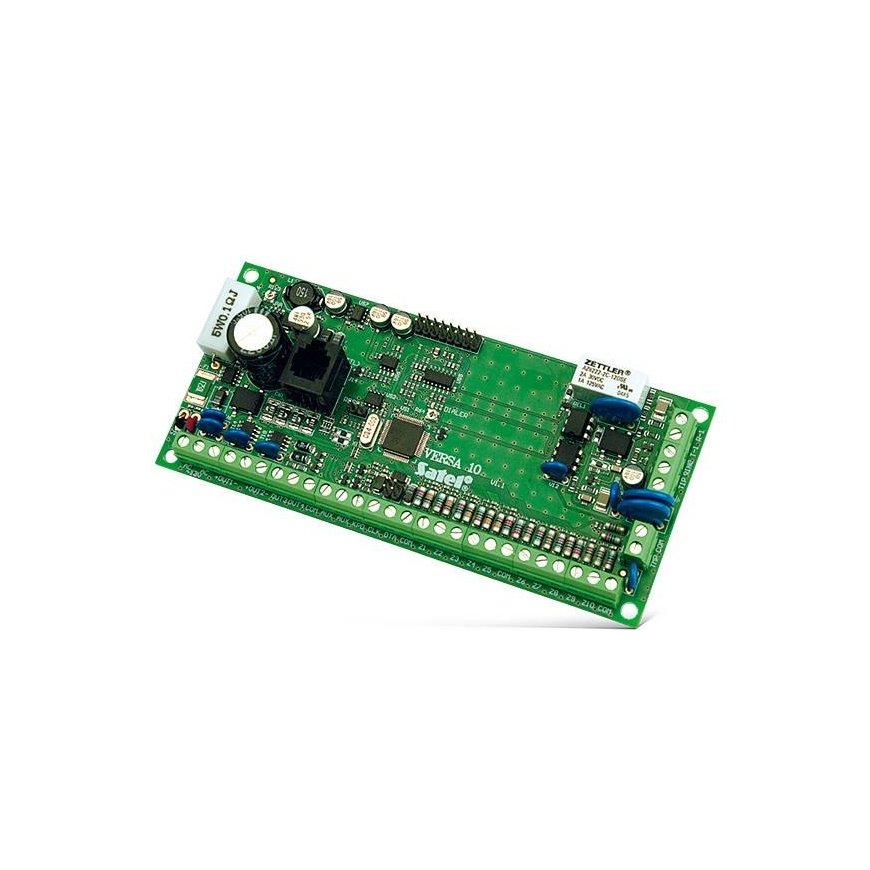

CONTROL PANEL 10-30ZONES/VERSA10 SATEL
CONTROL PANEL 10-30ZONES/VERSA10 SATEL
CONTROL PANEL 10-30ZONES/VERSA10 SATEL
CONTROL PANEL 10-30ZONES/VERSA10 SATEL

The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

CONTROL PANEL 10-30ZONES/VERSA10 SATEL

83.10 €
Monthly payment from 3,04 €
633956

VERSA10

5905033330146

Shipping 2-3 b.d.

You are interested in this product?
(Read terms of service)

All about the product

Description

  • EN50131 Grade 2 compliance
  • 10 zones expandable up to 30:

    • NO, NC, EOL, 2EOL/NO, 2EOL/NC zone configurations
    • support for vibration and roller shutter detectors
    • detectors supervision


  • additional tamper input
  • 4 up to 12 programmable outputs
  • 2 supply outputs
  • 2 partitions:

    • 3 arming modes for each partition
    • arming/disarming by users or timer controlled


  • communication bus for keypads, readers and expansion modules
  • RS-232 port (RJ type socket) for panel programming built-in telephone dialer for:

    • reporting (SIA, ContactID, other)
    • personal messaging (8 telephone numbers, 64 text/16 voice messages)
    • remote programming (built-in 300 bps modem)


  • support for GSM/GPRS communicator:

    • SMS/GPRS reporting
    • voice/SMS messaging


  • support for TCP/IP communicator:

    • e-mail messaging
    • TCP/IP reporting


  • system operation via:

    • LCD or LED keypads (up to 6)
    • proximity tags/cards (up to 6 readers)
    • remote control key fobs


  • easy update of firmware for enhancing the panel with new features
  • support for 31 user codes:

    • 30 standard users
    • 1 installer


  • individual naming for easy system operation and management
  • timers:

    • 4 timers with holidays support


  • event log with 2047 entries
  • automatic diagnostics of basic system components
  • built-in 2 A switching mode power supply:

    • overload protection
    • deep discharge protection
    • battery charging supervision


URLhttp://www.satel.pl/en/product/390/VERSA%2010,Intruder-alarm-control-panel
Unit Gross Weight0.38 kg
Unit Net Weight0.12 kg
Shipping box quantity1
Unit Brutto Volume0.001645 cubm
Dimensions23.5 x 13 x 5.5cm
Shipping Box Width13 cm
Shipping Box Depth23 cm
Shipping Box Height5.5 cm
Shipping Box Weight0.38 kg
