IP56 ATTE ABOX-M3 CASING
39.00 €
Monthly payment from 1,90 €
5008752 ABOX-M3
5902143690597
Shipping 8-12 b.d.
You are interested in this product?
All about the product

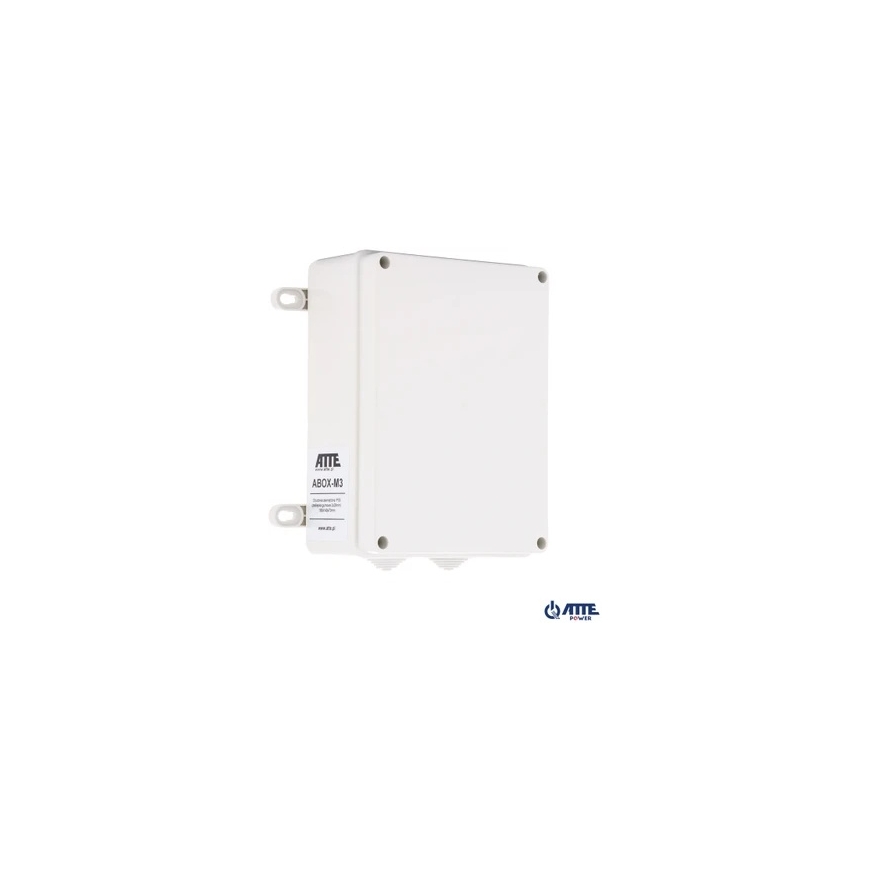

IP56 ATTE ABOX-M3 enclosure
Model: ABOX-M3
Purpose

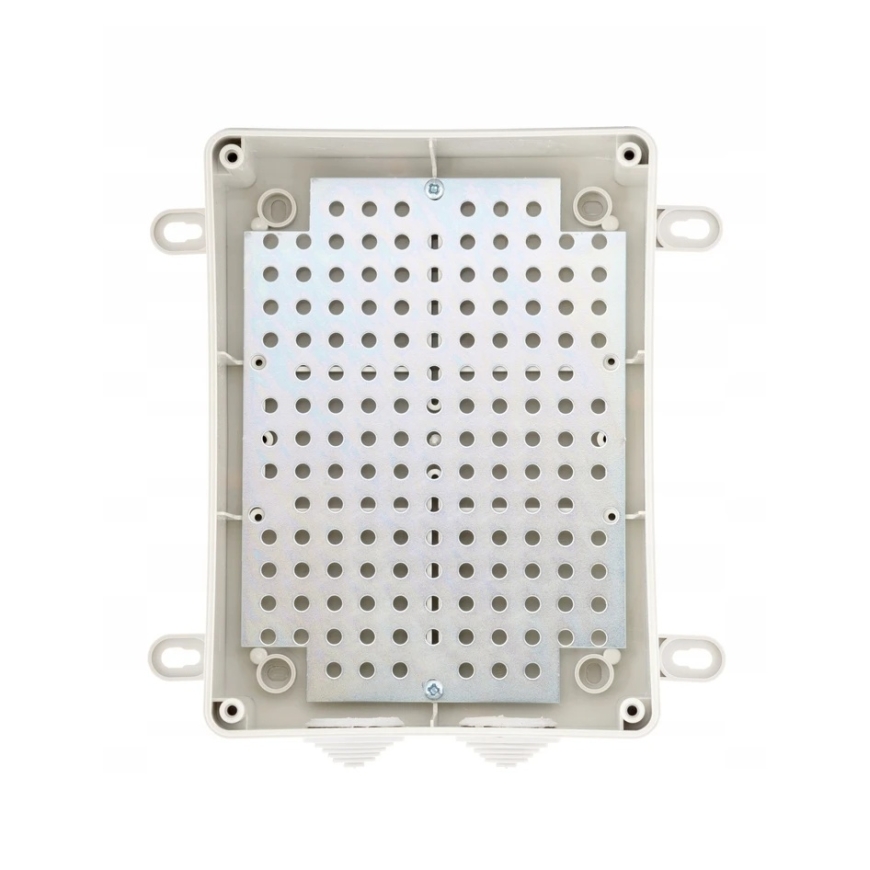

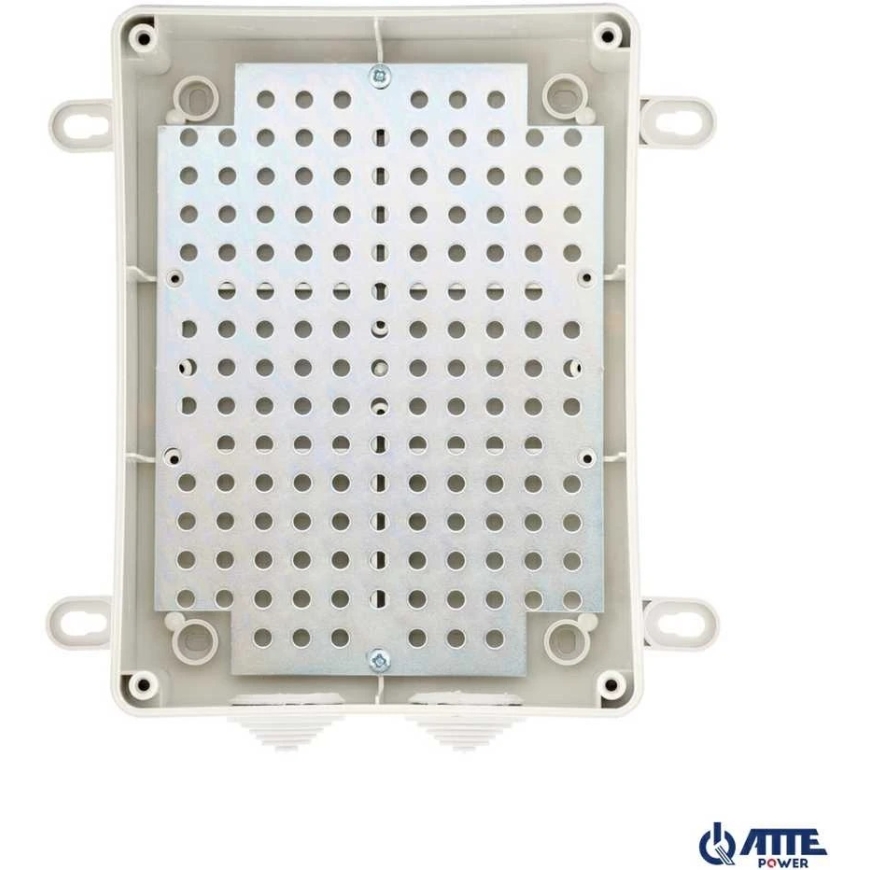

ABOX series outdoor enclosures offer a convenient solution for protecting outdoor-mounted devices and cable connections. High-quality plastic ensures resistance to UV radiation and other unfavorable weather conditions. The available models feature a mounting plate with a special 10.8 mm grid pattern. This is compatible with the mounting hole distance of built-in modules. This system allows for vertical or horizontal mounting of selected devices in any part of the perforated mounting plate.
Key features and functions of ABOX-M3
- ability to store spare cables inside the enclosure
- Cable entry through rubber plugs mounted in the enclosure: 2x29mm

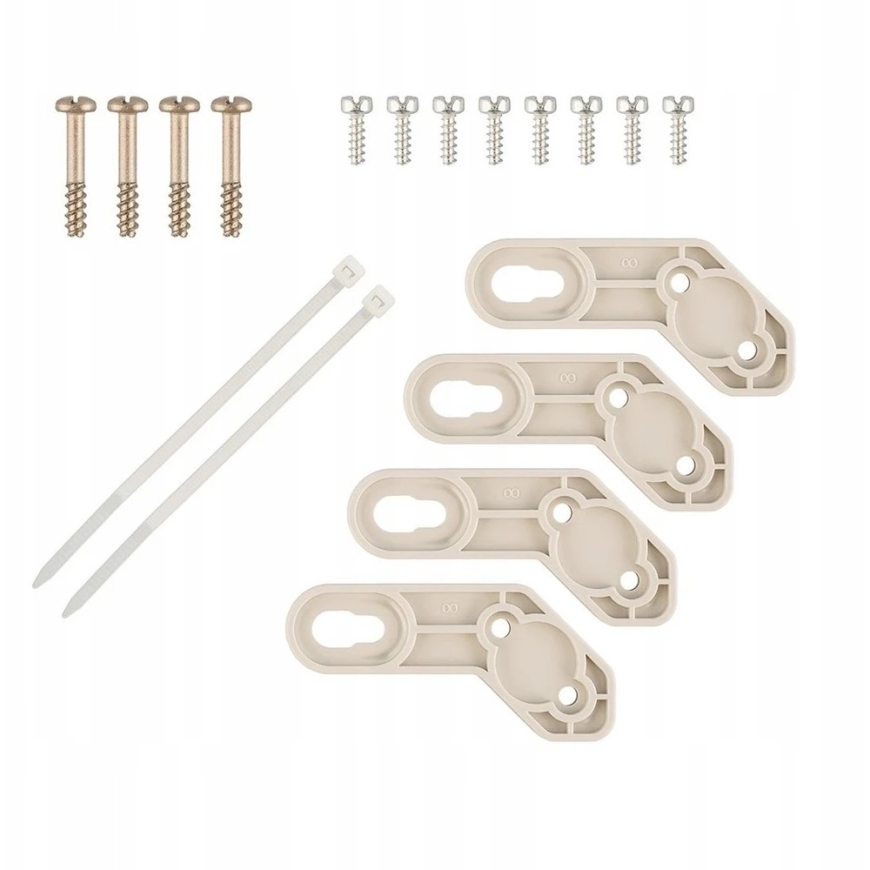

- 4 brackets included, allowing enclosure mounting without compromising IP55 protection class
Specifications
| Enclosure construction | Halogen-free material, resistant to UV radiation. Gray color (RAL7035). Equipped with 2 x 29 mm rubber plugs. |
| Enclosure assembly | wall-mounted, fastening brackets |
| Mounting devices inside the enclosure | system hole punch 4.8 mm in 10.8 mm grid |
| Degree of protection | IP55 |
| Operating temperature range | -25°C...+60°C |
| Dimensions | 190 x 140 x 70 mm |
| Weight | 0.51 kg |
