High Sensitivity Digital Ambient Light Sensor TSL25911 I2C, Waveshare 17146
20.13 €
5002447 AN-17481
5904422327644
Shipping 8-15 b.d.
You are interested in this product?
All about the product

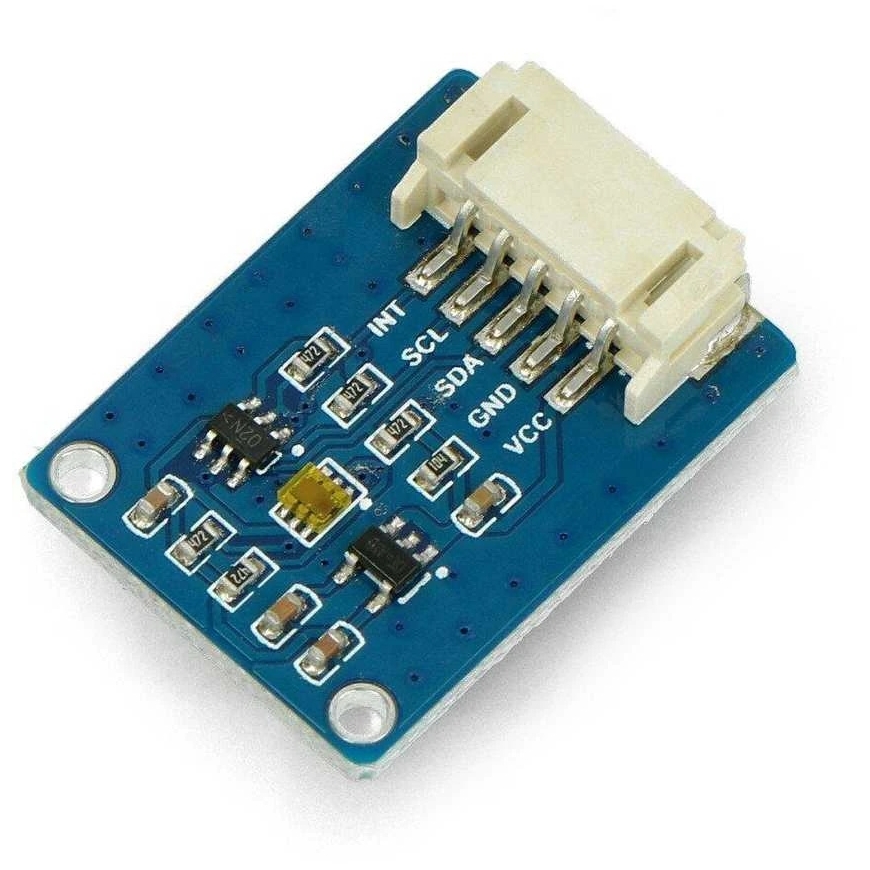

Digital light intensity sensor from Waveshare. The module is based on the TSL25911 chip, which allows for the detection of light intensity up to 88000 lx. The dynamic range is 600M:1. It is compatible with Arduino and Raspberry Pi, using the I2C interface to interact with the main module. It is used under varying lighting conditions and consumes low power.
Specifications:
- Supply voltage: 3.3 V to 5 V
- System: TSL25911FN
- Interface: I2C
- Interface address: fixed 0x29
- Measurement range: 0 lx to 88000 lx
- Sensitivity: up to 188 lx
- Dynamics: 600M:1
- The device is compatible with Arduino, Raspberry Pi, STM32

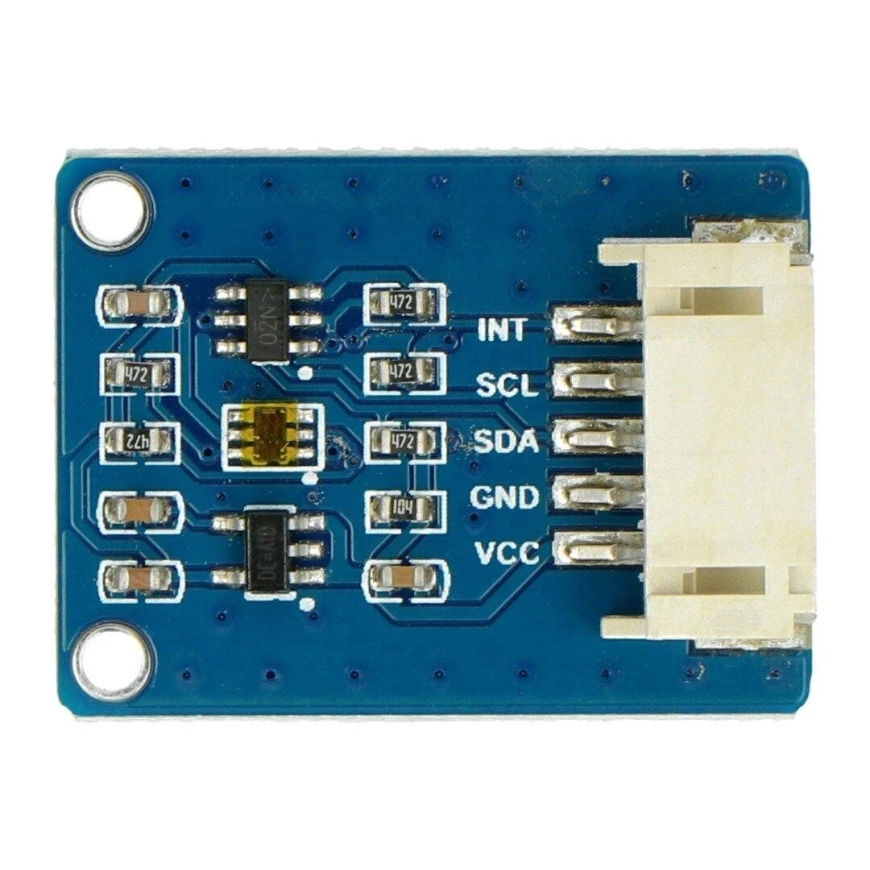

- Outputs:
- VCC - power pin
- GND - system ground
- SDA - data line
- SCL - clock line
- INT - interrupt output (optional pin)
- Dimensions: 27 mm × 20 mm
- Mounting hole size: 2 mm
