FPV DRONE BETAFPV PAVO20 PRO II O4 PRO ELRS 2.4G

All about the product

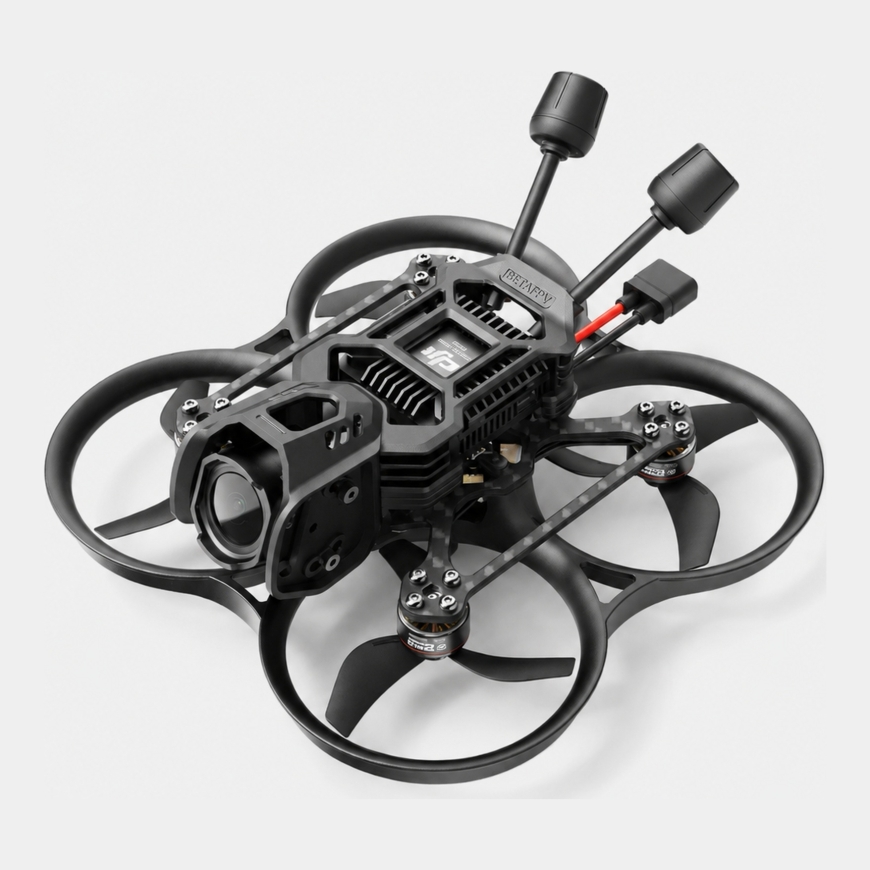

BETAFPV Pavo20 Pro II O4 Pro ELRS 2.4G – compact cinewhoop FPV

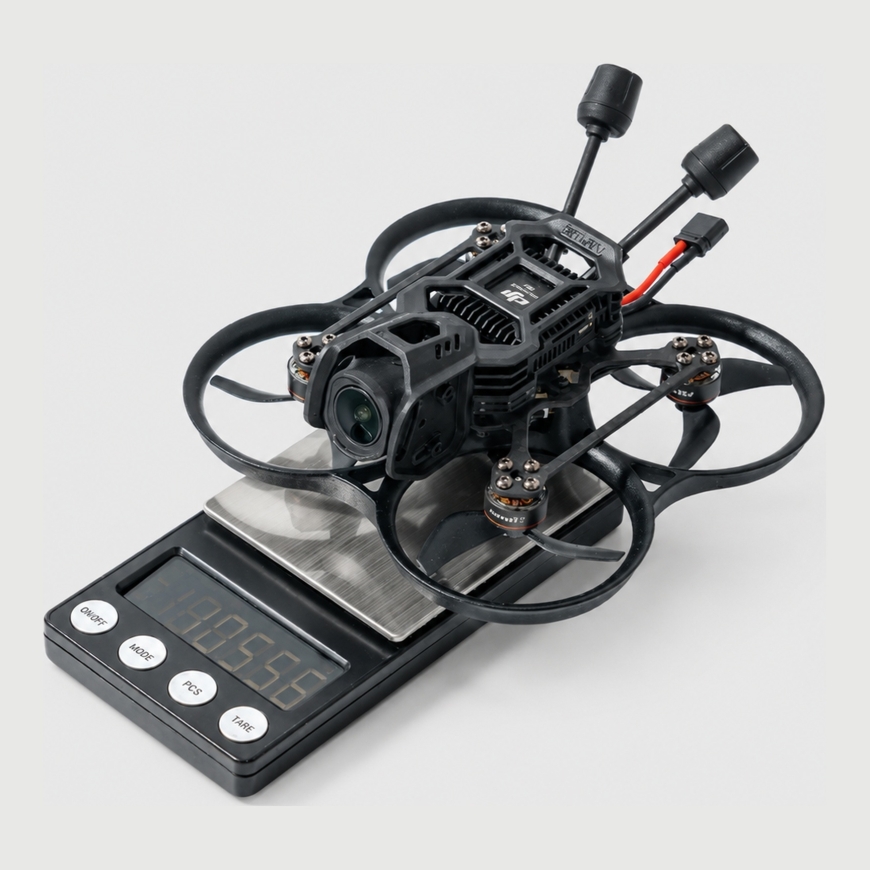

BETAFPV Pavo20 Pro II O4 Pro ELRS 2.4G is a 2.2-inch cinewhoop FPV designed for pilots who expect a combination of compact dimensions, dynamic flight and high-quality HD image. The design has been created with smooth freestyle and cinematic FPV shots in mind. The O4 Pro variant weighs 107.7 g and offers a ready-to-fly platform equipped with an ELRS 2.4G receiver, compatibility with DJI O4 Air Unit systems and an efficient propulsion system.

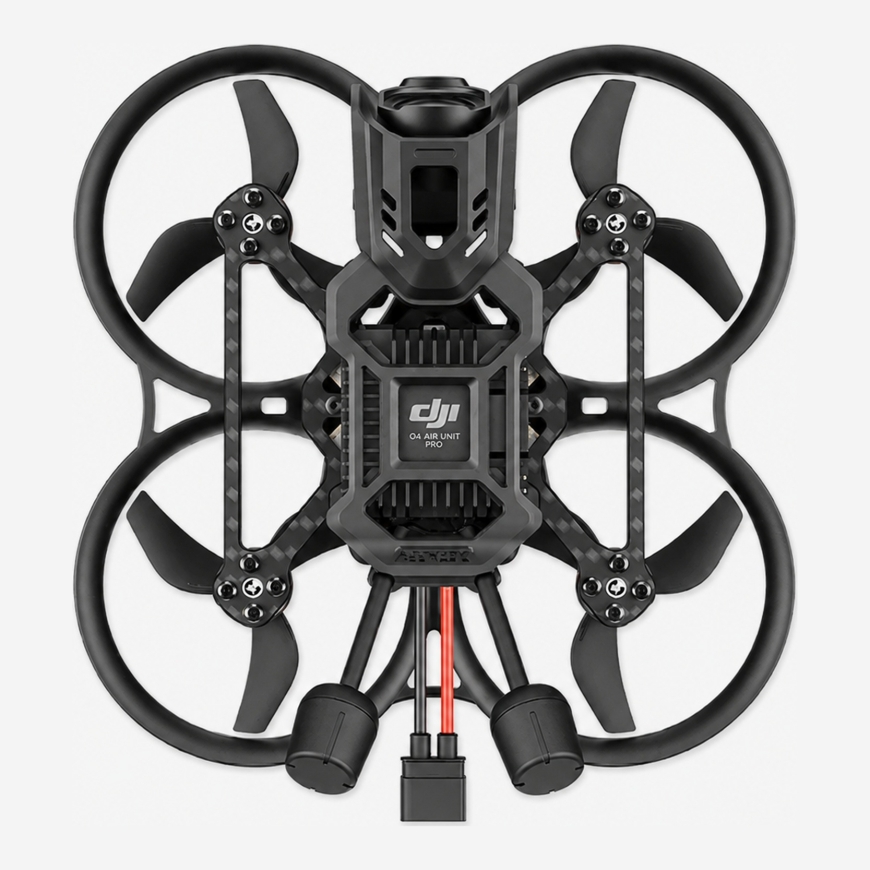

Compatibility with DJI O4 Air Unit and O4 Pro

Pavo20 Pro II has been prepared to work with DJI O4 Air Unit and DJI O4 Air Unit Pro systems. The specially designed carbon plate allows convenient mounting of both solutions, providing greater flexibility when configuring the set-up. Factory-optimised PID parameters for O4 systems simplify preparing the drone for flight and allow you to start recording and FPV training more quickly.

Stable O4 Air Unit Pro mount

The stability of the camera system is ensured by a special O4 Air Unit Pro mount, which helps reduce the impact of vibrations and makes it easier to install the entire module. The reinforced side panel protects the camera, and the 0–40° angle adjustment allows the perspective to be matched to the flying style. Antennas mounted at a 30° angle support the correct positioning of the transmission system, and the mount design promotes smooth FPV footage.

Efficient cinewhoop for freestyle

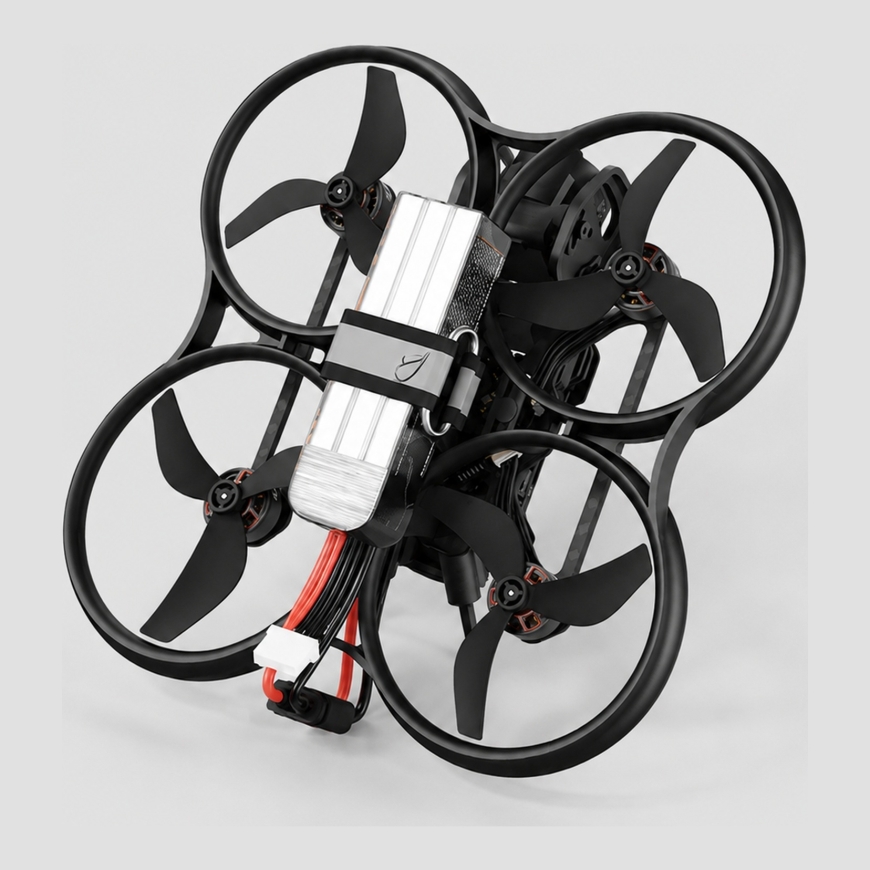

Pavo20 Pro II is equipped with a propulsion system consisting of LAVA 1104 7200KV brushless motors and Gemfan 2218 3-Blade propellers. This configuration delivers dynamic acceleration, quick response to control inputs and plenty of freedom when performing freestyle manoeuvres. With the recommended LAVA 3S 550 mAh 75C battery, the drone can achieve a flight time of up to around 6 minutes 30 seconds.

F4 2–3S 20A AIO FC V1 – control centre

At the heart of the design is the F4 2–3S 20A AIO FC V1 flight controller intended for use with digital HD VTX systems. The unit offers dual BEC: 9V 2A for DJI O4 and 5V 3A for additional devices. The integrated 20A ESC, STM32F405 processor and ELRS 2.4G receiver help deliver fast response and stable performance in flight.

NightFire RGB – striking flights after dark

The integrated NightFire RGB LED strip increases the drone’s visibility during evening flights and gives the design a distinctive look. The system offers 10 lighting effects and 7 colours switched using buttons. This is a practical solution for pilots flying after dark and FPV content creators who want to add an extra visual effect to their footage.

Support for ND and UV filters for the DJI O4 Pro camera

Pavo20 Pro II allows the installation of ND8, ND16, ND32 and UV filters for the DJI O4 Pro camera. This solution makes it easier to control exposure when recording in different lighting conditions and helps achieve a more natural motion effect. The UV filter additionally protects the lens from dust and minor mechanical damage.

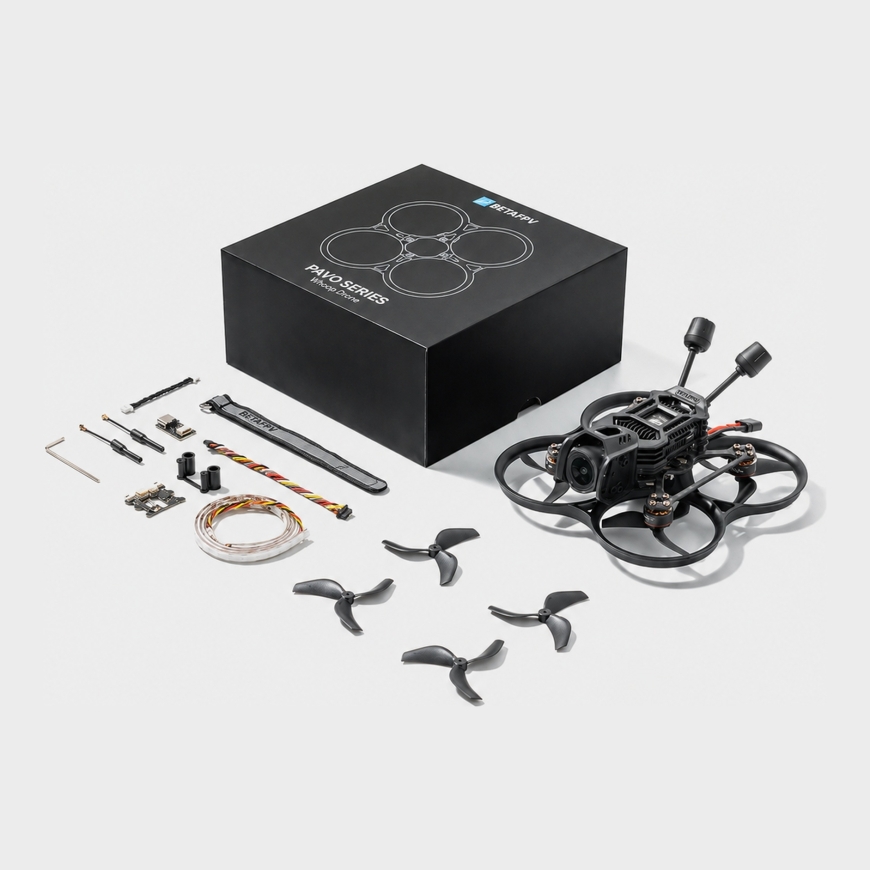

Contents of the set

The set includes the items needed to use the drone, as well as mounting and service accessories.

• 1 × Pavo20 Pro II Brushless Whoop Quadcopter (O4 Pro)
• 4 × Gemfan 2218 3-Blade propeller (1.5 mm shaft)
• 1 × Type-C to SH1.0 adapter
• 1 × SH1.0-4Pin adapter cable
• 1 × SH1.0-6Pin HD cable (100 mm)
• 1 × RGB LED strip (500 mm)
• 1 × RGB board
• 2 × 5.8G VTX antenna mount
• 1 × H1.5 hex screwdriver
• 1 × O4 Air Unit Pro user manual

Technical specification
