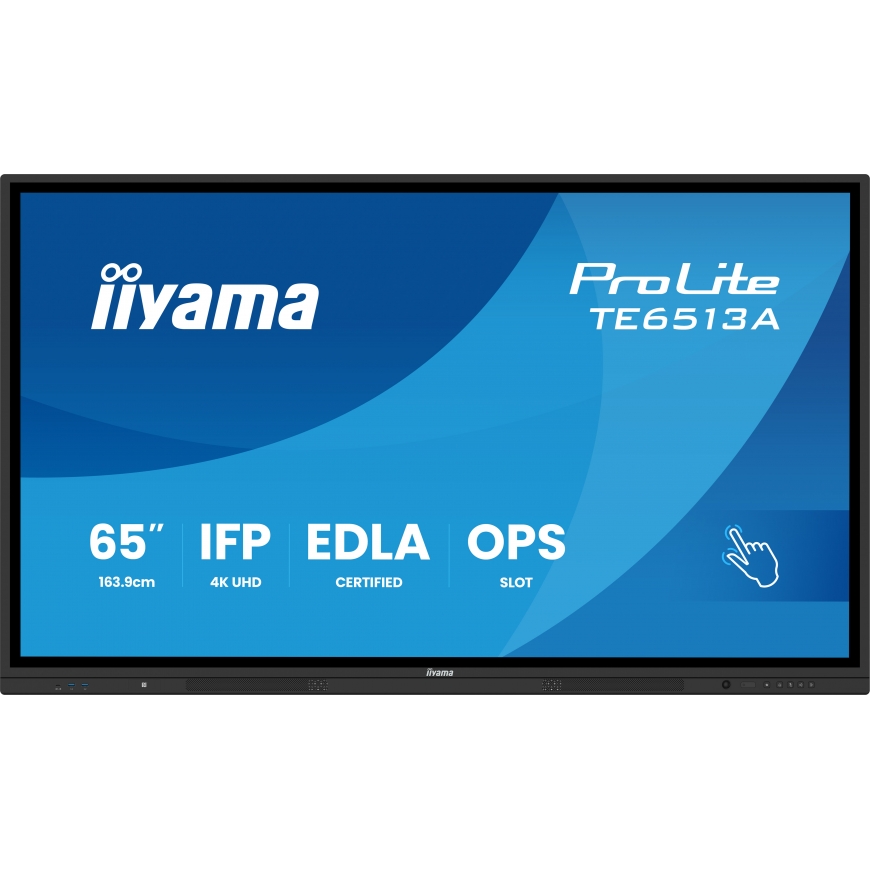

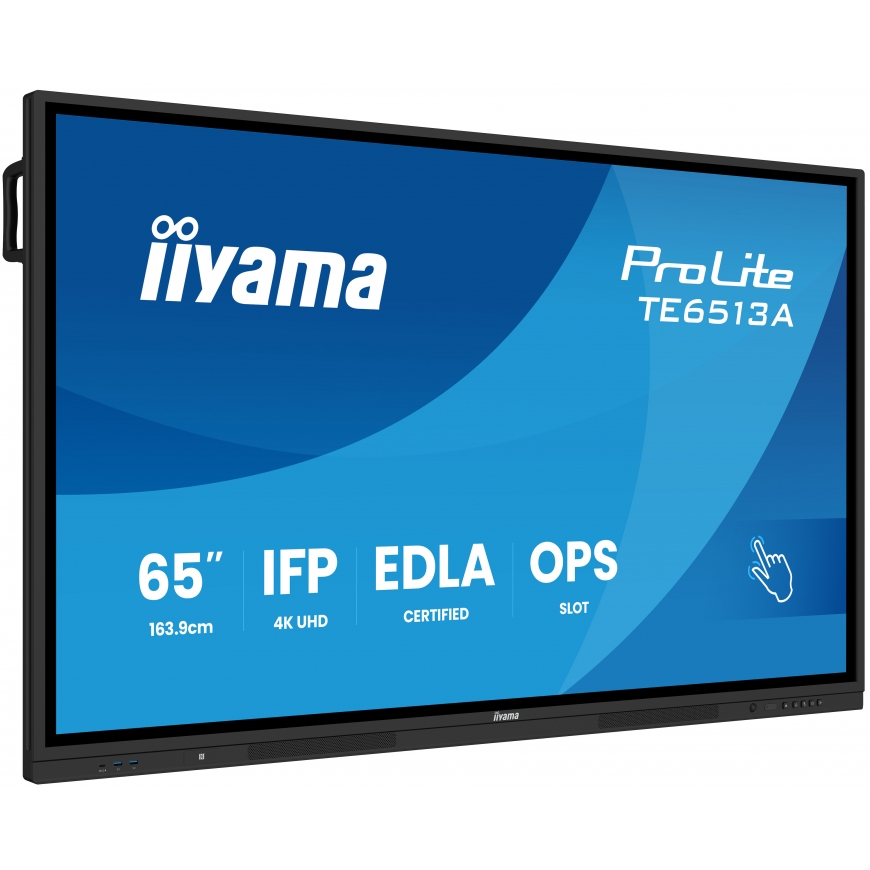

iiyama TE6513A-B2AG Signage Display
4258623 TE6513A-B2AG
4948570125739
2026-07-28
Google EDLA Certified
Google Enterprise Device License Agreement allows Google apps, accounts, files, and collaborative tools to be easily accessed directly from the Google EDLA certified iiyama displays, offering seamless integration with the Google ecosystem and the entire Microsoft 365 suite for enhanced user experience, productivity, and collaboration in all environments, especially the education and enterprise sectors alike.
iiWare 21E (Android 14 OS)
Empower your presentations with iiWare 21E, featuring Google EDLA, iiControl (DMS), iiShare (Wireless Presentation), WhiteBoard, Cloud Drives, iiBrowser and file manager via an intuitive and user-friendly software that allows you to effortlessly manage, customize, and access various applications with ease.
Quick Radial Menu
This feature provides a quick way to operate the interactive display. Long press with five fingers to bring up the Quick Radial Menu. Users can directly select the frequently used apps in the apps menu and place them in the Quick Radial Menu.
iiControl - Device Management System
iiControl provides organizations with a convenient and fast unified management solution for terminal equipment, builds an efficient and real-time equipment management system, helps digitize the campus/office estate environment and makes device management ultra convenient. iiControl DMS is committed to maintaining compliance with GDPR.
PureTouch-IR+
The state-of-the-art PureToucht-IR+ technology ensures accurate and precise touch responses, enabling effortless interaction and annotation.
Pen PickUp Sensor
The Stylus Pen Pick-Up Sensor detects when the pen is lifted from its holder, ensuring instant responsiveness and seamless transitions between touch and stylus input. Ideal for interactive displays, it enhances workflow efficiency by automatically activating writing mode, reducing delays, and improving the overall user experience.
PIR Motion Sensor
The PIR motion sensor enhances energy efficiency by detecting movement and automatically adjusting display settings. It reduces power consumption when no activity is detected, extending device lifespan. Ideal for offices and classrooms, it ensures a smart, hands-free operation while optimizing performance and sustainability.
Standalone Solution & Connectivity
The OPS PC Slot offers a convenient standalone solution, allowing easy integration without the need for additional devices. The USB-C connection provides seamless connectivity, enabling quick data transfer, video output, and power through a single cable for enhanced versatility and ease of use.
Wall Mount
The included wall mount bracket ensures secure and stable installation of your display. Designed for easy setup, it supports VESA compatibility and offers a sleek, space-saving solution. Its durable construction guarantees reliability, making it ideal for classrooms, offices, and meeting rooms.
Speakers, Subwoofer and Webcam Bracket
The built-in front-facing speakers with an integrated subwoofer support conferencing configurations with ultra clear sound. The included webcam bracket ensures secure and stable installation of a webcam. Ideal for conferencing, presentations, and interactive applications.
| Display diagonal | 163.8 cm (64.5") |
| HD type | 4K Ultra HD |
| Display resolution | 3840 x 2160 pixels |
| Native aspect ratio | 16:9 |
| Operating system installed | Android |
| RMS rated power | 60 W |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Product colour | Black |
| VESA mounting | Yes |
| Panel mounting interface | 600 x 400 mm |
| HDMI ports quantity | 3 |
| Energy efficiency class (SDR) | G |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 144 kWh |
| Touchscreen | Yes |
| Display number of colours | 1.07 billion colours |
| Internal storage capacity | 128 GB |
| Compatible memory cards | MicroSD (TransFlash) |
| Wi-Fi standards | 802.11a; 802.11b; 802.11g; Wi-Fi 4 (802.11n); Wi-Fi 5 (802.11ac); Wi-Fi 6 (802.11ax); Wi-Fi 6E (802.11ax) |
| Bluetooth version | 5.0 |
| USB port | Yes |
| USB connector type | USB Type-C; USB Type-A; USB Type-B |
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| Weight | 39.4 kg |
| Width | 1489 mm |
| Depth | 87 mm |
| Height | 891.5 mm |
| Cables included | AC; USB; HDMI |
| Internal memory | 8 GB |
| Package width | 1640 mm |
| Package depth | 185 mm |
| Package height | 1010 mm |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Package weight | 48.5 kg |
| Sustainability certificates | ErP |
| Power consumption (off) | 0.3 W |
| Quick start guide | Yes |
| Products per pallet | 4 pc(s) |
| Purpose | Education |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| Ethernet LAN data rates | 1000 Mbit/s |
| Card reader integrated | Yes |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 182 W |
| Built-in speaker(s) | Yes |
| Energy efficiency scale | A to G |
| AC input frequency | 50/60 Hz |
| Remote control included | Yes |
| USB ports quantity | 6 |
| Mean time between failures (MTBF) | 50000 h |
| Orientation | Horizontal |
| Placement supported | Indoor |
| Contrast ratio (typical) | 1200:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display diagonal (metric) | 163.9 cm |
| Operating system version | 14 |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 13 |
| On Screen Display (OSD) languages | Danish; German; Dutch; English; Spanish; Estonian; Finnish; French; Hungarian; Italian; LAT; Norwegian; Polish; Russian; Swedish; Ukrainian; CAT; Czech; Lithuanian |
| Audio Return Channel (ARC) | Yes |
| Number of built-in speakers | 2 |
| HDMI version | 2.0 |
| HDCP | Yes |
| Power consumption (standby) | 0.4 W |
| Display brightness | 500 cd/m² |
| Power supply type | Internal |
| Product design | Interactive flat panel |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Contrast ratio (dynamic) | 5000:1 |
| HDMI input ports quantity | 2 |
| RS-232C | Yes |
| Anti-glare screen | Yes |
| Computer system | Yes |
| Built-in processor | Yes |
| Display width | 1489 mm |
| Display depth | 87 mm |
| Display height | 891.5 mm |
| Display weight | 39.4 kg |
| On-board graphics card model | ARM Mali-G52 |
| Panel type | IPS |
| Pixel pitch | 0.372 x 0.372 mm |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| Response time | 8 ms |
| USB Type-C DisplayPort Alternate Mode | Yes |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 100 W |
| HDCP version | 2.2 |
| Touchscreen technology | PureTouch-IR |
| HDMI output ports quantity | 1 |
| Horizontal scan range | 30 - 135 kHz |
| Glass thickness | 3.2 mm |
| Number of simultaneous touchpoints | 40 |
| Active display area (W x H) | 1428.5 x 803.5 mm |
| Stylus pen | Yes |
| Bezel width (bottom) | 4.1 cm |
| Bezel width (side) | 1.65 cm |
| Bezel width (top) | 1.65 cm |
| Operating hours (hours/days) | 24/7 |
| Processor architecture | ARM Cortex-A53+Cortex-A72 |
| OPS slot | 1 |
| Brightness | 500 cd/m² |
| Surface hardness | 7H |
| USB 2.0 Type-B ports quantity | 1 |
| Number of stylus pens | 4 |
| OPS module slot | Yes |
| Positioning accuracy | 1 mm |
| Audio in (mini jack) | Yes |
| Warranty period | 5 year(s) |
| User controls | general settings (input, volume, backlight), audio (volume, bass, treble, balance, sound mode, mute), screen settings (aspect ratio, pixel shift), display settings (brightness, contrast, hue, sharpness, display mode colour temp), settings (wireless & networks, share, device, personal, system) |
| Playback media | Y |
| Bezel colour | Black |
| Compliance certificates | CE; RoHS; REACH; WEEE; EAC; TÜV mark; CB |
