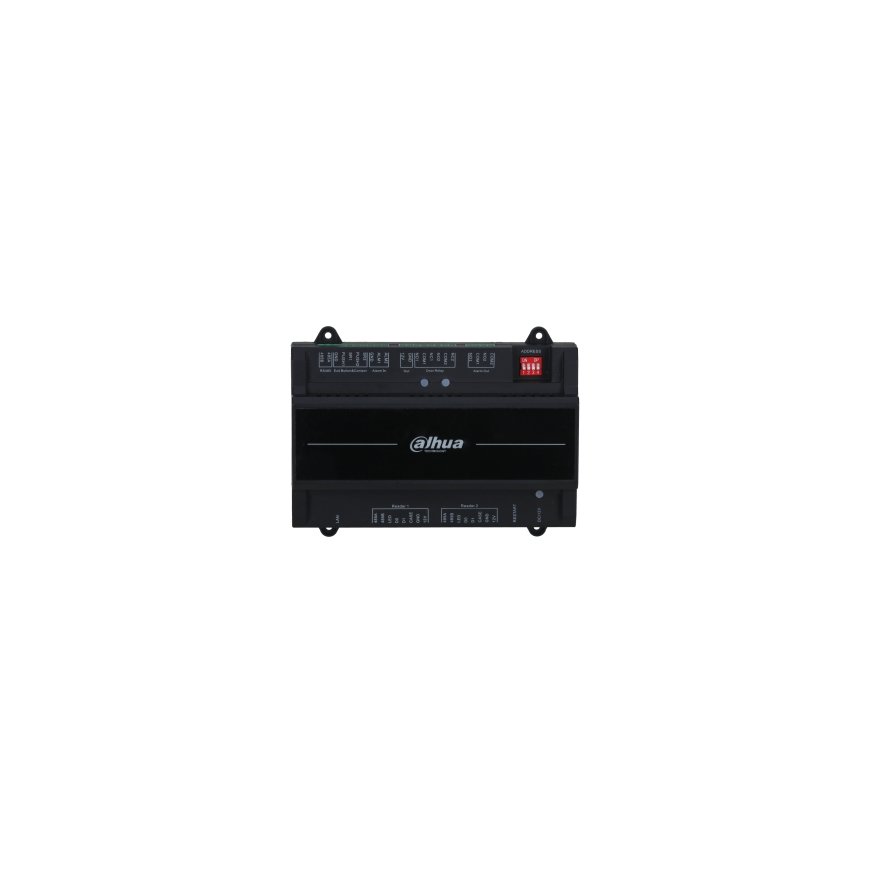

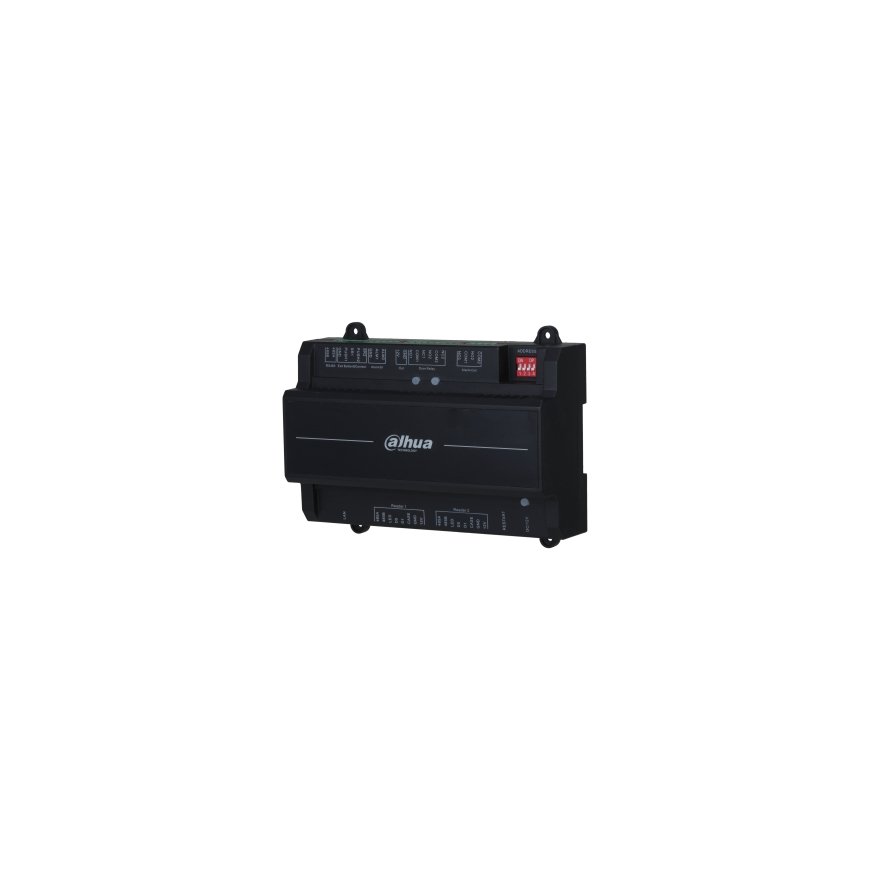

Dahua Technology DHI-ASC2202B-S security door controller Bare 2 door(s) RJ-45 / RS-485
219,00 €
Monthly payment from 6.54 €
4195076 ASC2202B-S
6939554993398
This product is no longer in stock
You are interested in this product?
- Support TCP/IP communication
- Two dual communication protocols: RS-485 and Wiegand (W26 and W34)
- Holds 100,000 users and stores 500,000 card swiping records
- Support interlock, group combination, anti-passback, remote unlock, and more
| Weight | 400 g |
| Width | 155 mm |
| Depth | 106 mm |
| Height | 50 mm |
| Package width | 190 mm |
| Package depth | 141 mm |
| Package height | 87 mm |
| Certification | CE/FCC/UL |
| Operating temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10; 100 |
| Power consumption (typical) | 24 W |
| Interface | RJ-45 / RS-485 |
| Operating voltage | 12 V |
| Alarm input channels | 2 |
| Number of users | 100000 user(s) |
| Operating current | 1 A |
| DC voltage range | 12 V |
| Case design | Bare |
| RS-485 ports | 3 |
| Maximum number of doors | 2 door(s) |
| Wiegand interface | Yes |
| Built-in UPS | No |
| Exit button supported | Yes |
| Number of Wiegand readers supported | 2 |
