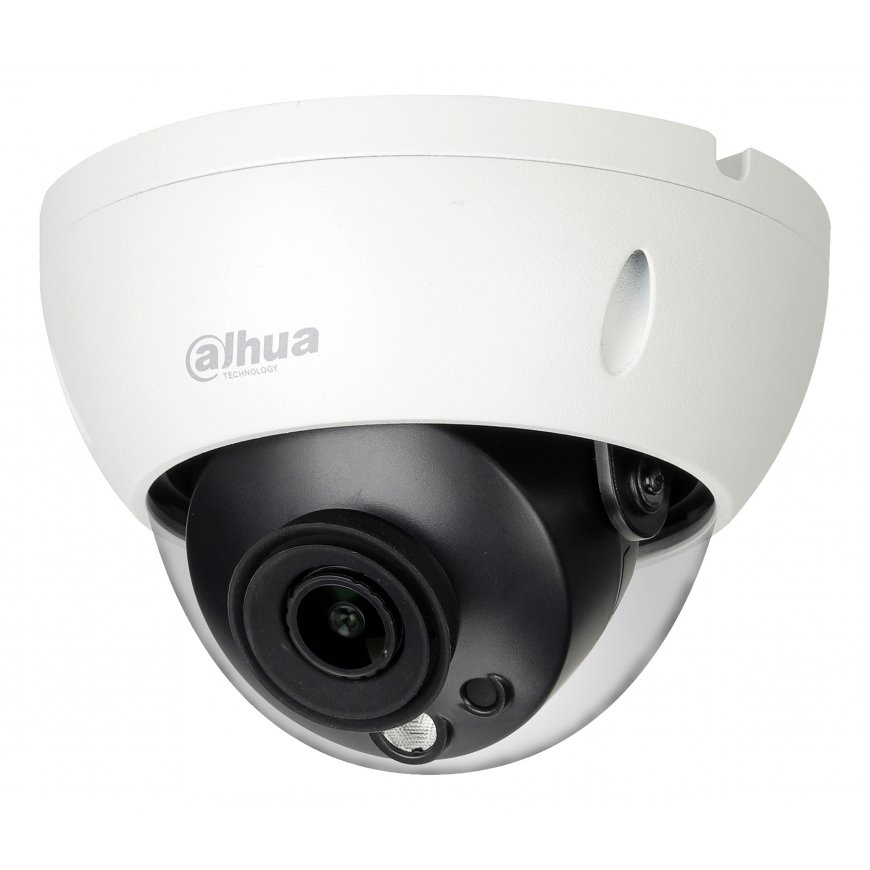

Dahua Technology Pro HDBW5541R-ASE Dome IP security camera Indoor & outdoor 2688 x 1520 pixels Ceiling/wall
146,64 €
Monthly payment from 4.68 €
4112693 HDBW5541R-ASE-0280BOPAT
6923172527431
Shipping 2-3 b.d.
You are interested in this product?
| Wi-Fi | No |
| Bluetooth | No |
| Product colour | White |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 256 GB |
| Auto focus | Yes |
| Form factor | Dome |
| International Protection (IP) code | IP67 |
| Audio formats supported | AAC |
| Weight | 950 g |
| Depth | 159 mm |
| Height | 117.9 mm |
| Type | IP security camera |
| Supported video modes | 720p; 1080p |
| Maximum resolution | 2688 x 1520 pixels |
| Plug and Play | Yes |
| Connectivity technology | Wired |
| Windows operating systems supported | Yes |
| Mobile operating systems supported | Android; iOS |
| Manual | Yes |
| Supported graphics resolutions | 1280 x 720 (HD 720); 1920 x 1080 (HD 1080); 2560 x 1440; 640 x 480 (VGA); 352 x 240; 352 x 288; 704 x 576; 1280 x 960; 2688 x 1520; 2304 x 1296 |
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| DC-in jack | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Networking standards | IEEE 802.1x |
| Card reader integrated | Yes |
| Housing material | Metal |
| AC input voltage | 24 V |
| Power consumption (typical) | 12.4 W |
| Ethernet interface type | Fast Ethernet |
| Noise reduction | Yes |
| Audio output channels | 1.0 channels |
| Mounting type | Ceiling/wall |
| Power source type | DC; AC; PoE |
| Focal length range | 8 - 32 mm |
| Angle of rotation | 355° |
| Placement supported | Indoor & outdoor |
| Tilt angle range | 0 - 65° |
| Web browser | Yes |
| Supported network protocols | IPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP ;RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP ;NTP;Multicast;ICMP;IGMP;NFS;PPPoE;SNMP |
| IK code | IK10 |
| Fog proof | Yes |
| Camera shutter speed | 1/3 - 1/100000 s |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 1.8 mm (1 / 1.8") |
| Video compression formats | H.264; H.265; H.264+; H.265+; H.265 Pro; H.265 Pro+ |
| Video intelligence analytic | Yes |
| Audio input channels | 1.0 channels |
| Built-in HDD | No |
| Video motion detection | Yes |
| DC output voltage | 12 |
| Number of cameras | 1 |
| Mirror | Yes |
| Number of illumination LEDs | 3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Voice codecs | G.711alaw; G.723; G.726; G.723.1; G.711a; G.726-32 |
| Number of users | 20 user(s) |
| Minimum illumination | 0.002 lx |
| White balance | Auto; Manual; Outdoor; Natural; Lamp |
| Gain control type | Auto/Manual |
| Pan range | 0 - 355° |
| Motion sensor | Yes |
| Frame rate | 30 fps |
| Total megapixels | 5 MP |
| Camera shutter type | Electronic |
| Night vision | Yes |
| LED type | IR |
| Maximum aperture number | 1.6 |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Number of sensors | 1 |
| Number of lenses | 1 |
| Video streaming | Yes |
| Alarm input/output | Yes |
| Progressive scan | Yes |
| Active tampering alarm | Yes |
| Auto flip | Yes |
| Night vision distance | 80 m |
| Flip & mirror | Yes |
| Privacy masking | Yes |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Bit rate | H.264: 32 Kbps–8192 Kbps, H.265: 19 Kbps– 8192 Kbps |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Region of Interest (ROI) encoding | Yes |
| Streaming method | Multicast; Unicast |
| Management software | Smart PSS, DSS, DMSS |
| Noise reduction technology | 3D noise reduction |
| Adjustment shutter speed | Auto/Manual |
| Number of effective pixels (H x V) | 2688 x 1520 pixels |
| Smart IR | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Normal focusing range | 2.5 - 6 m |
| Fixed focus | Yes |
| People counting function | Yes |
| Privacy protection | Yes |
| Lens viewing angle, horizontal | 43° |
| Lens viewing angle, vertical | 23° |
