ICY BOX IB-RD3720-CU3 HDD/SSD enclosure Black 2.5/3.5"
59,00 €
Monthly payment from 2.42 €
4071950 61191
4250078175254
Shipping 6-8 b.d.
You are interested in this product?

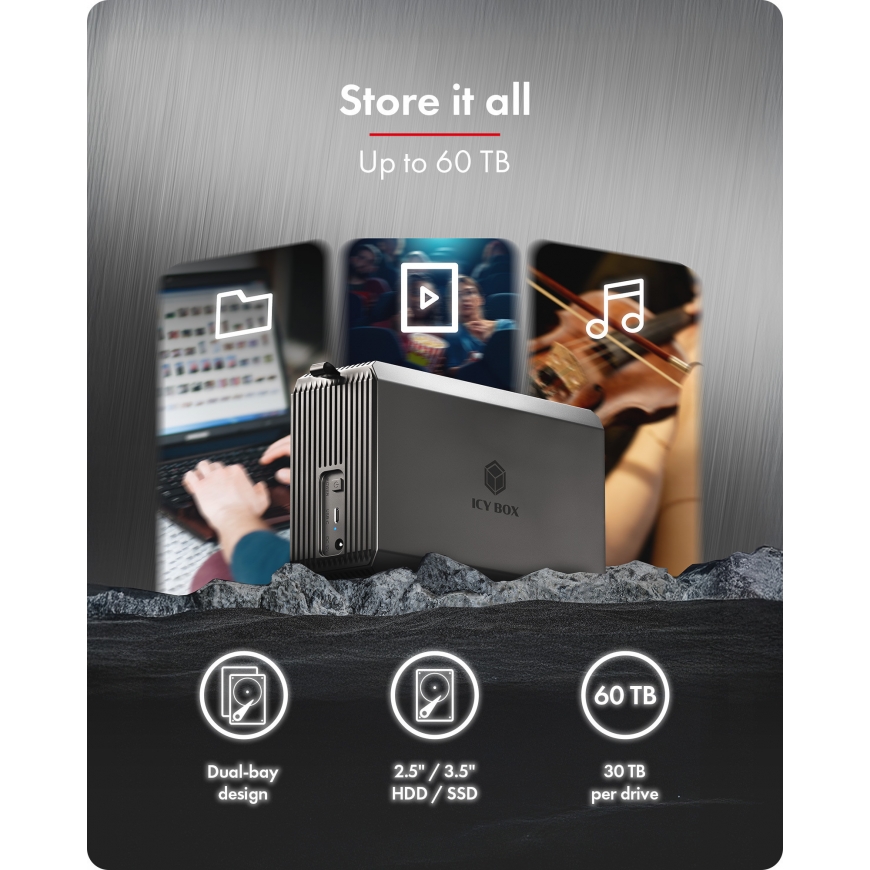

Store it all, up to 60 TB
Designed for large-scale storage needs, this RAID system supports two 3.5" or 2.5" drives with a combined capacity of up to 60 TB. Ideal for backups, multimedia projects, and data-heavy workflows.

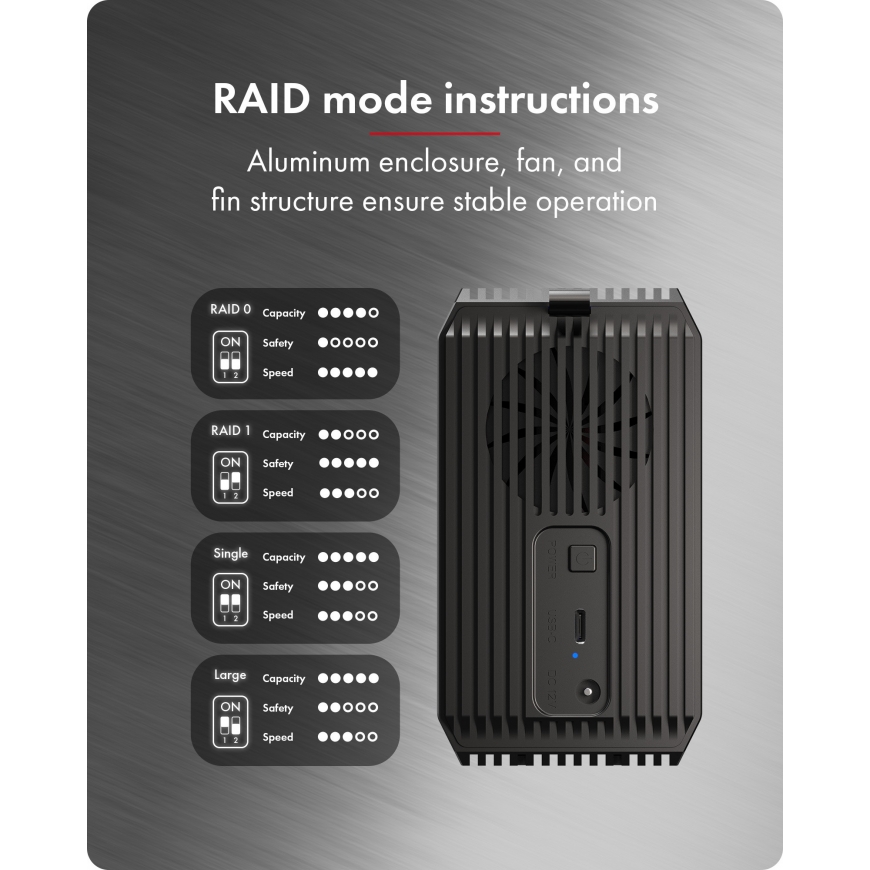

RAID mode instructions
Easily configure your preferred RAID setup: RAID 0, RAID 1, SINGLE, or LARGE via the integrated DIP switch. Flexible options let you balance between performance and data security.

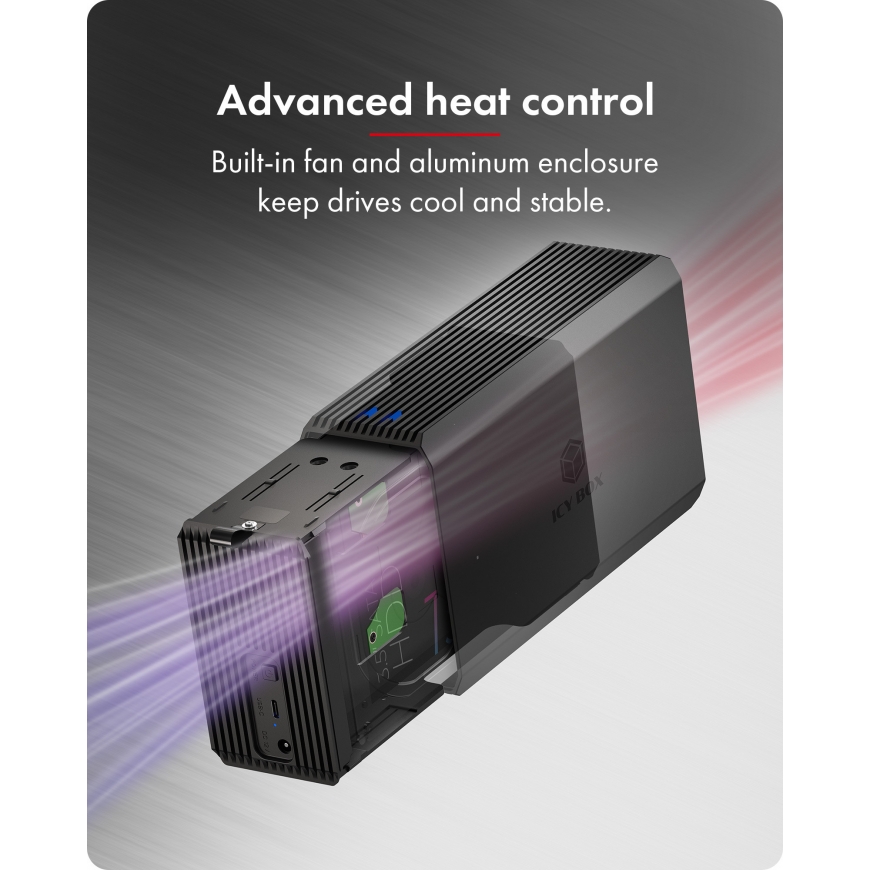

Advanced heat control
Equipped with a 50x50 mm fan, the unit maintains optimal operating temperatures even under heavy workloads. This ensures stable performance and extends drive lifespan.

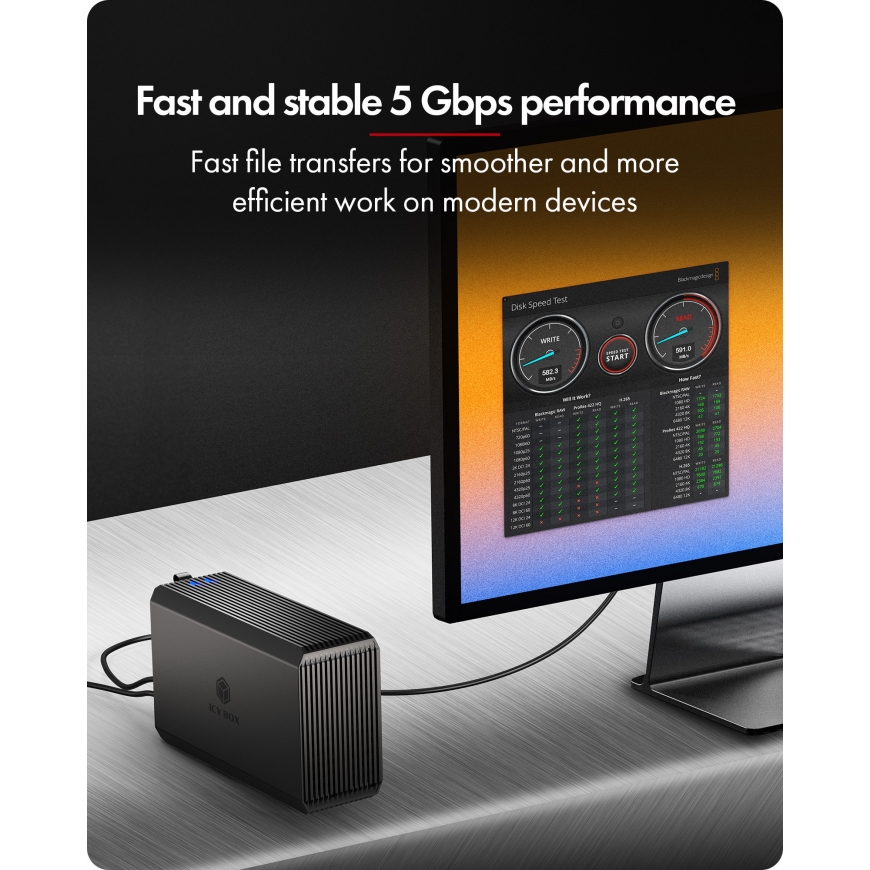

Fast and stable 5 Gbps performance
The USB 3.2 Gen 1 Type-C® interface delivers transfer speeds of up to 5 Gbps. Perfect for handling large files quickly and reliably.
Wide system & drive compatibility
Compatible with both 2.5" and 3.5" SATA HDDs or SSDs, and supports SATA III with backward compatibility for SATA II drives. Works seamlessly across different setups and operating systems.
Ready to use, all accessories included
Comes complete with a power adapter, cables, and everything needed for setup. Ready to run right out of the box for immediate data access.
Double the bays, double the choice
With room for 2 drives, the IB-RD3720-CU3 is designed to work with both 2.5" and 3.5" HDDs or SSDs, giving you the freedom to mix and match based on your storage needs. Whether you prefer the compact size of 2.5" drives or the larger capacity of 3.5", installation is straightforward and convenient.
Connect fast, work faster
With its USB 3.2 Gen 1 Type-C® connection, this RAID system keeps data moving at speeds of up to 5 Gbps. That means large video files, photo libraries, or project backups transfer quickly without long waits. USB Type-C® is compatible with a wide range of modern notebooks, desktops, and devices, so you spend less time worrying about cables and enjoy more time focusing on your work or entertainment.
Switch it your way
The built-in DIP switch makes it simple to choose how your storage works for you. With just a flick, you can select between 4 modes: RAID 0 for faster access, RAID 1 for reliable backup, SINGLE for independent drives, or LARGE to combine capacity into one big volume. There’s no complicated setup and you can adapt the system to different projects, balancing performance and protection depending on what matters most.
Storage | |
| RAID levels | 0, 1 |
| Hot-swap | Yes |
| Storage drive size | 2.5/3.5" |
| Supported storage drive interfaces | Serial ATA II, Serial ATA III |
| Maximum storage capacity | 30 TB |
Features | |
| Number of storage drives supported | 2 |
| Product colour | Black |
| Material | Aluminium |
| Number of fans | 1 fan(s) |
| Cable length | 1 m |
Ports & interfaces | |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| USB connectivity | Yes |
| USB connector type | USB Type-C |
| USB ports quantity | 1 |
| DC-in jack | Yes |
Design | |
| LED indicators | Yes |
| Fan diameter | 5 cm |
| On/off switch | Yes |
| Product type | HDD/SSD enclosure |
Performance | |
| Plug and Play | Yes |
| Chipset | JMS561 |
| Data transfer rate | 5 Gbit/s |
Logistics data | |
| Country of origin | China |
Power | |
| External power adapter | Yes |
| Power source type | DC |
| AC adapter output voltage | 12 V |
| AC adapter output current | 4 A |
Weight & dimensions | |
| Weight | 786 g |
| Package weight | 1.16 kg |
| Depth | 200 mm |
| Height | 117 mm |
| Package depth | 300 mm |
| Package height | 100 mm |
| Package width | 175 mm |
| Width | 65 mm |
Packaging content | |
| Package type | Box |
System requirements | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
Operational conditions | |
| Operating relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
