TST EXTENDERIO TRANSMITTER HDMI-EX122E-TX
3890135 HDMI-EX122E-TX
5902887094200
Shipping 1-14 b.d.
The device allows the transmission of high-resolution signals to a television receiver with an HDMI connection, using category 5, 5e, or 6 twisted pair cable.

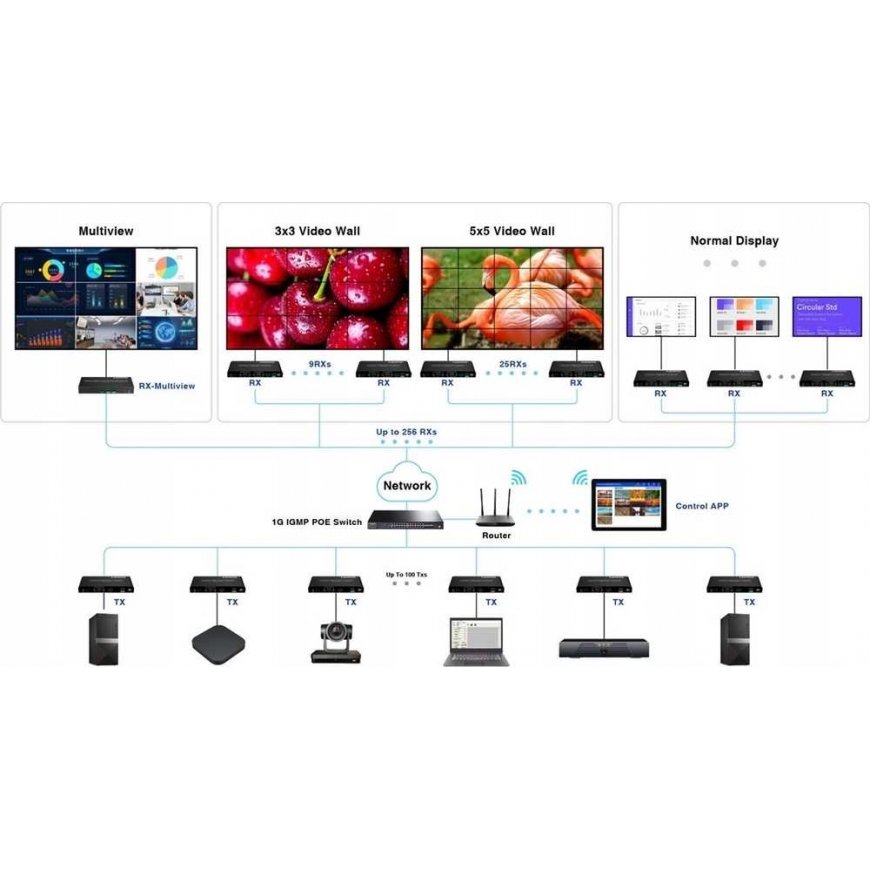

The device can operate in "one-to-one", "one-to-many" connection mode and via switch also in cascade connections.

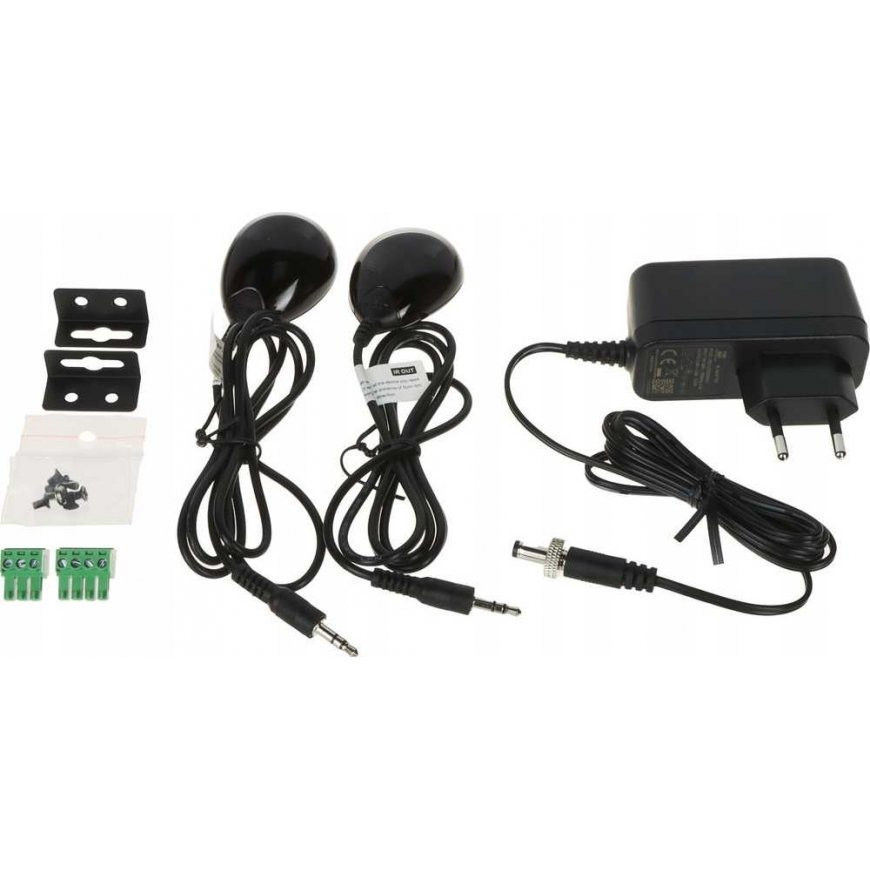

The device is additionally equipped with IR control signal input and output (IR transmitter and receiver included), HDMI output, control inputs/outputs (I/O), RS-232 port and mini-USB port for firmware updates.
The transmitter supports PoE power supply.
HDMI-EX122E-TX is perfect for connecting a satellite tuner, DVD player, computer, or console to a receiver that is located at a significant distance from the listed devices.
Only one twisted pair cable needs to be laid to the television, which simplifies installation and improves the aesthetics of the installation.
Attention!.
The device operates from the signal source side.
| Device type : | Transmitter without a device |
| Supported HDMI resolutions : | 1280 x 720 - 720p @ 50/60 Hz 1920 x 1080 - 1080p @ 50/60 Hz 1920 x 1200 @ 60 Hz 2560 x 1440 @ 60 Hz 3840 x 2160 - 4K UHD @ 24/30/50/60 Hz 4096 x 2160 @ 24/30 Hz |
| Maximum transmission distance : | 80 m UTP category 5, 100 m UTP category 5e, 120 m UTP category 6. |
| Protocols : | ipcolor STREAM™ |
| Supported HDMI standard : | 2.0 |
| HDCP : | 1.4 / 2.2 |
| Main features : | HDMI cable : max. 5 m Fast data transmission : max. 18 Gbps Transmission delay : 70 ... 130 ms - 1080p @ 60 Hz, 130 ... 200 ms - 4K @ 60 Hz LPCM 2.0 support HDMI Input / Output (loop) IR receiver / IR transmitter I/O ports, RS-232 (control) mini USB port - Ability to update firmware RESET button Remote control - Free iMMS app - ipcolor Multimedia Management System for Android devices Overvoltage protection Electrostatic discharge protection - ESD - IEC 61000-4-2, ±4kV contact, ±8kV air Lightning protection |
| Power supply : | 5 V DC / 2 A (included - power adapter) PoE |
| Power consumption : | ≤ 5.5 W |
| Operating temperature : | -20 °C ... 60 °C |
| Allowable relative humidity : | 0 % ... 90 % (without condensation) |
| Weight : | 0.522 kg |
| Dimensions : | 191 x 96 x 25 mm |
| Warranty : | 2 years |
