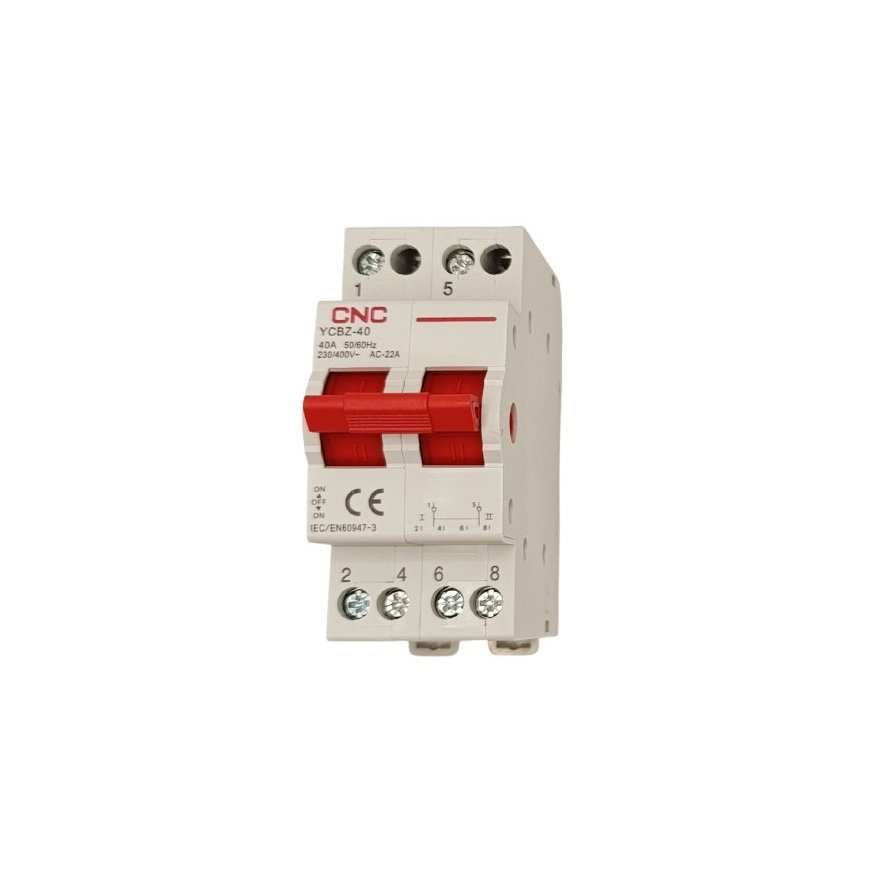

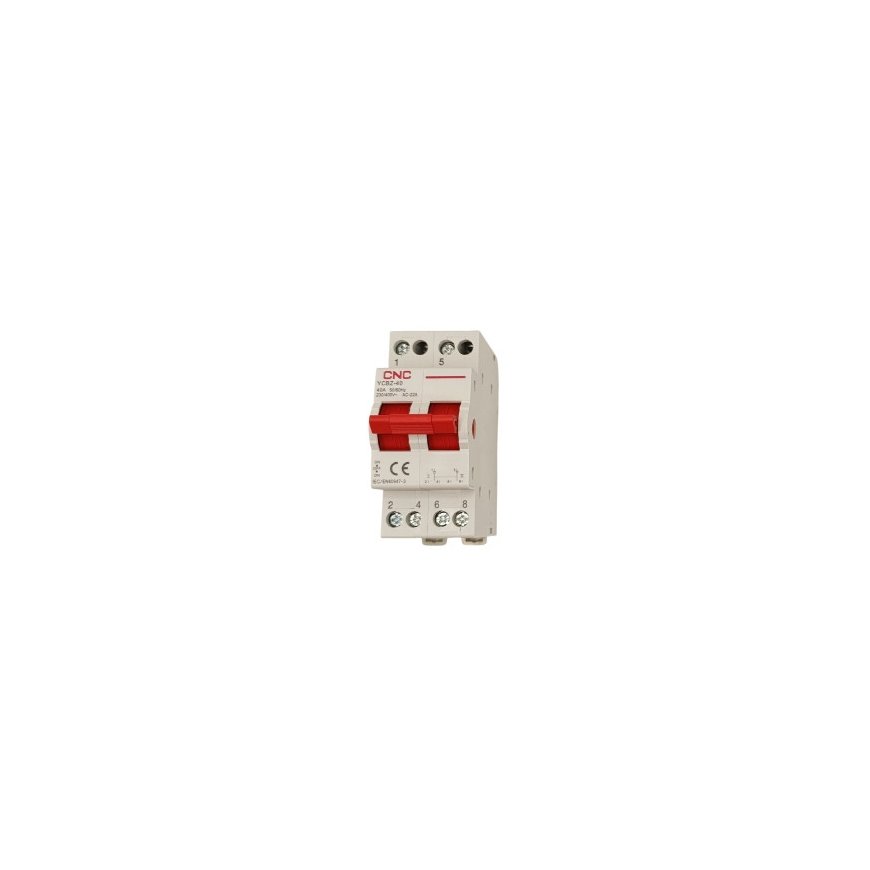

Modular switch CNC YCBZ-40, 2P, 40A, 1-0-2
19.00 €
3697552 EL240364
6942034338268
Shipping 1-2 days
You are interested in this product?
All about the product
Modular switch, 2P, 40A, 1-0-2Features:
The two-pole (2P) modular manual switch is designed for switching loads between two power sources.
It is an ideal solution when reliable power source switching is required, for example, between the electrical grid and a backup source (generator or UPS system).
The modular three-position load switch is designed to quickly switch the power source in alternating current circuits with a frequency of 50/60 Hz and voltage of 230V/400V.
The switch has a common upper contact and a knob to control the three-position contact state (1 - 0 - 2).
It is conveniently installed on a DIN rail with quick fastening.
Its design and technical characteristics meet the standard IEC 60947-3, the usage category AC-22A, and the requirements of applicable electromagnetic compatibility standards for devices.
This manual control switch reliably switches electrical loads even in operating mode (i.e., without interrupting power) and is suitable for regular household or commercial use with mixed loads.
Application: in residential homes, workshops, or smaller business premises.
Technical specifications:
Number of contacts: 2.
Rated voltage (Ue): AC 230V/ 400V.
Maximum voltage: AC 240V/ 415V.
Current: 40 A.
Frequency: 50/60Hz.
Switching positions: I - 0 - II (two sources and neutral position).
Mechanical lifespan: 8500 cycles.
Electrical lifespan: 1500 cycles.
Installation: on DIN rail EN60715 (35mm).
Cable cross-section area: max. 10mm².
Operating temperature: from -5°C to +40°C.
Dimensions: 36 x 61 x 77 mm.
Protection class: IP20.
Standards: IEC 60947-3 / EN 60947-3.
Usage category: AC-22A.
Color: white.
Warranty:24 months.
