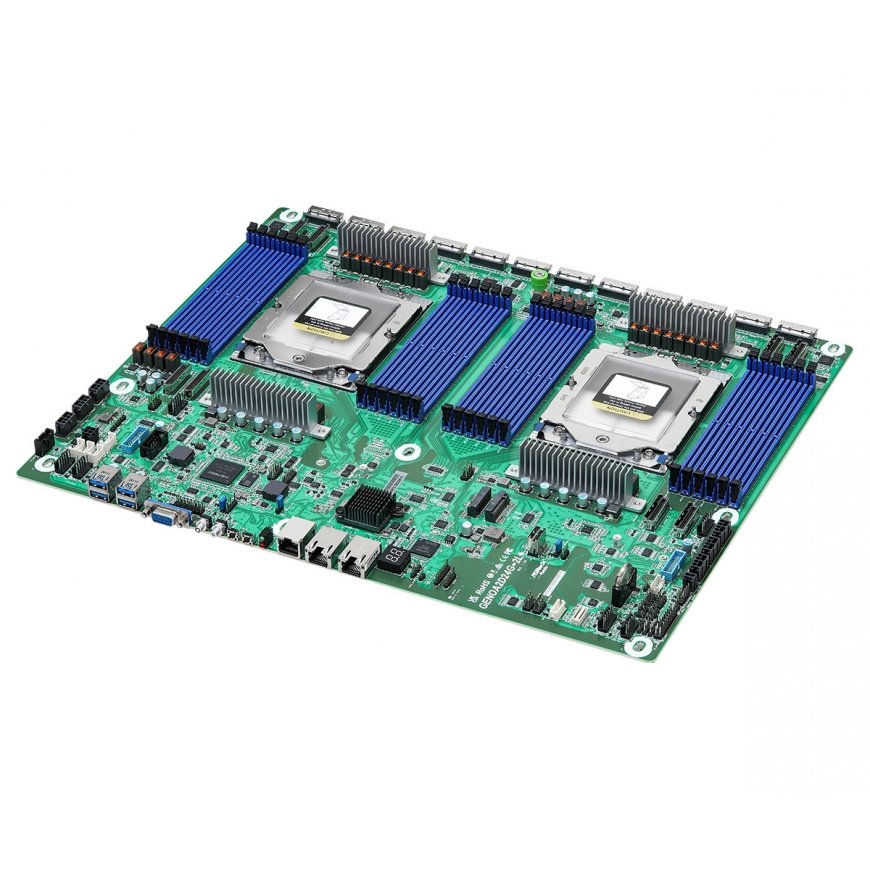

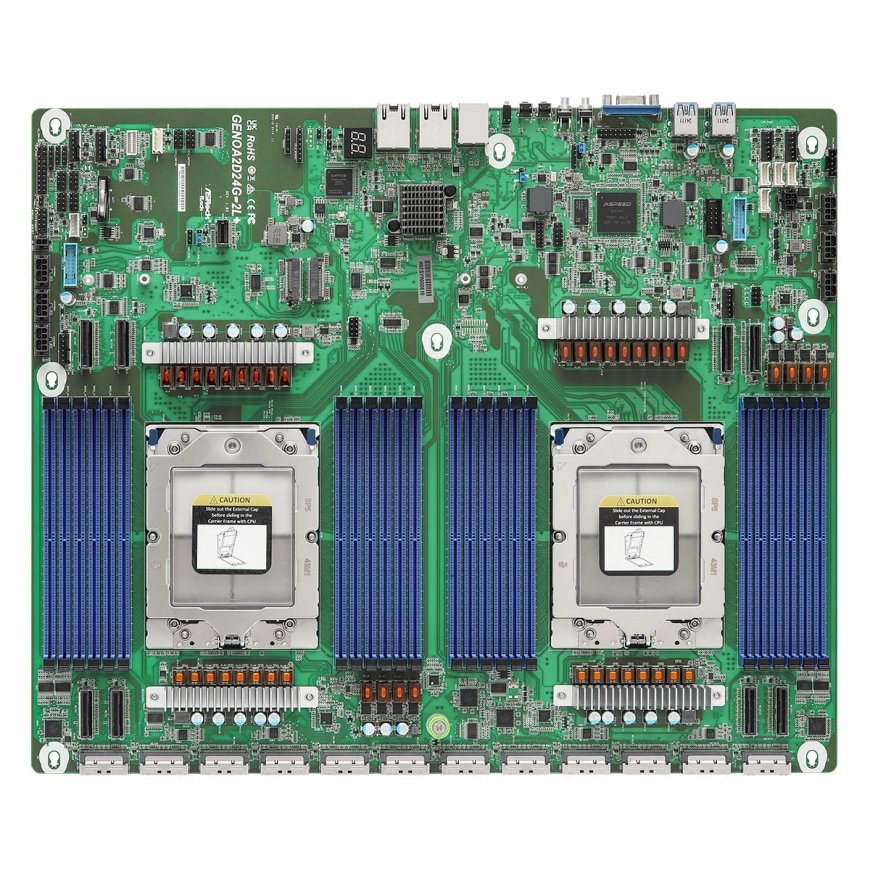

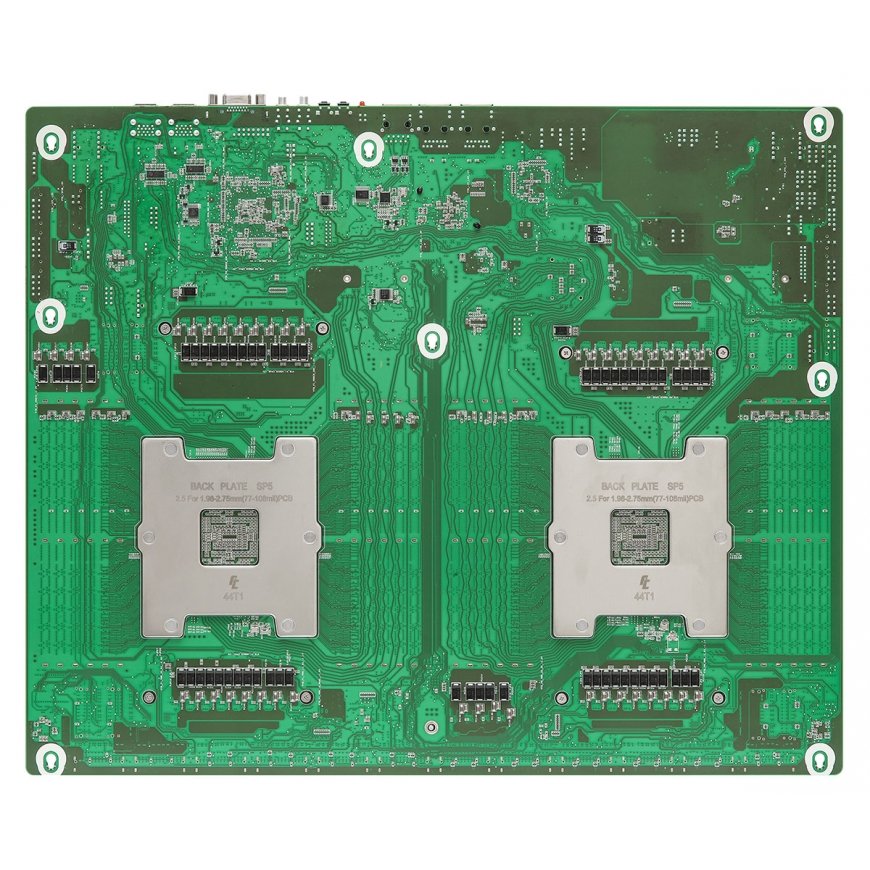

Asrock GENOA2D24G-2L+ motherboard AMD SoC Socket SP5
1 449,00 €
1 429,00 €
Monthly payment from 37.70 €
3687352 GENOA2D24G-2L+
4711430521053
4-6 b.d.
You are interested in this product?
Processor | |
| Compatible processor series | AMD EPYC |
| Maximum number of SMP processors | 2 |
| Processor socket | Socket SP5 |
| Processor manufacturer | AMD |
Memory | |
| Maximum internal memory | 12.3 TB |
| Memory voltage | 1.1 V |
| Supported memory clock speeds | 4800 MHz |
| Supported memory types | DDR5-SDRAM |
| Memory slots type | DIMM |
| Number of memory slots | 24 |
| Memory slot pin count | 288 |
Storage controllers | |
| Number of HDDs supported | 32 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | SATA III |
| Number of storage drives supported | 34 |
Graphics | |
| Parallel processing technology support | Not supported |
| On-board graphics card model | Aspeed AST2600 |
| On-board graphics card memory | 512 MB |
Internal I/O | |
| Number of COM connectors | 1 |
| ATX Power connector (24-pin) | Yes |
| Chassis intrusion connector | Yes |
| Number of chassis fan connectors | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Front panel connector | Yes |

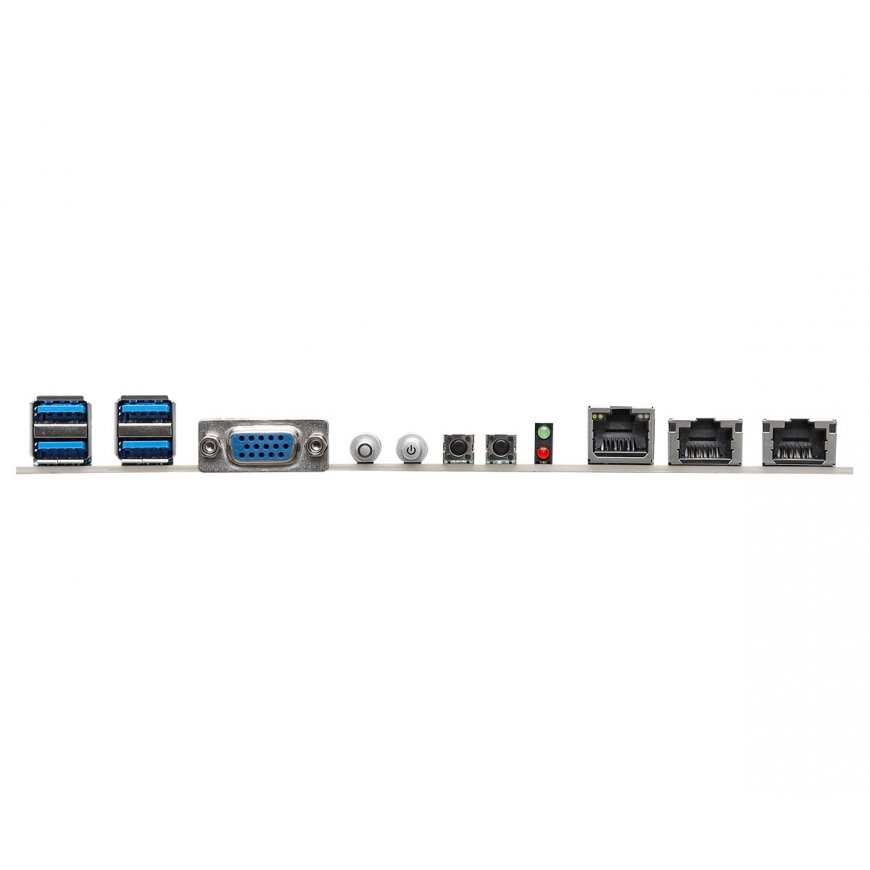

Rear panel I/O ports | |
| USB 2.0 ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
| DVI-D ports quantity | 0 |
| HDMI ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| IPMI LAN (RJ-45) port | Yes |
Network | |
| LAN controller | Intel® I350 |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Wi-Fi | No |
Features | |
| Motherboard chipset | AMD SoC |
| Motherboard chipset family | AMD |
| PC health monitoring | Fan, Temperature, Voltage |
| Component for | Server |
| Product colour | Grey, Green |
BIOS | |
| BIOS type | UEFI AMI |
| ACPI version | 6.4 |
| Clear CMOS button | Yes |
| System Management BIOS (SMBIOS) version | 3.5 |
Operational conditions | |
| Operating temperature (T-T) | -40 - 70 °C |
| Storage temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 20 - 90% |
Weight & dimensions | |
| Width | 430 mm |
| Depth | 350 mm |
