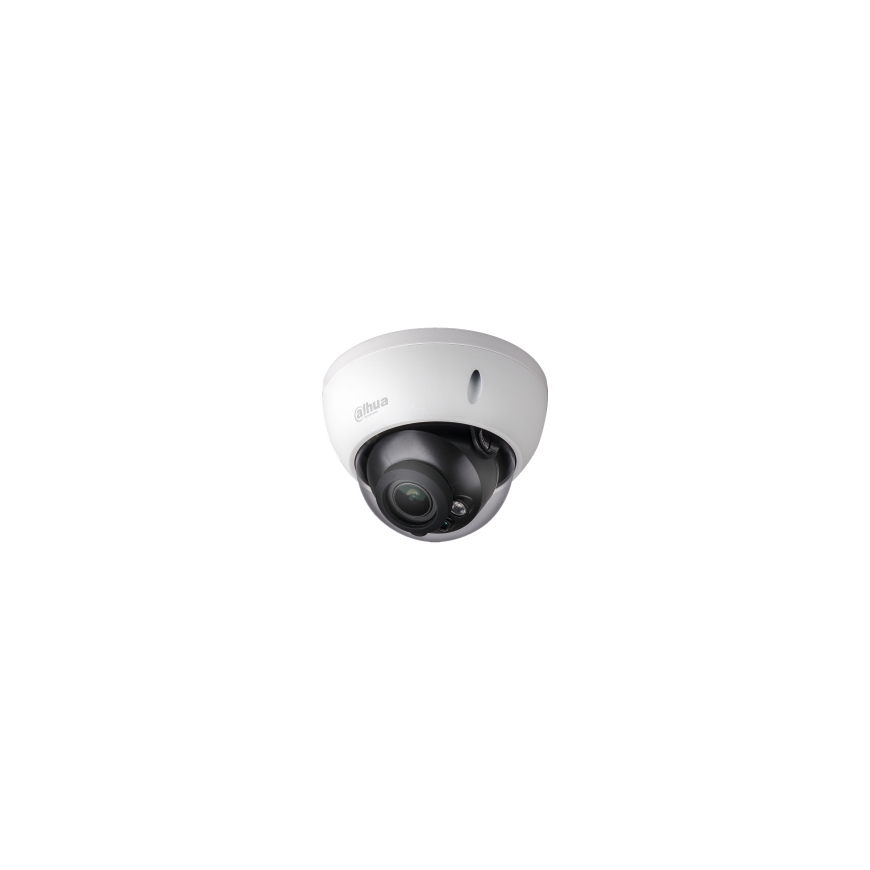

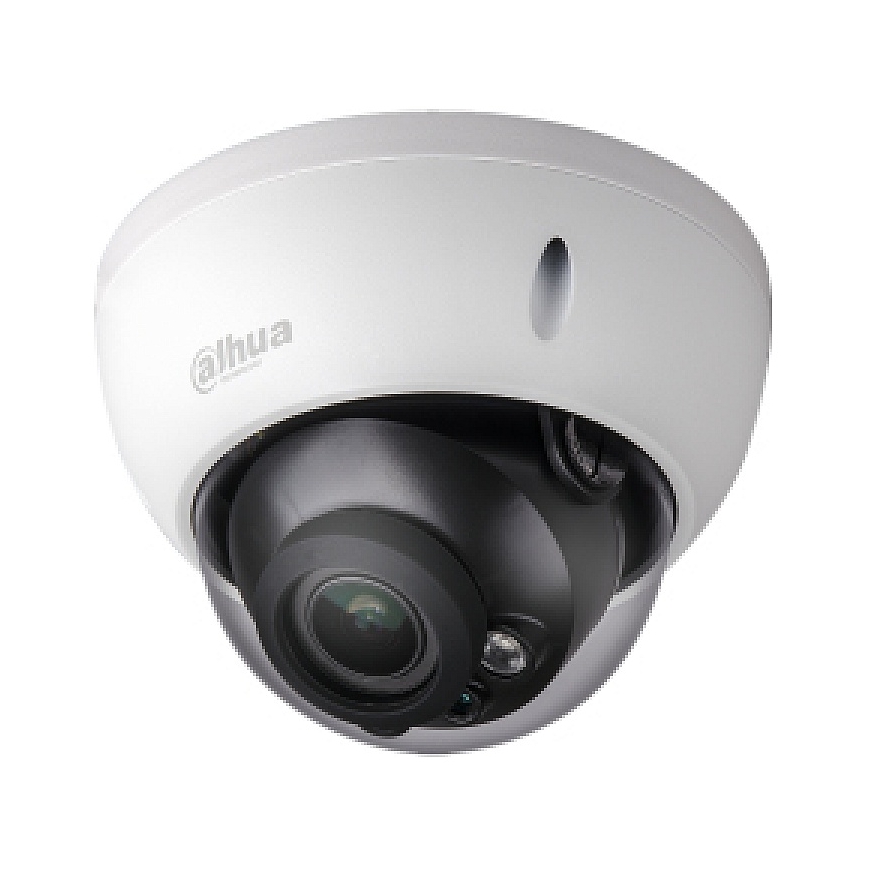

Dahua Technology Lite DH-HAC-HDBW1200R-VF Dome CCTV security camera Indoor & outdoor 1920 x 1080 pixels Ceiling/wall
182,21 €
Monthly payment from 5.59 €
3619954 HAC-HDBW1200RP-VF-27135
6939554920233
Shipping 1-2 days
You are interested in this product?
4 Signals over 1 Coaxial Cable
HDCVI technology supports 4 signals to be transmitted over 1 coaxial cable simultaneously, i.e. video, audio*, data and power. Dual-way data transmission allows the HDCVI camera to interact with the HCVR, such as sending control signal or triggering alarm. Moreover, HDCVI technology supports PoC for construction flexibility.
* Audio input is available for some models of HDCVI cameras.
Long Distance Transmission
HDCVI technology guarantees real-time transmission at long distance without any loss. It supports up to 800m(1080P)/1200m(720P) transmission via coaxial cable, and up to 300m(1080P)/450m(720P) via UTP cable.*
*Actual results verified by real-scene testing in Dahua's test laboratory.
Simplicity
HDCVI technology inherits the born feature of simplicity from traditional analog surveillance system, making itself a best choice for investment protection. HDCVI system can seamlessly upgrade the traditional analog system without replacing existing coaxial cabling. The plug and play approach enables full HD video surveillance without the hassle of con-figuring a network.
Smart IR
The camera is designed with array LED IR illumination for best lowlight performance. Smart IR is a technology to ensure brightness uniformity in B/W image under low illumination. Dahua’s unique Smart IR adjusts to the intensity of camera's infrared LEDs to compensate for the distance of an object, and prevents IR LEDs from overexposing images as the object come closer to the camera.
Multi-formats
The camera supports multiple video formats including HDCVI, CVBS and other two common HD analog formats in the market. The four formats can be switched over through OSD menu or by PFM820(UTC controller). This feature makes the camera to be compatible with not only HCVRs but also most end users’ existing HD/SD DVRs.
Multi-language OSD
OSD menu provides multiple image adjustments and function settings to meet the requirements of different monitoring scenes. The OSD menu includes configurations such as backlight mode, day/night, white balance, privacy mask and motion detect. The camera supports 11 languages for OSD menu, namely, Chinese, English, French, German, Spanish, Portuguese, Italian, Japanese, Korean, Russian and Polish.
Protection
The camera's outstanding reliability is unsurpassed due to its rugged design. The camera is protected against water and dust with IP67 ranking, making it suitable for indoor or outdoor environments.The camera complies with an IK10 vandal resistance rating making it capable of withstanding the equivalent of 5 kg (11.02 lbs) of force dropped from a height of 40 cm (15.75 in).With working temperature range of -40 °C to +60 °C (-40 °F to +140 °F), the camera is designed for extreme temperature environments.Supporting ±25% input voltage tolerance, this camera suits even the most unstable power supply conditions. Its 4KV lightning rating provides protection against the camera and its structure from the effects of lightning.
Performance | |
| Certification | CE (EN55032, EN55024, EN50130-4), UL (UL60950-1+CAN/CSA C22.2 No.60950-1), FCC (CFR 47 FCC Part 15 subpart B, ANSI C63.4-2014) |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Placement supported | Indoor & outdoor |
| Type | CCTV security camera |
| Infrared (IR) cut-off filter | Yes |
| Number of languages | 11 |
| Languages support | Simplified Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Portuguese, Russian, Polish |
| Remote viewing | Yes |
Design | |
| Housing material | Aluminium |
| Mounting type | Ceiling/wall |
| International Protection (IP) code | IP67 |
| Protection features | Vandal proof |
| Product colour | White |
| Form factor | Dome |
| Weatherproof | Yes |
| IK code | IK10 |
Camera | |
| Minimum illumination | 0.02 lx |
| Camera shutter speed | 1/25 - 1/100000 s |
| Tilt angle range | 0 - 75° |
| Pan range | 0 - 355° |
| Angle of rotation | 355° |
| White balance | Auto, Manual |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Lens viewing angle, horizontal | 106° |
Image sensor | |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| Progressive scan | Yes |
| Number of sensors | 1 |
Lens system | |
| Focal length range | 2.7 - 13.5 mm |
| Maximum aperture number | 1.3 |
| Detect distance (wide) | 45 m |
| Detect distance (tele) | 148 m |
| Observe distance (wide) | 18 m |
| Observe distance (tele) | 59 m |
| Recognize distance (wide) | 9 m |
| Recognize distance (tele) | 30 m |
| Identify distance (wide) | 5 m |
| Identify distance (tele) | 15 m |
| Closest focusing distance | 0.2 m |
| Focus | Manual |
| Number of lenses | 1 |
Video | |
| Maximum resolution | 1920 x 1080 pixels |
| Frame rate | 25 fps |
| Analog signal format system | PAL |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080) |
| Supported video modes | 720p, 1080p |
| Noise reduction | Yes |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Smart IR | Yes |
| Gain control type | Auto |
| Total megapixels | 2 MP |
Network | |
| Wi-Fi | No |
| Ethernet LAN | No |
| Bluetooth | No |
Storage | |
| Built-in HDD | No |
Ports & interfaces | |
| Composite video out | 1 |
Power | |
| DC output voltage | 12 |
| Power consumption (max) | 3.5 W |
| Power source type | DC |
Operational conditions | |
| Operating temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage temperature (T-T) | -40 - 60 °C |
| Storage relative humidity (H-H) | 0 - 90% |
Weight & dimensions | |
| Weight | 400 g |
| Height | 88.9 mm |
| Diameter | 12.2 cm |
Packaging content | |
| Number of cameras | 1 |
Night vision | |
| Number of illumination LEDs | 2 |
| Night vision | Yes |
| LED type | IR |
| Night vision distance | 30 m |
Packaging data | |
| Package weight | 550 g |
