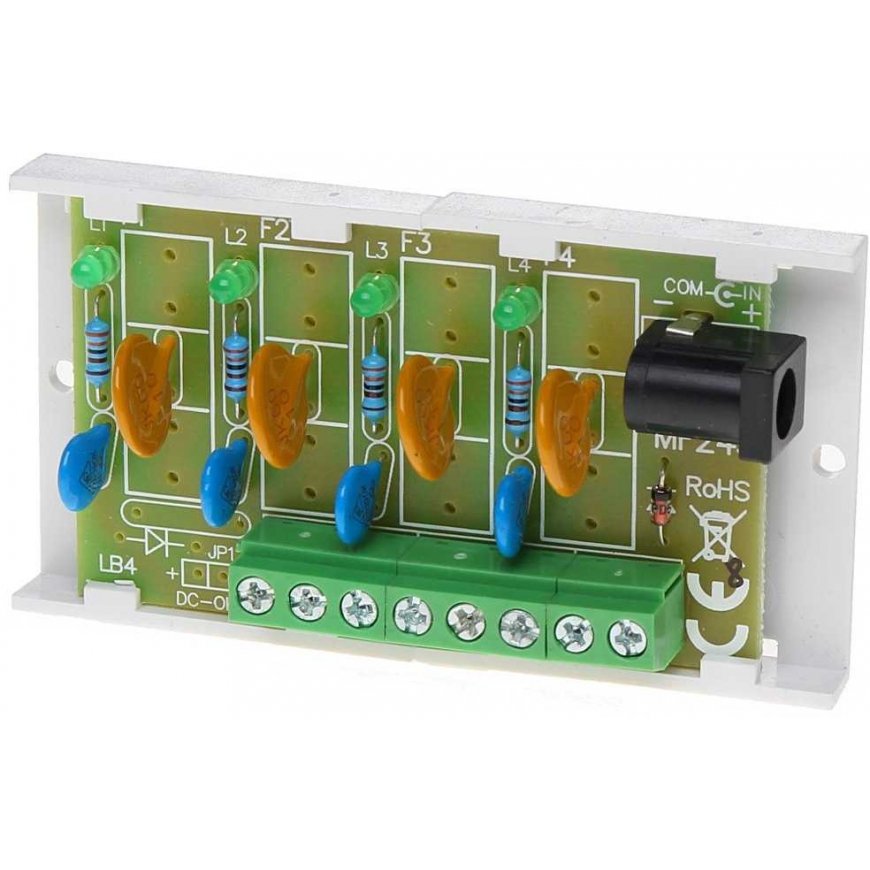

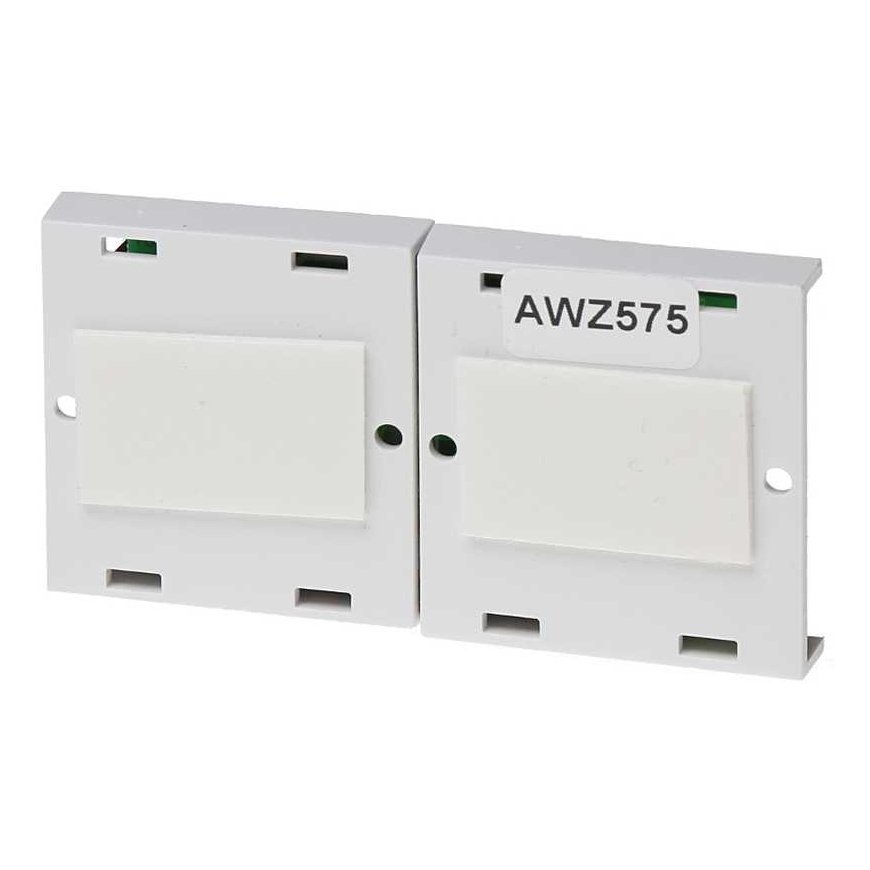

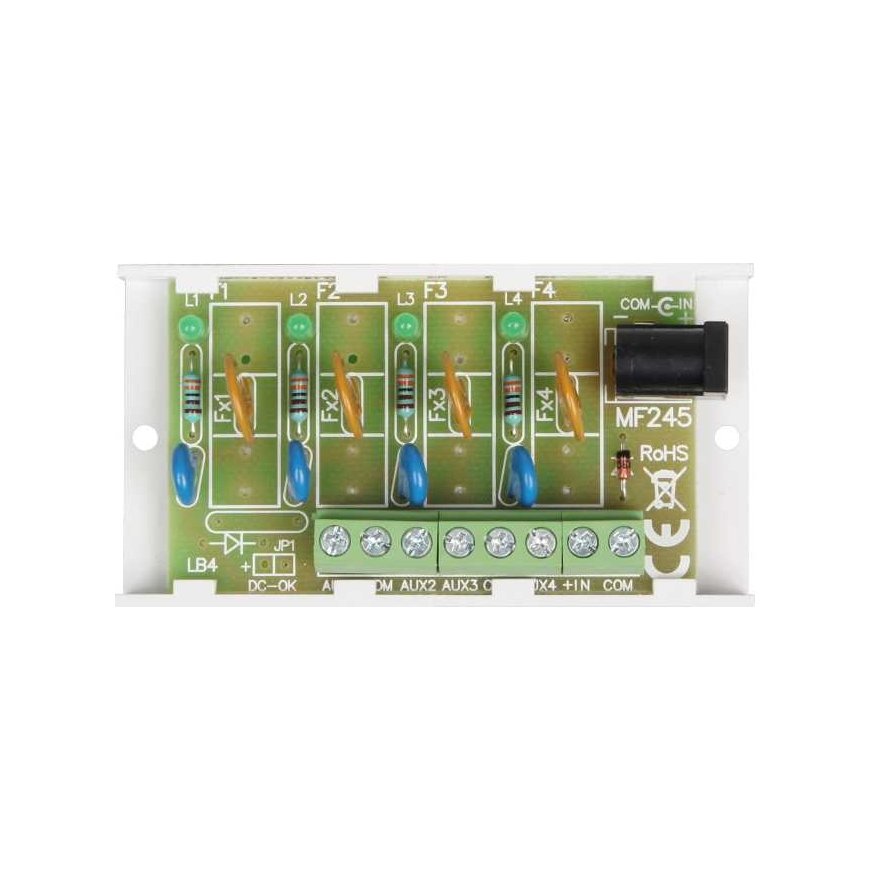

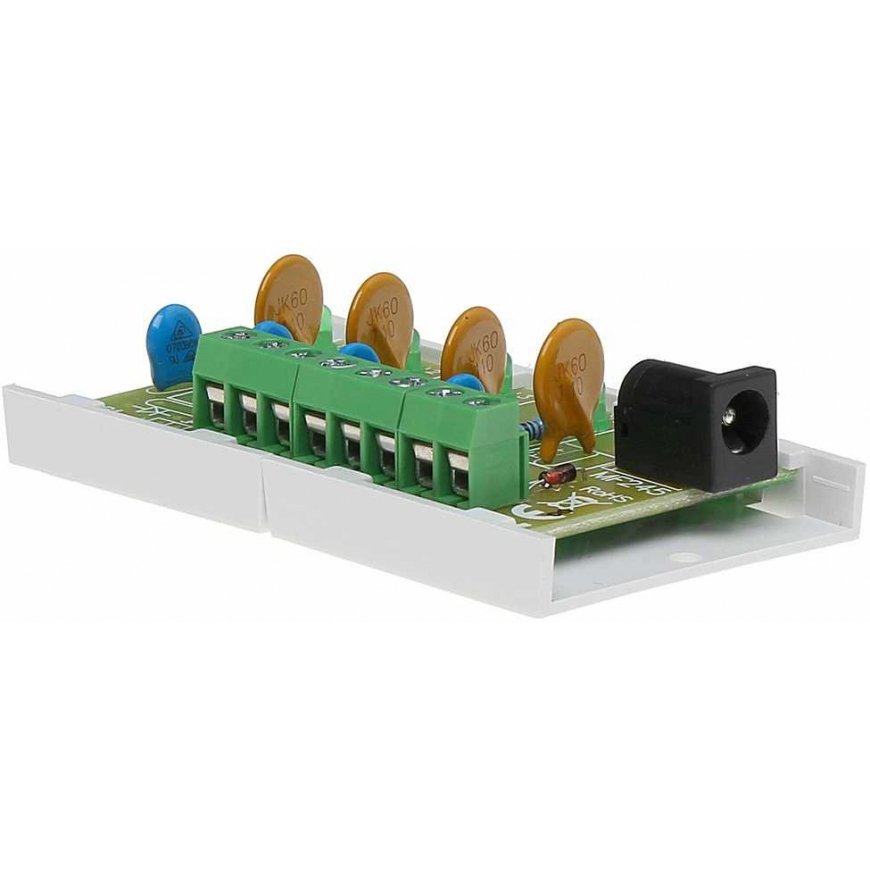

Pulsar POWER SUPPLY AWZ-575
29,00 €
3323112 AWZ-575
5906881446973
Shipping 1-14 b.d.
You are interested in this product?
AWZ-575 is a passive element and serves for power distribution.
An indisputable advantage of using AWZ-575 in surveillance systems with power from a central point is additional anti-sabotage protection.
For more than 4 receivers, the receivers can be connected in parallel to the same terminal.
| Number of power inputs : | 2 |
| Number of power outputs : | 4 |
| Maximum supply voltage : | 30V DC (typically 12V) |
| Maximum supply current : | 4 A |
| Single output max. output current : | 1 A |
| Protection type : | 4 x 1 A - PTC polymer fuse |
| Type of power connections : | Input - 5.5/2.1 jack, Cable terminals Output - Cable terminals |
| Working temperature : | -10 °C ... 50 °C |
| Main features : | Protection measures: From short circuit , From overvoltages, From overloads LED indicator |
| Body Type : | Plastic |
| Dimensions : | 80 x 43 x 22 mm |
| Weight : | 0.03 kg |
| Manufacturer / Brand : | PULSAR |
| Warranty : | 2 years |
