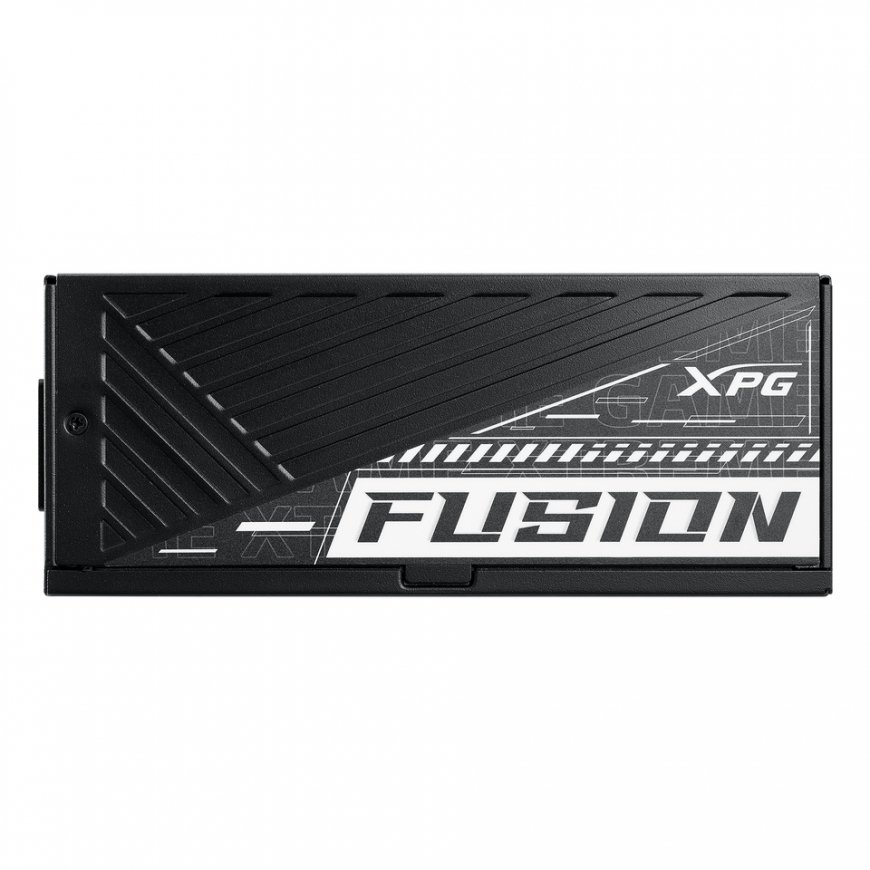

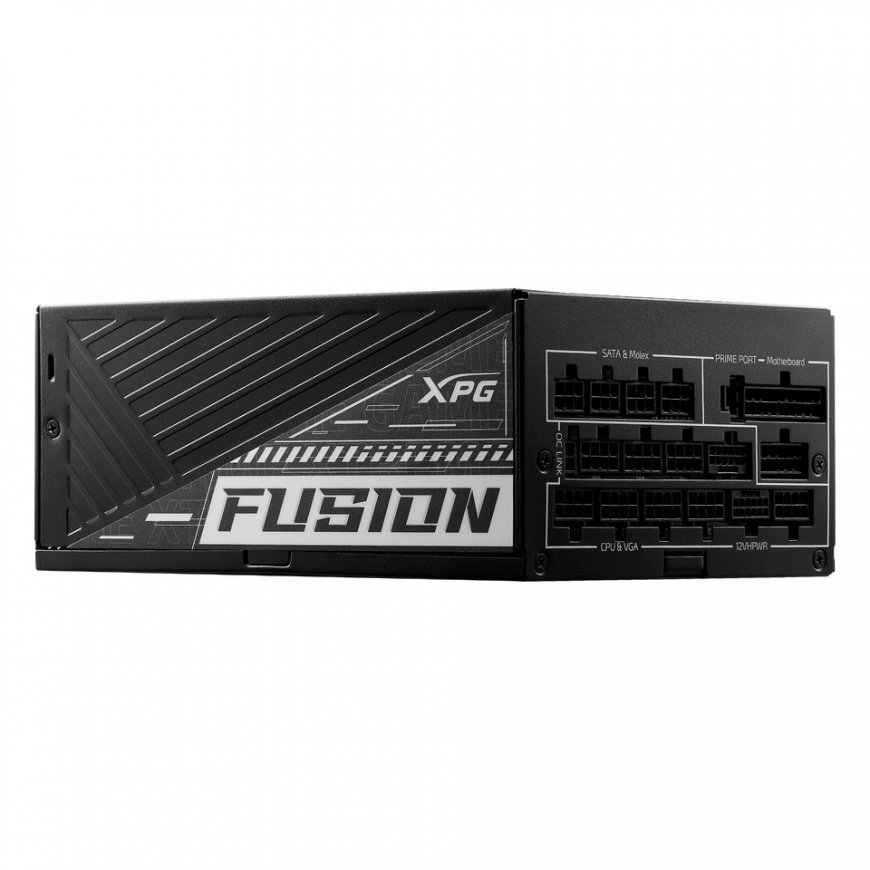

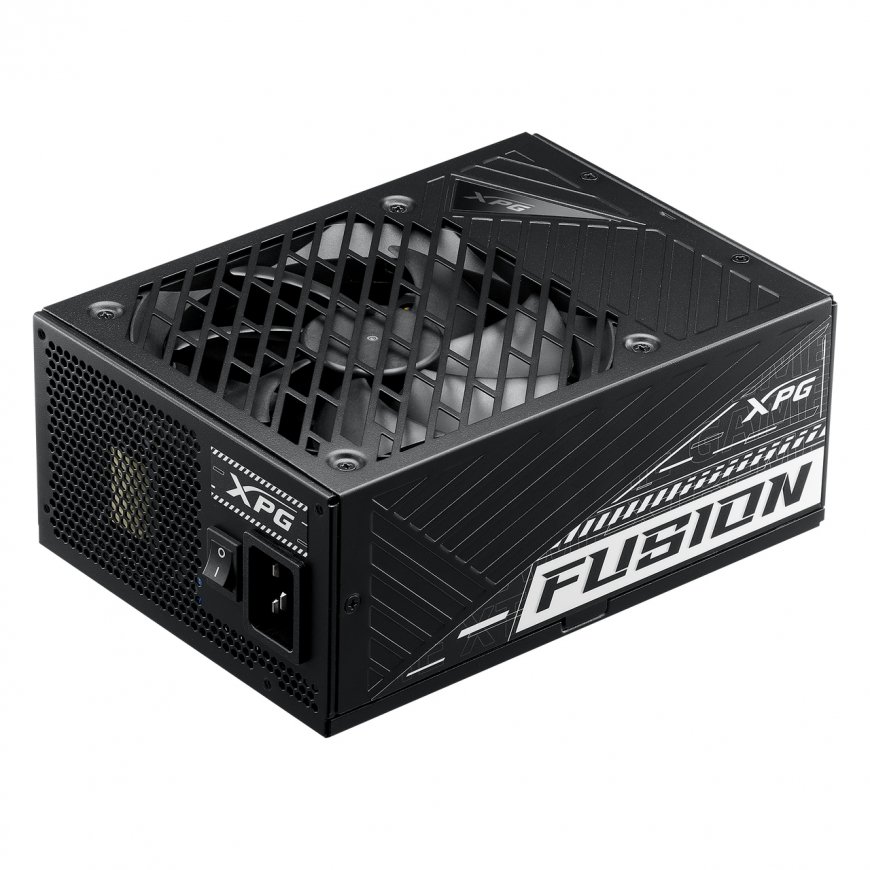

XPG FUSION 1600W Power Supply
572,01 €
Monthly payment from 15.63 €
3285833 75261086
4711085939586, 0842243027778
Shipping 3-5 b.d.
You are interested in this product?
The XPG FUSION 1600W TITANUM PSU was developed in collboration with Delta Electronics, the world's leading power supply manufactuer.
SUPERIOR ENGINEERING
The patented Planar Transformer and GaN FET reduce clutter and increase airflow, improving XPG FUSION 1600 TITANIUM's cooling performance by a significant amount.
FULL-DIGITAL FUNCTIONALITY
XPG FUSION 1600 TITANIUM power supply contains three MCUs working in tandem to monitor and manage a high-performance digital LLC platform.
NEXT GEN GAMING READY
XPG FUSION 1600 TITANIUM comes with two 12VHPWR (12 + 4 PIN) connectors that can handle up to 600W of power to support current and future generation graphics cards.
SOFTWARE MANAGEMENT
Monitor and customize the performance of your XPG FUSION 1600 TITANIUM with XPG PRIME ecosystem management software.
TITANIUM LEVEL QUALITY
XPG FUSION 1600 TITANIUM comes with 100% Japanese capacitors with a 105°C rating. It utilizes heavy-duty components to ensure high-quality performance, premium efficiency, and long-term reliability.
Power | |
| Power protection features | Over current, Overload, Over voltage, Overheating, Short circuit, Under voltage, Surge & inrush protection (SIP) |
| Power factor | 0.99 |
| Maximum input current (@110V) | 15 A |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Maximum input current (@220V) | 15 A |
| Total power | 1600 W |
Performance | |
| Mean time between failures (MTBF) | 125000 h |
| ATX version | 3.0 |
| Purpose | PC |
| 80 PLUS certification | 80 PLUS Titanium |
| Power supply unit (PSU) form factor | ATX |
Design | |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Fan diameter | 13.5 cm |
| Cooling type | Active |

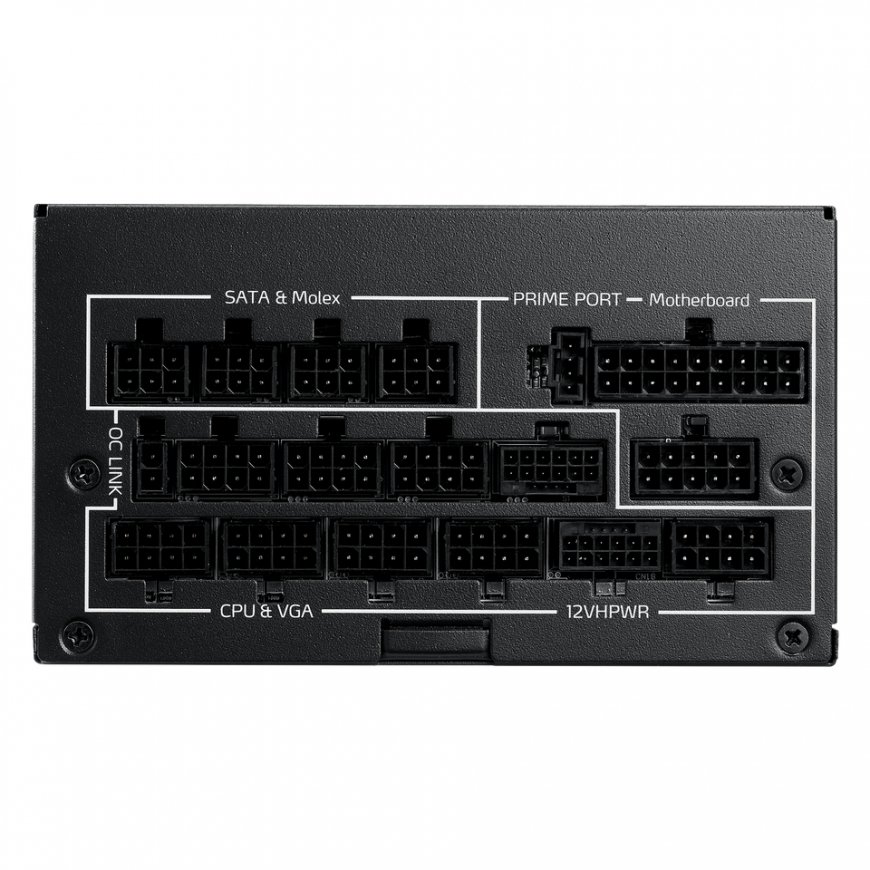

Ports & interfaces | |
| Floppy drive power connector | 1 |
| Number of SATA power connectors | 12 |
| EPS power connector (8-pin) | Yes |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| PCI Express power connectors (6+2 pin) | 10 |
| Motherboard power connector | 20+4 pin ATX |
| Cabling type | Fully-Modular |
| ATX power connector (12+4 pin) | Yes |
Weight & dimensions | |
| Weight | 2.5 kg |
| Width | 150 mm |
| Depth | 210 mm |
| Height | 86 mm |
Packaging data | |
| Package type | Box |
Certificates | |
| Certification | CE | CB | FCC (IC) | TUV | cTUVus | TUV S-Mark | NOM | BSMI | UKCA | CQC | EAC |
