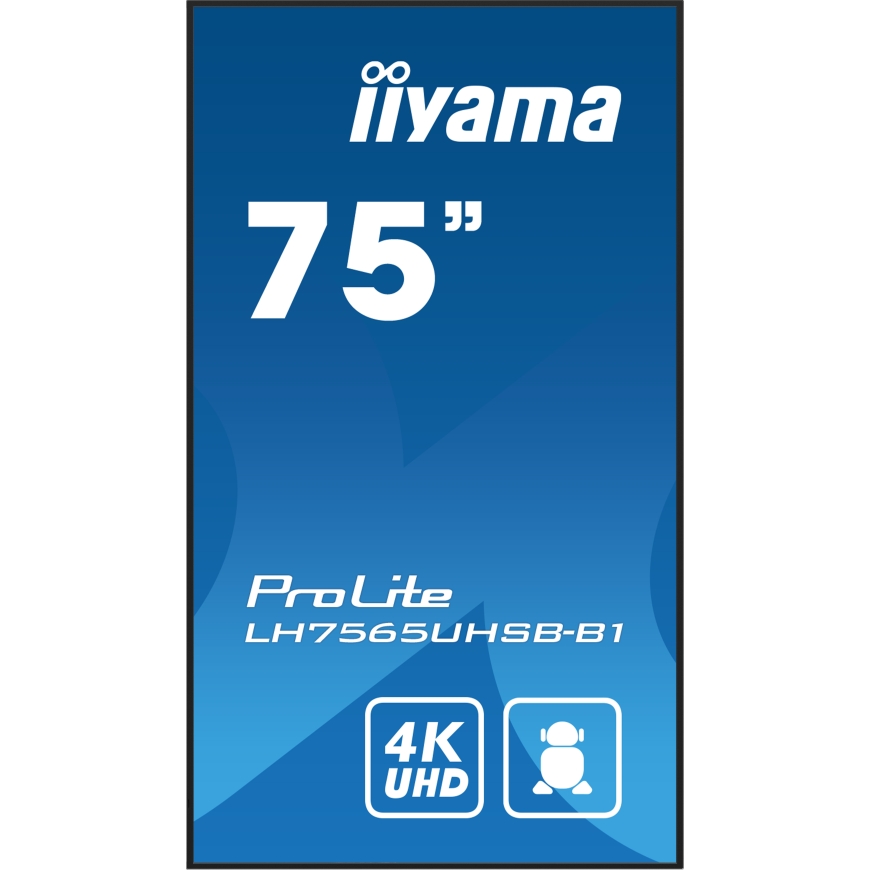

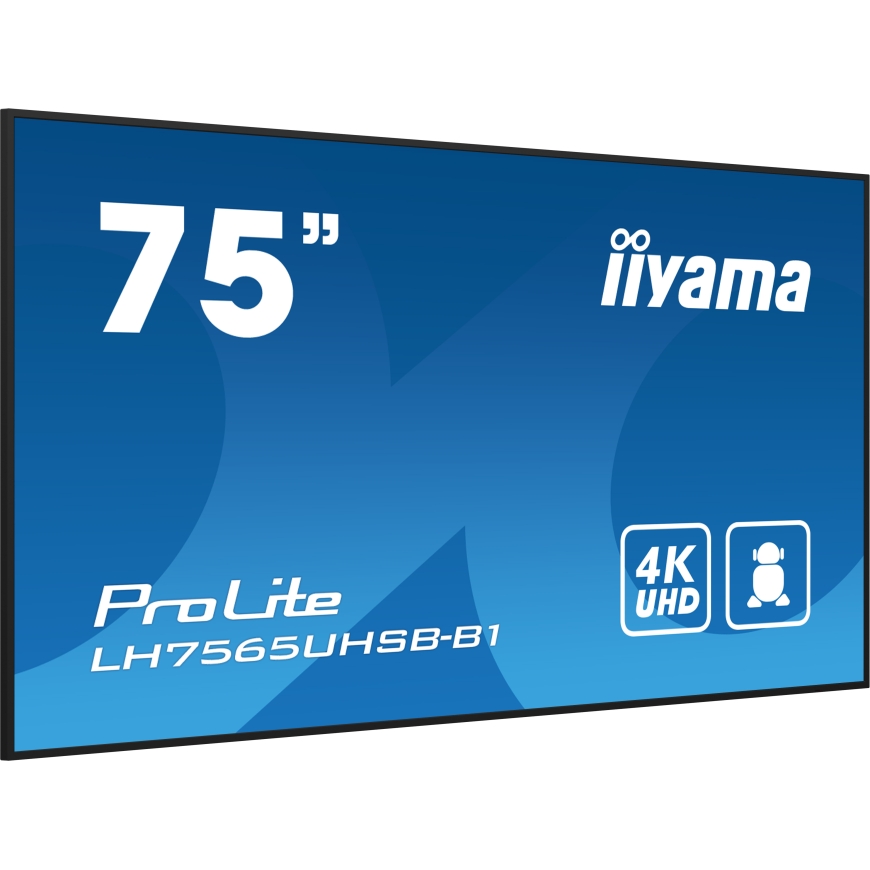

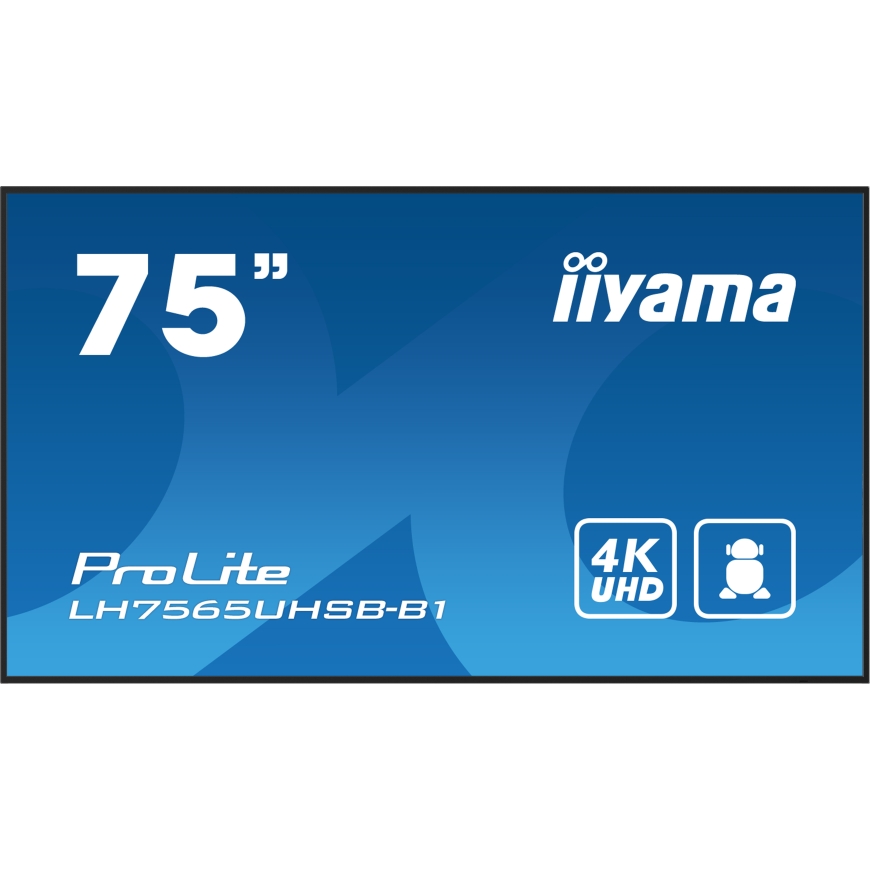

iiyama LH7565UHSB-B1 Signage Display
3197331 LH7565UHSB-B1
4948570123599
Shipping 3-5 b.d.
All about the product
Android OS
Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.
iiSignage²
iiSignage² is our digital signage content management platform to easily show and control your content and to manage your displays in a secure way. The Content Management System (CMS) gives you total control of your messaging and advertising remotely and safely.
Signal FailOver
FailOver is a feature which automatically detects input sources. When there is no signal on the default input it will automatically switch to the next available input. FailOver allows customers to prioritize a number of inputs (incl. Browser, Media Player and Custom) and ensures your content is always actively displayed, assuring active content at all times.

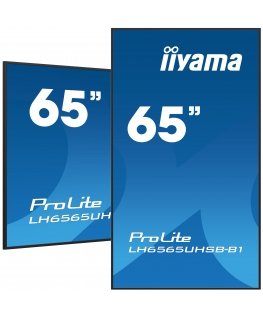

VIVID-BRIGHT DISPLAYS
Designed for maximum exposure, these 800cd/m² vivid-bright displays will illuminate your communication. Entice and captivate your audience with dynamic, show stopping content.

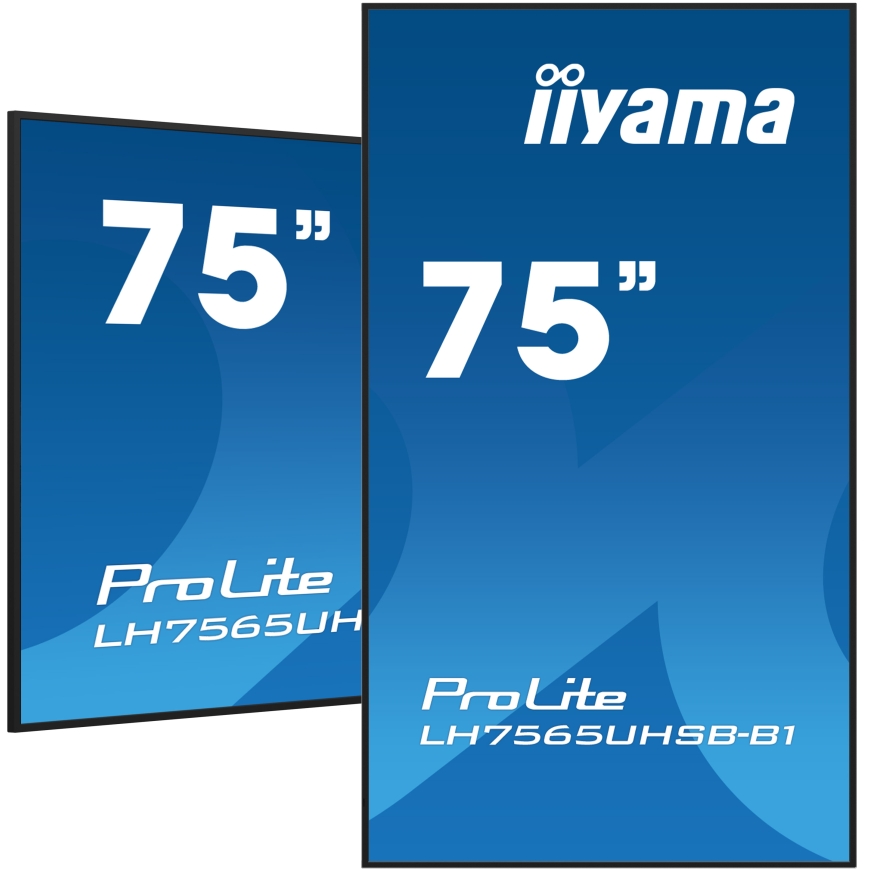

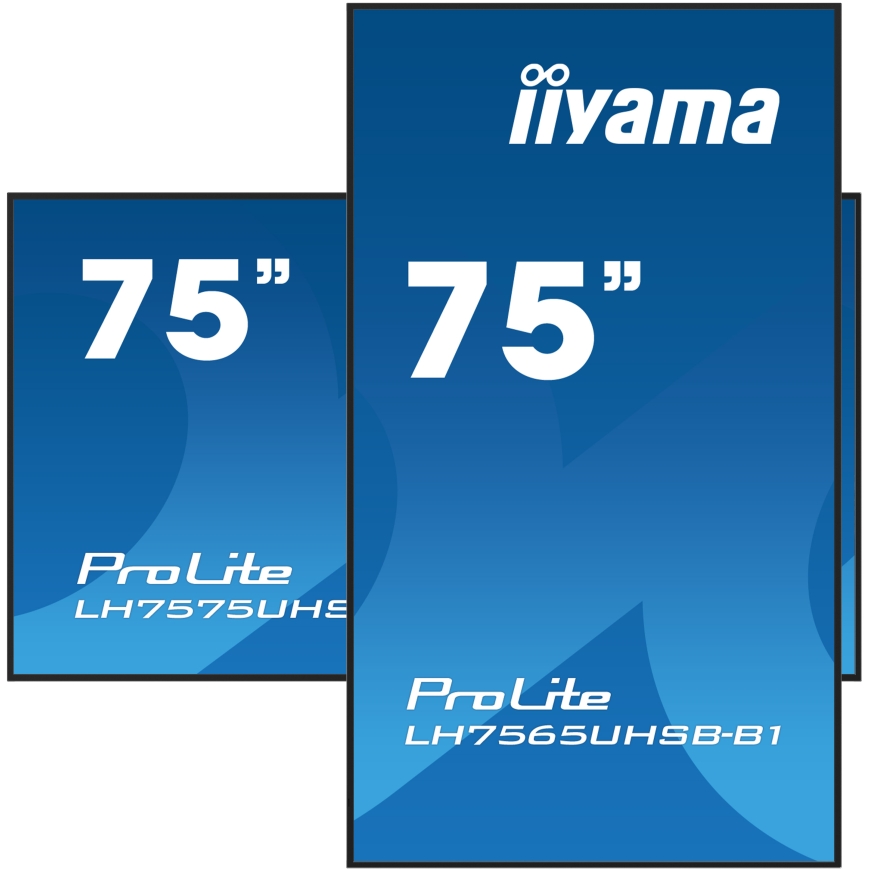

Flexible Orientation
With the option to switch between landscape and portrait mode, these displays let you get creative with any space. Whether it’s messaging, ads, videos, or safety info, you can tailor your content to grab attention exactly how you want.
Speakers
The built-in speakers offer high-quality sound, ensuring crystal-clear audio during multimedia playback.
Cable Management
Cables can be neatly tied and routed with the special cable clips, so they cannot come loose or move around.
Features
| Display diagonal | 189.2 cm (74.5") |
| HD type | 4K Ultra HD |
| Display resolution | 3840 x 2160 pixels |
| Native aspect ratio | 16:9 |
| Native refresh rate | 60 Hz |
| Operating system installed | Android 11 |
| RMS rated power | 20 W |
| Wi-Fi | Yes |
| Product colour | Black |
| VESA mounting | Yes |
| Panel mounting interface | 600 x 400 mm |
| HDMI ports quantity | 2 |
| Energy efficiency class (SDR) | E |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 107 kWh |
| Width (with stand) | 1679.5 mm |
| Depth (with stand) | 55 mm |
| Height (with stand) | 958.5 mm |
| Weight (with stand) | 29 kg |
| Touchscreen | No |
| Display number of colours | 1.07 billion colours |
| Processor family | ARM Cortex |
| Processor cores | 8 |
| Internal storage capacity | 32 GB |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| USB port | Yes |
| USB version | 2.0 |
| Weight | 29 kg |
| Width | 1679.5 mm |
| Depth | 55 mm |
| Height | 958.5 mm |
| Cables included | AC; HDMI; RS-232 |
| Internal memory | 4 GB |
| Package width | 1883 mm |
| Package depth | 186 mm |
| Package height | 1140 mm |
| Package weight | 40.5 kg |
| Sustainability certificates | ErP |
| Power consumption (off) | 0.3 W |
| Quick start guide | Yes |
| Purpose | Commercial |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | -20 - 60% |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 107 W |
| Built-in speaker(s) | Yes |
| Energy efficiency scale | A to G |
| AC input frequency | 50/60 Hz |
| Remote control included | Yes |
| USB ports quantity | 2 |
| Mean time between failures (MTBF) | 50000 h |
| Orientation | Horizontal/Vertical |
| Placement supported | Indoor/outdoor |
| Display technology | LED |
| Contrast ratio (typical) | 1200:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display diagonal (metric) | 189 cm |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 8 |
| On Screen Display (OSD) languages | Traditional Chinese; Danish; German; Dutch; English; Spanish; Finnish; French; Italian; Norwegian; Polish; Russian; Swedish; Japanese; Czech |
| Number of built-in speakers | 2 |
| HDMI version | 2.0 |
| HDCP | Yes |
| Power consumption (standby) | 0.4 W |
| Display brightness | 800 cd/m² |
| Power supply type | Internal |
| Product design | Kiosk design |
| Audio (L/R) in | 1 |
| RS-232 interface | Yes |
| RS-232C | Yes |
| Computer system | Yes |
| Built-in processor | Yes |
| Display width | 1679.5 mm |
| Display depth | 55 mm |
| Display height | 958.5 mm |
| Display weight | 29 kg |
| Processor manufacturer | ARM |
| On-board graphics card model | ARM Mali-G52 |
| Panel type | IPS |
| Pixel pitch | 0.429 x 0.429 mm |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| Response time | 8 ms |
| HDCP version | 2.2 |
| Horizontal scan range | 28 - 160 kHz |
| Active display area (W x H) | 1650 x 928 mm |
| Bezel width (bottom) | 1.49 cm |
| Bezel width (side) | 1.49 cm |
| Bezel width (top) | 1.49 cm |
| Operating hours (hours/days) | 24/7 |
| Processor architecture | ARM Cortex-A73 |
| Haze rate | 1% |
| User controls | picture (brightness, contrast, sharpness, black level, tint, colour, noise reduction, gamma selection, low blue light, colour temperature, colour control, picture reset), screen (zoom mode, custom zoom, screen reset), audio (balance, treble, bass, volume, audio out, maximum volume, minimum volume, mute, audio reset, audio out sync, speaker setting), configuration 1 (Android launcher, switch on state, panel saving, RS232-routing, boot on source, WOL, configuration 1 reset, factory reset), configuration 2 (OSD timeout, OSD H-Position, OSD V-position, system rotation, information OSD, logo and animation, logo setting, animation setting, monitor ID, monitor information, HDMI version, configuration 2 reset), advanced option (no signal image, IR control, power LED light, off timer, schedule, HDMI with one wire, HDMI with one wire power off, FailOver, language, OSD transparency, power saving, auto power off, advanced option reset) |
| Playback media | Y |
| Bezel colour | Black |
| Compliance certificates | CE; RoHS; REACH; WEEE; UKCA; TÜV mark |
