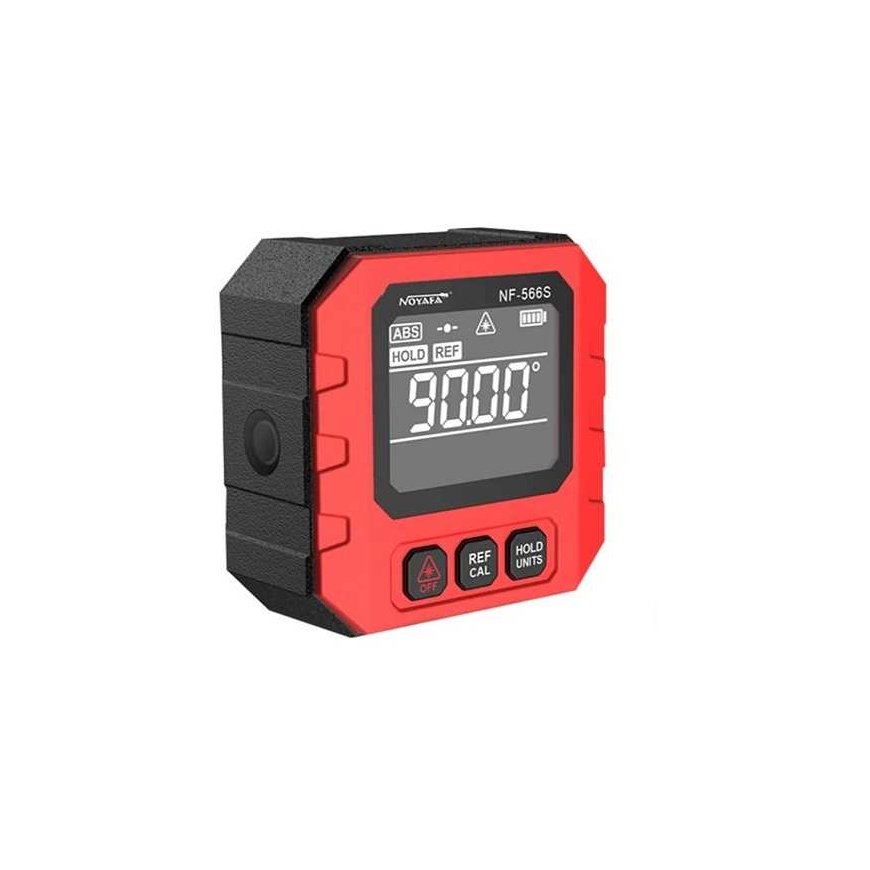

Noyafa Laser inclinometer

The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

Noyafa Laser inclinometer

49,00 €
Monthly payment from 2.16
3184131

NF-566S

9990000992492

Shipping 2-4 days

Quantity
You are interested in this product?
(Read terms of service)
Laser inclinometer, digital display, rechargeable lithium-ion battery, USB-C interface

Features:
The laser inclinometer is intended for indirect measurement of the angle of inclination.
The inclinometer has become an indispensable and important measuring tool in bridge, railway pavement, civil engineering, construction, decoration, industrial automation, intelligent platform, mechanical processing and other fields.
Bidirectional laser scanning.
The bright laser dot of the Class 2 meter will be easily visible in both daylight and darkness, making it extremely easy to measure the data you need.
A strong magnet is installed on five sides of the device.
Clear illuminated display with battery level indicator.
Rechargeable lithium-ion battery, convenient charging via USB Type-C interface. Charging cable is included.
Compact small shape, easy to carry, durable body.
Note: Laser beam - avoid direct contact with eyes.


Functions:
Measurement of the zero point according to the horizontal plane.
Angle lock function.
Relative/absolute angle measurement.
Battery level indicator.
With data storage function.


Technical data:
Measuring range: 4x 90°.
Measurement accuracy +/- 2°.
Measurement resolution: 0.02.
Sensor type: 6-axis sensor.
Laser class: II, beam length 630-670nm.
Laser color: red.
Power supply: rechargeable lithium-ion battery 3.7V 390mAh.
Operating temperature: 0°C ~ +50°C.
Automatic device shutdown: 30 min.
Material: ABS, magnet.
Size: 60x60x30mm.
Weight: 118g.


The set includes: meter, built-in battery, charging cable USB Type-A to USB Type-C, user manual.


Warranty: 24 months
