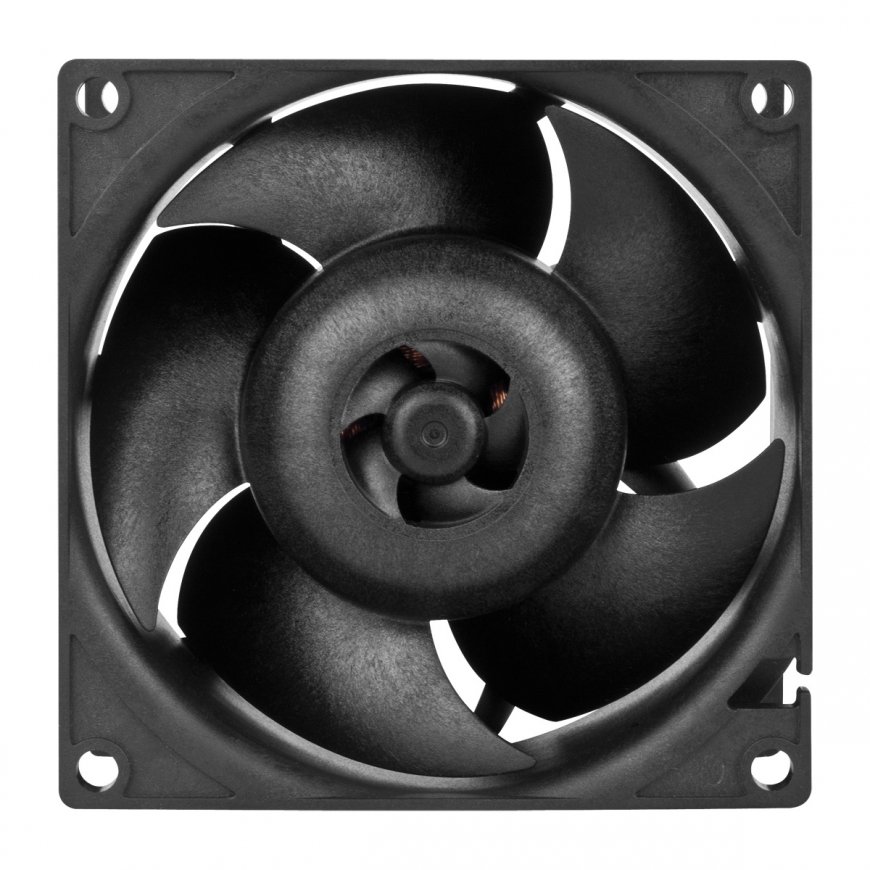

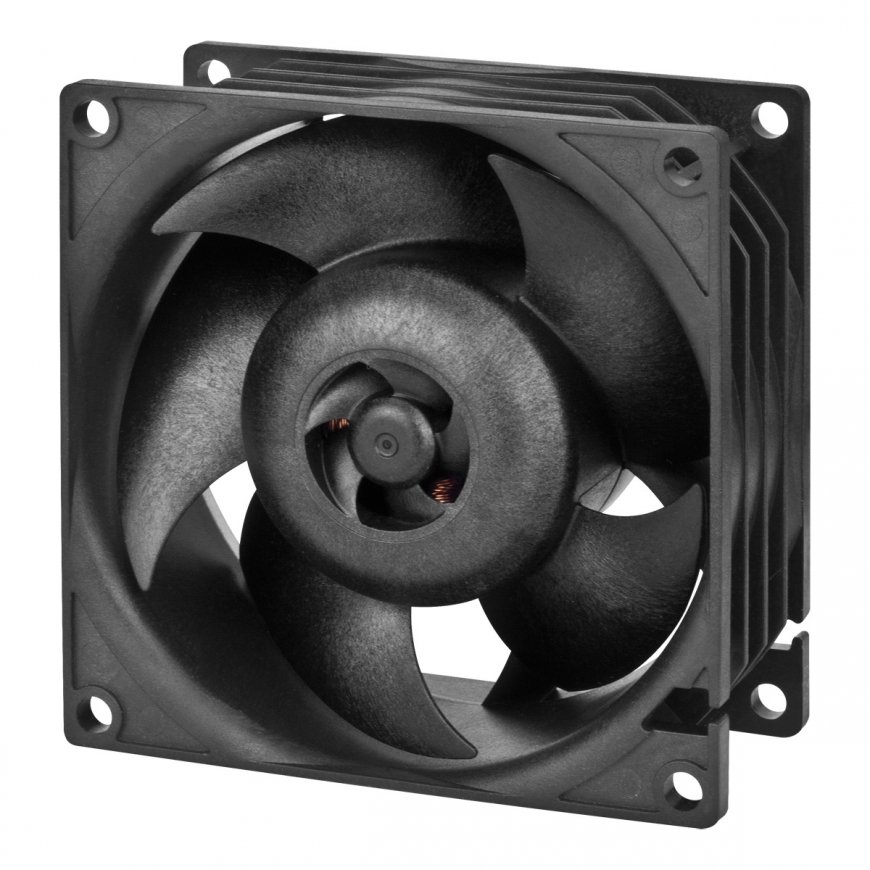

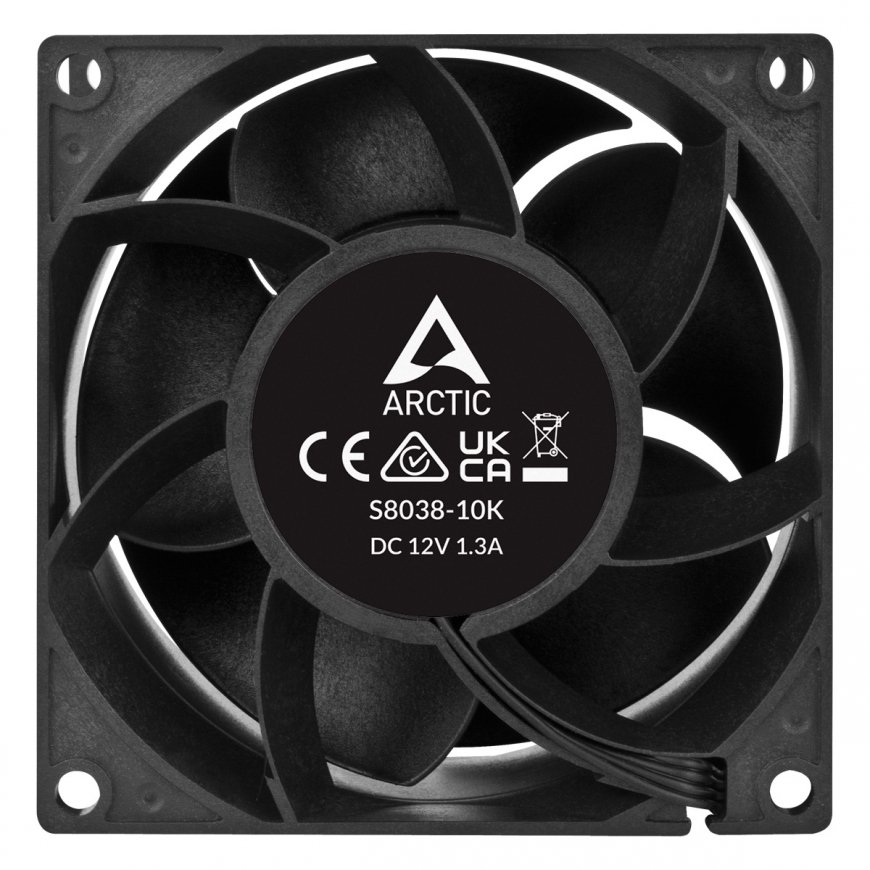

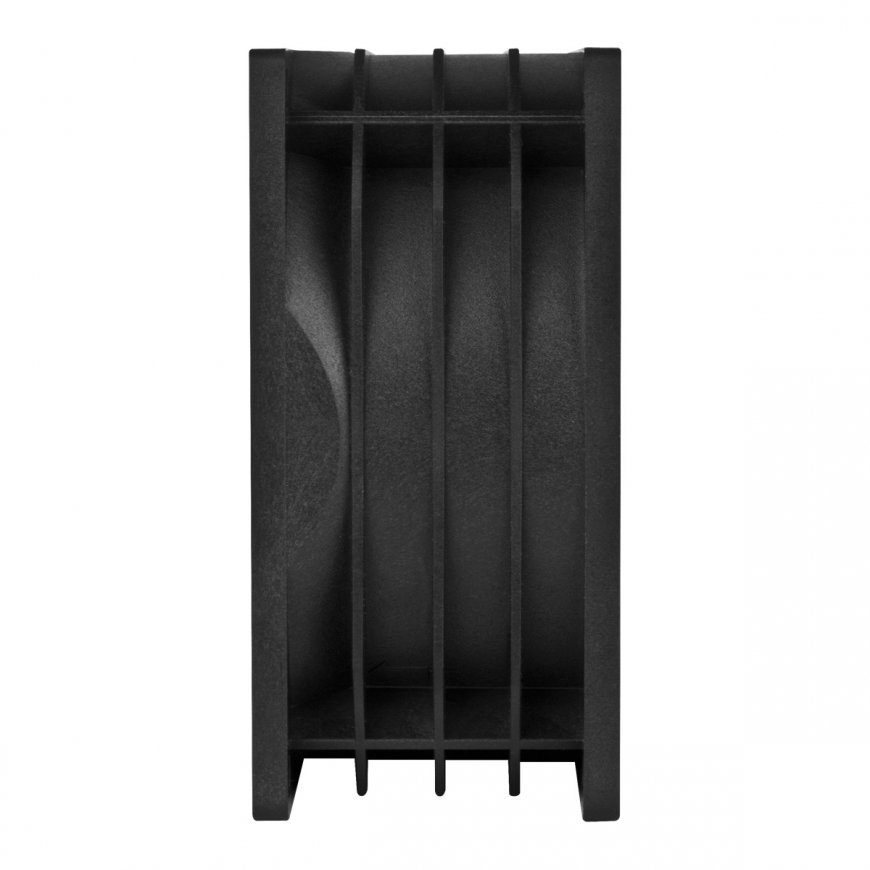

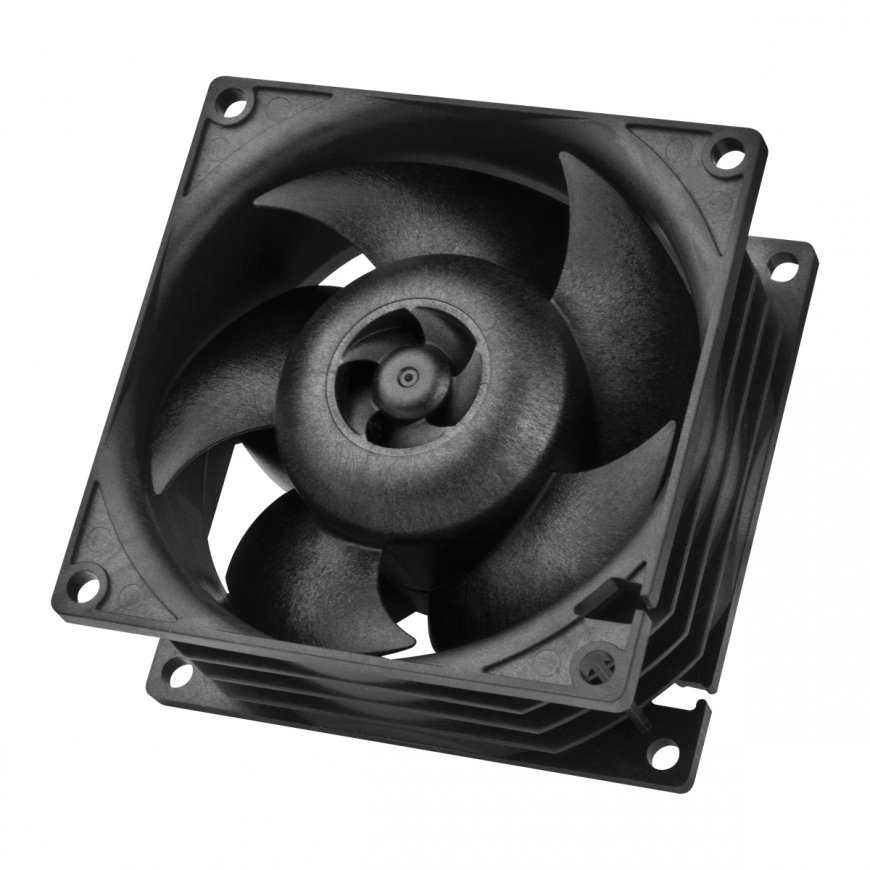

ARCTIC S8038-10K - 80 mm Server Fan
2895841 ACFAN00279A
4895213704298
Shipping 3-5 b.d.
Designed for Continuous Operation
The impeller of the S8038-10K is held in place by two ball bearings, making it not only particularly durable but also less sensitive to external influences such as heat and dust.
Full Control with a Wide Speed Range
The S8038-10K has a wide speed range that can be regulated via PWM and voltage, allowing it to be tuned to the specific system requirement. With a wide speed range from 500 rpm to 10000 rpm, it provides an ideal balance between cooling performance and noise, ensuring optimal performance in various scenarios.
High Airflow and Static Pressure
Heat sinks and radiators benefit from fans with high static pressure. The S8038-10K has a static pressure of 51 mm/H2O, which enables it to push air, even through narrow cooling fins. At the same time, it achieves a maximum airflow of 173.30 m³/h allowing it to quickly dissipate heat from enclosures. These properties make it the ideal choice for a wide range of applications.
Flexible Connection Options
With its standard 4-pin fan connector, the S8038-10K can also be connected to 2-pin or 3-pin sockets, and then be controlled by voltage. The 30 cm cable allows a lot of flexibility in positioning.
Active Cooling for Extended Motor Lifespan
The lifespan of fans is mostly determined by the lifespan of the motor, which is significantly dependent on the motor temperature, especially in long-term operation. The motor of the S8038-10K is actively cooled by an additional impeller in the fan hub. By maintaining lower motor temperatures, its lifespan is extended by up to 50 %. This advance not only leads to improved operating efficiency, but also to significant cost savings in the long run.
Wide Range of Applications
The S8038-10K fits into 2U server cases and serves as an upgrade or replacement for a CPU fan, radiator fan or for system ventilation. In addition to server cooling, it is also used in industrial systems and plays an important role in machine control and automation systems. Reliable and robust, it guarantees performance in various hardware environments and ensures efficient cooling and minimal downtime.
Performance | |
| Operating temperature (T-T) | -10 - 70 °C |
| Type | Fan |
| Fan diameter | 8 cm |
| Airflow | 173.3 m³/h |
| Maximum airflow | 102 cfm |
| Pulse-width modulation (PWM) support | Yes |
| Bearing type | Dual ball bearing |
| Quantity per pack | 1 pc(s) |
| Fan speed (min) | 500 RPM |
| Fan speed (max) | 10000 RPM |
| Fan static pressure | 51 mmH2O |
| Suitable location | Processor |
Design | |
| Product colour | Black |
| Rack capacity | 2U |
| Number of fans | 1 fan(s) |
| Fan connector | 4-pin |
| Number of fan blades | 5 |
Power | |
| Starting voltage | 5.8 V |
| Fan voltage | 12 V |
| Fan current | 1.3 A |
Weight & dimensions | |
| Package weight | 170 g |
| Fan weight | 151 g |
| Package height | 44 mm |
| Package width | 86 mm |
| Package depth | 88 mm |
| Fan dimensions (W x D x H) | 80 x 80 x 38 mm |
Packaging content | |
| Screws included | Yes |
| Number of screws | 4 |
| Package type | Box |
