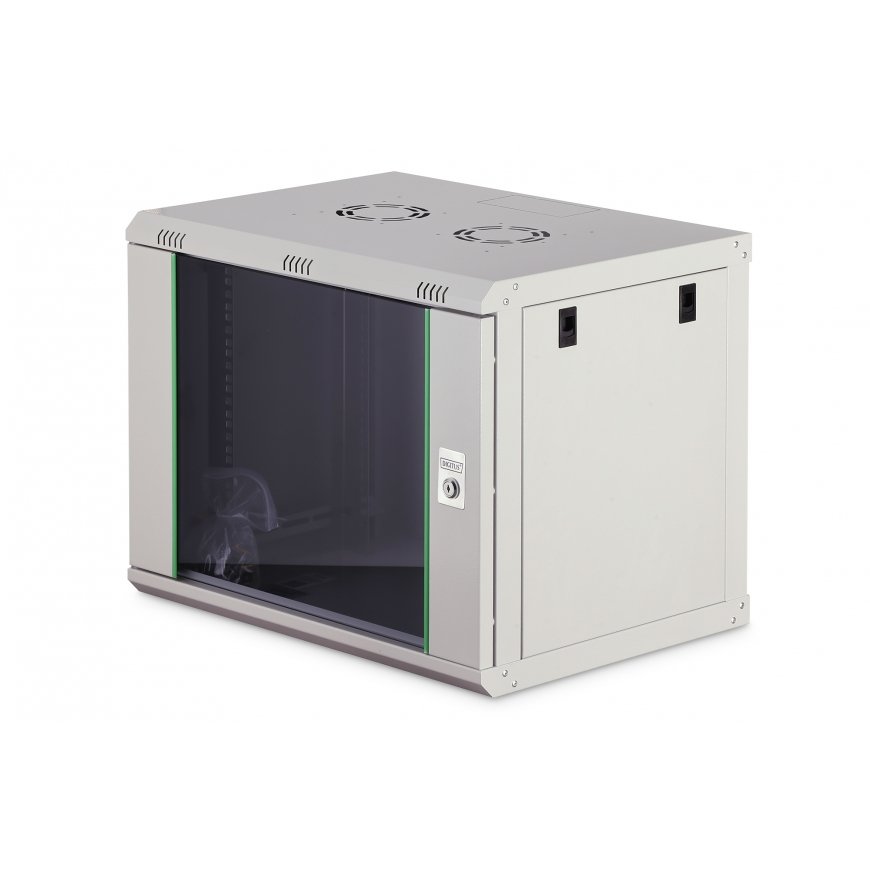

Digitus Wall-mounted enclosure Dynamic Basic series - 600x450 mm (WxD)
129.00 €
Monthly payment from 4,22 €
2799092 DN-19 09-U-EC
4016032221708, 4016032330813
Shipping 3-5 b.d.
You are interested in this product?
All about the product
- Ready for immediate use: Delivery is assembled- Quick and easy wall installation thanks to the enclosed mounting plate
- Flexible cable routing options thanks to pre-punched openings in the roof, base and rear wall
- Lockable safety glass door with 235° door opening angle
- Depth-adjustable 483 mm (19") profile rails
- Load capacity for the installation of components: 60 kg

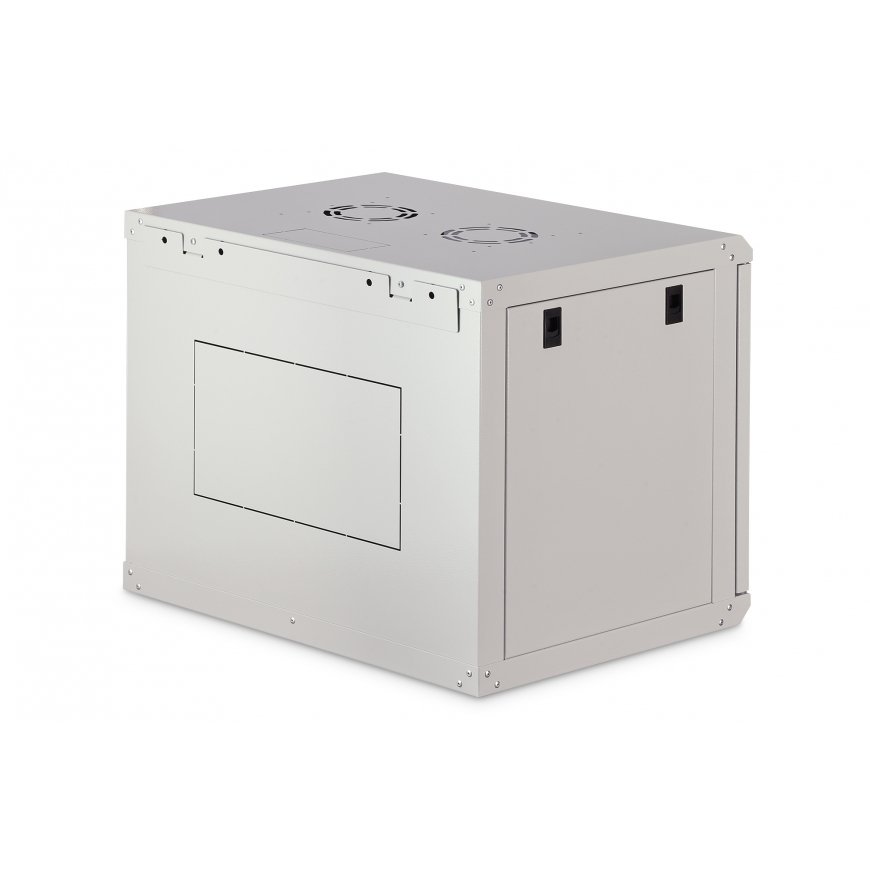

The Dynamic series wall-mounted network cabinets have been developed for simple and particularly cost-optimized network expansion. The roof, base and rear panel of each cabinet are equipped with a pre-punched cable inlet. The roof chassis is also provided with a punched-out area to accommodate a fan module. Two pairs of galvanized 483 mm (19") profile rails, labelled with height units that can be read in both directions, are installed inside. These can be adjusted in depth. Each cabinet is a robust steel construction made of up to 1.5 mm thick sheet steel. The coloring takes the form of electrostatic powder coating in the standard colors grey (RAL 7035) and black (RAL 9005). Removable side panels and the lockable and removable front door improve accessibility. The door hinges can be changed. Wall mounting is carried out in two simple steps: The supplied mounting plate is screwed to the wall and then connected to the housing.
Features
| Product colour | Grey |
| International Protection (IP) code | IP20 |
| Width | 600 mm |
| Depth | 450 mm |
| Type | Wall mounted rack |
| Package width | 480 mm |
| Package depth | 520 mm |
| Package weight | 17 kg |
| Country of origin | China |
| Maximum weight capacity | 60 kg |
| Package volume | 154752 cm³ |
| UK Trade Tariff code | 94032080 |
| Harmonized System (HS) code | 85381000 |
| Rack capacity | 9U |
| Front door construction | Glass |
| Side panels included | Yes |
