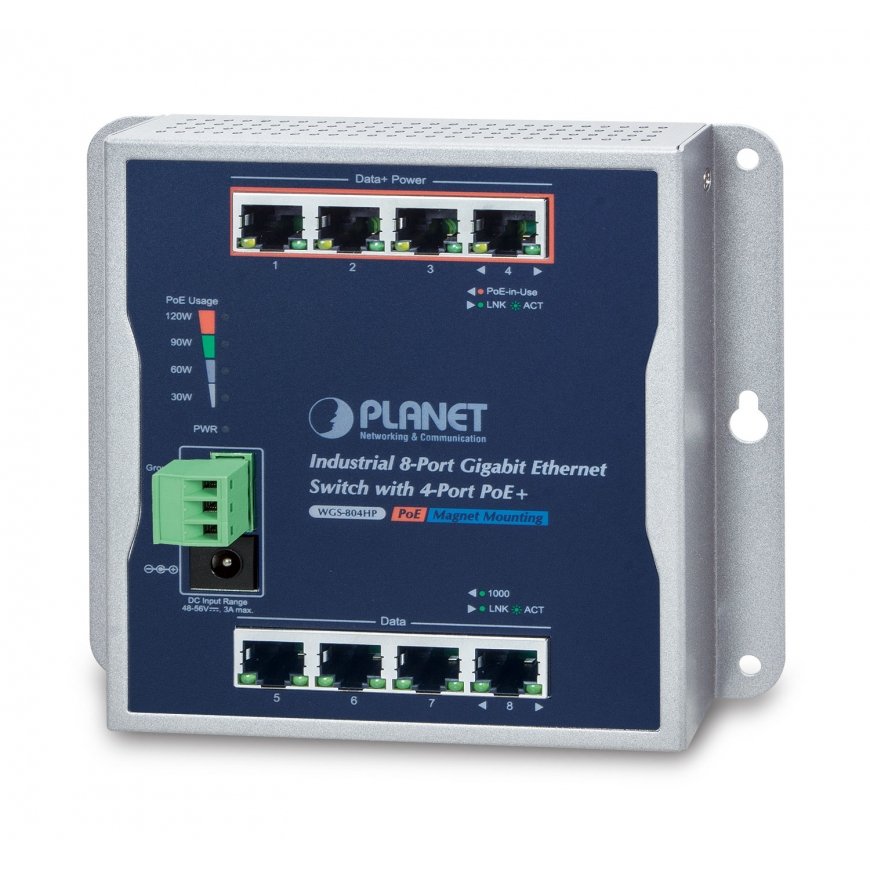

PLANET WGS-804HP network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
136,72 €
Monthly payment from 4.42 €
2579471 WGS-804HP
4711605280563
Shipping 1-2 days
You are interested in this product?
Designed to be installed in a wall enclosure or simply mounted at any convenient location on a wall, PLANET WGS-804HP is an innovative, wall-mounted industrial 8-port Gigabit Ethernet Switch with 4-port 802.3af/802.3at Power over Ethernet. It comes in a compact but rugged IP30 metal housing. Featuring a total PoE budget of 120 watts, ultra networking speed and operating temperature ranging from -10 to 60 degrees C, the WGS-804HP is an ideal solution to meeting the demand for sufficient PoE power for the following network applications.
- Building / Home automation network
- Internet of things (IoT)
- IP surveillance and wireless
The WGS-804HP is able to operate reliably, stably and quietly in any environment without affecting its performance, and provides a quick, safe and easy deployment of PoE PDs with power feeding.
Design | |
| LED indicators | Yes |
| Product colour | Black |
Operational conditions | |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -10 - 60 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions | |
| Weight | 510 g |
| Width | 148 mm |
| Depth | 134 mm |
| Height | 25 mm |
Packaging data | |
| Manual | Yes |
Other features | |
| Heat dissipation | 478 BTU/h |
| Power over Ethernet (PoE) | Yes |
| Power requirements | 48-56V DC, 3A |
| Full duplex | Yes |
Logistics data | |
| Harmonized System (HS) code | 85176990 |
Certificates | |
| Certification | FCC Part 15 Class A, CE |
