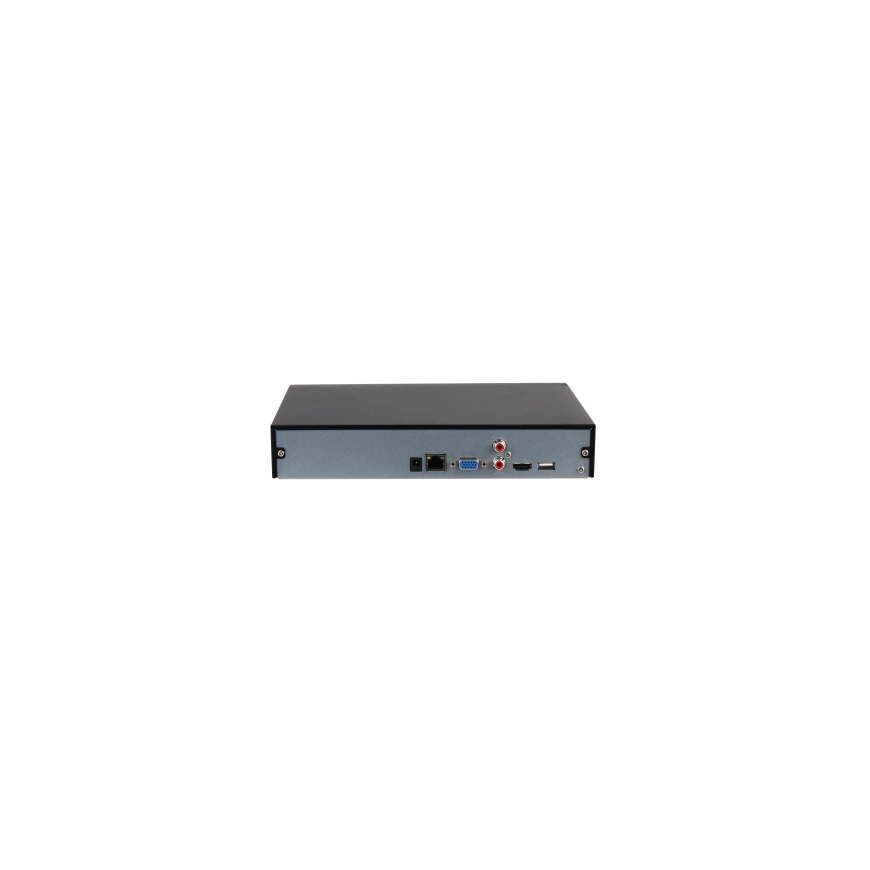

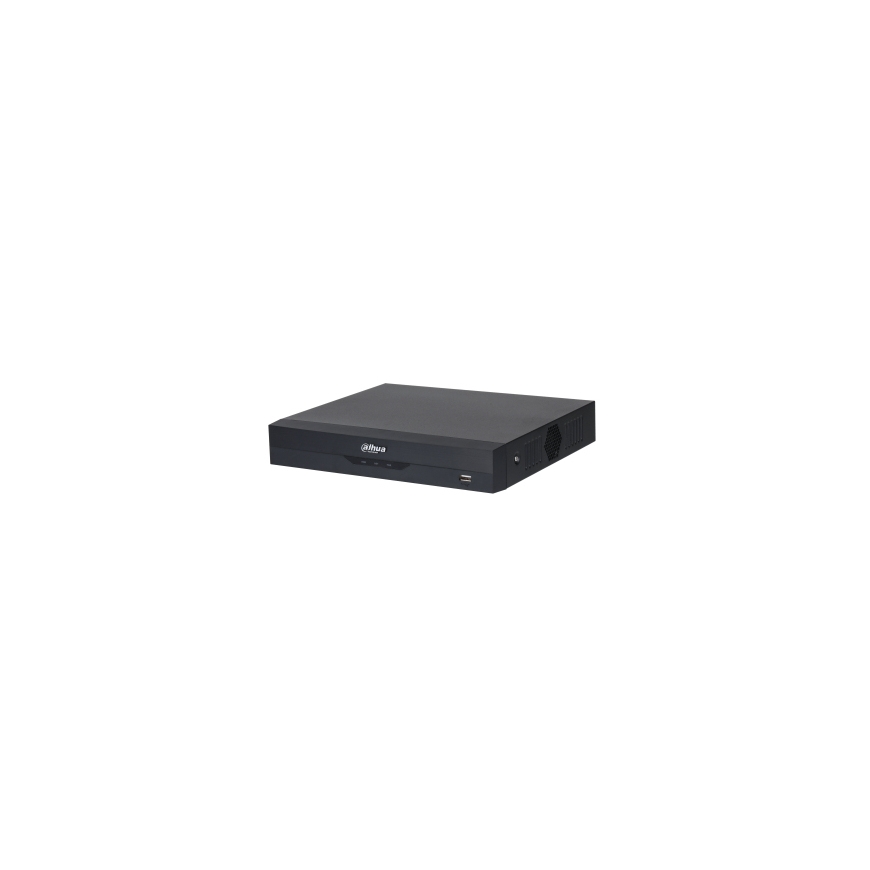

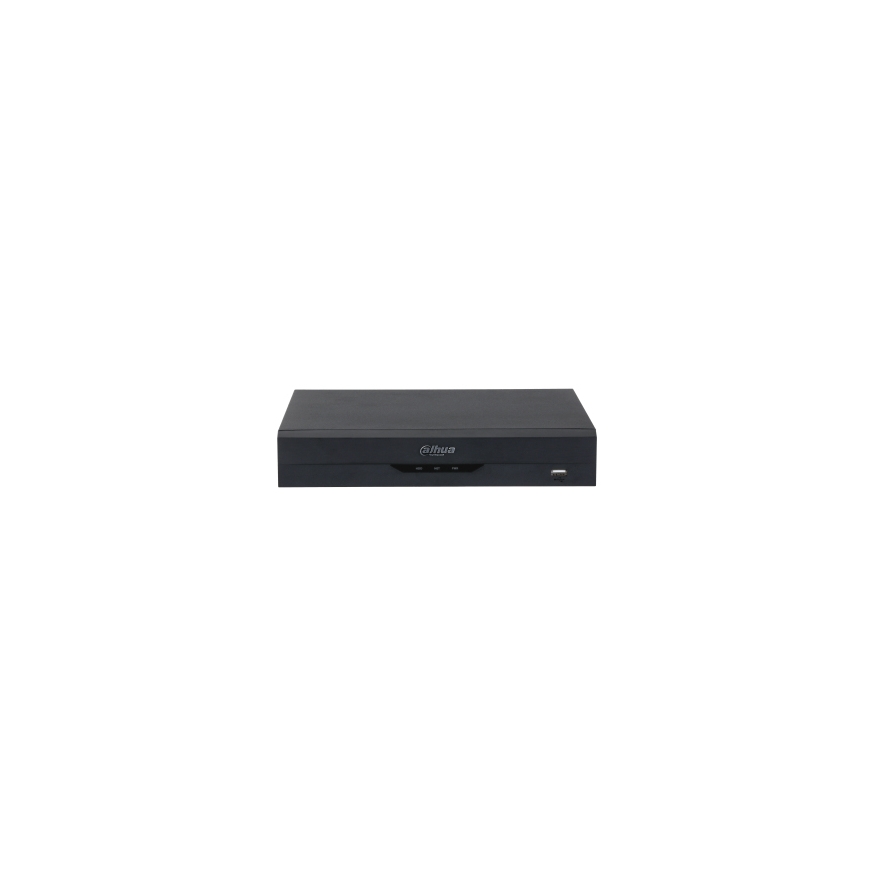

Dahua Technology Lite NVR4116HS-EI network video recorder 1U Black
162,64 €
Monthly payment from 5.09 €
2419563 NVR4116HS-EI
6923172584298
2026-07-14
You are interested in this product?
Face Recognition
Dahua Face Recognition technology extracts the features of captured faces and compares them with that in face database.
Perimeter Protection
Automatically filters out false alarms caused by animals, rustling leaves, bright lights, etc. Enables system to act secondary recognition for the targets. Improves alarm accuracy.
SMD Plus
With intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm.
AI Search
With AI search, operators can search for videos by the attributes of targets and event types, which helps them to quickly and efficiently investigate where and when targets appeared and events took place.
Heat Map by Camera
Dahua heat map technology is used to display the crowd density and people appearance probability. Export and display the crowd status by different colors. Generally, the crowd status is the statistics of people quantity in space and time dimensions.
ANPR by Camera
With deep learning algorithm, Dahua ANPR technology can recognize the number plate information of vehicles in the image with ANPR cameras. Support blocklist/allowlist mode, searching target vehicles from recorded video.
Quick Pick
Dahua Quick Pick technology can enable users to quickly pick up the human/vehicle targets that they are interested in, which facilitates retrieval from SMD events.
| Operating system installed | Embedded LINUX |
| Wi-Fi | No |
| Product colour | Black |
| HDMI ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| Audio formats supported | PCM; G.726; G.711 A-law; G.711 μ-law |
| Weight | 810 g |
| Width | 260 mm |
| Depth | 232.5 mm |
| Height | 47.6 mm |
| Package width | 334 mm |
| Package depth | 89 mm |
| Package height | 314 mm |
| Maximum resolution | 3840 x 2160 pixels |
| Package weight | 1.38 kg |
| Mobile operating systems supported | Android; iOS |
| Certification | CE-LVD: IEC 62368-1:2014; CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014 |
| Operating temperature (T-T) | -10 - 55 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 93% |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10; 100 |
| Output voltage | 12 V |
| Output current | 2 A |
| Power consumption (typical) | 10 W |
| Maximum storage capacity | 20 TB |
| Video recording modes | 720p; 1080p; 960p |
| Face detection | Yes |
| Video formats supported | H.264; H.265; H.264+; H.265+ |
| Input bandwidth | 80 Mbit/s |
| Supported network protocols | HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; IP Filter; DDNS; IP Search (Supports IP camera, DVR, NVS, etc.); P2P; Auto Registration |
| Video motion detection | Yes |
| Browser supported | Chrome; IE; Safari; Edge; Firefox |
| Built-in processor | Yes |
| HDD interface | SATA |
| Rack capacity | 1U |
| Rack mounting | Yes |
| Image formats supported | MJPEG |
| Supported resolutions | HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Video input channels | 16 channels |
| VGA (D-Sub) output ports | 1 |
| Audio RCA inputs | 1 |
| Audio RCA outputs | 1 |
| eSATA ports quantity | 1 |
| Output bandwidth | 60 Mbit/s |
