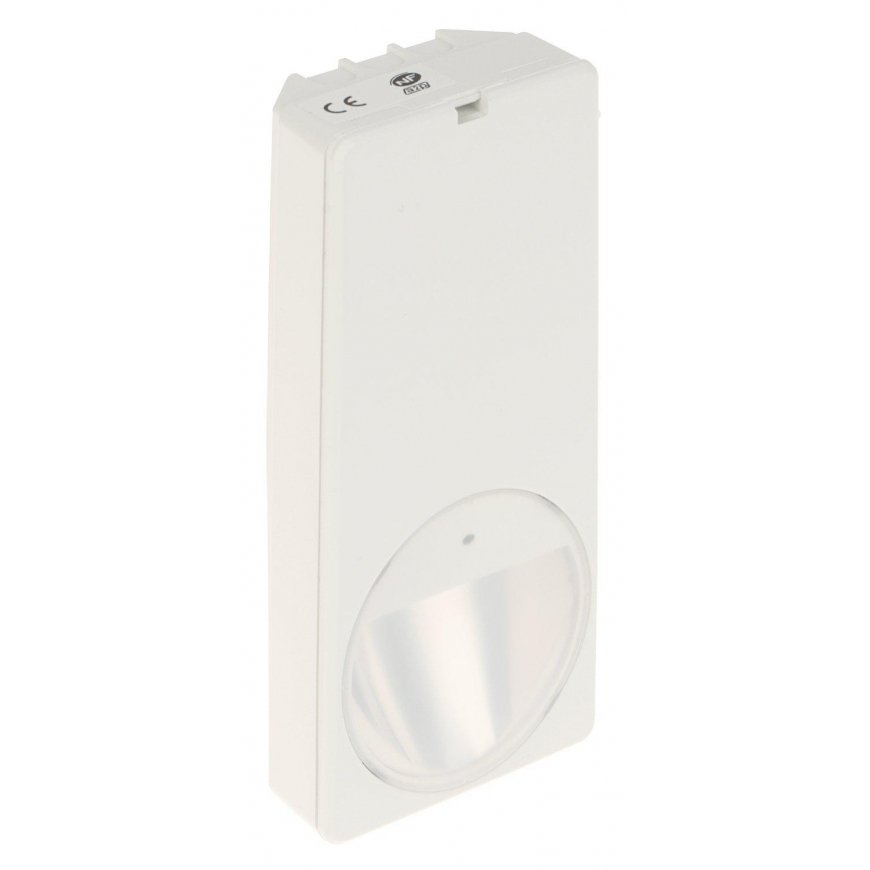

PIR SENSOR PDM-I12 Vanderbilt
49,00 €
Monthly payment from 2.16 €
2397023 PDM-I12
4025515470403
2026-07-22
You are interested in this product?
Digital passive IR detector.
The double-mirror optics used in the device ensure equal coverage and sensitivity in all areas of the detection field.
High resistance to false alarms.
| Usage : | For indoor / outdoor conditions |
| Sensor type : | Passive IR (PIR) |
| Distance : | 12 x 12 years |
| Alarm output : | NC |
| Sensitivity adjustment : | 4 steps |
| Resistance to animals : | - |
| Maximum output load : | 100 mA / 30 V DC |
| Main features : | MAGIC Mirror technology Reliable intruder detection High resistance to false alarms Built-in parametric resistors EOL: 4.7kΩ 250mW Low current consumption Very easy installation |
| Environmental class : | EN 50131-2-2 Grade 2 |
| Sealing class : | IP41 |
| Mechanical resistance class : | IK02 |
| Feed : | 9 V ... 16 V DC / 4.7 mA (max) |
| Working temperature : | -10 °C ... 55 °C |
| Permissible relative humidity of the environment : | < 95% RH (no condensation) |
| Detectable movement speed : | 0.2 ... 3 m/s |
| Weight : | 0.09 kg |
| Dimensions : | 57 x 128 x 32 mm |
| Manufacturer / Brand : | Vanderbilt |
| Warranty : | 2 years |
