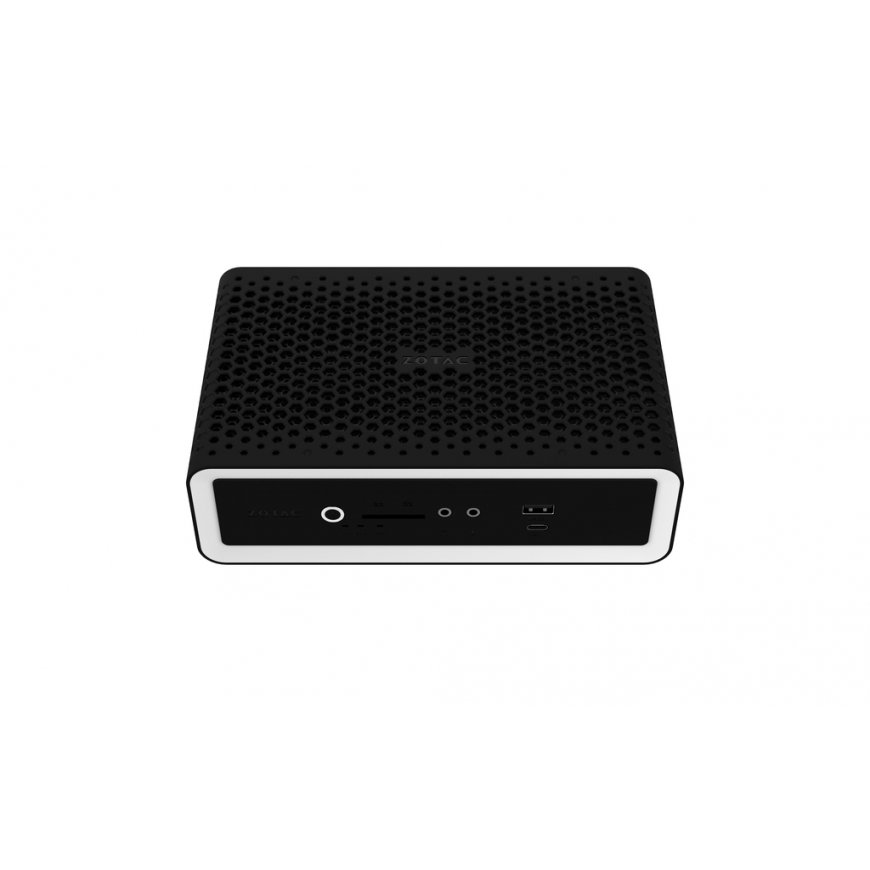

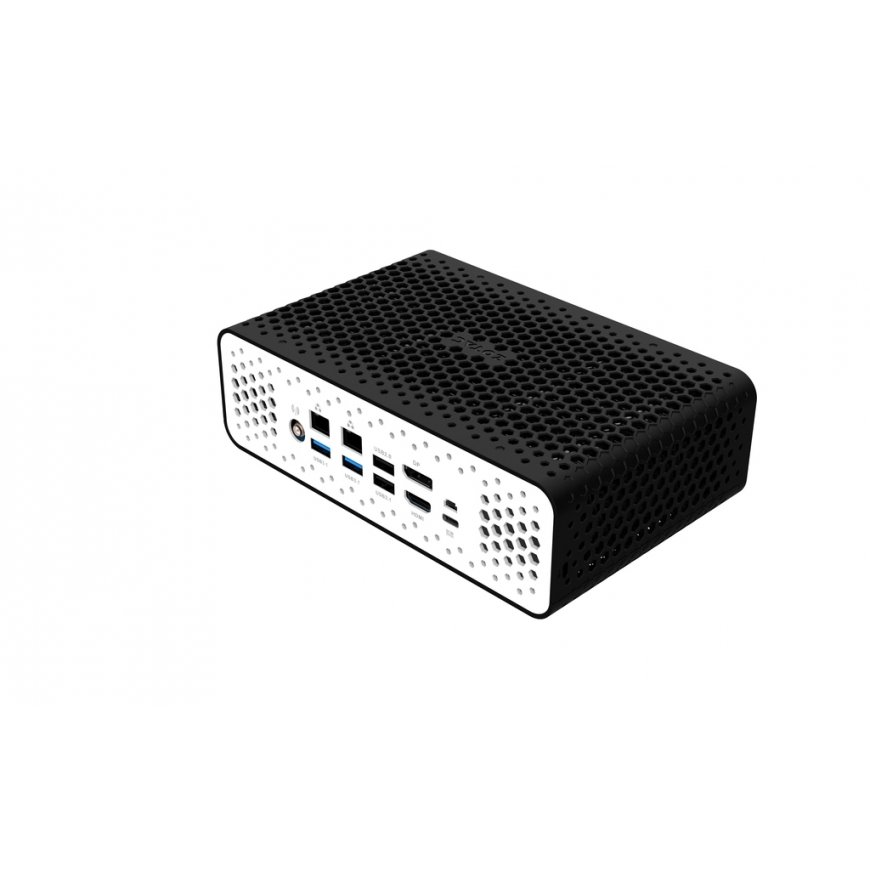

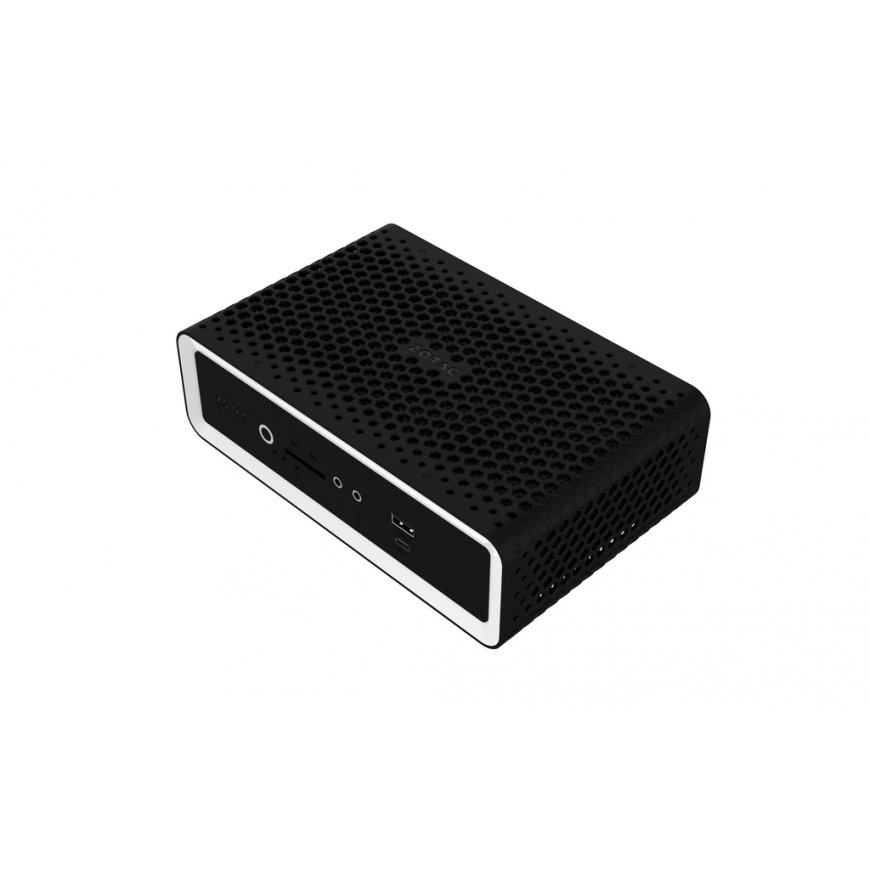

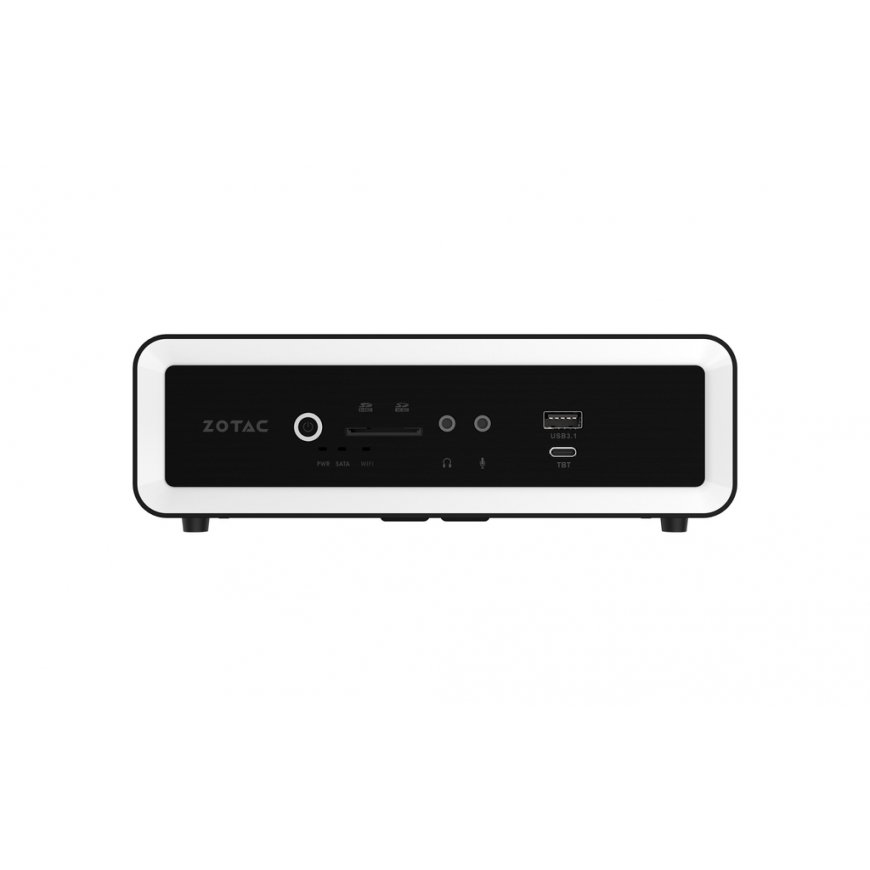

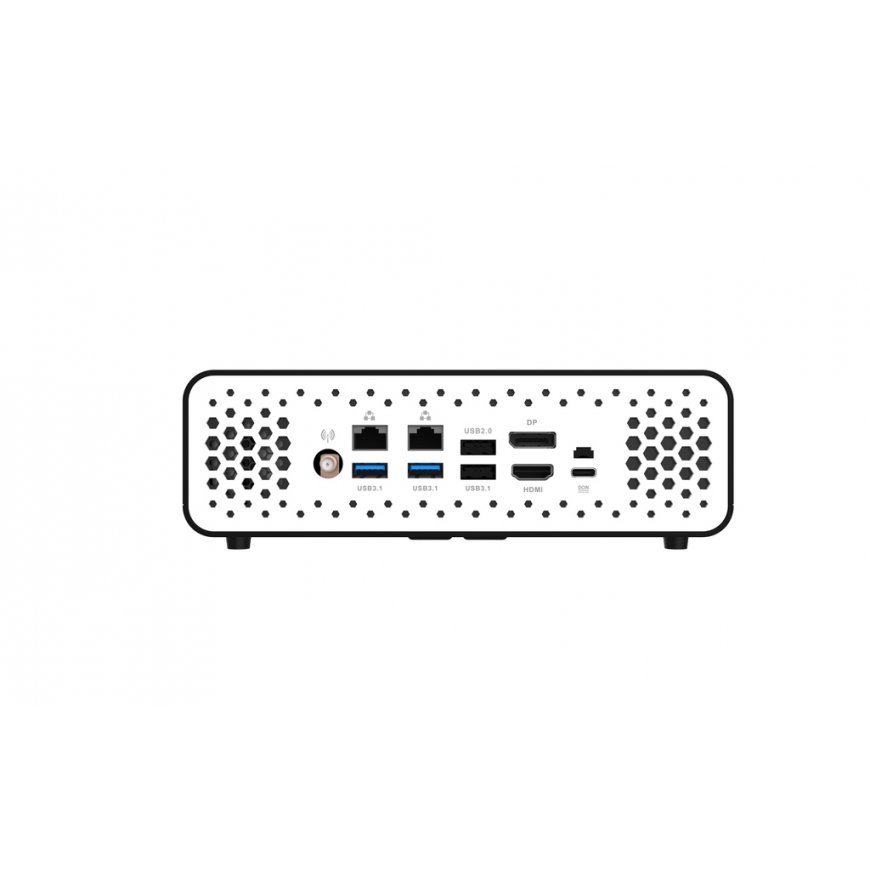

Zotac ZBOX CI629 NANO 1.8L sized PC Black, White i3-1315U Intel SoC 1.2 GHz
479,00 €
Monthly payment from 13.23 €
2382758 ZBOX-CI629NANO-BE
4895173627644
2026-07-31
You are interested in this product?
The all-new compact ZBOX C Series nano is a leader in silent computing performance. Its rigid enclosure is patterned with nature’s strongest natural structure, further enhanced by 270 degrees of open ventilation for maximum breathability and operability.
DEDICATED
The all-new ZBOX C Series nano Mini PC is an efficiently fast multi-core, multi-threaded multitasker that’s dedicated to help get work done.
EFFICIENT AND RELIABLE
A system that takes up very little space and it’s designed with no moving parts* to remove wear and tear inefficiencies to increase overall system reliability, longevity, and return on investment. At 1.8 liters small, its energy consumption is just as small and efficient, sipping up to 30W under load for additional long term cost savings
Flexible
The ZBOX C Series nano features a built-in VESA mount design to allow for more flexible system placement. The overall small system takes very little desk space, but it also has the potential to take up zero if mounted onto a wall, under the desk, or even behind the display.
HAS GREAT COMMUNICATION
The ZBOX C Series nano’s compact footprint packs in a plethora of built-in fast connectivity which include: WiFi 6, Bluetooth 5.2, Gigabit LAN, and 2.5Gbps LAN. It can also provide great visibility with the ability to support up to 3 displays with HDMI 2.0b, DisplayPort 1.4, and DP via Thunderbolt. The available Thunderbolt 4, USB 3.1, and SDXC Card Reader allows for easy file transfers between devices.
CAN TAKE ON MORE
The ZBOX C Series nano can take on up to 64GB of fast DDR5 5200/4800 MHz Memory, a 2.5” HDD/SSD drive, and an M.2 NVMe PCIe 4.0 x4 SSD with little effort.
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Product colour | Black; White |
| VESA mounting | Yes |
| HDMI ports quantity | 1 |
| USB 2.0 ports quantity | 1 |
| Processor frequency | 1.2 GHz |
| Processor family | Intel® Core™ i3 |
| Processor model | i3-1315U |
| Processor cores | 6 |
| Compatible memory cards | SD; SDHC; SDXC |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Bluetooth version | 5.2 |
| Width | 204 mm |
| Depth | 129 mm |
| Height | 68 mm |
| AC adapter included | Yes |
| Cooling type | Passive |
| Maximum resolution | 4096 x 2160 pixels |
| Windows operating systems supported | Windows 11 |
| Quick start guide | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| Card reader integrated | Yes |
| LED indicators | Power; HDD; Wi-Fi |
| Product type | Workstation barebone |
| Built-in speaker(s) | No |
| On/off switch | Yes |
| Audio output channels | 8.0 channels |
| Number of displays supported | 3 |
| Number of storage drives supported | 2 |
| HDMI version | 2.0b |
| Power supply type | External AC adapter |
| Thermal Design Power (TDP) | 55 W |
| Power supply | 65 W |
| Built-in processor | Yes |
| Processor manufacturer | Intel |
| Processor cache | 10 MB |
| Maximum internal memory | 64 GB |
| On-board graphics card | Yes |
| On-board graphics card model | Intel® UHD Graphics |
| Chassis type | 1.8L sized PC |
| Motherboard chipset | Intel SoC |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Processor threads | 8 |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Supported memory types | DDR5-SDRAM |
| Storage drive sizes supported | 2.5; M.2 |
| Supported storage drive types | HDD & SSD |
| Number of memory slots | 2 |
| Memory slots type | SO-DIMM |
| Storage drive interface | Serial ATA; PCI Express |
| Supported memory clock speeds | 4800; 5200 |
| Power cord included | Yes |
| Graphics card family | Intel |
| Performance cores | 2 |
| Efficient cores | 4 |
| Performance-core boost frequency | 4.5 GHz |
| Efficient-core boost frequency | 3.3 GHz |
| Thunderbolt 4 ports quantity | 1 |
| Processor generation | Intel Core i3-13xxx |
