Array PULSE POWER SUPPLY 12V/21A/PA18

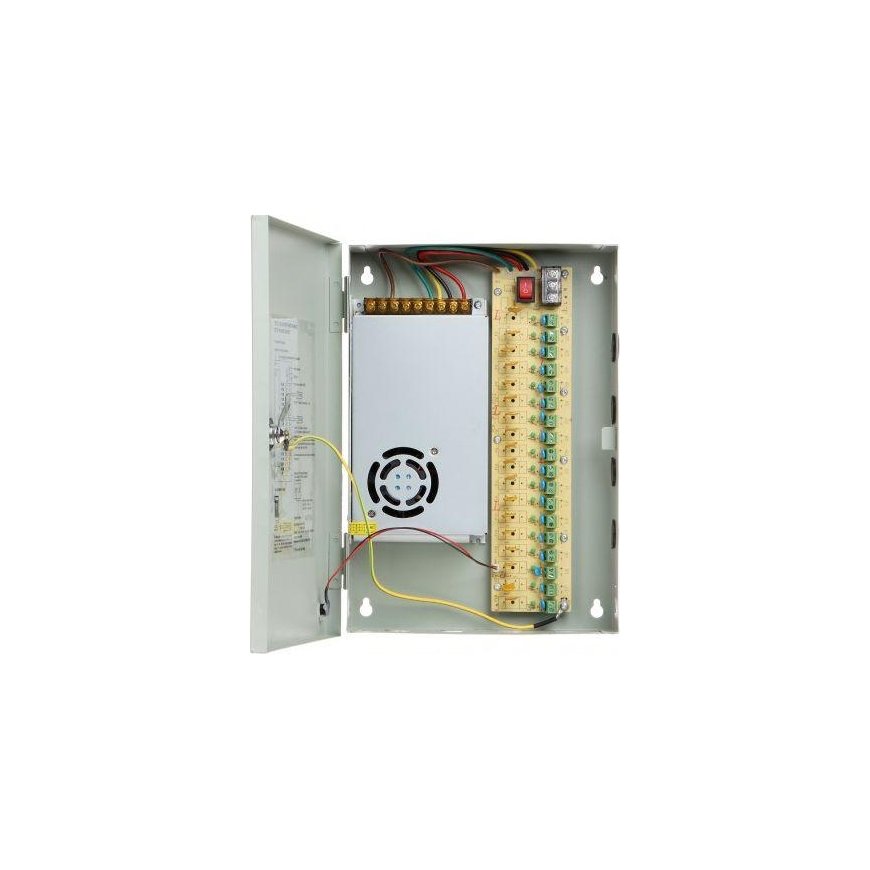

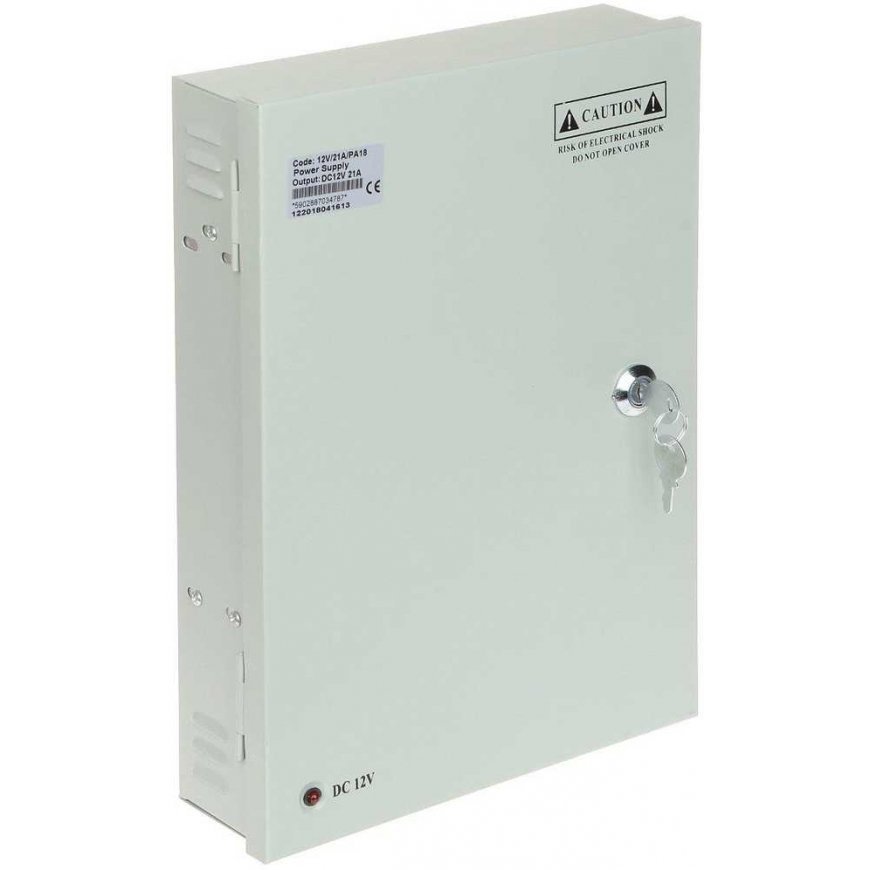

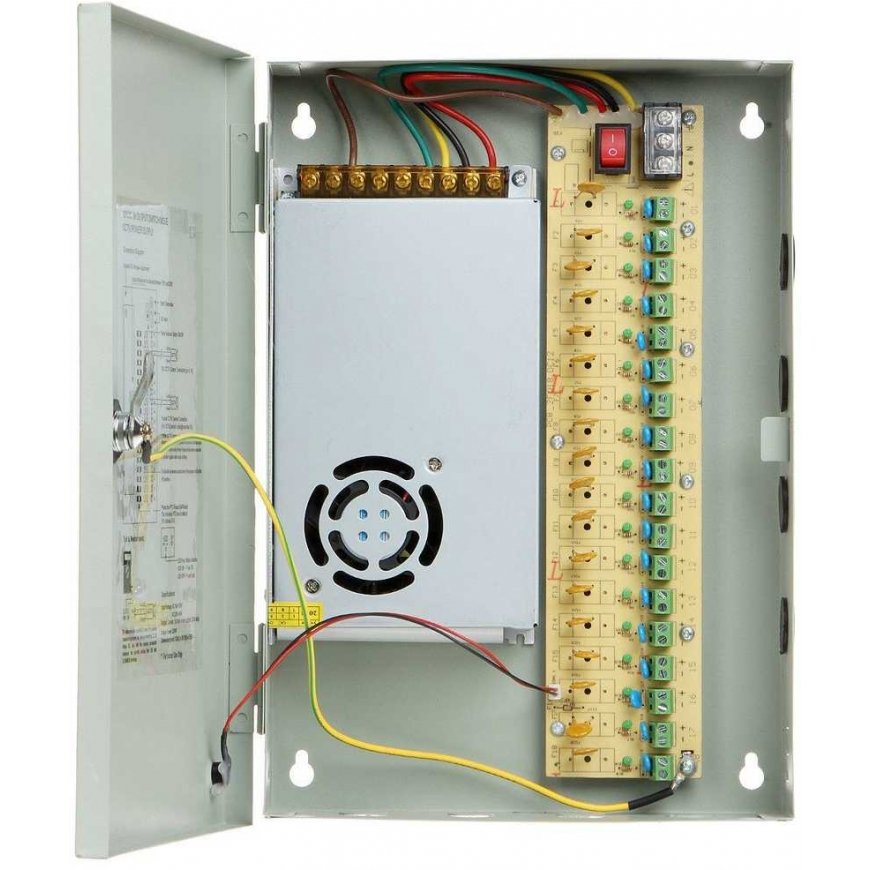

The power adapter is housed in an aesthetic, solidly made metal case.

The operation of the power supply is signaled by the LED diode on the body.

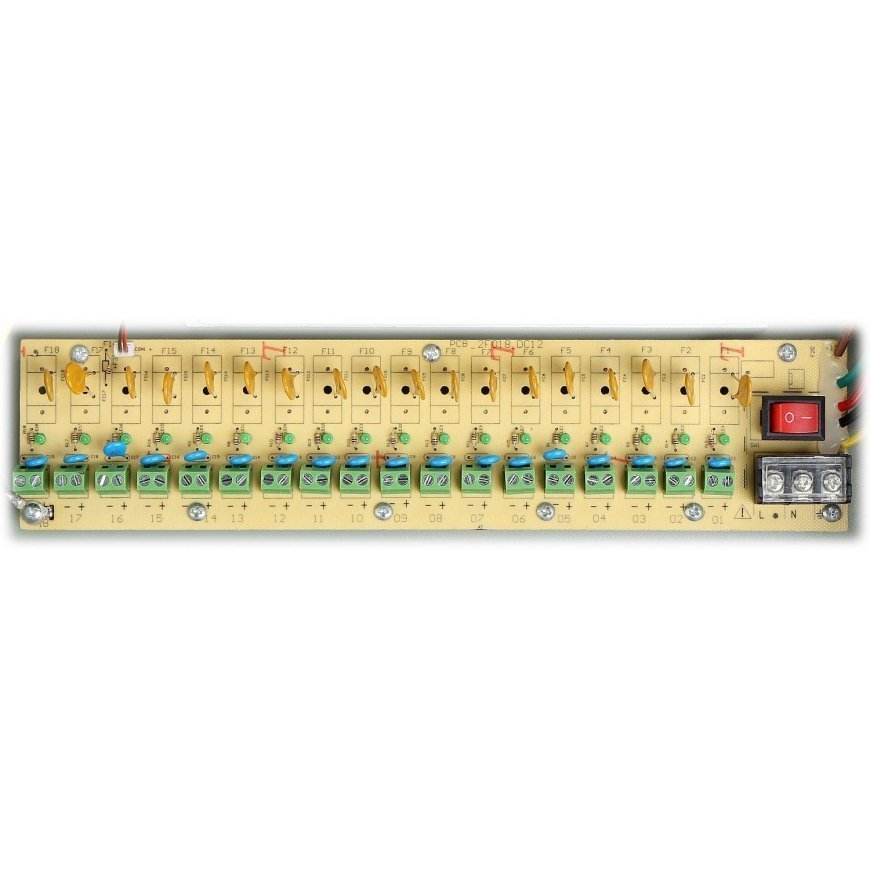

Each current line is protected by a polymer fuse and has an LED indicating the voltage at a specific output.

The adapter has jumpers to disconnect power to each of the outputs.

Attention! If the power supply is intended for continuous operation (24H), its nominal current must not exceed 80% of the maximum current.

It is necessary to pay special attention to the proper cooling of the power supply during work!.

Power supply type :	Impulsive
Output voltage :	12V DC
Output voltage regulation :	11 ... 13 V
LED indication :
Maximum output current (total) :	21 A
Single output max. output current :	1.1 A
Input voltage :	230 V AC
Power :	252 W
Number of outputs :	18
Connection type :	Cable clamps
Packaging type :	Metal, fixed to the wall
Lockable with a key :
Weight :	1.89 kg
Dimensions :	212 x 314 x 65 mm
Warranty :	2 years
