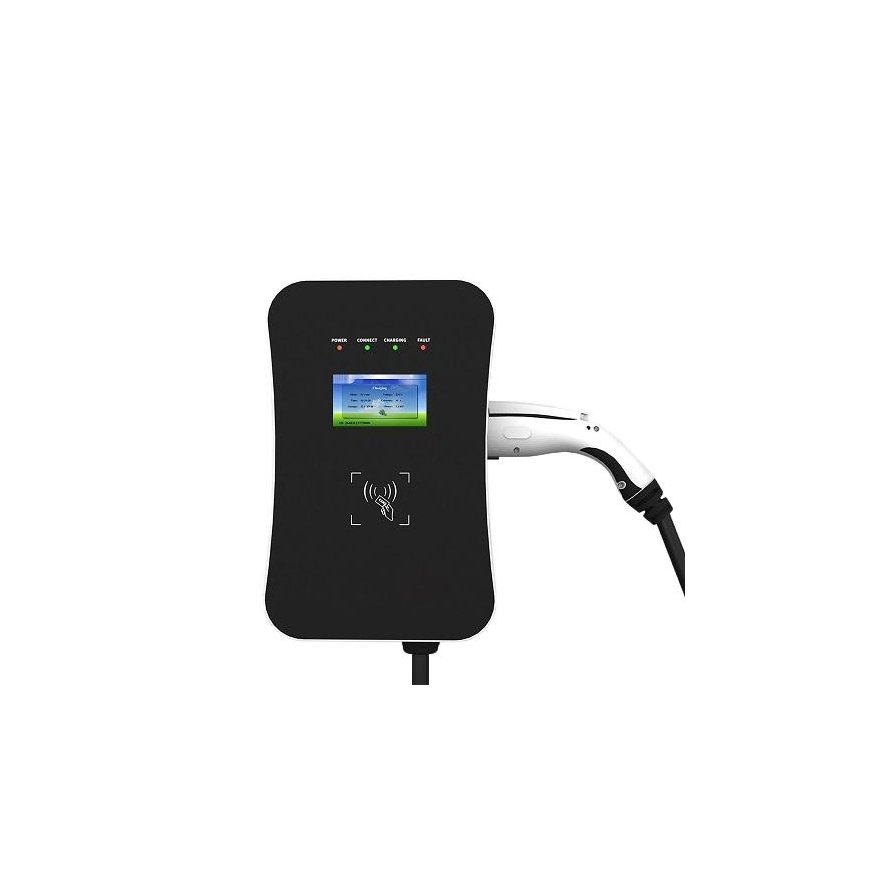

Hismart Electric car charging station, Type 2, 22kW, 32A, 3-phase, 5m

The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

Hismart Electric car charging station, Type 2, 22kW, 32A, 3-phase, 5m

679,00 €
Monthly payment from 18.38
1994094

EV200085

9990000200085

Shipping 2-4 days

Quantity
You are interested in this product?
(Read terms of service)
Electric vehicle charging station Mode3, 22kW, 32A, 3-phase, with 5 meters Type 2 EV charging cable, wall-mounted, RCD, IP65 suitable for indoor and outdoor conditions, IK08 shockproof, Plug&Play / RFID cards.


Features:
The charging station allows you to charge up to 22kW.
5 meter long Type 2 charging cable for electric cars.
Type 2 electric car connector (European standard) is suitable for most electric cars for the European market.


Technical data:
Max. charging current: 32A (3-phase).
Max. charging power: 22kW (3-phase).
Input: 380V +/- 20V AC (3-phase), 32A (max), 50/60Hz.
Output: IEC 62196, Type 2 (European), Mennekes, 7 pins.
Charging control: Plug&Play / RFID card.
Screen: 4.3 inch LCD screen.
4 LED indicators: voltage/connection/charging/error.
Body material: metal plate.
Front panel: tempered glass.
Cable length: 5 m.
Screen color: black.
Operating temperature: -30°C to 55°C.
Operating humidity: <95% RH.
Storage temperature -40°C to +75°C.
Safety class: IP65 (suitable for indoor and outdoor conditions), IK08 (impact resistant).
Protection: RCD (residual current device).
Protection against: overheating, overvoltage, overload, voltage fluctuations, short circuit, leakage; grounding
Cooling: natural.
Size: 410x260x164.
Weight: <12 kg.


Warranty: 24 months
