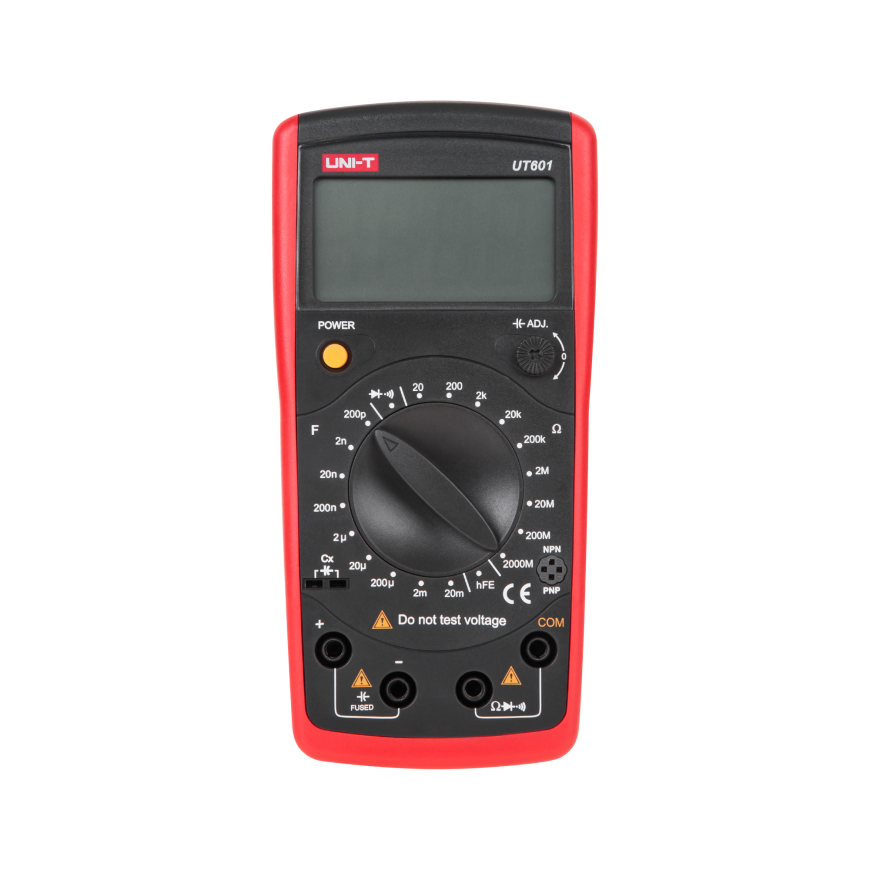

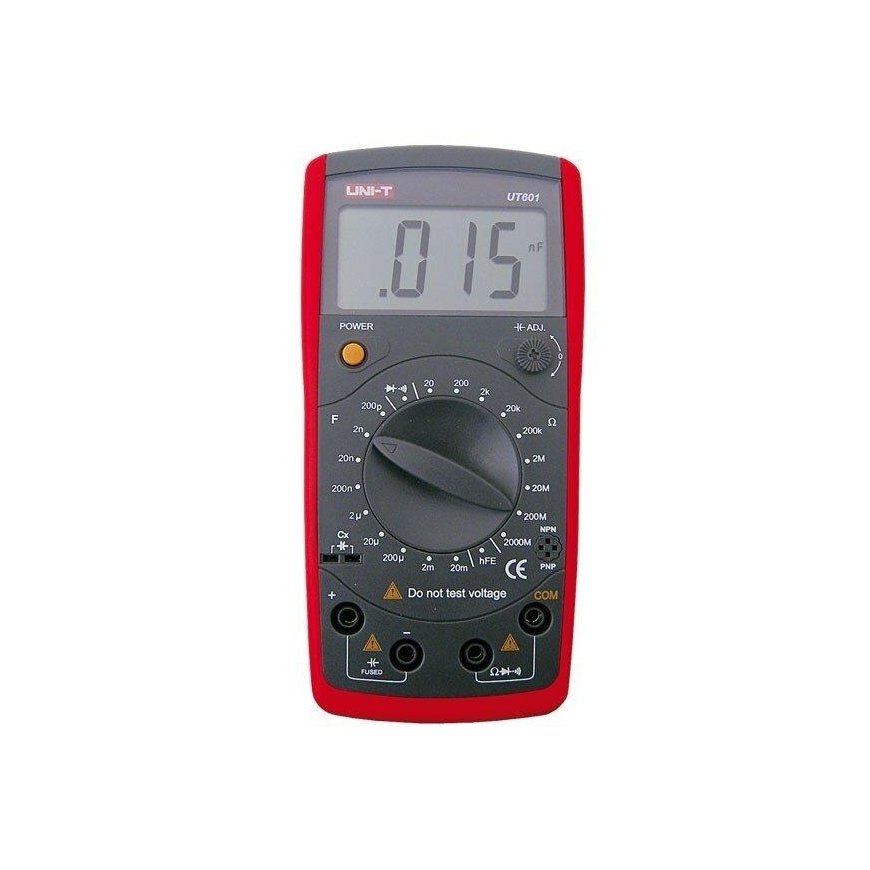

Resistance and capacitance meter UNI-T UT601
49.00 €
Monthly payment from 2,16 €
1947971 MIE0095
Shipping 6-10 b.d.
You are interested in this product?
All about the product
Accurate measurement of active impedance and capacitance. Allows measuring resistance up to 200 MΩ and capacitors 20 UF. The device also has a transistor tester, a diode and an audio signal. The power source is a popular 9V battery, which is also included. The discharge level is displayed on the digital indicator. The whole set is sent in a protected, original box.Specifications:
- Resistance measurement ranges: 20 Ohm / 200 Ohm / 2 kOhm / 20 kOhm / 200 kOhm / 2 MOhm / 20 MOhm / 200 MOhm / 2000 MOhm
- average accuracy: +/- (0.8% + 1)
- Capacitance measurement ranges: 200 pF / 2 nF / 20 nF / 200 NF / 2 µf / 20 µf / 200 µf / 2 MF / 20 MF
- average accuracy: +/- (0.5% + 10)
- Transistor tester
- Tester diode
- Audio signal (conduction)
- Battery indicator
- Power supply: 9 V battery (6F22 2x)
- Screen: LCD, 1999 (61 x 32 mm)
- Dimensions: 172 x 83 x 38 mm
- Weight: 310 g

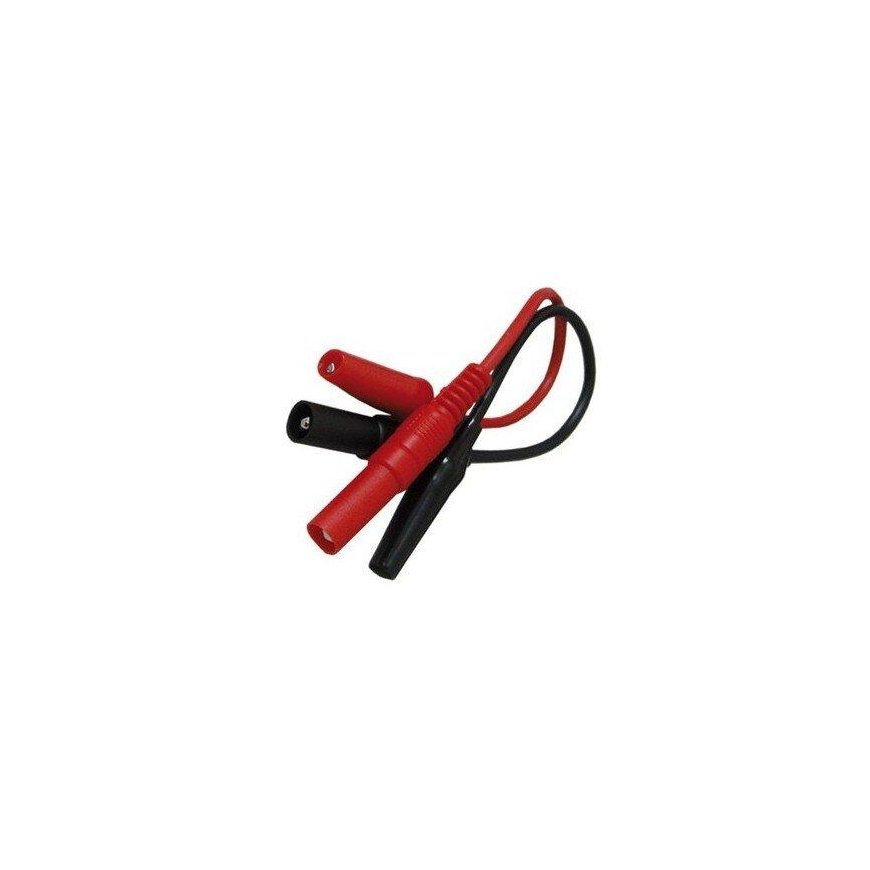

- Measuring clip
- 9V battery
- Instruction: in English and Polish
- Warranty: 24 months
