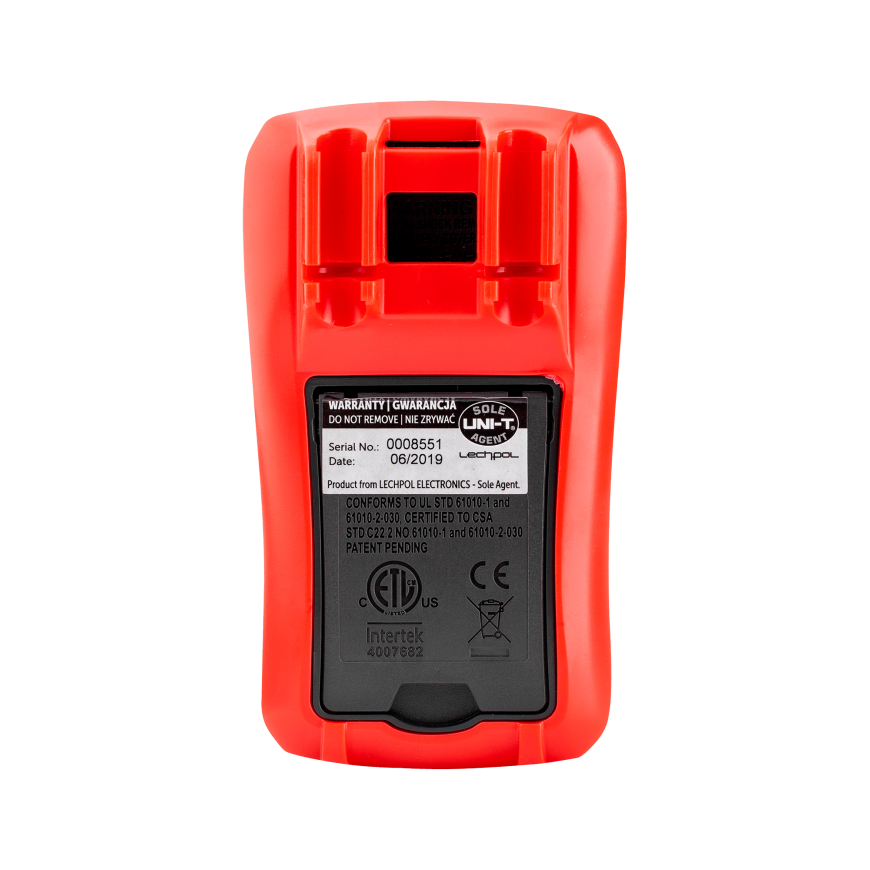

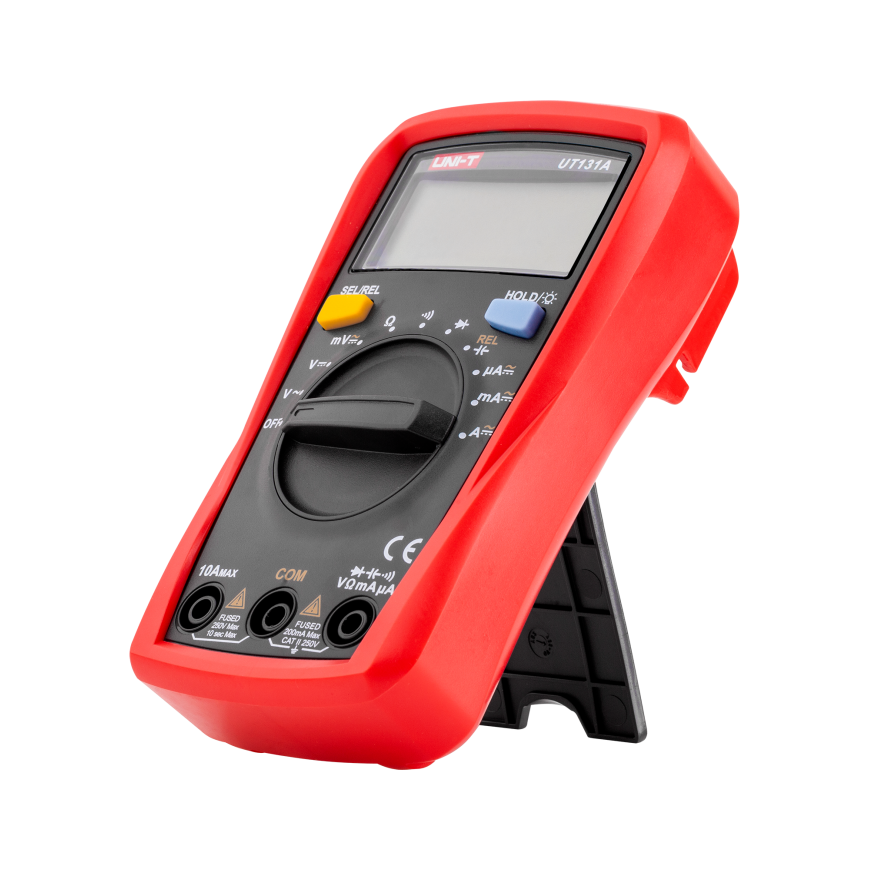

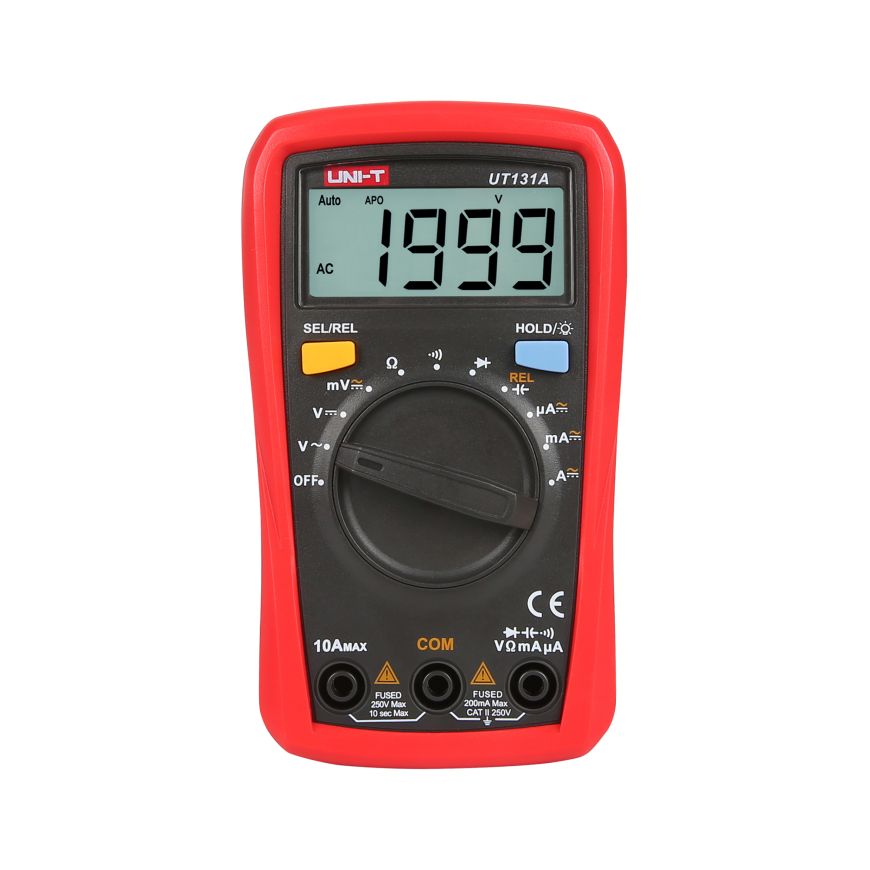

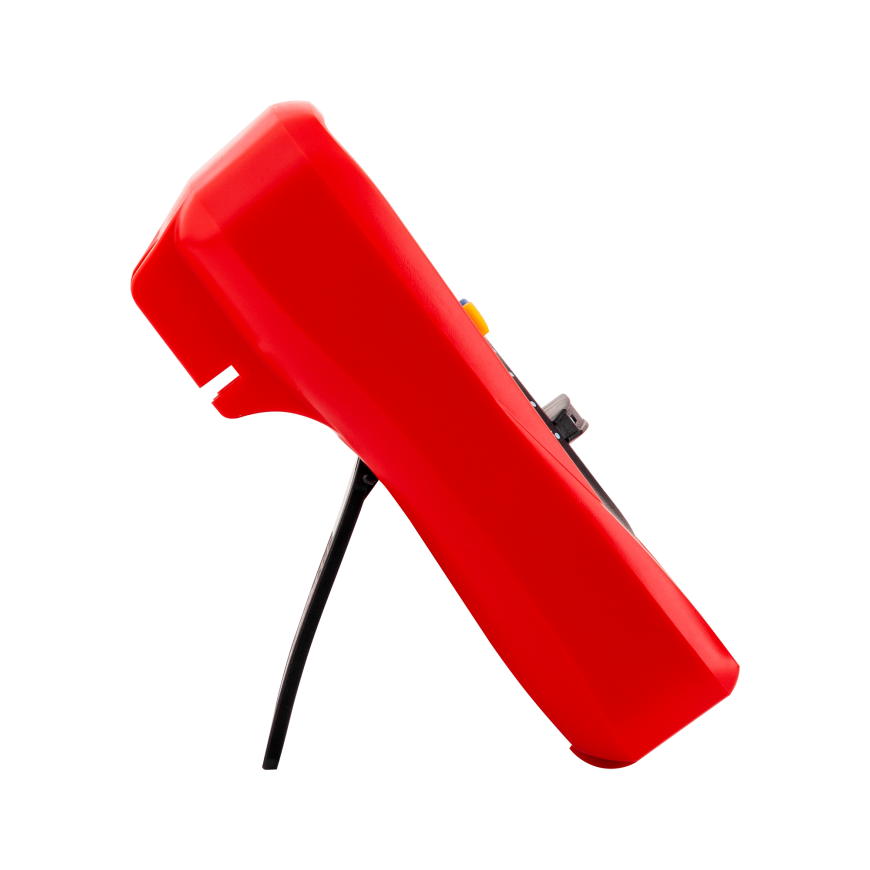

Universal multimeter Uni-T UT131A
1929963 MIE0379
5901890044837
Shipping 6-10 b.d.
All about the product
Multimeter Uni-T UT131A is one of the universal measuring devices that allows you to measure the main electrical quantities, ie direct or alternating voltage, direct or alternating current and resistance. In addition, the model allows you to check circuit continuity, diode test and capacitance measurement. Additional advantages of the device are relative value measurement, freezing of the last indication, automatic change of measurement ranges.
Specification:
- DC input impedance: about 10 MOhm
- Power supply: battery 2x 1.5V battery (R03)
- Screen size: 48x16mm
- Product dimensions: 134x77x47mm
- Product weight: 206 g

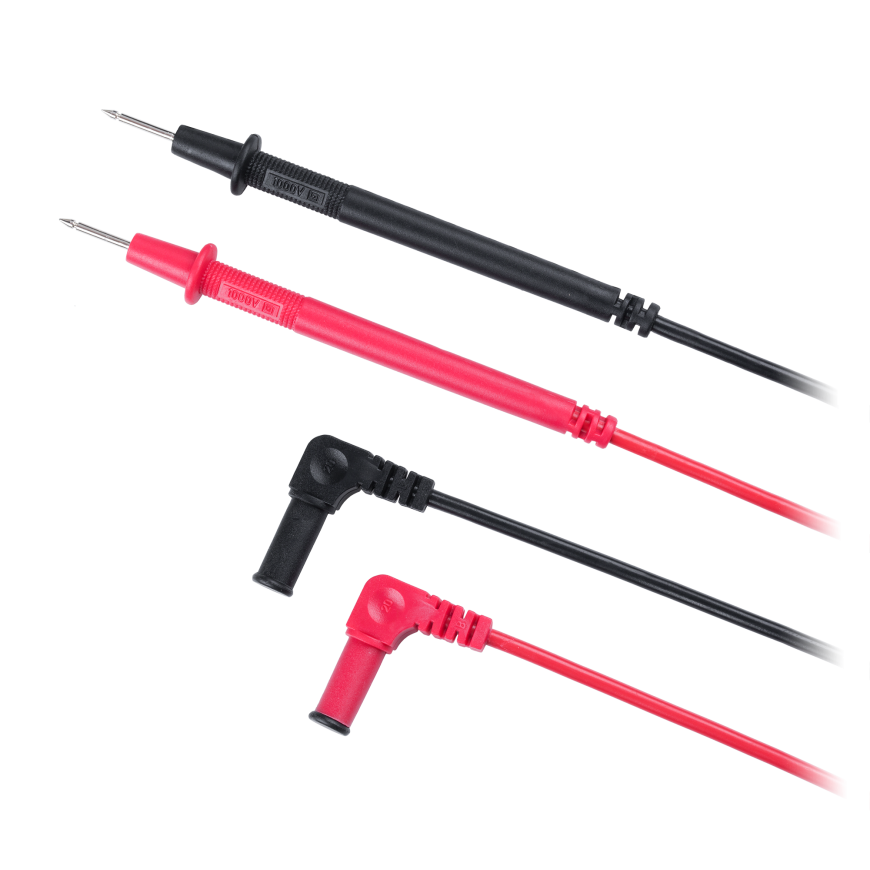

- In the set: Batteries, test leads, case
MEASUREMENT RANGES:
- DC voltage: 200 mV / 2000 mV / 20V / 200V / 250 V ± (0.5% + 2)
- AC Voltage: 200mV / 2V / 20V / 200V / 250V ± (0.7% + 3)
- Continuous current: 200 µA / 2000 µA / 20 mA / 200 mA / 2A / 10A ± (1% + 2)
- AC current: 200 µA / 2000 µA / 20 mA / 200 mA / 2A / 10A ± (1.2% + 3)
- Resistance: 200 ohms / 2000 ohms / 20 kOhm / 200 kOhm / 20 MOhm / 200 MOhm ± (0.8% + 2)
- Capacitance: 2 nF / 20 nF / 200 nF / 2 µF / 20 µF / 200 µF / 2 mF ± (4% + 8)
- Diode test
- Continuity check
Additional features:
- Automatic change of measurement ranges
- Freezes the last reading
- Measuring relative value
- Low battery indicator
- Automatic shutdown
- Maximum reading: 2000
- LCD screen with lighting
