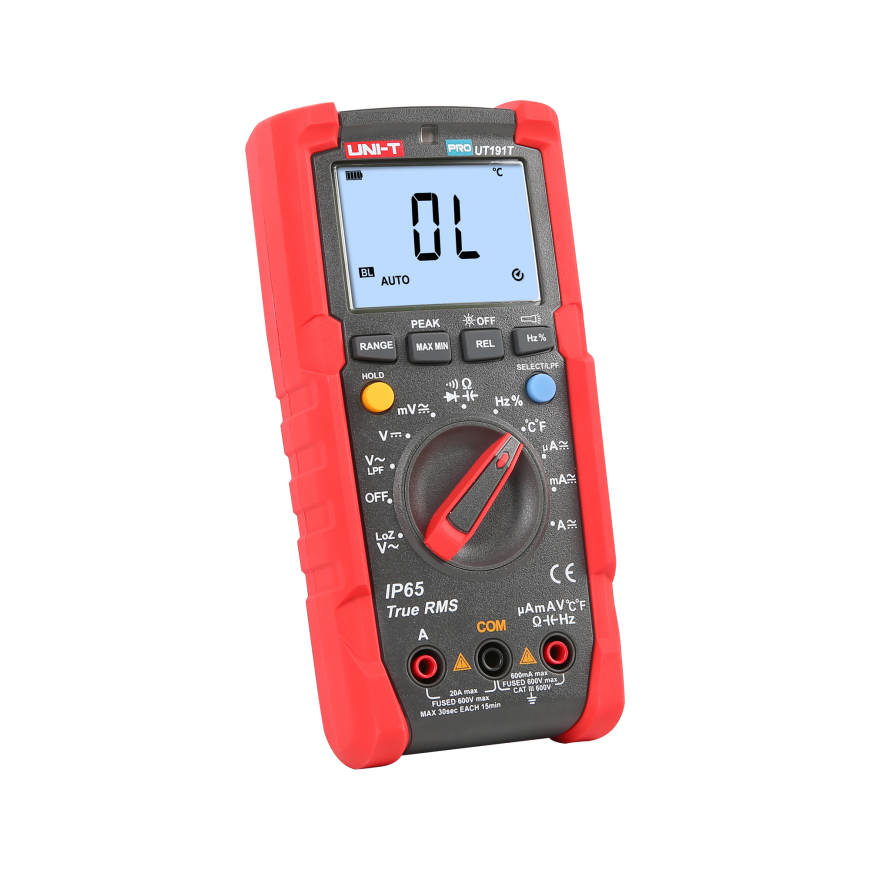

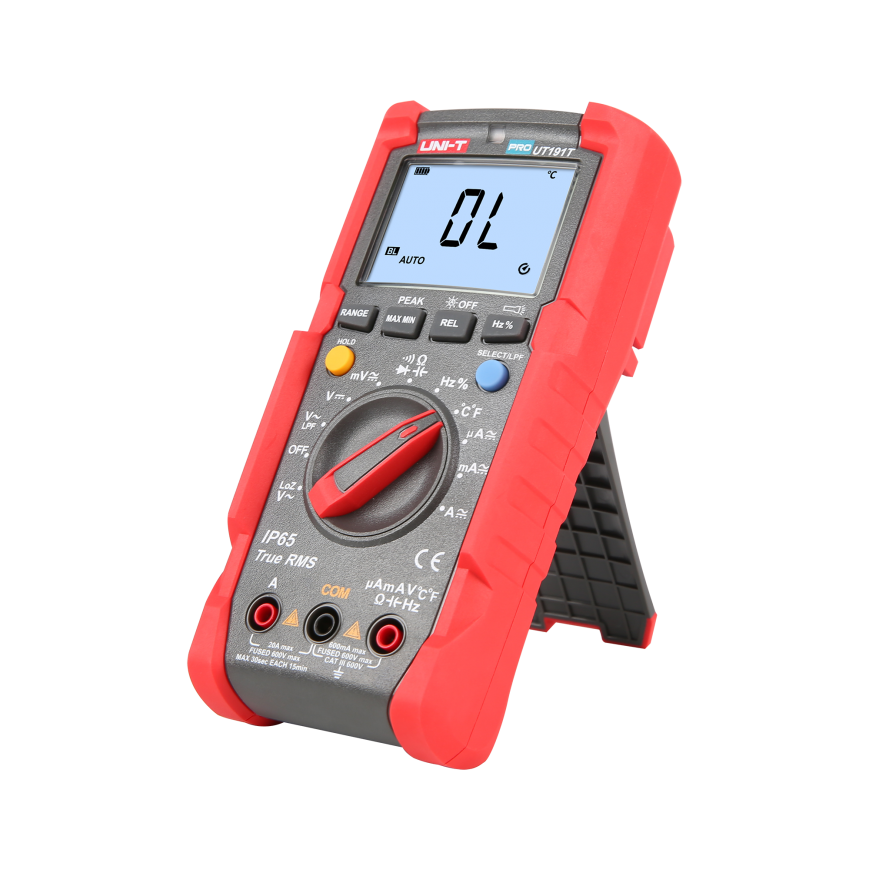

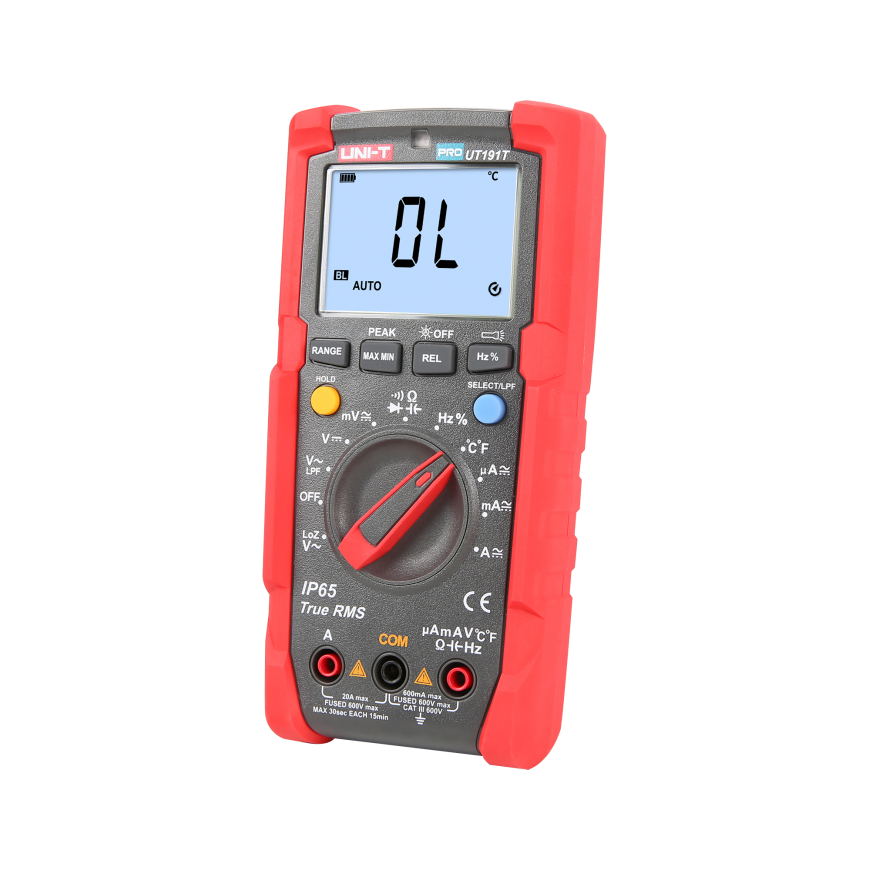

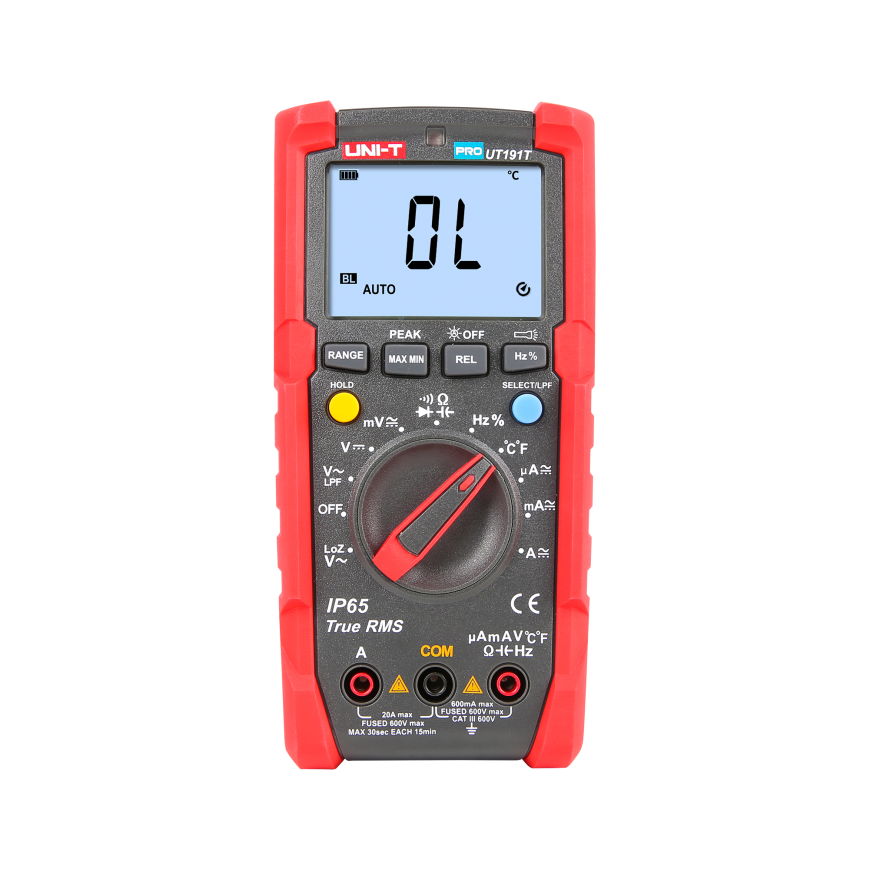

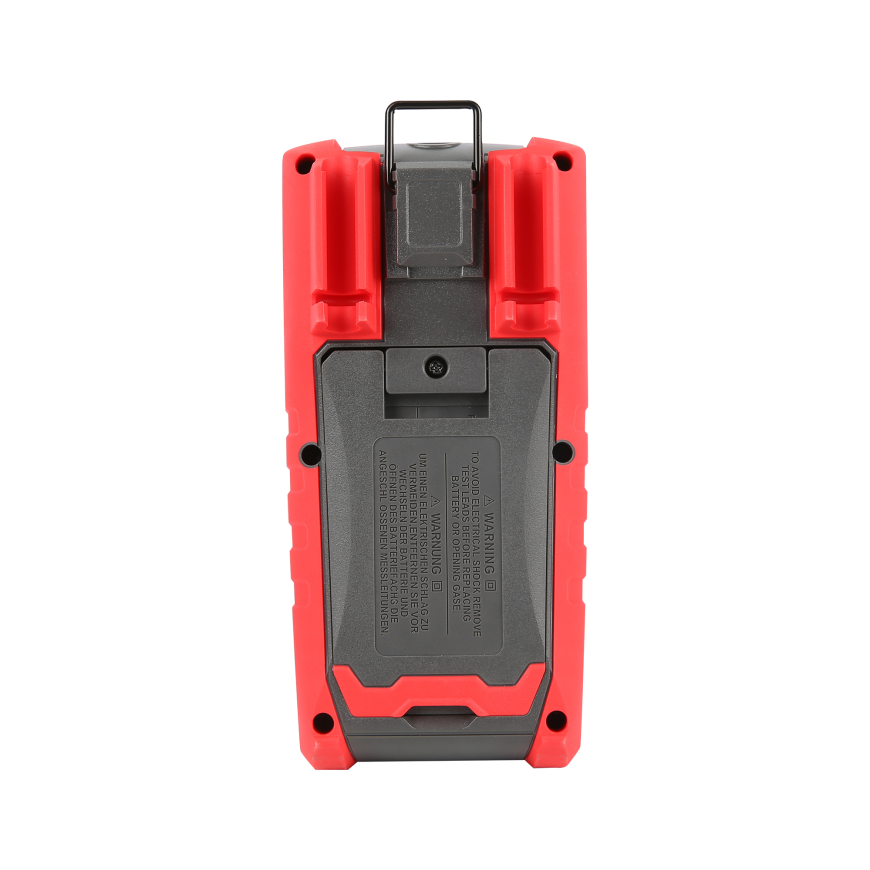

UNIVERSAL MEASURING DEVICE UT-191T UNI-T
99.00 €
Monthly payment from 3,45 €
1905775 MIE0369
Shipping 6-10 b.d.
You are interested in this product?
All about the product
UT-191T is a universal digital meter designed to measure: voltage, current, resistance, capacitance, frequency, temperature and to check whether diodes are working properly.
The measuring device has an automatic measurement change function, as well as a relative measurement.
The device complies with the IP65 sealing class.
| DC voltage measurement : | 600 mV ± (0.7% + 3) @ 0.1 mV , 6 V ± (0.5% + 3) @ 0.001 V , 60 V ± (0.7% + 3) @ 0.01 V , 600 V ± (0.7% + 3) @ 0.1 V |
| AC voltage measurement : | 600 mV ± (1.0% + 4) @ 0.1 mV , 6 V ± (0.7% + 3) @ 0.001 V , 60 V ± (1.0% + 3) @ 0.01 V , 600V ± (1.0% + 3) @ 0.1V LPF Mode : 600V ± (2.0% + 5) @ 0.1V LoZ Mode : 600V ± (2.0% + 5) @ 0.1V |
| DC current measurement : | 600 µA ± (0.8% + 3) @ 0.1 µA , 6000 µA ± (0.8% + 3) @ 1 µA , 60 mA ± (0.8% + 3) @ 0.01 mA , 600 mA ± (0.8% + 3) @ 0.1 mA , 6 A ± (1.0% + 3) @ 0.001 A , 20 A ± (1.2% + 5) @ 0.01 A |
| AC current measurement : | 600 µA ± (1.0% + 3) @ 0.1 µA , 6000 µA ± (1.0% + 3) @ 1 µA , 60 mA ± (1.0% + 3) @ 0.01 mA , 600 mA ± (1.0% + 3) @ 0.1 mA , 6 A ± (1.2% + 3) @ 0.001 A , 20 A ± (1.5% + 5) @ 0.01 A |
| Resistance measurement : | 600 Ω ± (1.0% + 2) @ 0.1 Ω , 6 kΩ ± (0.8% + 2) @ 0.001 kΩ , 60 kΩ ± (0.8% + 2) @ 0.01 kΩ , 600 kΩ ± (0.8% + 2) @ 0.1 kΩ , 6 MΩ ± (1.2% + 3) @ 0.001 MΩ , 60 MΩ ± (2.5% + 5) @ 0.01 MΩ |
| Capacity measurement : | 6 nF ± (4% + 8) + Capacitance of test leads @ 1 pF , 60 nF ... 600 µF ± (3% + 5) @ 10 pF ... 100 nF , 6 mF ... 60 mF ± 10% @ 1 µF ... 10 µF |
| Inductance measurement : | - |
| Frequency measurement : | 10 Hz ... 1 MHz ± (0.1% + 4) @ 0.01 Hz ... 0.001 MHz |
| Square wave fill factor measurement : | 0.1% ... 99.9% ± (2% + 5) @ 0.1% |
| Temperature measurement : | °C -40 ... 400 °C ± (1% + 2 °C) @ 0.1 °C ... 1 °C , °F -40 ... 752 °F ± (1% + 4 °F) @ 0.2 °F ... 2 °F |
| Automatic change of measuring scale : | ✔ |
| hFE : | - |
| Diode test : | ✔ |
| Audible circuit integrity alarm : | ✔ |
| Checking for logical TTL states : | - |
| RS-232 : | - |
| USB : | - |
| Main features : | True RMS - accurate measurement of the real value of electric current and voltage in any form of flow, Ability to measure AC voltage using low total resistance (LoZ mode), Function LPF - allows you to measure AC voltage value using a low-pass filter with a cut-off frequency of 200 Hz., Solid body meeting the requirements of the IP65 waterproof class, Saving the last instruction, Integrated flashlight, Freezing the highest or lowest reading, REL - relative measurement mode, Analog bargraph, Large, legible display LCD with lighting, Low battery signal, Aesthetic and solid construction, A practical case is included |
| Meals : | 9V battery, 6LR61 type |
| Weight : | 0.4 kg |
| Dimensions : | 180 x 87 x 66 mm |
| Manufacturer / Brand : | UNI-T |
| Warranty : | 2 years |
