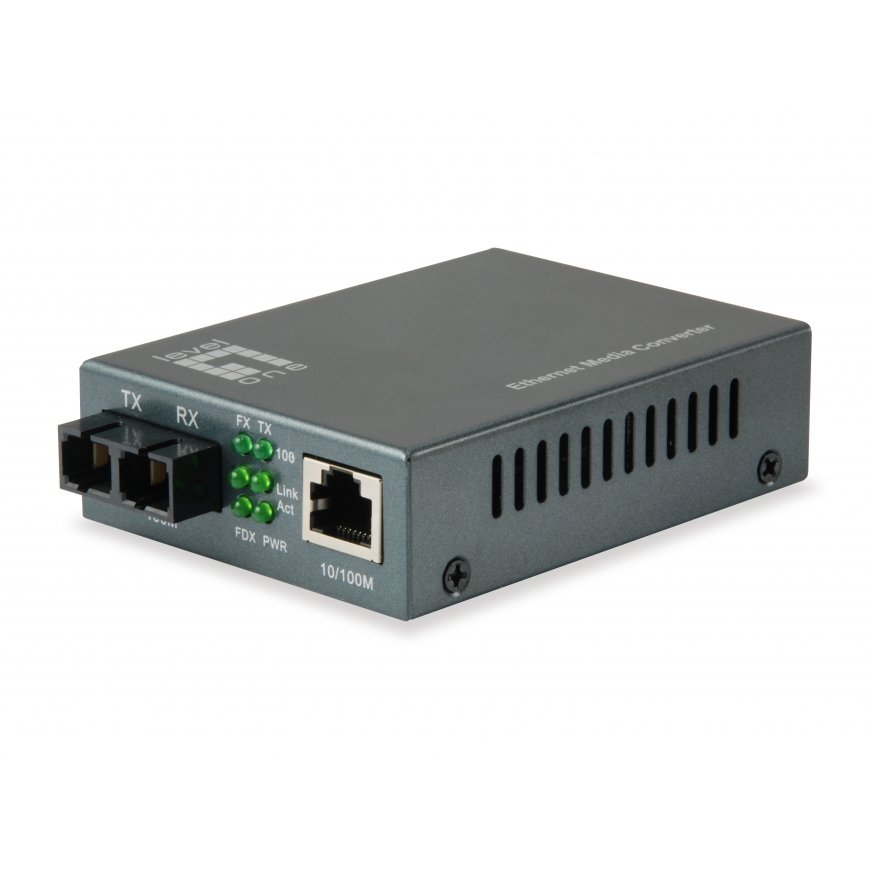

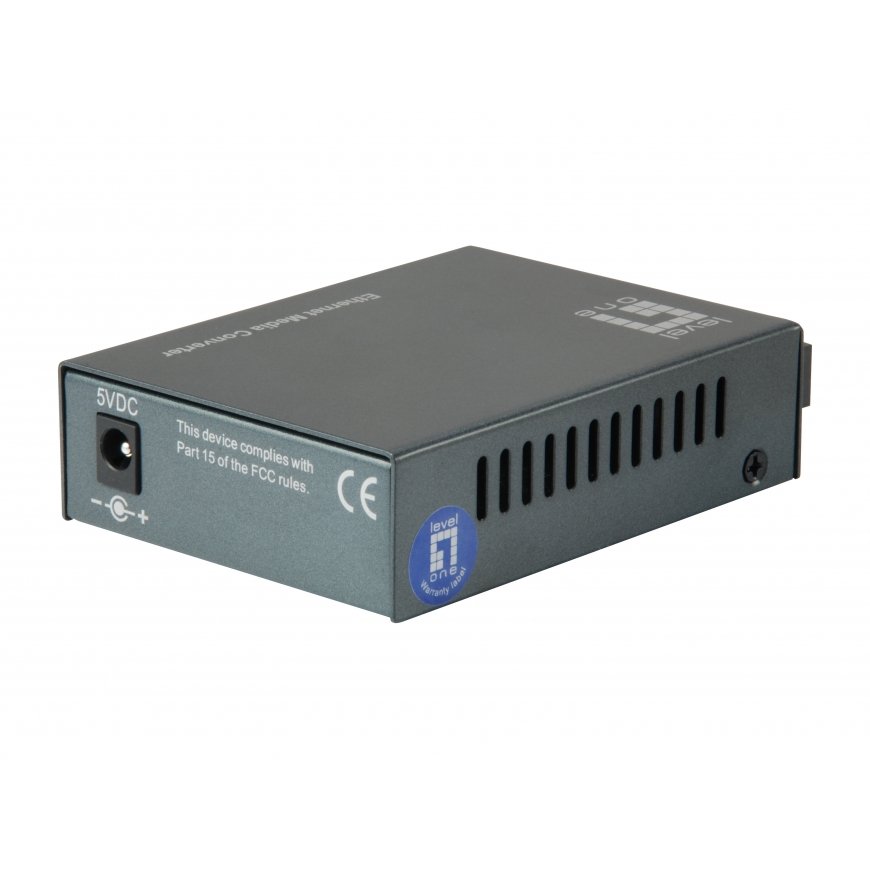

LevelOne RJ45 to SC Fast Ethernet Media Converter, Single-Mode Fiber, 1550nm, 120km
249,00 €
Monthly payment from 7.31 €
1834554 FVT-1106
4015867208083
This product is no longer in stock
You are interested in this product?
The converter can be used as a standalone unit or as a slide-in module to the CHV-2000 19” Converter Chassis, which can accommodate up to 14 units for use in a central wiring closet.
Network | |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Flow control support | Yes |
| Ethernet LAN data rates | 10, 100 |
| Auto MDI/MDI-X | Yes |
Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Fiber optic connector | SC |
Design | |
| LED indicators | Yes |
| Product colour | Black |
Features | |
| Safety | CE |
| Mean time between failures (MTBF) | 100000 h |
Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
Weight & dimensions | |
| Width | 94 mm |
| Depth | 71 mm |
| Height | 26 mm |
| Weight | 200 g |
Packaging data | |
| Package width | 230 mm |
| Package depth | 150 mm |
| Package height | 58 mm |
| Package weight | 300 g |
| Package type | Box |
Other features | |
| Input current | 1 A |
| Input voltage | 5 V |
| Maximum data transfer rate | 100 Mbit/s |
Certificates | |
| Certification | CE |
Technical details | |
| Compliance certificates | RoHS |
Logistics data | |
| Country of origin | China |
| Master (outer) case width | 440 mm |
| Master (outer) case length | 420 mm |
| Master (outer) case height | 305 mm |
| Master (outer) case gross weight | 32 kg |
| Products per master (outer) case | 40 pc(s) |
| Harmonized System (HS) code | 85176990 |
Packaging content | |
| AC adapter included | Yes |
| Quick installation guide | Yes |
