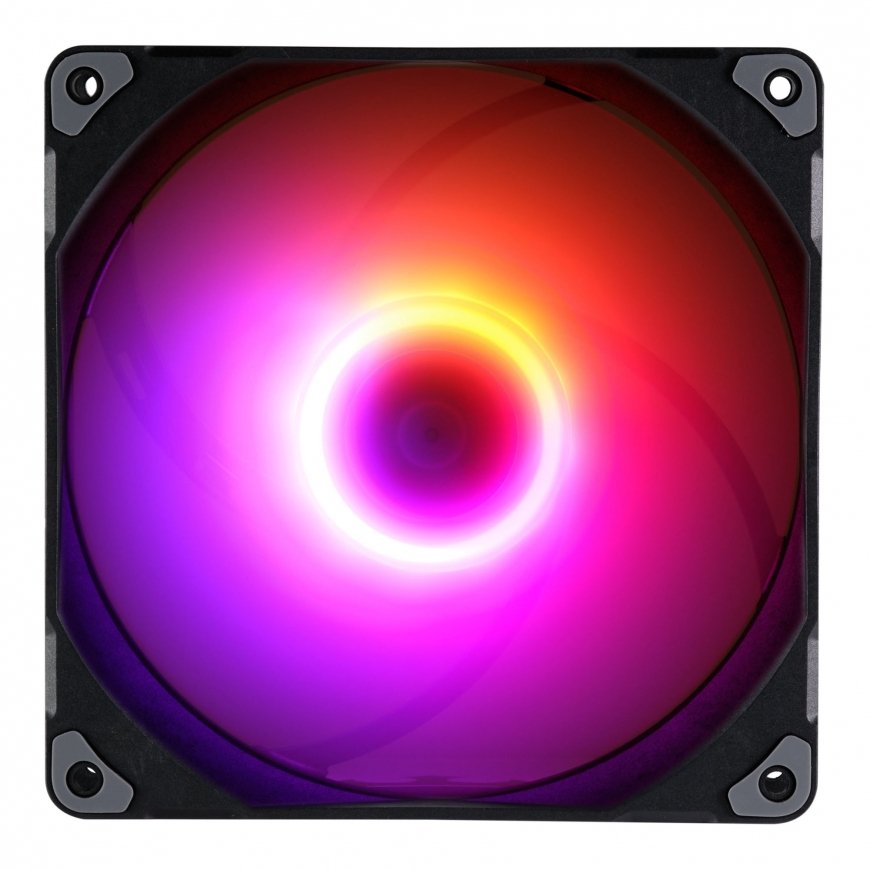

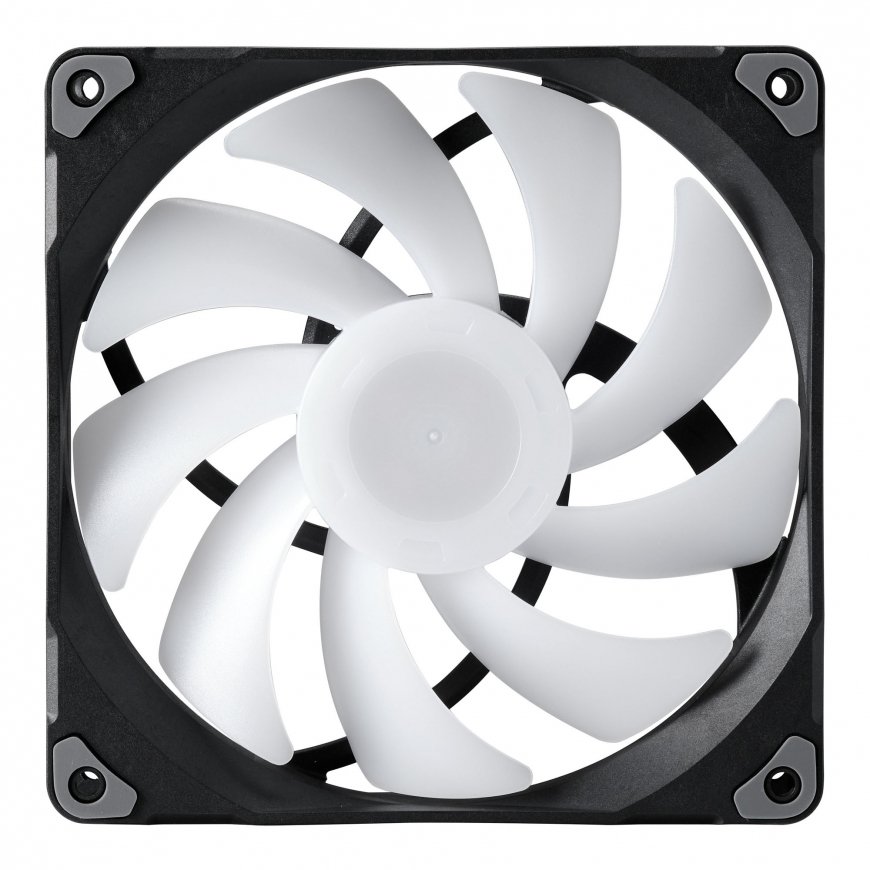

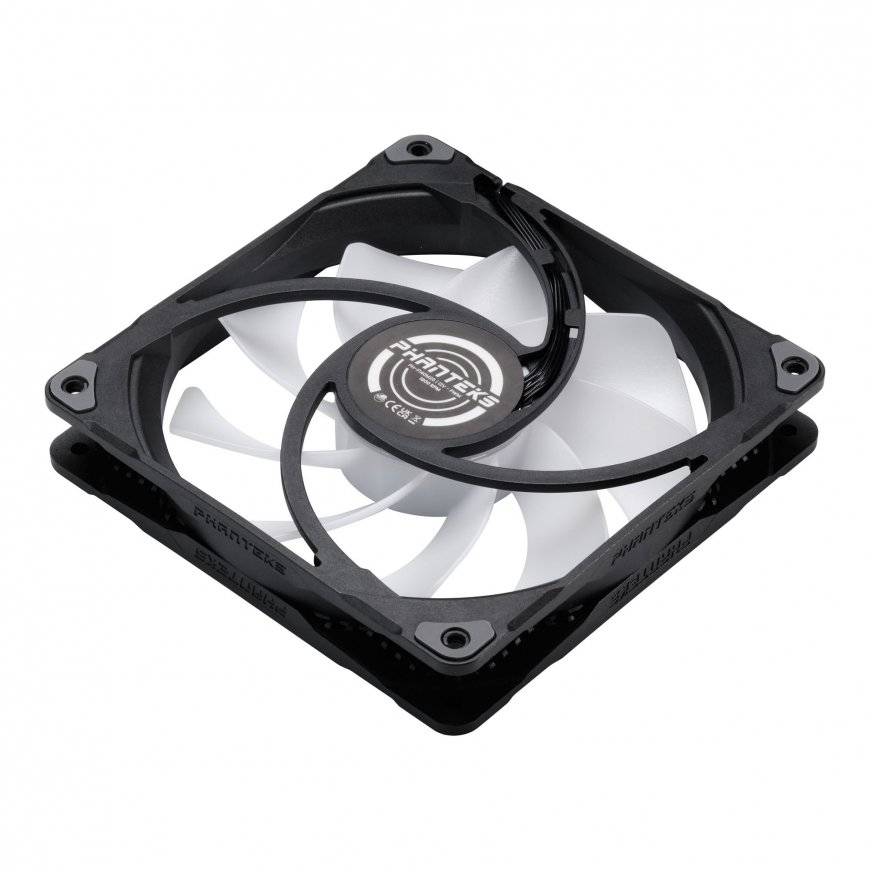

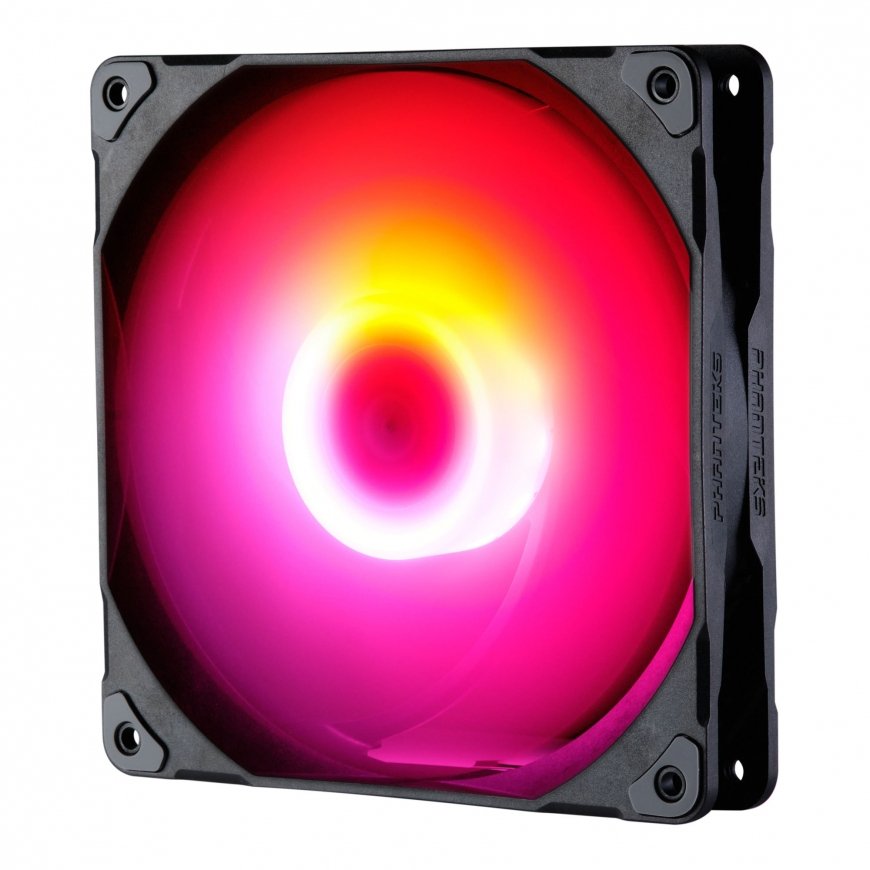

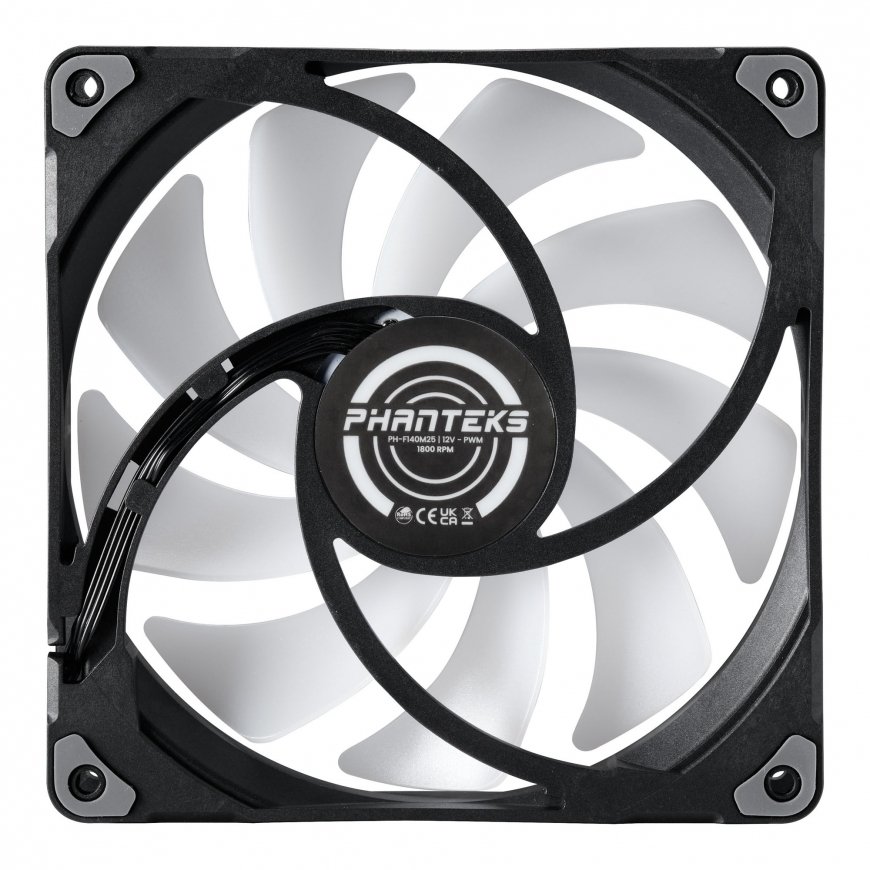

Phanteks M25 Computer case Fan 14 cm Black 1 pc(s)
29.00 €
1831769 PH-F140M25_DRGB_PWM_BK01
0886523002505
Shipping 12-13 b.d.
You are interested in this product?
All about the product
The Phanteks M25 fans build upon the award winning T30 fan to keep next gen hardware cool with high airflow cooling performance. The M25 fan blades are specifically optimized to perform the best with fine mesh/dust filters, heatsinks and radiators with reduced RPM levels. This optimization keeps unwanted bearing noises at a minimum while also leaving plenty of cooling headroom, when necessary, by going full speed.By sharing some of its design with the T30, the M25 stands out by delivering higher airflow through heatsinks and radiators with lower RPM levels with exceptional value. The wide RPM range, up to 2000 RPM, can be precisely controlled through PWM to ensure the M25 is excellent for both quiet and high-end gaming systems.
Performance | |
| Type | Fan |
| Mean time between failures (MTBF) | 30000 h |
| Fan diameter | 14 cm |
| Maximum airflow | 104.62 cfm |
| Maximum air pressure | 2.8 mmH2O |
| Pulse-width modulation (PWM) support | Yes |
| Rotational speed (min) | 500 RPM |
| Rotational speed (max) | 1800 RPM |
| Quantity per pack | 1 pc(s) |
| Fan static pressure | 2.8 mmH2O |
| Suitable location | Computer case |
Design | |
| Product colour | Black |
| Illumination colour | Multi |
| Number of fans | 1 fan(s) |
| Illumination LED | Yes |
| Fan connector | 4-pin |
| Number of LEDs | 12 |
| Number of fan blades | 9 |
| Daisy chain | Yes |
| Fan controller | Yes |
| LED connector type | 3-pin |
Power | |
| Voltage | 7 - 13.2 V |
| Rated voltage | 12 V |
Weight & dimensions | |
| Cable length | 0.12 m |
| Fan weight | 193 g |
| Fan dimensions (W x D x H) | 140 x 140 x 25 mm |
Technical details | |
| Warranty period | 5 year(s) |
Packaging content | |
| Screws included | Yes |
| Number of screws | 4 |
Other features | |
| Noise level | 36.57 dB |
