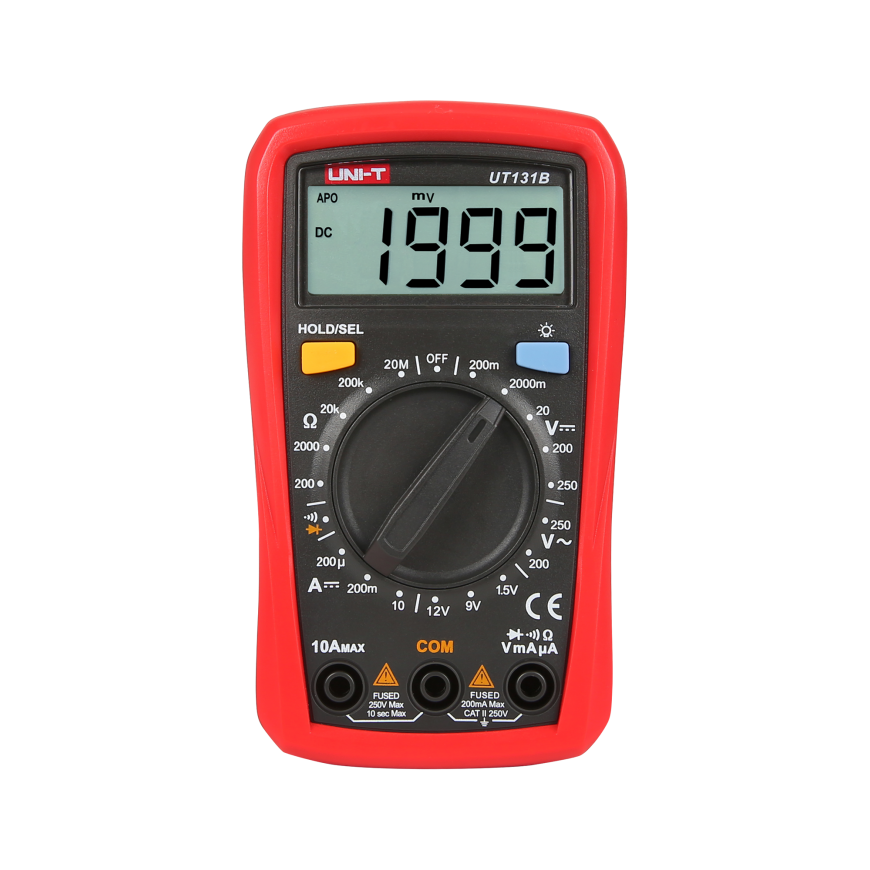

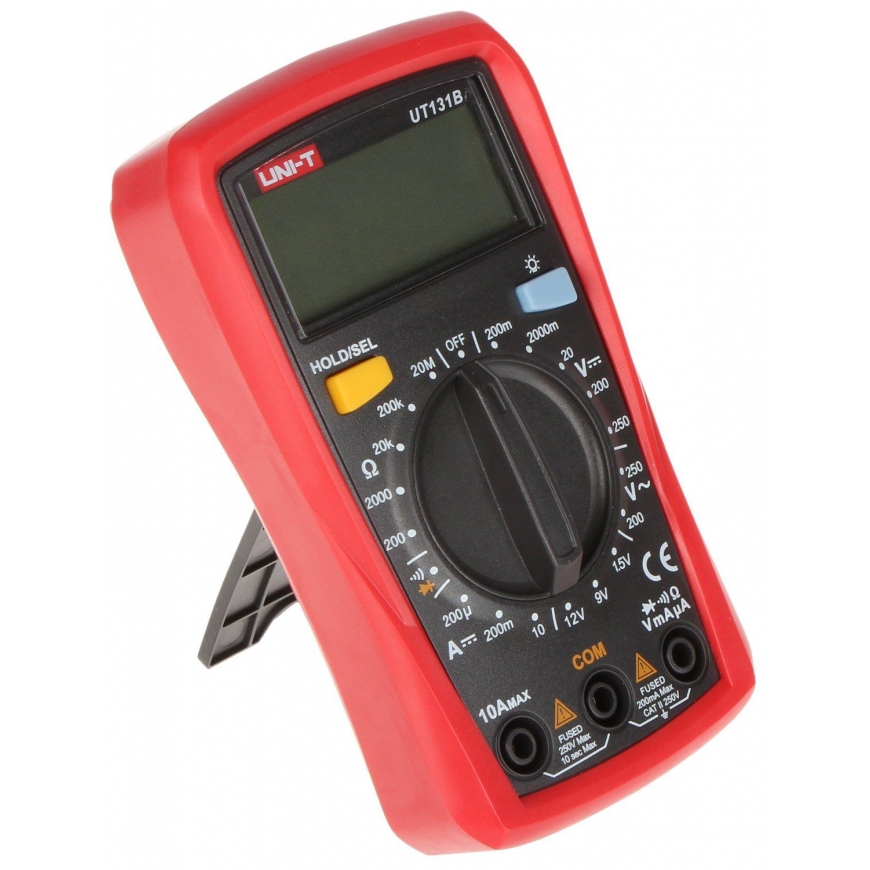

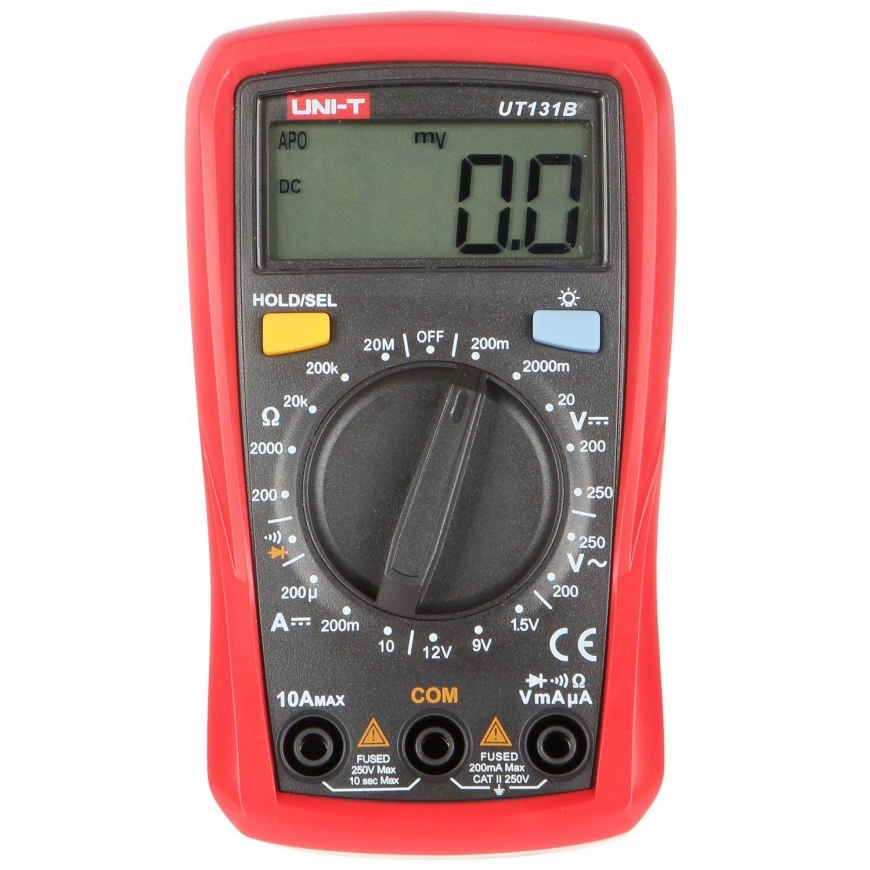

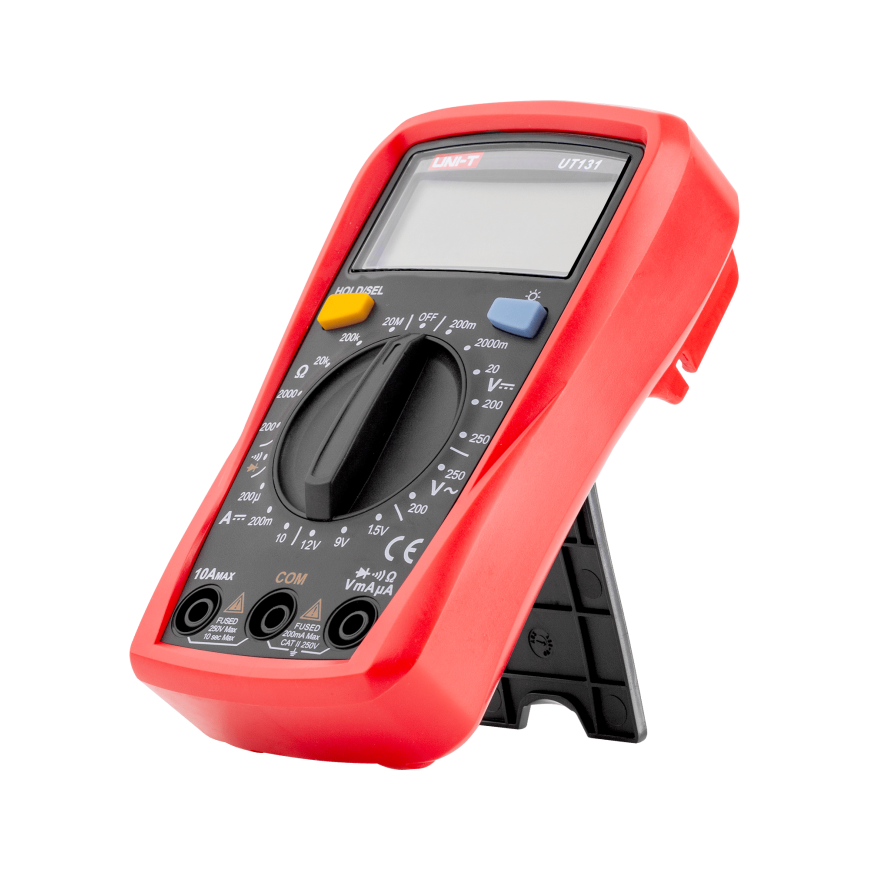

UNIVERSAL MEASURING DEVICE UT-131B UNI-T
19.00 €
1815780 MIE0380
Shipping 6-10 b.d.
You are interested in this product?
All about the product
UT-131B is a universal digital measuring device for measuring voltage, electric current, resistance, diodes.
The device has a built-in battery tester.
| DC voltage measurement : | 200 mV ± (0.7% + 3) @ 0.1 mV , 2000 mV ± (0.5% + 2) @ 1 mV , 20 V ± (0.7% + 3) @ 0.01 V , 200 V ± (0.7% + 3) @ 0.1 V , 250 V ± (0.7% + 3) @ 1 V |
| AC voltage measurement : | 200 V ± (1.2% + 3) @ 0.1 V , 250 V ± (1.2% + 3) @ 1 V |
| DC current measurement : | 200 µA ± (1% + 2) @ 0.1 µA , 200 mA ± (1% + 2) @ 0.1 mA , 10 A ± (1.2% + 5) @ 0.01 A |
| AC current measurement : | - |
| Resistance measurement : | 200 Ω ± (1% + 2) @ 0.1 Ω , 2 kΩ ± (0.8% + 2) @ 1 Ω , 20 kΩ ± (0.8% + 2) @ 10 Ω , 200 kΩ ± (0.8% + 2) @ 100 Ω , 20 MΩ ± (1.2% + 3) @ 10 kΩ |
| Capacity measurement : | - |
| Inductance measurement : | - |
| Frequency measurement : | - |
| Temperature measurement : | - |
| Automatic change of measuring scale : | - |
| hFE : | - |
| Diode test : | ✔ |
| Audible circuit integrity alarm : | ✔ |
| Checking for logical TTL states : | - |
| RS-232 : | - |
| Main features : | Measurement of the battery discharge level: 12V, 9V, 1.5V Large, legible display LCD with lighting Hold - stopping the meter indicator Low battery status indicator Aesthetic and solid manufacturing |

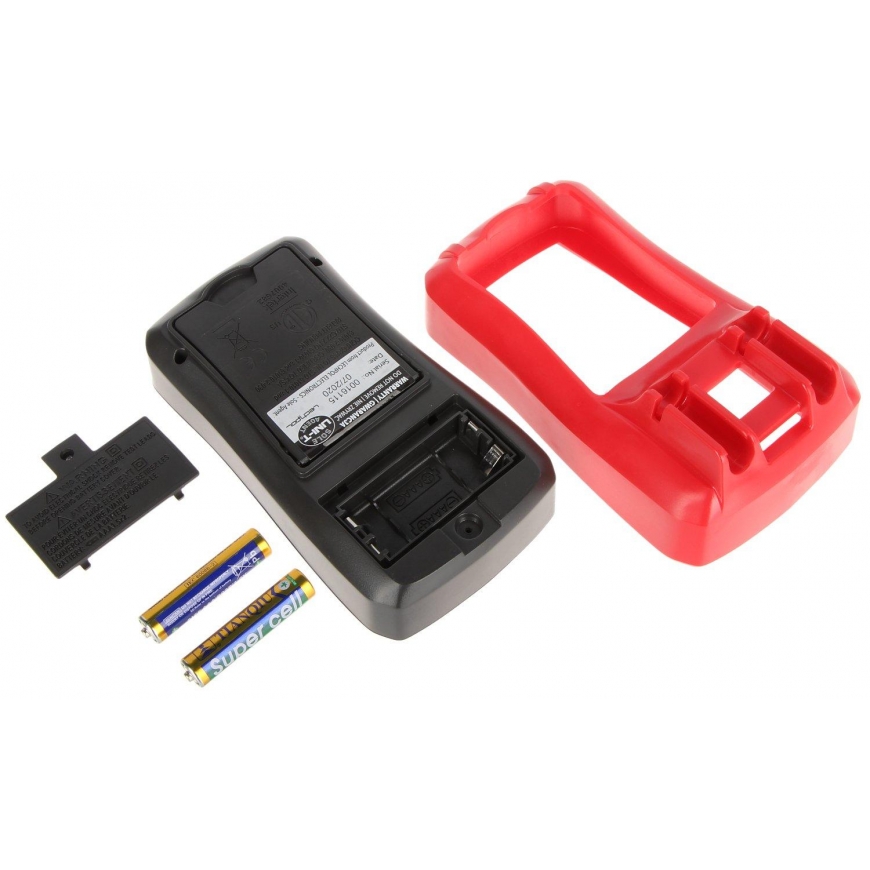

| Meals : | 2 x 1.5V batteries, AAA/LR03 type - included |
| Weight : | 0.21 kg |
| Dimensions : | 134 x 77 x 47 mm |
| Manufacturer / Brand : | UNI-T |
| Warranty : | 2 years |
