Neomounts DS70-450BL1 Monitor arm 17-42" - gas spring - Topfix - 180°-stop

158,99 €
Monthly payment from 4.99 €
1638944

DS70-450BL1

8717371449469

This product is no longer in stock

You are interested in this product?
(Read terms of service)

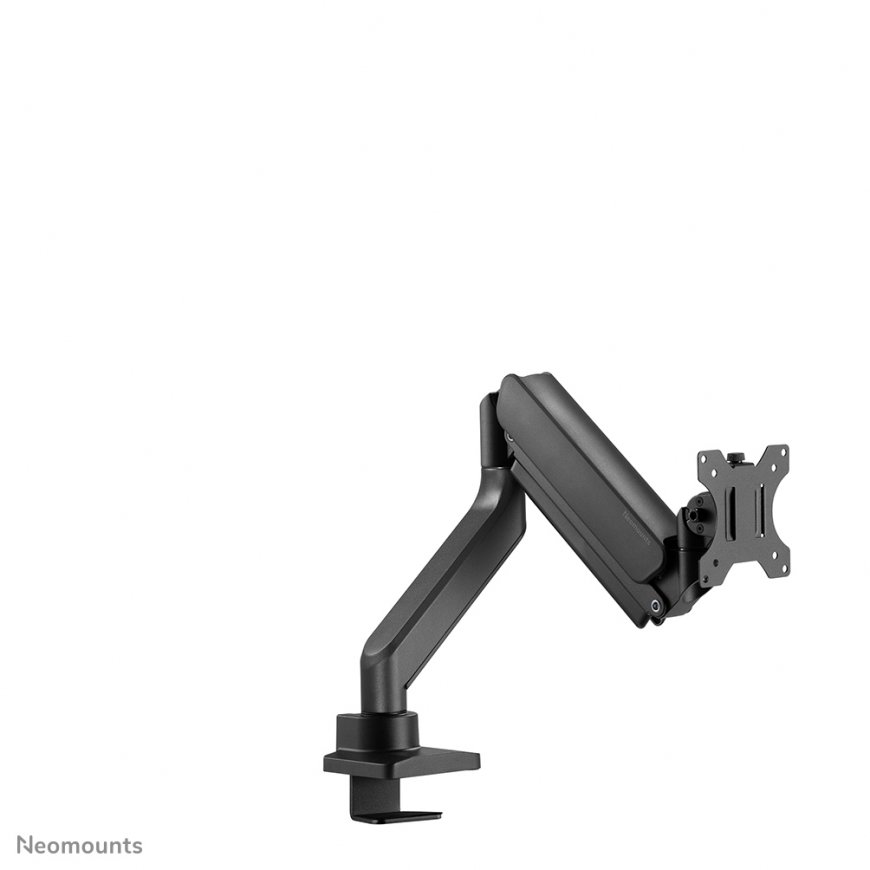

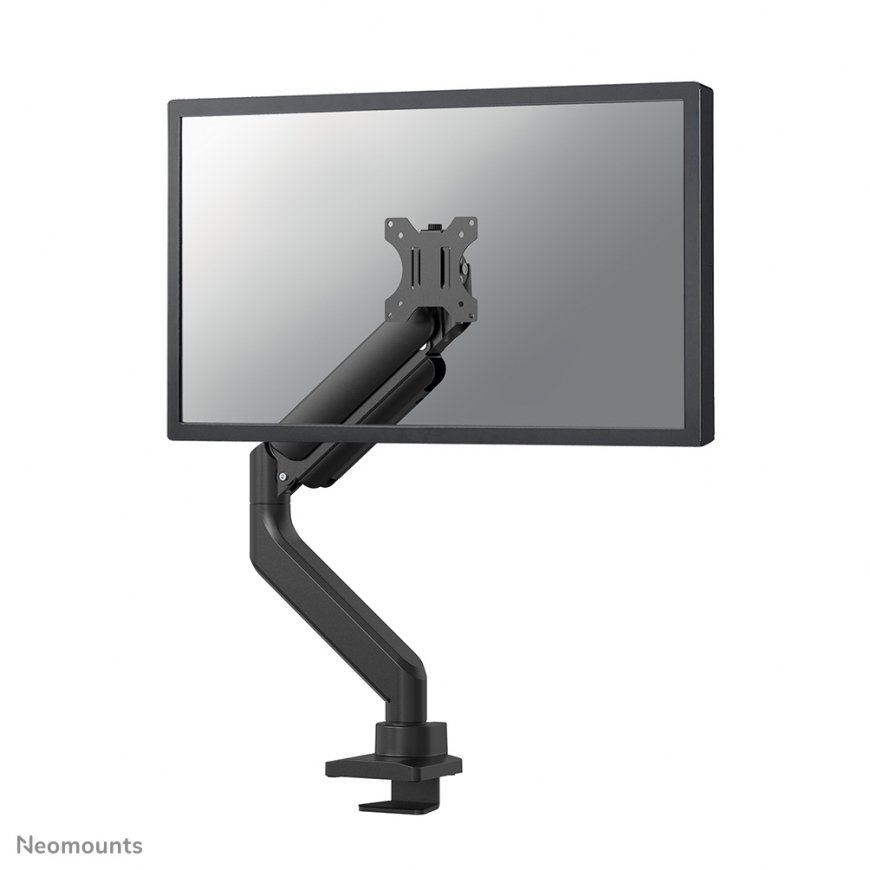

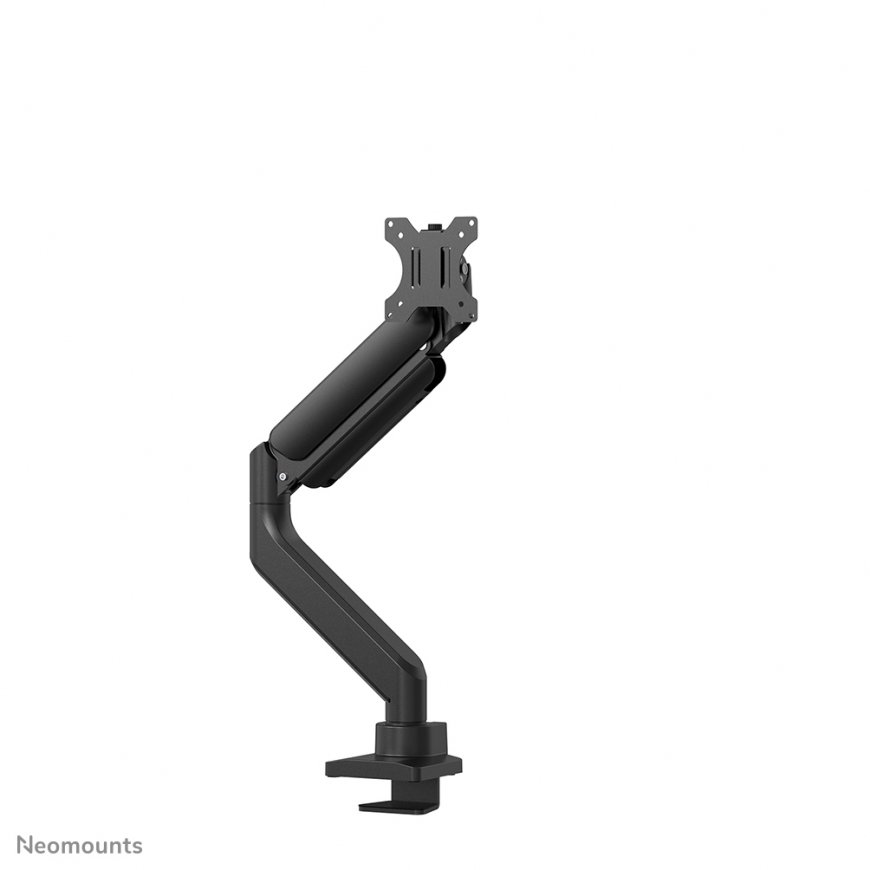

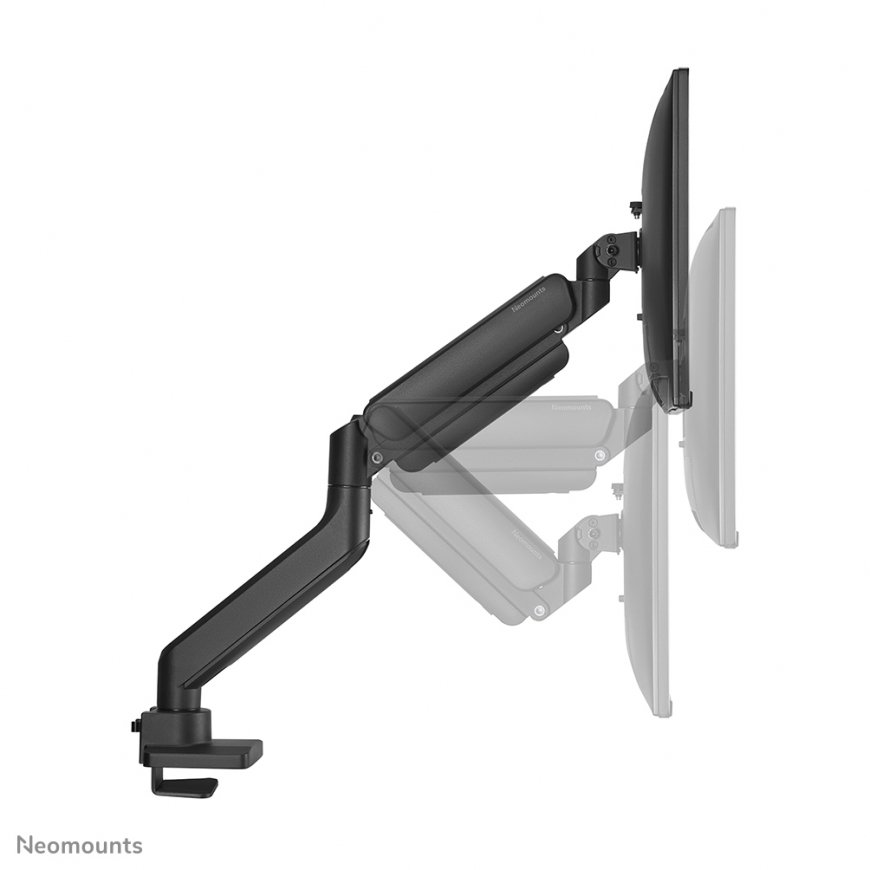

The Neomounts DS70-450BL1 NEXT Core is a full motion desk mount for one flat screen up to 42" with a maximum weight capacity of 15 kg. The versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screen. Additionally, the mount has gas spring height adjustment (26,1-55 cm) and depth adjustment (0-51,4 cm), to create the perfect working position.

The DS70-450BL1 NEXT Core features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact with the wall. The smart cable management system ensures orderly routing of the cables.

The DS70-450BL1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. Unused hole patterns can be covered using one of Neomounts VESA adapter plates. The desk mount is equipped with an Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.

The inner packaging of the NEXT Core is plastic free and made from cardboard and paper.

For wall installation, the AWL75-450BL wall adapter is optionally available.
Features
Product colour Black
Maximum weight capacity 15 kg
Panel mounting interface 75 x 75, 100 x 100
Cable management Yes
Maximum screen size 106.7 cm (42")
Weight & dimensions
Weight 3.98 kg
Height 653 mm
Width 120 mm
Depth 568 mm
Packaging data
Package height 445 mm
Package width 280 mm
Package weight 5.1 kg
Package depth 127 mm
Package net weight 5.4 kg
Other features
Height adjustment Yes
Swivel angle range -90 - 90°
Tilt angle range -45 - 45°
Angle of rotation 360°
Swivel angle 180°
Height adjustment range 261 - 555 mm
Distance to the wall (min) 10.8 cm
Mounting Clamp/Grommet
Warranty period 5 year(s)
Logistics data
Master (outer) case width 460 mm
Master (outer) case length 275 mm
Master (outer) case gross weight 20.5 kg
Master (outer) case height 580 mm
Products per master (outer) case 4 pc(s)
Master (outer) case net weight 18.4 kg
Harmonized System (HS) code 7326909890
Products per pallet (EU) 64 pc(s)
Country of origin China
Technical details
Depth adjustment range 54 - 511 mm
Doesn't contain Plastic
