Digitus Wall-mounted enclosure - SOHO, Slim
159.13 €
Monthly payment from 5,00 €
1256709 DN-19 04U-PB
4016032200109, 4056572674763
Shipping 3-5 b.d.
You are interested in this product?
All about the product

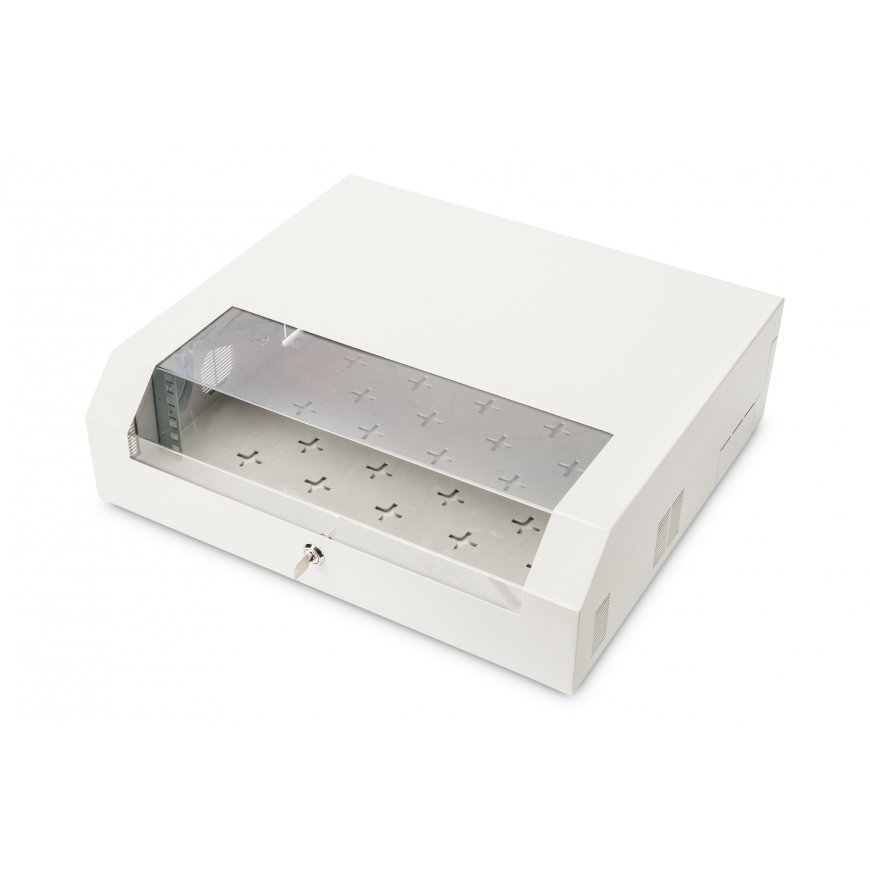

DIGITUS® wall-mounted enclosures are manufactured, designed and developed to meet the high demands of IT infrastructure.- Slim housing for installations where space is limited
- Door stopper mechanism allows installation in any direction on the wall, ceiling or raised floor

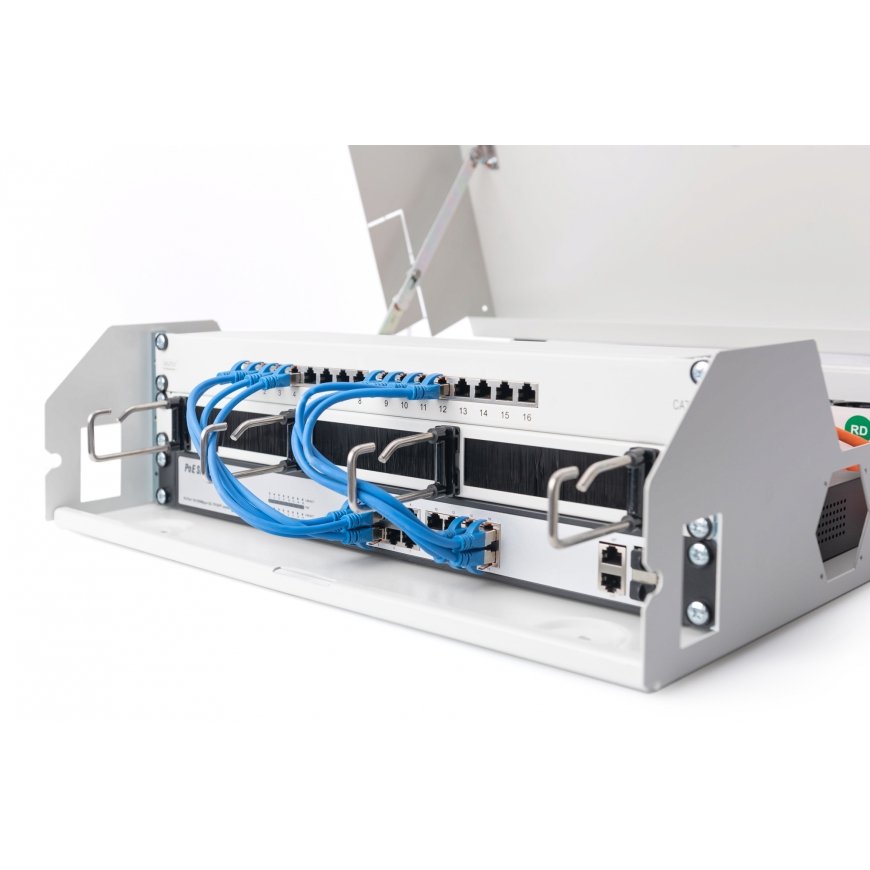

- 3U rotatable profile rail at the front, 2U fixed profile rail at the rear
- Pre-punched cut-outs for cable routing and fastening cable ties

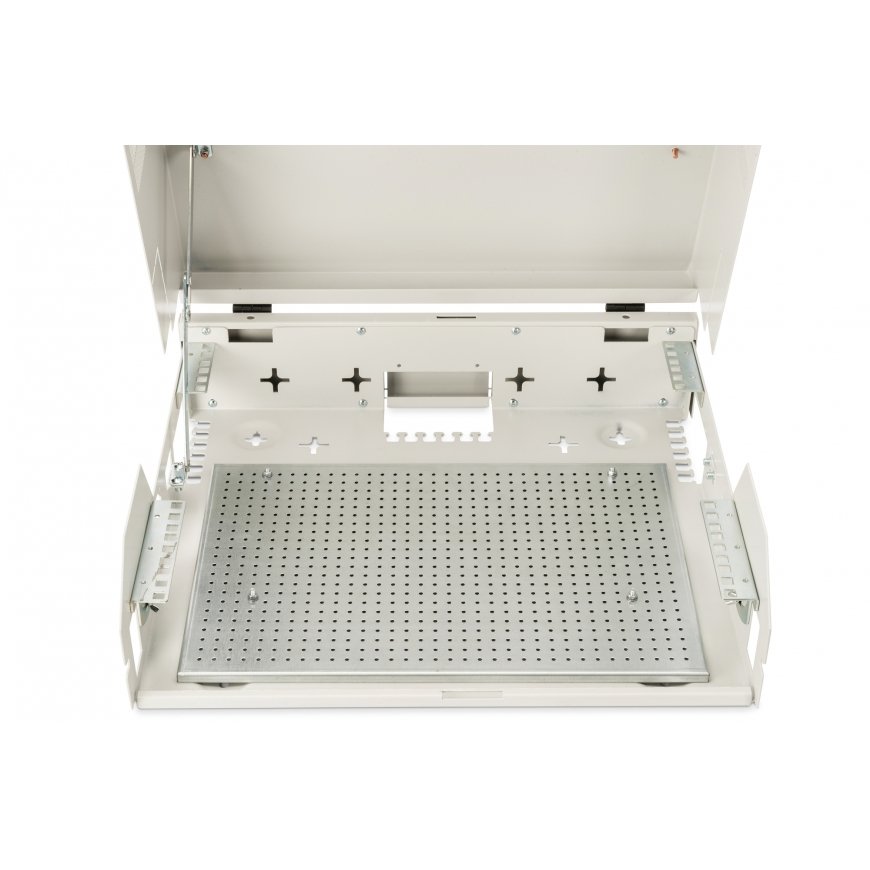

- Punched-out mounting holes throughout the lower housing area for fixing a wide variety of components
- Load capacity for the installation of components: 30 kg
The SOHO, Slim wall-mounted enclosures are ideal for housing active and passive components. They are characterized by simple and time-saving installation. The modern design fits into any office or home. The enclosure has 2 separate installation options: A rotatable vertical 3U rail is attached to the front. Alternatively, this can also be positioned horizontally or at an angle. A horizontal 2U rail is attached to the rear (fixed), which can be used for passive network components, for example. The punched-out mounting holes in the entire lower housing area also allow components that are not 483 mm (19") compatible to be installed (e.g. DSL routers, etc.).
Features
| Product colour | Grey |
| International Protection (IP) code | IP20 |
| Width | 525 mm |
| Depth | 475 mm |
| Height | 145 mm |
| Type | Wall mounted rack |
| Package width | 530 mm |
| Package depth | 500 mm |
| Package weight | 9.5 kg |
| Country of origin | Turkey |
| Maximum weight capacity | 30 kg |
| Package volume | 42400 cm³ |
| UK Trade Tariff code | 94032080 |
| Harmonized System (HS) code | 85381000 |
| Rack capacity | 3U |
| Front door construction | Glass |
| Size (imperial) | 48.3 cm (19") |
| Side panels included | Yes |
