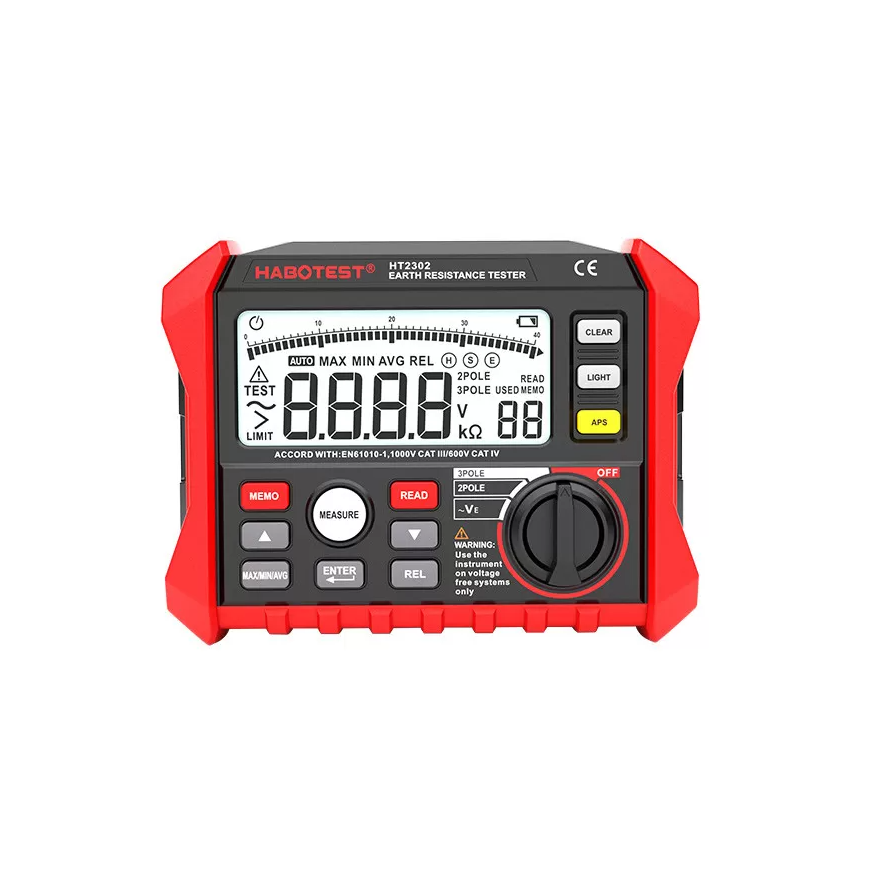

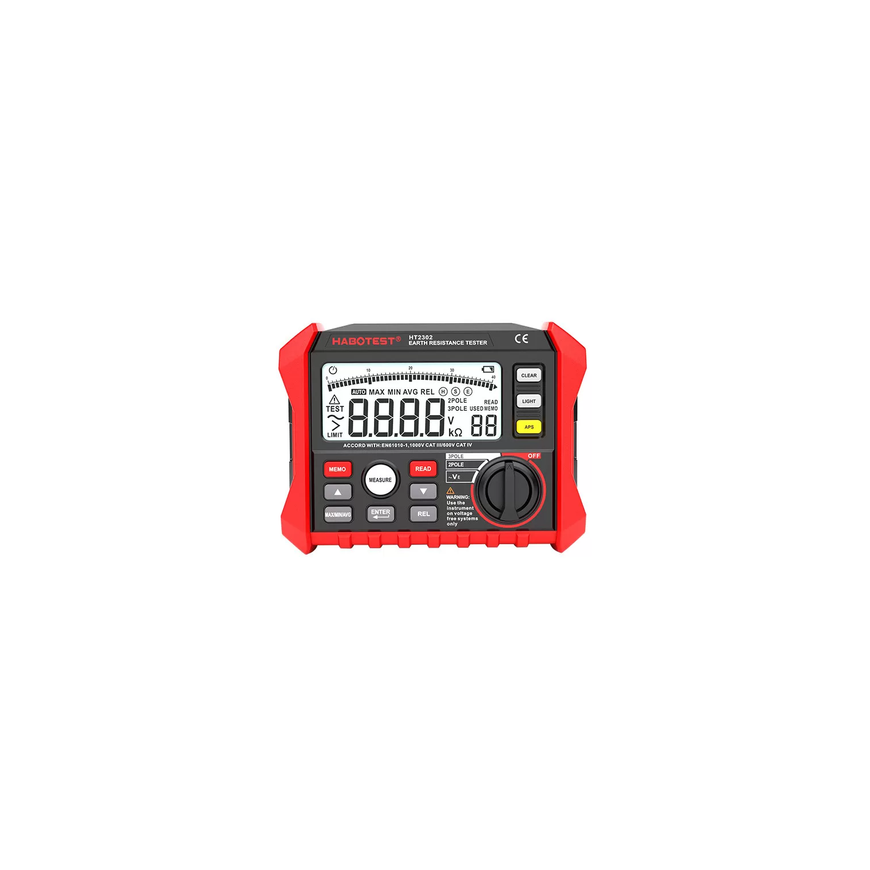

Habotest HT2302 Digital Earth Resistance Tester
1140747 HT2302
5907489607803
Shipping 3-5 b.d.
All about the product
Habotest HT2302 digital meter
A digital insulation resistance meter is a specialized tool that will come in handy in many situations and will test the ground resistance of power and distribution cables or various types of electrical equipment. The earth resistance measurement range is 0 Ω to 4.00 kΩ. It provides efficient operation in bipolar or tripolar mode. In addition, it has a large and clear LCD screen that allows you to read the information received effectively.
Practical and reliable
With the ability to store measurement data, you don't have to worry about power outages. You can easily access 100 groups where measured data and performed tests are stored. In addition, the device can also be used to measure the maximum, minimum or average value and perform relative measurements (MAX/MIN/AVG/REL). The HT2302 also has an auto-off feature.
Digital display
meter is designed to make your daily duties as easy as possible. The robust construction combined with the easy-to-read display allows you to read the results immediately. Regardless of workplace conditions or light, the bright LCD ensures excellent visibility of indicators and markings. In addition, you can read the measurement results from the analog bar indicator. You also don't have to worry about a dying battery. There is a low battery icon on the screen.
Specification
| of the brand | Habotest |
|---|---|
| model | HT2302 |
| material | ABS + PC |
| weight | 950 g |
| power supply | battery AA 8 x 1.5 V |
| work environment | 0℃~40℃ |
| storage environment | -10℃~50℃ |
| dimensions | 180 x 140 x 65 mm |
| measurement interval | 0 Ω ~ 29.99 Ω accuracy +/- (2% +6 DGT), resolution 0.01 Ω 30 Ω ~ 99.9 Ω accuracy +/- (3% +3 DGT), resolution 0.1 Ω 100 Ω ~ 999 Ω with accuracy +/- (3% +3 DGT), resolution 1 Ω 1.0 kΩ ~ 4.00 kΩ with accuracy +/- (3% +3 DGT), resolution 10 Ω ground voltage 0V ~ 200V (50 ~ 60Hz) with accuracy +/- (1% +5 DGT), resolution 0.1V |
