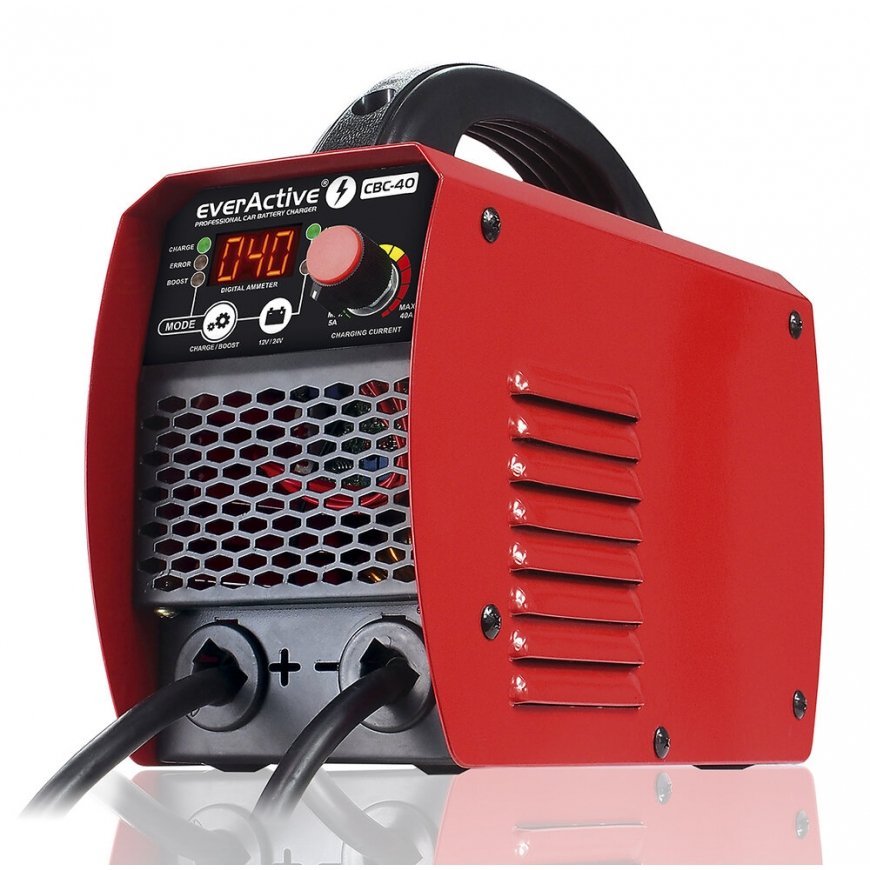

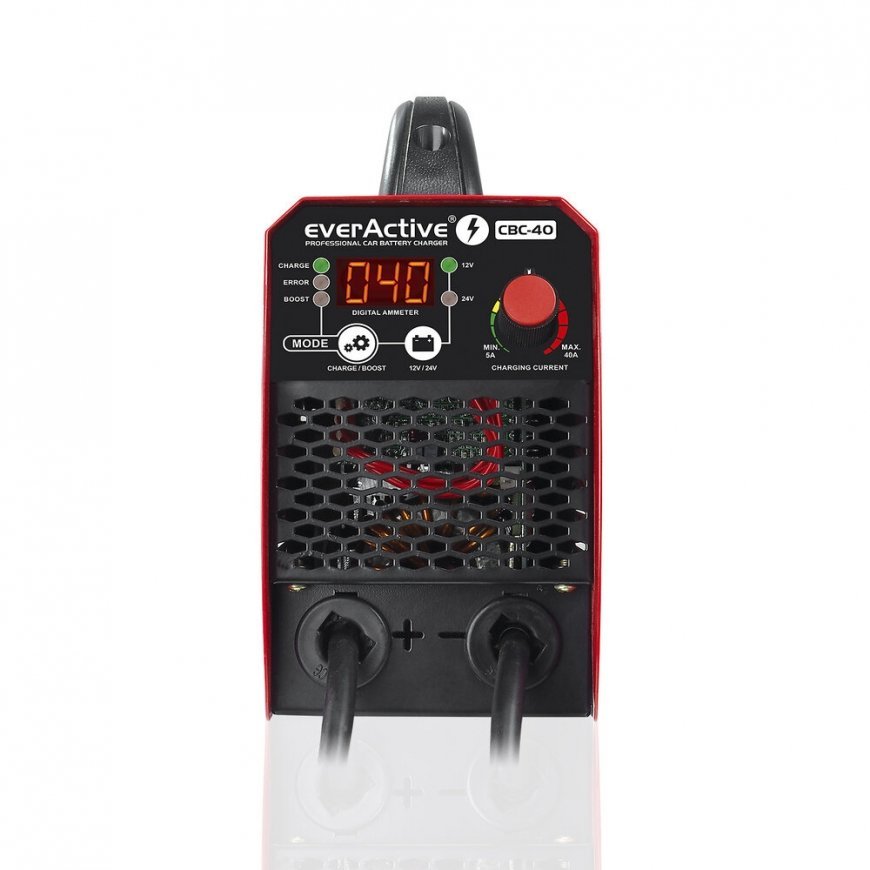

Car charger everActive CBC40 12V/24V
1135850 CBC40
5903205770400
This product is no longer in stock
EverActive CBC-10 is a universal and fully automatic inverter charger for all types of lead-acid, gel and AGM 12/24V batteries with a capacity from 25Ah to 1000Ah. Thanks to new technologies, this charger is smaller, significantly more reliable than the old generation pulse and transformer chargers, also much more efficient, which will save you energy costs during charging.
Inverter technology is many times smaller in terms of size and weight, and charges the battery much more efficiently compared to traditional transformer chargers.
The CBC-40 charger ensures a smooth, gradual adjustment of the effective charging current from 5 to 40A, regardless of whether a 12V or 24V battery is connected.
The maximum charging current is up to 60A. In addition, the CBC-40 has a boost option with a maximum output current of 300A (!).
The industrial nature of the EverActive CBC-40 charger makes it a perfect addition to the equipment of every workshop - the product is especially recommended for professionals - using this charger, almost any vehicle can be started in a few minutes, regardless of their battery condition and external conditions. The highest maximum rated current allows efficient charging of even electric forklifts, electric vehicles, etc. powered by 12V / 24V batteries.
Main characteristics of CBC-40:

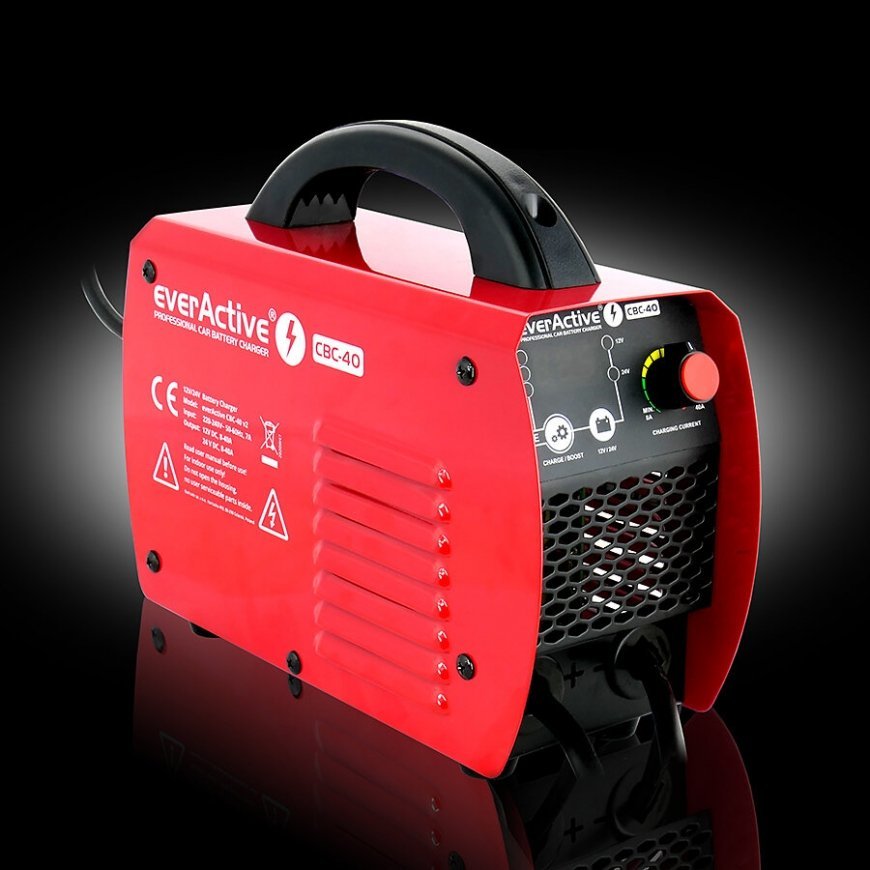

- Sturdy metal body with comfortable handle
- Charging and regeneration of deeply discharged batteries
- Electronically stabilized output voltage to limit the risk of overload
- Charge level monitoring by CC and CV
- The possibility of fully charging the battery by equalizing the density of the electrolyte throughout the battery, automatic desulfation mode
- Smooth (stepless) charging current adjustment from 5A to 40A
- By maintaining a high output voltage after charging, equalizing charging takes place - the density of the electrolyte in the battery cells is equalized

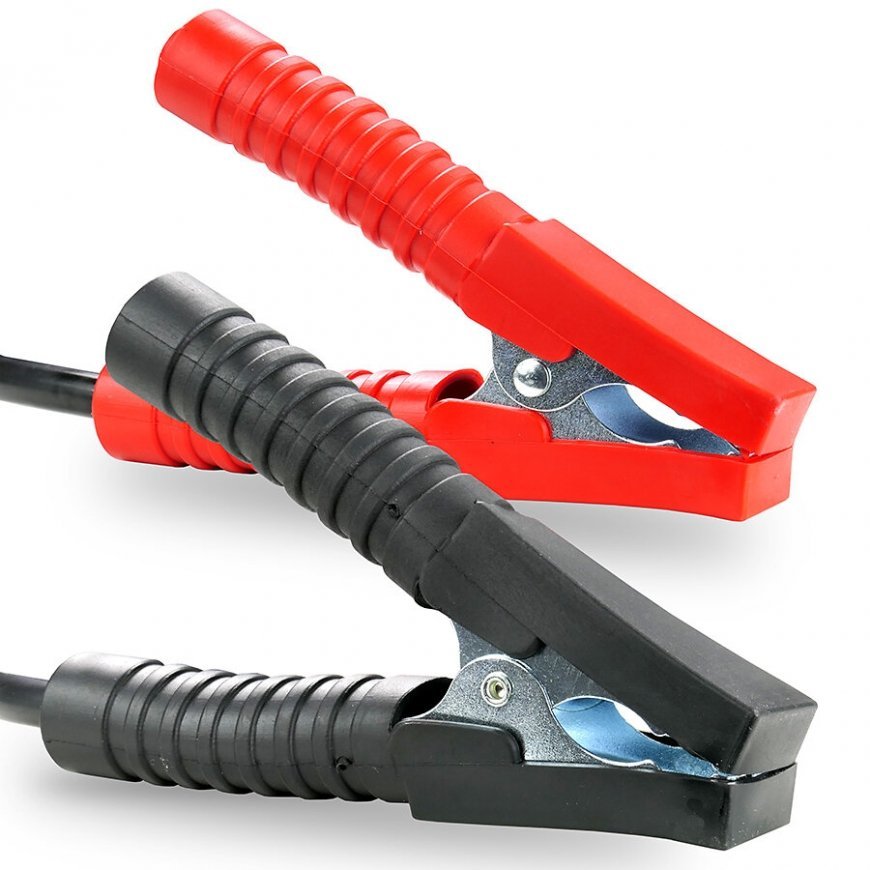

- Large insulated alligator clips

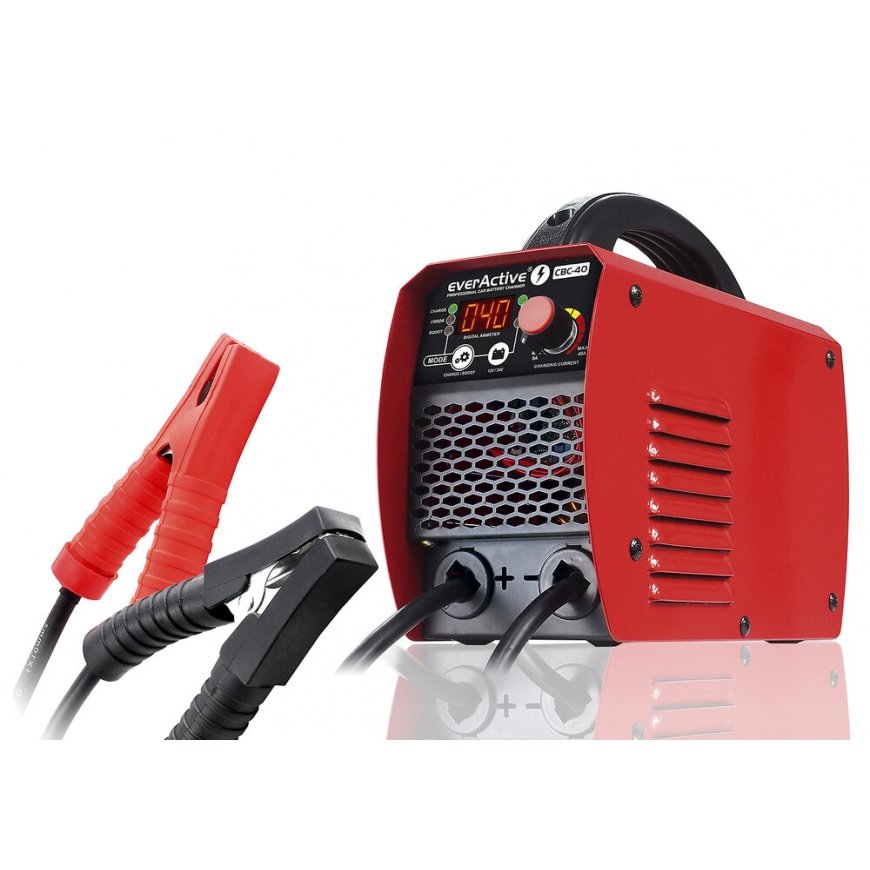

- A digital inductor that displays the approximate charge value allows you to quickly assess the battery charge level and status
Technical data:
Power source: 220-240V AC 50Hz / 60Hz, 7A
Supported batteries: 12V / 24V DC, manual selection
Compatible battery types: VRLA, AGM, VLA, SLA, WET, GEL, Ca/Ca, lead-acid - automatic detection
Capacity limits of rechargeable batteries:
- 12V 25-1000Ah
- 24V 25-1000Ah
Charging current adjustment: stepwise 5A-40A
Maximum charging current: 60A 12V / 24V
Maximum charging voltage:
- For 12V batteries: 14.8V (+ 0.4V)
- For 24V batteries: 29V (+ 0.4V)
Operating temperature from -20 to +40 degrees Celsius (charger efficiency decreases at higher temperatures)
Dimensions: 160x105x245mm
Weight: 3.5 kg
Power cable length: 1.8m with connectors
