StarTech.com DP2DVI2MM6 video cable adapter
12.95 €
1039491 DP2DVI2MM6
0065030840248, 0112840332040, 0132017618715, 0132017946535, 0151903049143, 0163121210366, 0168141629525, 0172302812985, 0601000671926, 0650308402480, 0763615843737, 0778888161297, 0785307911319, 0851975718281, 0999990963061, 4058829164553, 5052461133396, 5054484438915, 5054533438910, 5054629314807, 5055851119925, 6213759738047, 7038557233896, 7038557233902, 7038557371291
Shipping 14-15 b.d.
You are interested in this product?
All about the product

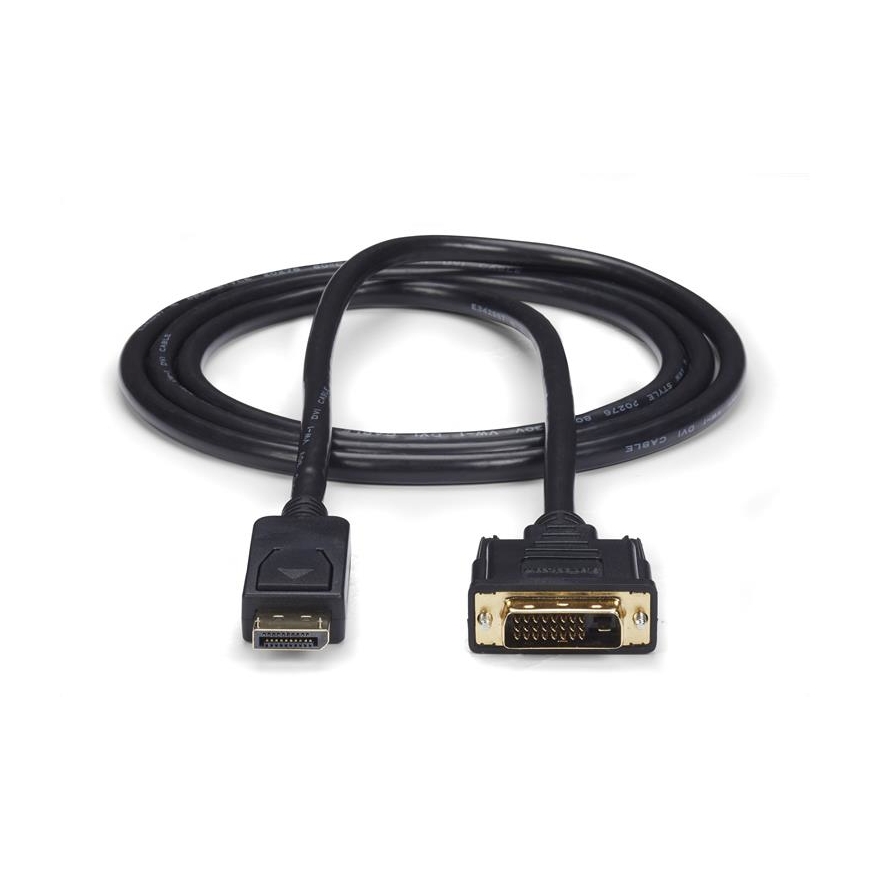

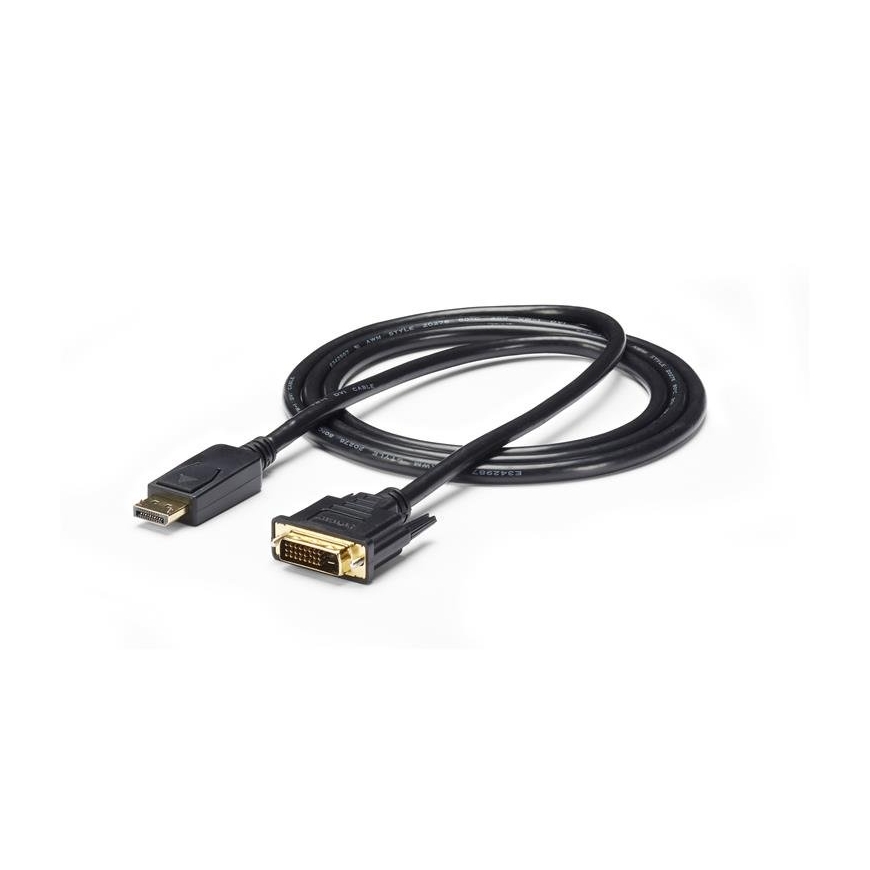

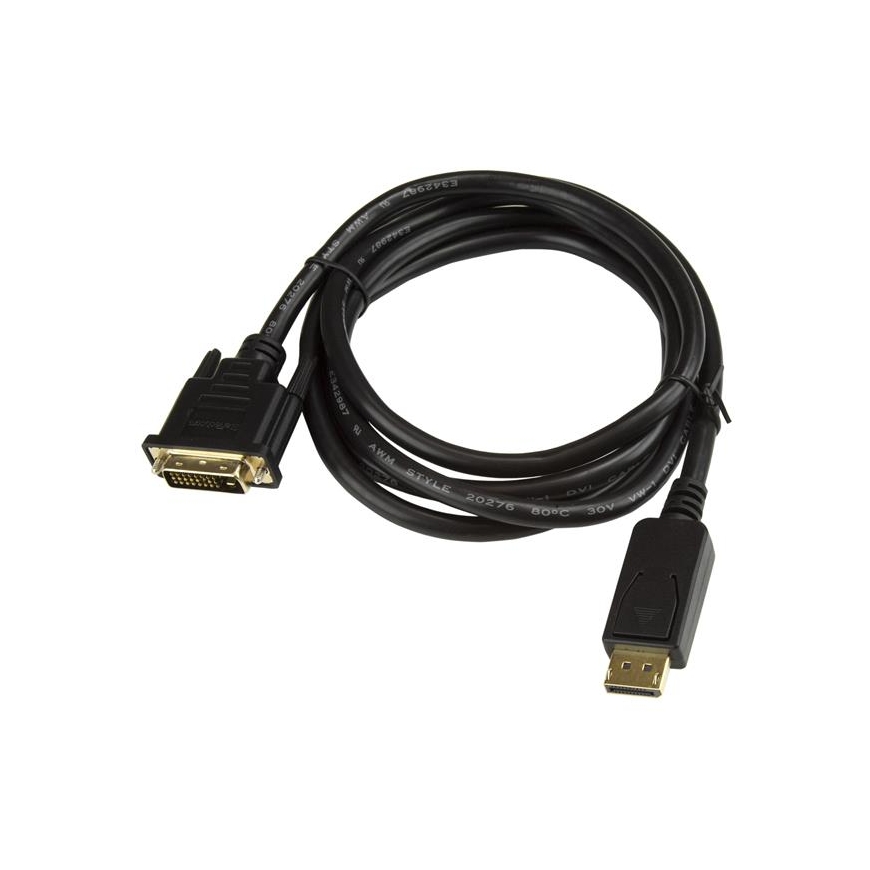

Connect your DVI monitor to a DisplayPort®-equipped computer using a single cableThe DP2DVI2MM6 6 ft DisplayPort® to DVI Adapter Cable lets you connect a DVI Display or Projector to a DisplayPort video card/source. Providing a connection distance of 6ft, the cable features male DVI and DisplayPort connectors, allowing you to make a direct video card-to-display connection, as opposed to having to use an adapter with a separate cable.
The DP to DVI cable is a convenient, cost-effective solution for taking full advantage of your DVI display, without the expense of upgrading to a DisplayPort monitor. The cable offers high quality construction and supports high bandwidth video resolutions up to 1920x1200 or HDTV resolutions up to 1080p.
DP2DVI2MM6 is a passive adapter that requires a DP++ port (DisplayPort++), meaning that DVI and HDMI signals can also be passed through the port. Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
Features | |
| Cable length | 1.8 m |
| Connector 1 | DisplayPort |
| Connector 2 | DVI-D |
| Connector contacts plating | Gold |
| Jacket material | Polyvinyl chloride (PVC) |
| Plug and Play | Yes |
| Product colour | Black |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Maximum resolution | 1920 x 1200 pixels |
| Supported video modes | 1080p |
| Audio connector | No |
Packaging data | |
| Package height | 31 mm |
| Package width | 200 mm |
| Package weight | 152 g |
| Package depth | 220 mm |
| Quantity per pack | 1 pc(s) |
Weight & dimensions | |
| Weight | 143 g |
| Depth | 1800 mm |
| Height | 15 mm |
| Width | 40 mm |
Operational conditions | |
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | 0 - 70 °C |
Logistics data | |
| Products per master (outer) case | 45 pc(s) |
| Master (outer) case width | 330 mm |
| Master (outer) case length | 500 mm |
| Master (outer) case height | 212 mm |
| Harmonized System (HS) code | 84733080 |
Certificates | |
| Compliance certificates | RoHS |
| Certification | CE, FCC, RoHS |
