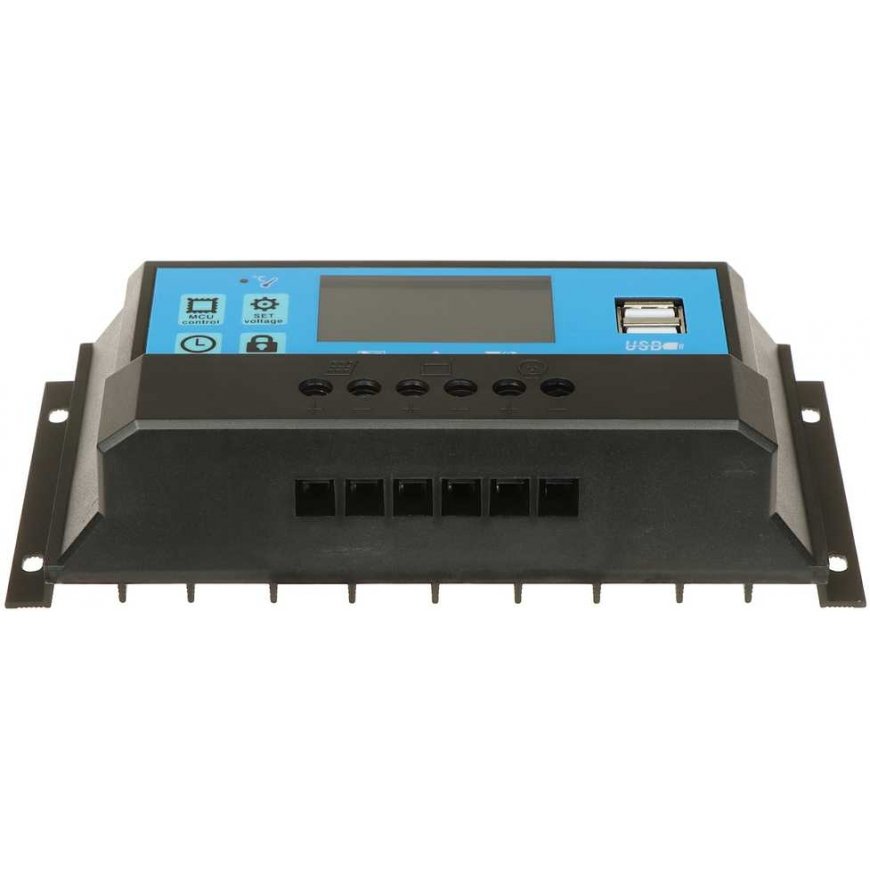

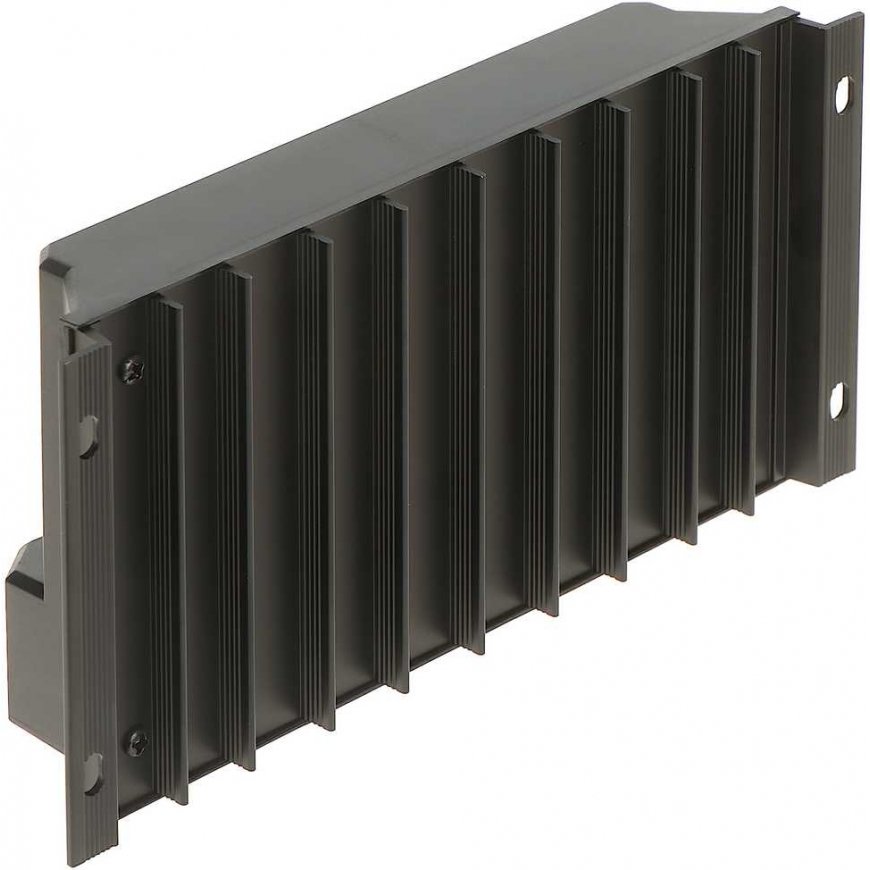

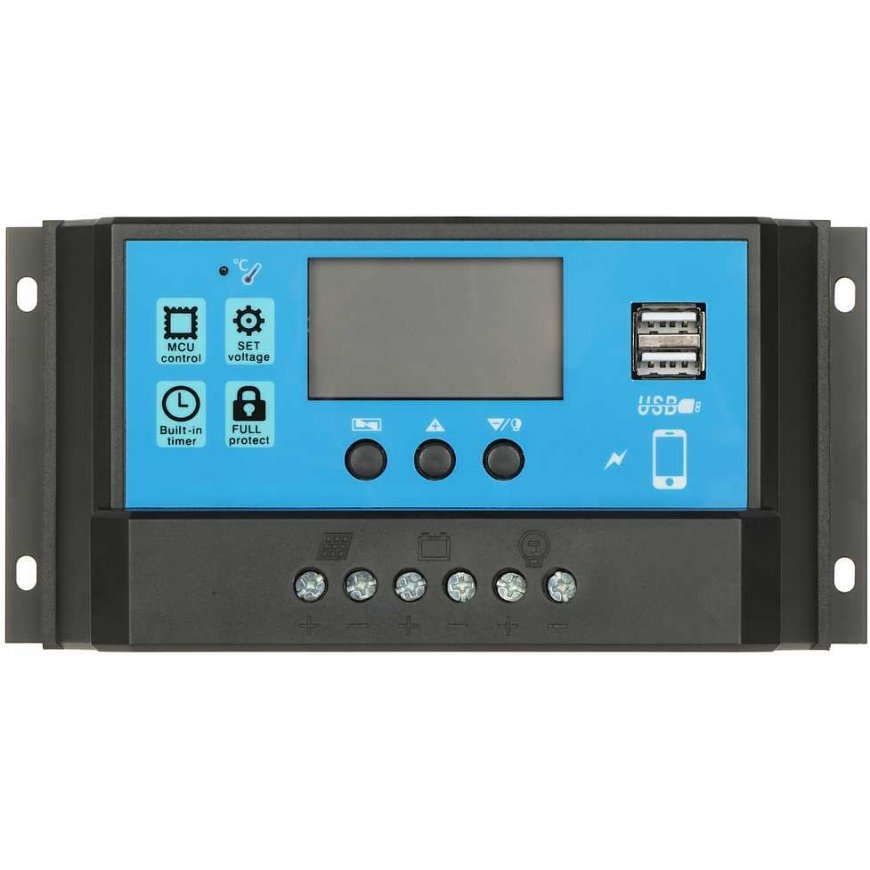

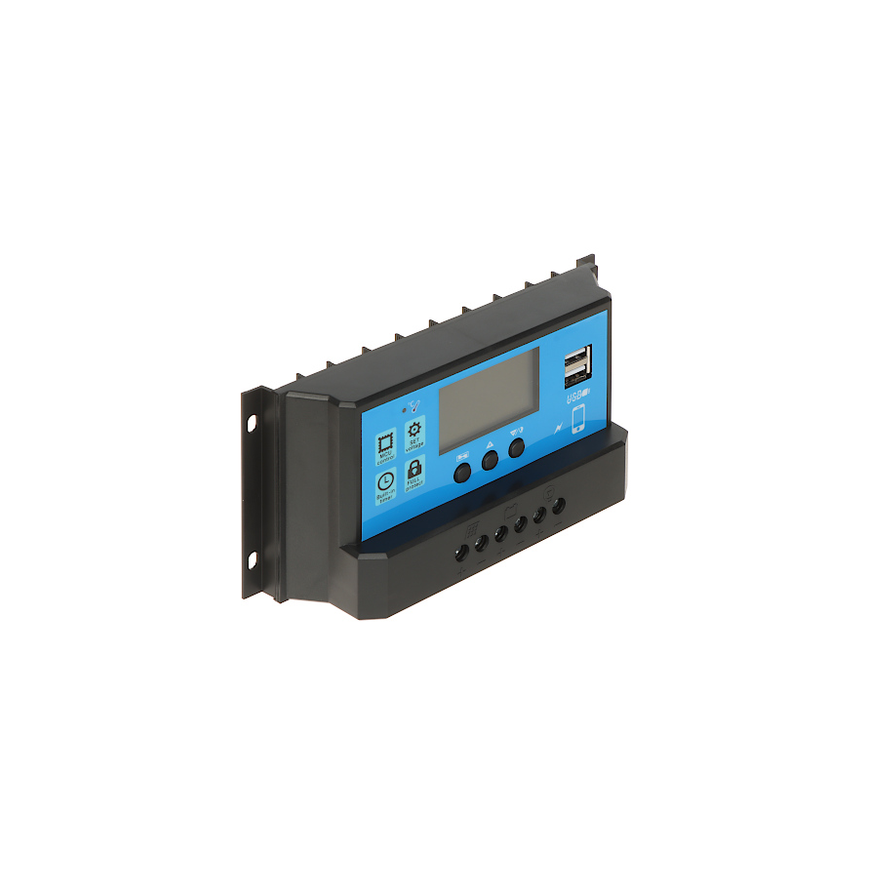

TST SOLAR BATTERY CHARGE CONTROLLER SCC-60A-PWM-LCD-S2
TST SOLAR BATTERY CHARGE CONTROLLER SCC-60A-PWM-LCD-S2
TST SOLAR BATTERY CHARGE CONTROLLER SCC-60A-PWM-LCD-S2
TST SOLAR BATTERY CHARGE CONTROLLER SCC-60A-PWM-LCD-S2

Оттенок товара и его реальный цвет могут отличаться от того, что показано на фотографии, так как изображения носят иллюстративный характер. Описание товара является общим и может не включать все его характеристики.

TST SOLAR BATTERY CHARGE CONTROLLER SCC-60A-PWM-LCD-S2

30,91 €
30,73 €
3612680

5902887078903

Доставка 1-14 р.д.

Количество
Notify you about this product?
(Read the Terms of Service)
Regulation type : PWM
Rated voltage : 12 / 24 V
Rated current : 60 A
Acceptable voltage range :
  • ≤ 25 V for 12 V battery - Highest operating voltage range for connecting a set of panels to a single input regulator
  • ≤ 50 V for battery 24 V - Highest operating voltage range for connecting a set of panels to a single input regulator
  • Battery charging voltage : 13 V ... 15 V (adjustable)
    Output voltage : Equal to the voltage at the battery terminals
    Battery charging current : max. 60 A
    Load current : max. 20 A
    Main features :
  • 2 x USB power output: 5 V / 2 A,
  • Load disconnection voltage (battery overdischarge protection): 9 ... 11.5 V (adjustable),
  • The device is suitable for charging AGM, gel and lead-acid batteries,
  • LCD display,
  • LED diode signaling the device's operating status,
  • Working mode:
    • 24H - load power supply is on all the time
    • 1H ... 23H - load power is on for the selected number of hours after sunset
    • 0H - load power is on from dusk to dawn
  • Weight : 0.28 kg
    Dimensions : 182 x 90 x 46 mm
    Warranty : 2 years
