TST SINGLE-MODE MEDIA CONVERTER OMG1-SM KIT TXRX
79,00 €
Мес. плата от 2.93 €
3599912 OMG1-SM
5902887009310
Доставка 1-14 р.д.
Notify you about this product?

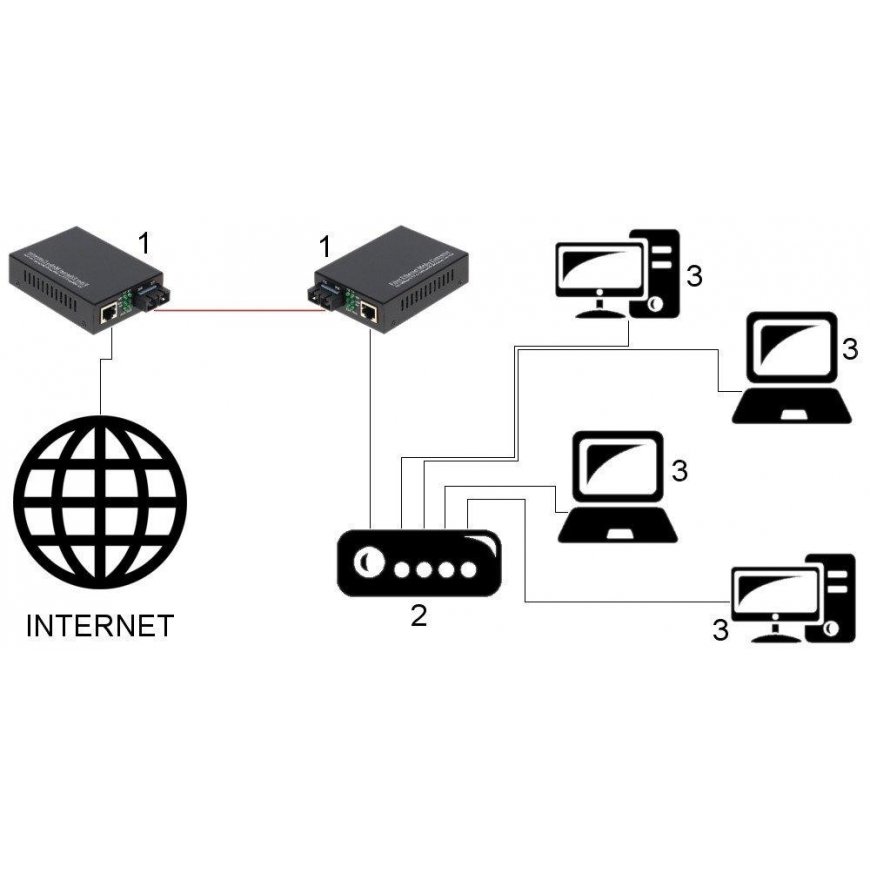

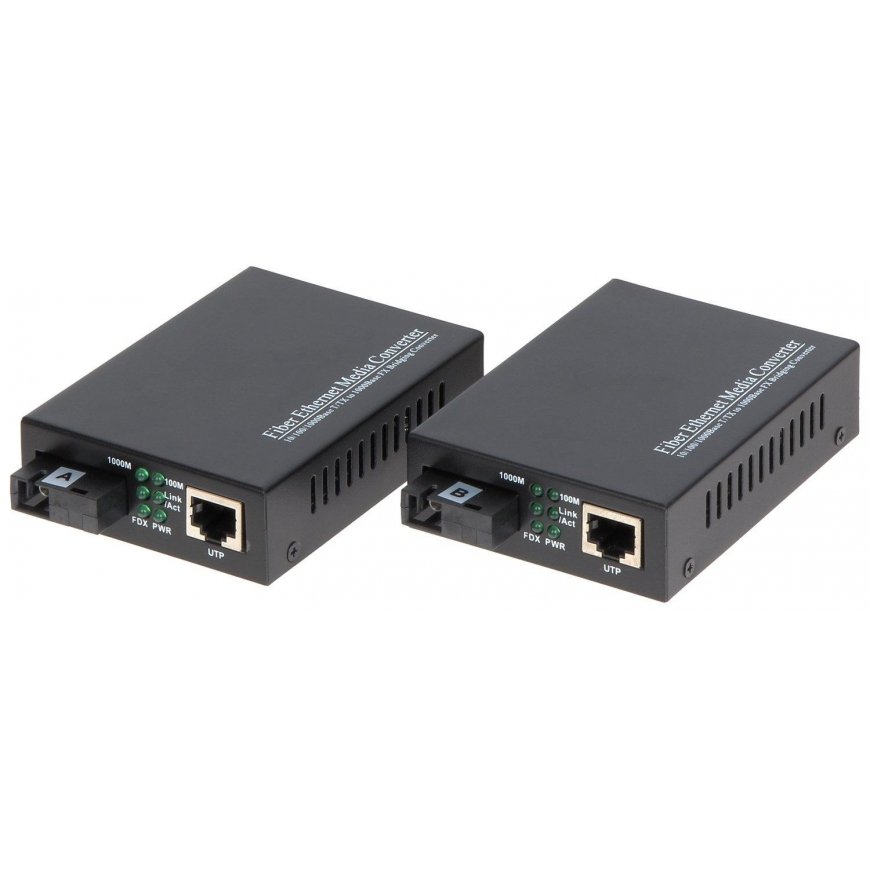

The OMG1-SM converter provides data stream transmission conversion from standard STP/UTP wire to optical fiber, single-mode cable.

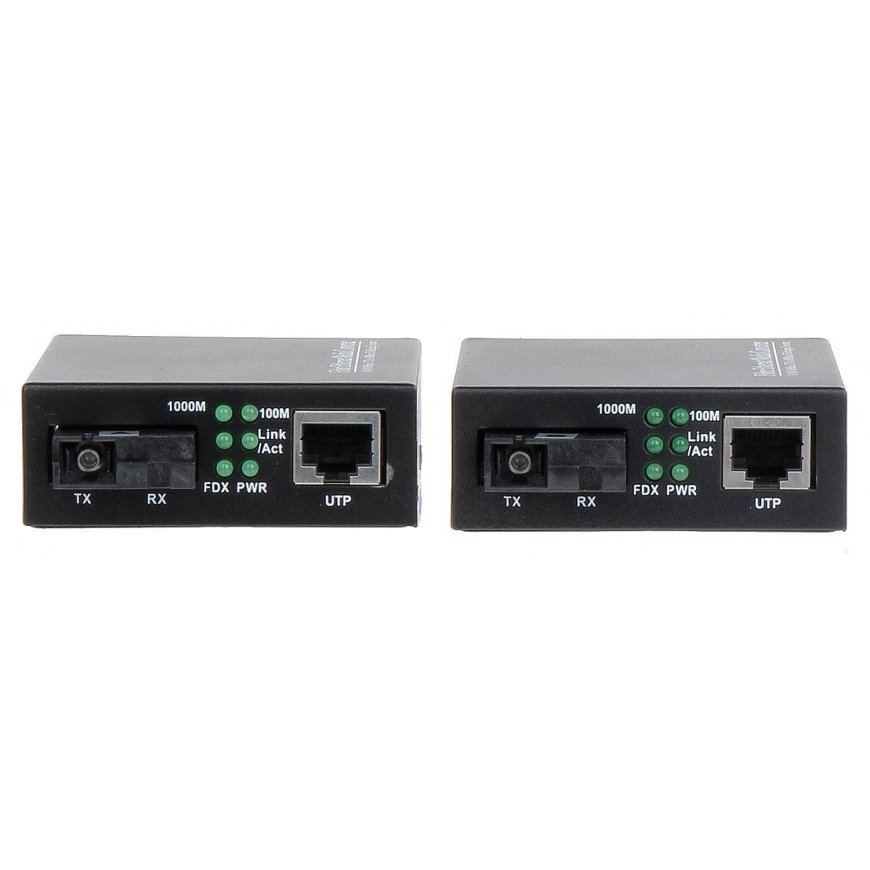

The device has an SC connector, ensuring communication reliability.
The optical signal is transmitted and received in the II and III transmission windows at 1310/1550 nm.
| Optical connector type : | SC |
| Number of threads : | 1 pc. |
| Transmission distance : | 25 km - Single-mode fiber optic |
| Standards served : | IEEE 802.3, IEEE 802.3u |
| LAN port : | (RJ-45. UTP/STP) |
| Transmission speed : | 10/100/1000Mbps |
| Optical wavelength : | 1550 / 1310nm |
| Main features : | Auto-detection MDI/MDI-X - automatically detects data transmission mode Automatic bandwidth detection Bidirectional transmission on a single fiber LED diodes indicating proper device operation WDM (Tx 1550nm / Rx 1310nm) |

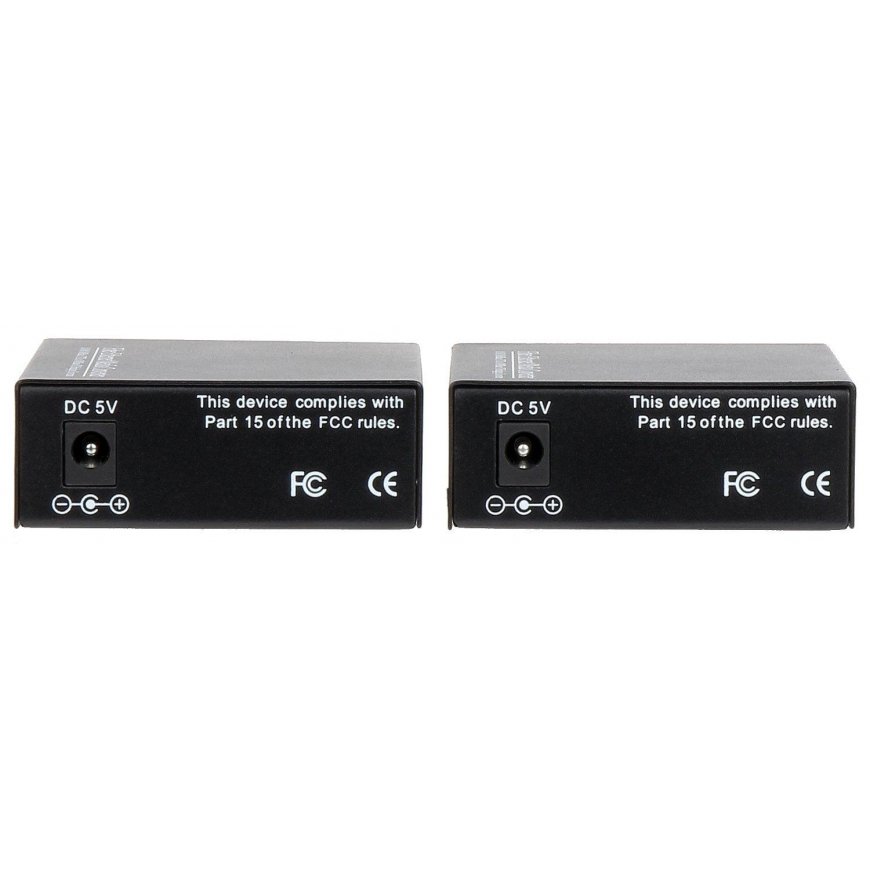

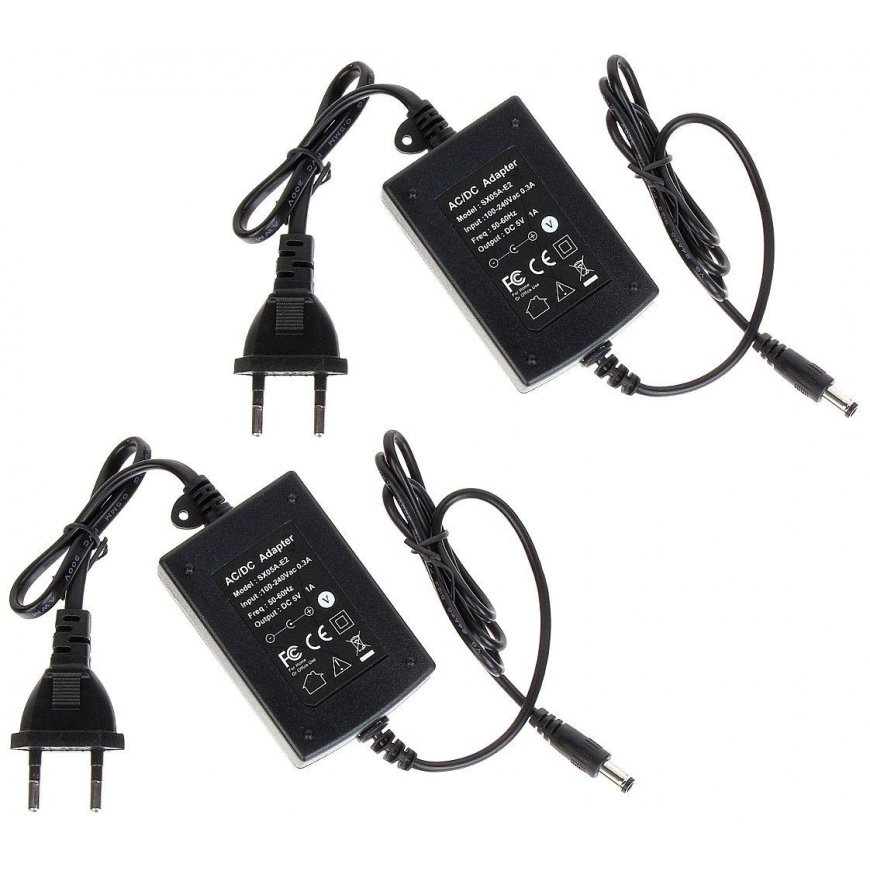

| Power supply : | 5 V DC / 1 A (power supply included) |
| Working temperature : | -10°C ... 50°C |
| Permissible relative ambient humidity : | 5% ... 95% |
| Weight : | 0.148 kg |
| Dimensions : | 105 x 70 x 27 mm |
| Warranty : | 2 years |
