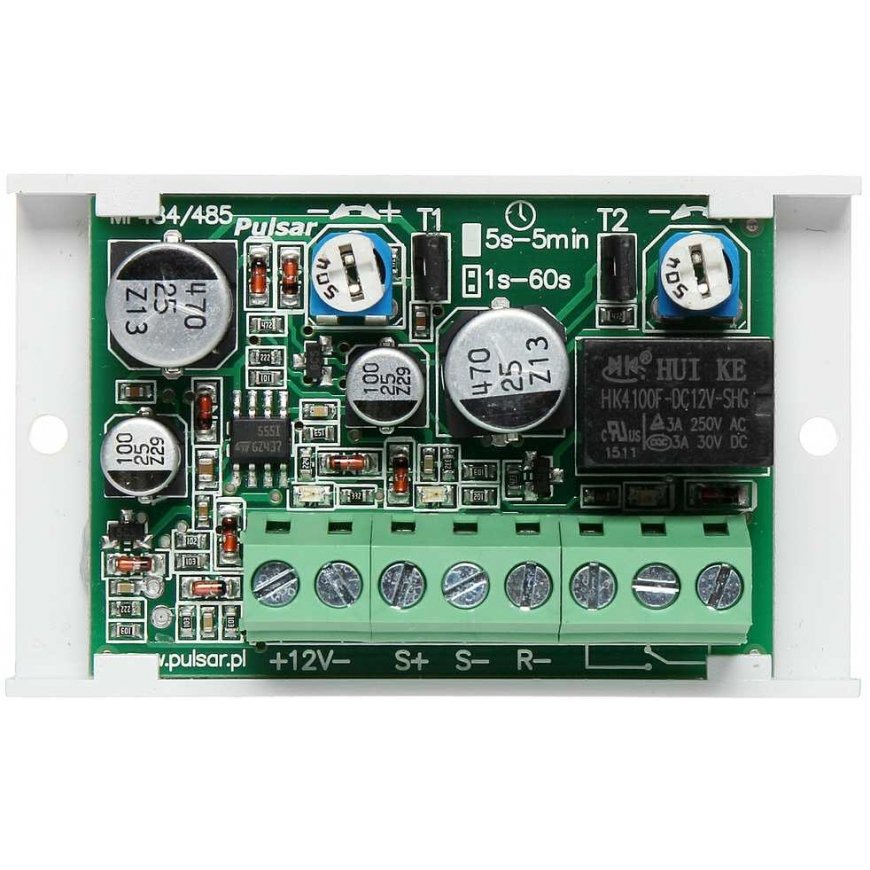

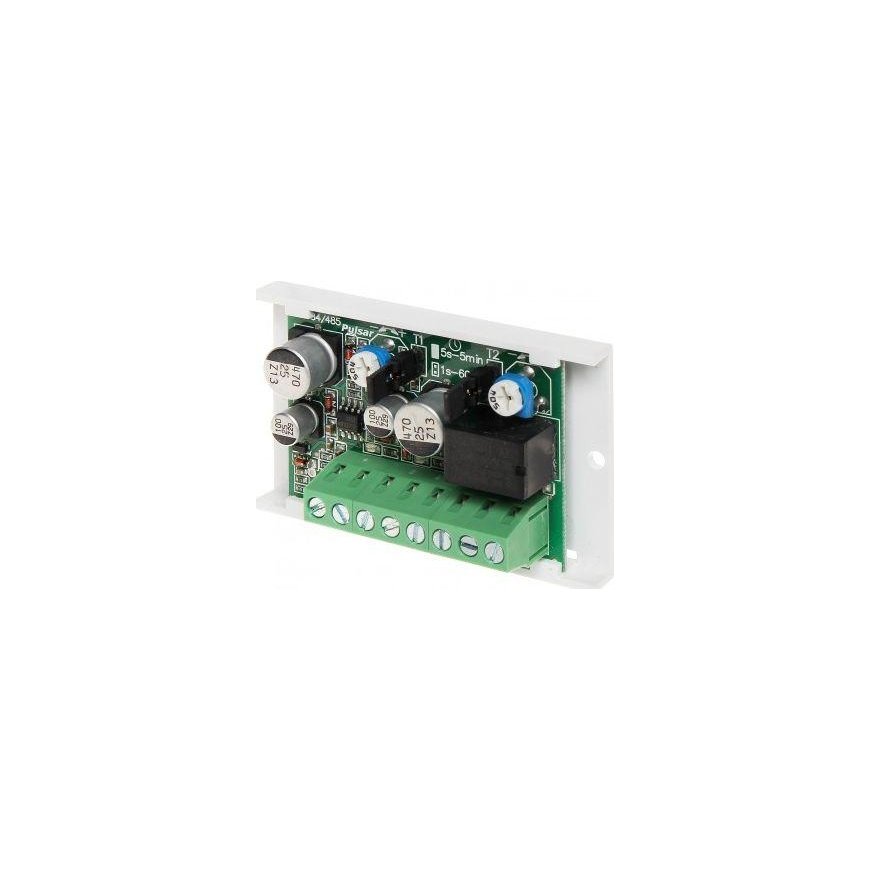

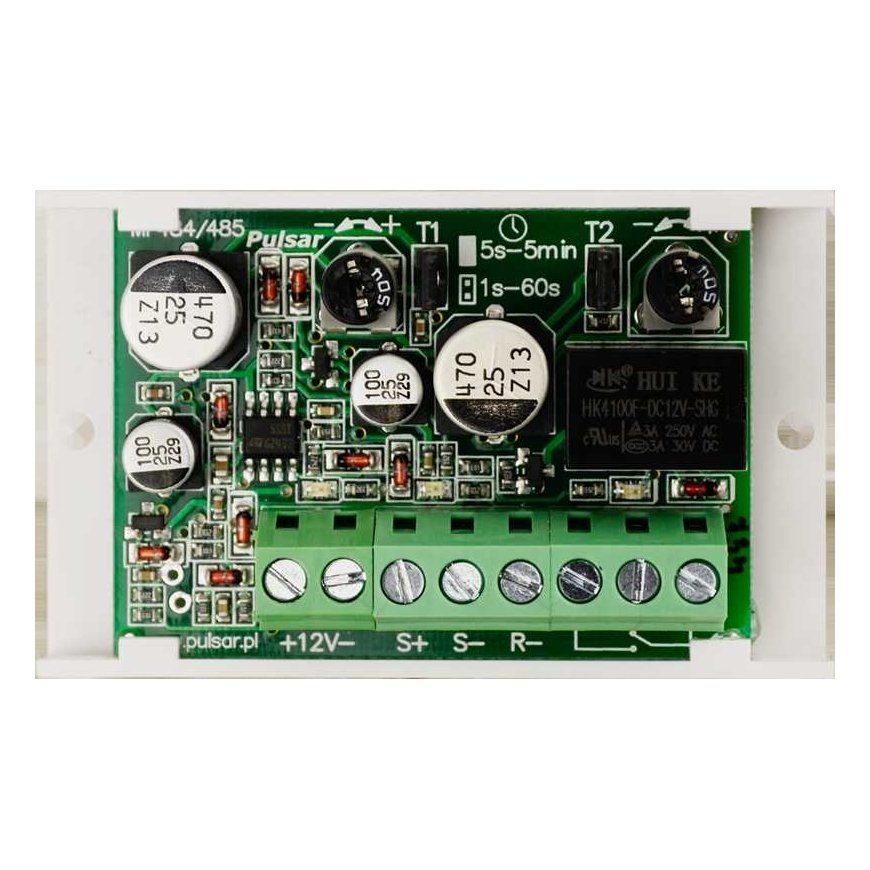

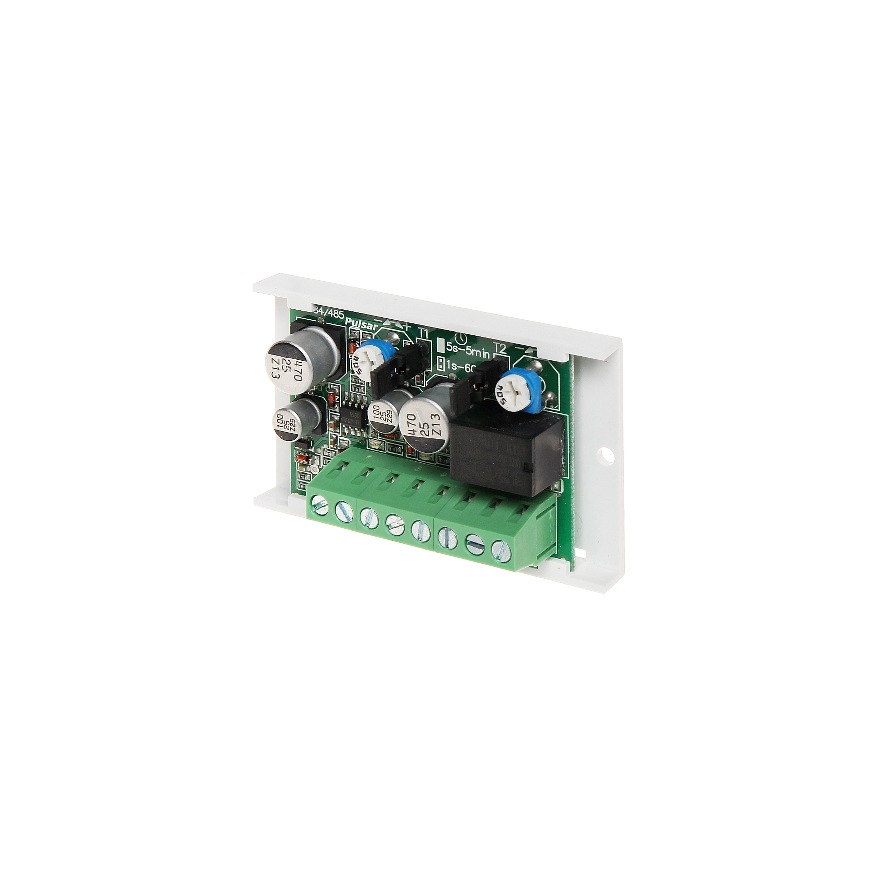

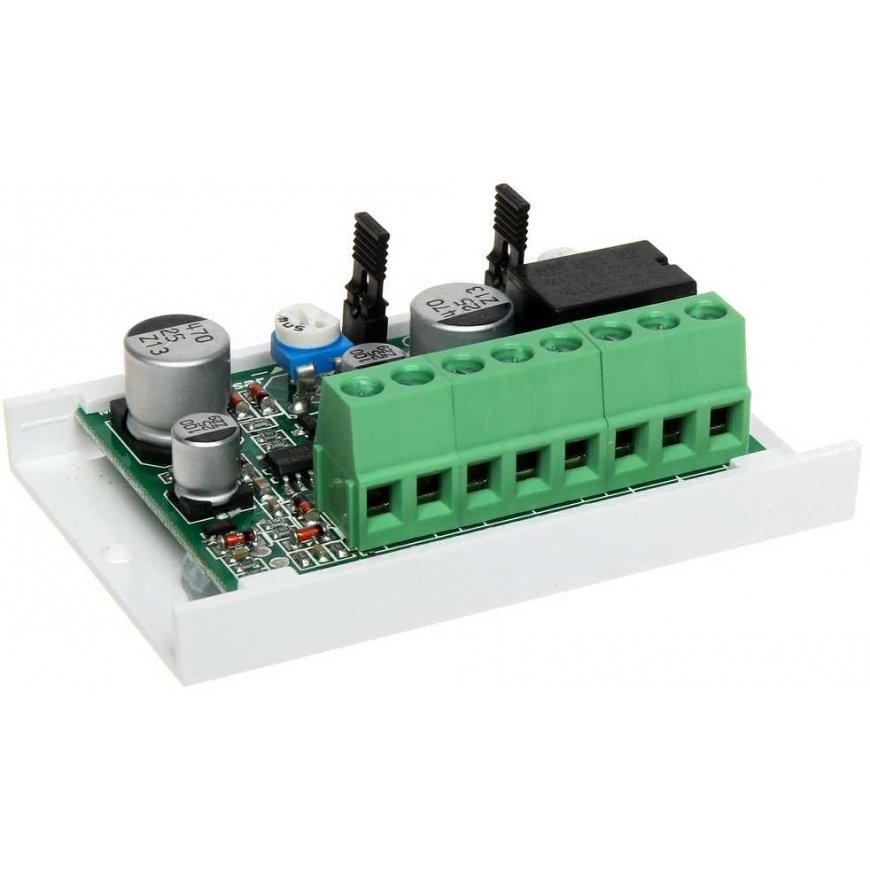

Pulsar TIME RELAY MODULE AWZ-526
3486544 AWZ-526
5902135302170
Товар отсутствует на складе
The AWZ-526 has the ability to extend the short pulse sent for a set time using a potentiometer.
The device can operate in 2 modes: time extension from the onset of the pulse or time extension from the disappearance of the transmitted signal.
The device can be used to extend short control pulses, e.g. for the operation of screws, electromagnetic nuts, bistable control, as well as in access control projects with logical dependencies on the state of: controller, door opening sensor (contactor), entry button, etc.
| Number of relay outputs : | 1 |
| Power supply : | 10 ... 14 V DC |
| Current consumption : | 35 mA (max) |
| Maximum contact load : | 1 A (max) @ 30 V DC / 50 V AC (max) |
| Output : | 1 x NO/NC |
| Main features : | Time adjustment range 1. Range: 1 s ... 60 s, 2. Range: 5 s ... 5 minutes LED indication |
| Working temperature : | -10°C ... 40°C |
| Weight : | 0.035 kg |
| Dimensions : | 69 x 43 x 22 mm |
| Manufacturer / Brand : | PULSAR |
| Warranty : | 2 years |
