WIRELESS CURTAIN SENSOR PIR ACD-220-DG ABAX2 SATEL
62,11 €
Мес. плата от 2.50 €
3472667 ACD-220-DG
5905033337978
2026-07-22
Notify you about this product?
The curtain detector provides a narrow detection angle.
The ACD-220-DG works with other devices compatible with the ABAX2 wireless system.
| Support : | Wireless alarm systems SATEL ABAX2 |

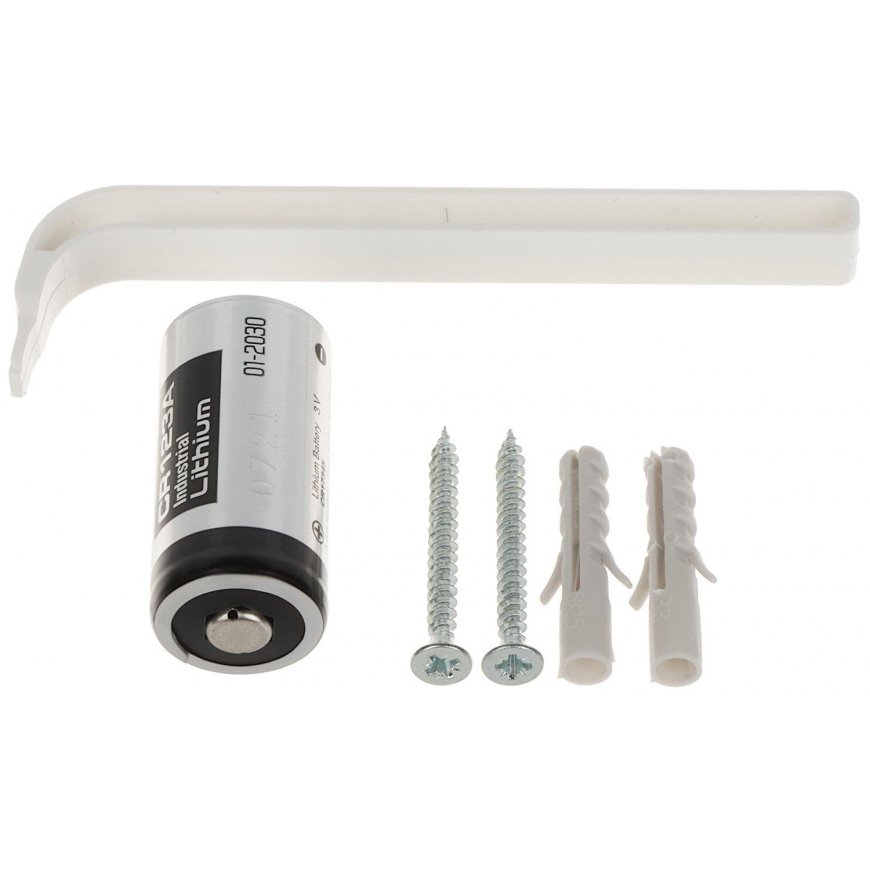

| Battery powered : | 1 x CR123A 3V Lithium battery (included) |
| Battery life : | ~ 2 years |
| Current consumption : | 15 mA (max) 70 µA (Standby mode) |
| Frequency range : | 868.0 ... 868.6 MHz |
| Radio communication range (in open area) : | max. 2000 m ACU-220, max. 1200 m ACU-280 |
| Usage : | For indoor use |
| Sensor type : | Passive IR (PIR) |

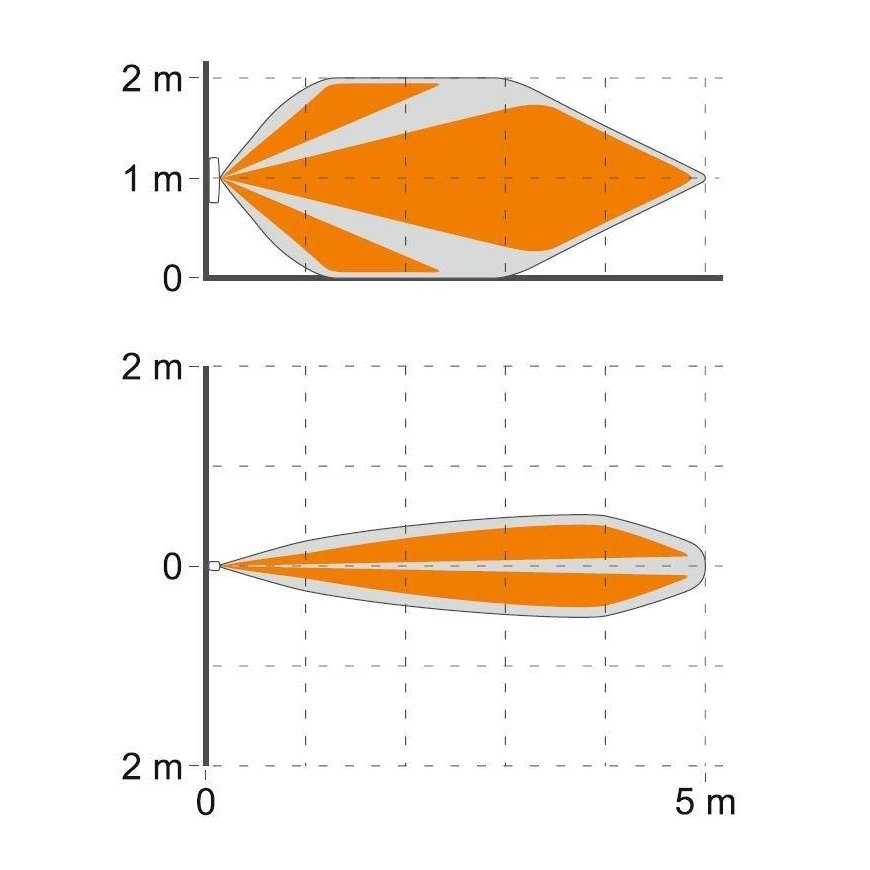

| Detection angle / detection distance : | 15° / 5 x 1m |
| Sensitivity adjustment : | ✔ |
| Pre-alarm function : | - |
| Digital temperature compensation : | ✔ |
| Animal resistance : | - |
| Detected movement speed : | 0.3 ... 1 m/s |
| Standards compliance : | EN50130-4, EN50130-5 |
| Environmental class : | II according to EN50130-5 |
| Main features : | Cover lenses digital detection algorithm with temperature compensation, ensuring high resistance to false alarms and parameter repetition Two-way encrypted radio communication - AES Interference protection through frequency switching ensures reliable transmission Monitoring of motion detection system battery status control The "ECO" option provides up to four times the battery life extension (ABAX2 only) Tamper detection - opening the case, tearing it off the base LED indication Remote module software update Remote configuration Built-in temperature sensor, Temperature measurement: -10 °C ... 55 °C |
| Color : | Dark graphite |
| Working temperature : | -10°C ... 55°C |
| Weight : | 0.02 kg |
| Dimensions : | 105 x 25 x 20 mm |
| Manufacturer / Brand : | SATEL |
| Warranty : | 2 years |
