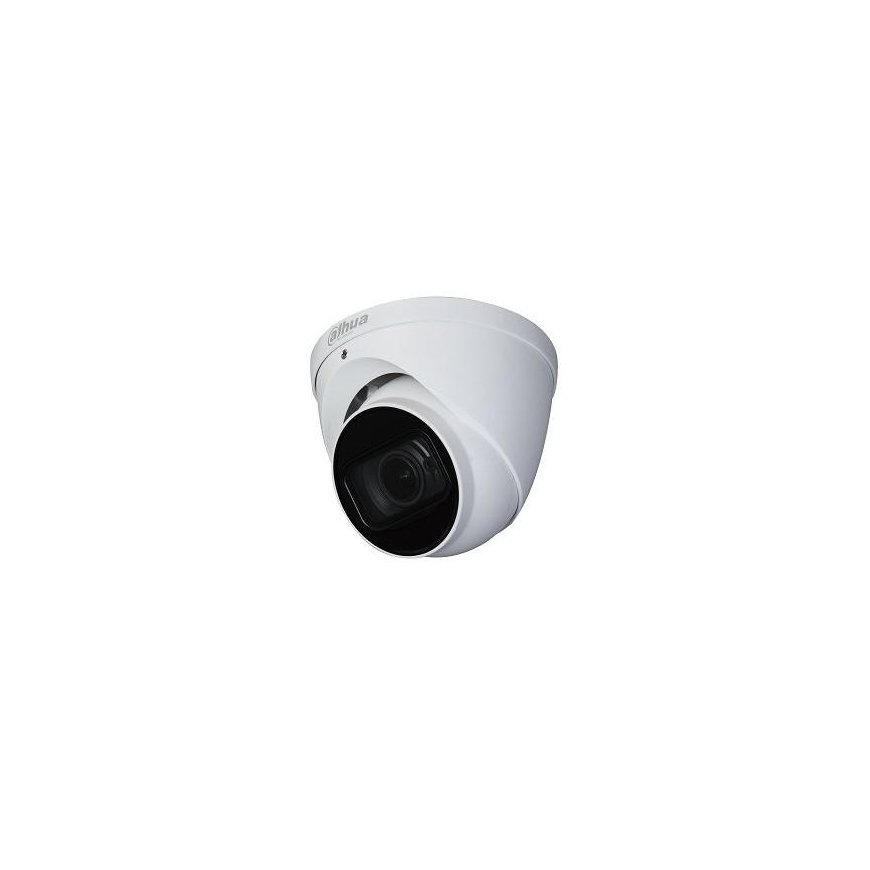

Dahua Technology Co HD-CVI dome camera 4MP with LXIR up to 60m. 3.7~11mm 114.3°~47.2°, IP67, GEN III PRO Series

HD-CVI dome camera 4MP with LXIR up to 60m. 3.7~11mm 114.3°~47.2°, IP67, GEN III PRO Series

Short description:

HD-CVI 4MP dome camera Starlight, LXIR illumination up to 60m (Smart IR), Day/Night, 1/1.8" inch 4 MP CMOS sensor 2560(H)×1440(V), 25kps, 3.7~11mm/ F1.9 adjustable motorized lens (lens viewing angle from 114.3° to 47.2°) autofocus, IP67, WDR 120dB, 2D/3D NR, AGC, HD-CVI technology allows 4MP image transmission via coaxial cable without loss of quality - max. distance up to 700m, OSD menu , GEN III PRO Series, Model: DH-HAC-HDW2402T-ZA.

Brief technical characteristics:

• HD-CVI technology allows a 4MP image to be transmitted through a coaxial cable without losing quality - max. distance up to 700m, 4MP video transmission distance via UTP cable up to 300 meters.
• 4MP HD-CVI Day/Night camera (HDCI - High Definition Composite Video Interface).
• 1/1.8" inch 4 Megapixel CMOS sensor.
• 3.7~11mm/ F1.9 adjustable motorized lens (lens viewing angle from 114.3° to 47.2°) autofocus.
• Image resolution: 4MP (2560×1440).
• Number of effective pixels 2560(H)×1440(V), 4MP.
• Compression speed: 4MP(2560×1440) 25fps; 1080P(1920×1080) 25fps.
• Scanning system: Progressive.
• 2 pcs. IR LEDs (SMART-IR) 850 nm.
• Illumination distance 60m.
• Y/N: Switches from color operation to black and white at certain light intensity, IR CUT filter.
• Min. illumination: day: [email protected], night/0Lux (IR on).
• Electronic Shutter: Auto/Manual, 1/25s~1/100,000s.
• White balance: Auto/Manual BLC, HLC, WDR 120dB, AGC.
• 2D/3D-NR: noise reduction technology.
• Video output: 1 BNC HDCVI (high definition video output) and 1 BNC CVBS (analog video output).
• Video format PAL.
• OSD menu (multilanguage).
• 3-axis mechanism for camera adjustment Pan: 0°~360° Tilt: 0°~78° Rotation: 0°~360°.
• Certificates: CE (EN55032, EN55024, EN50130-4); FCC (CFR 47 FCC Part 15 Part B, ANSI C63.4-2014); UL (UL60950-1+CAN/CSA C22.2 No.60950-1).
• Moisture resistant IP67.
• Operating temperature: -30°C~+60°C, 10%~95%.
• The camera body is metal.
• Power supply: DC12V ±30%.
• Power: 7.9W.
• Dimensions: 122mm×107mm.
• Weight: 0.6 kg.

Compatible mounts:
• PFA130-E.
• PFA152-E.
• PFB203W.
