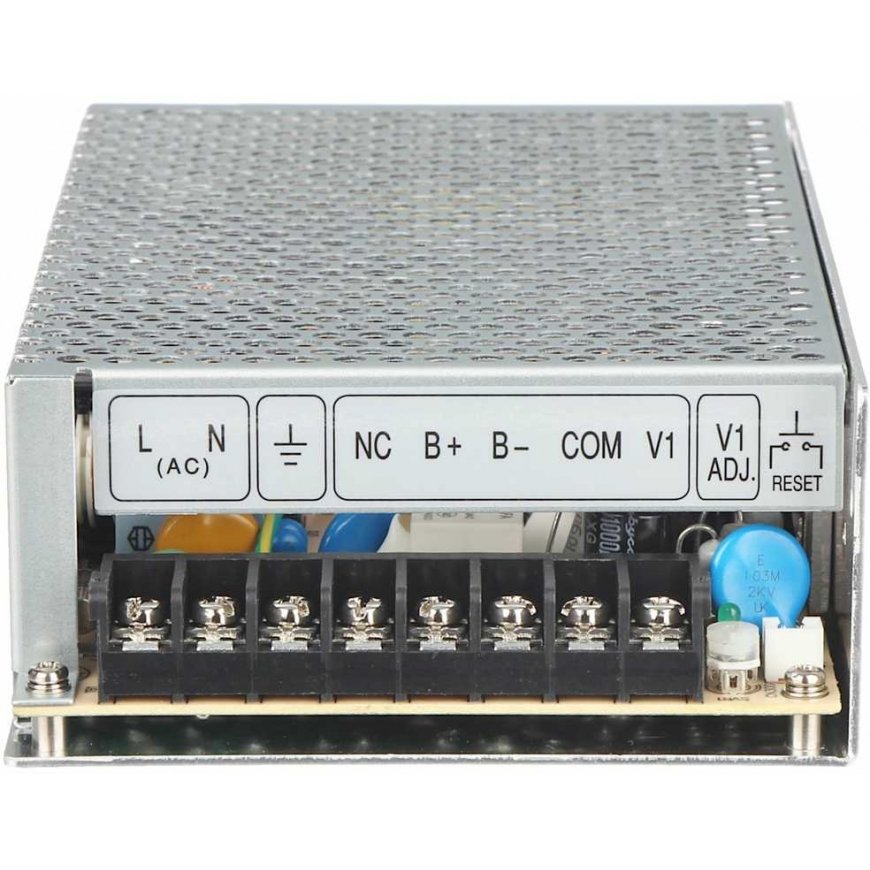

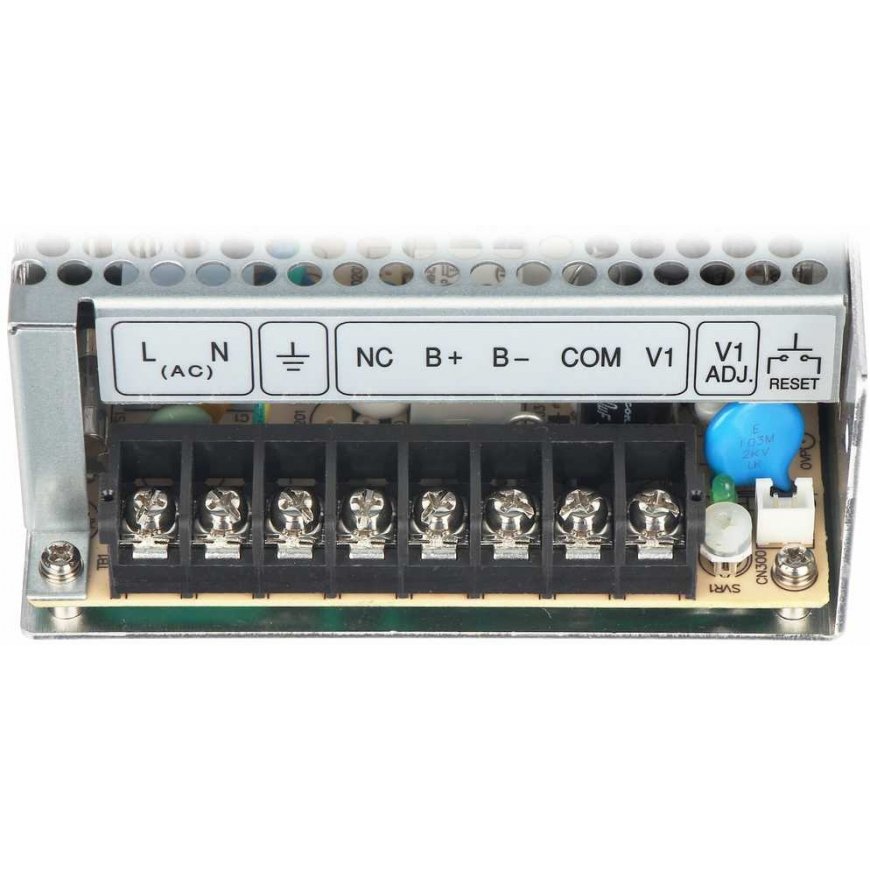

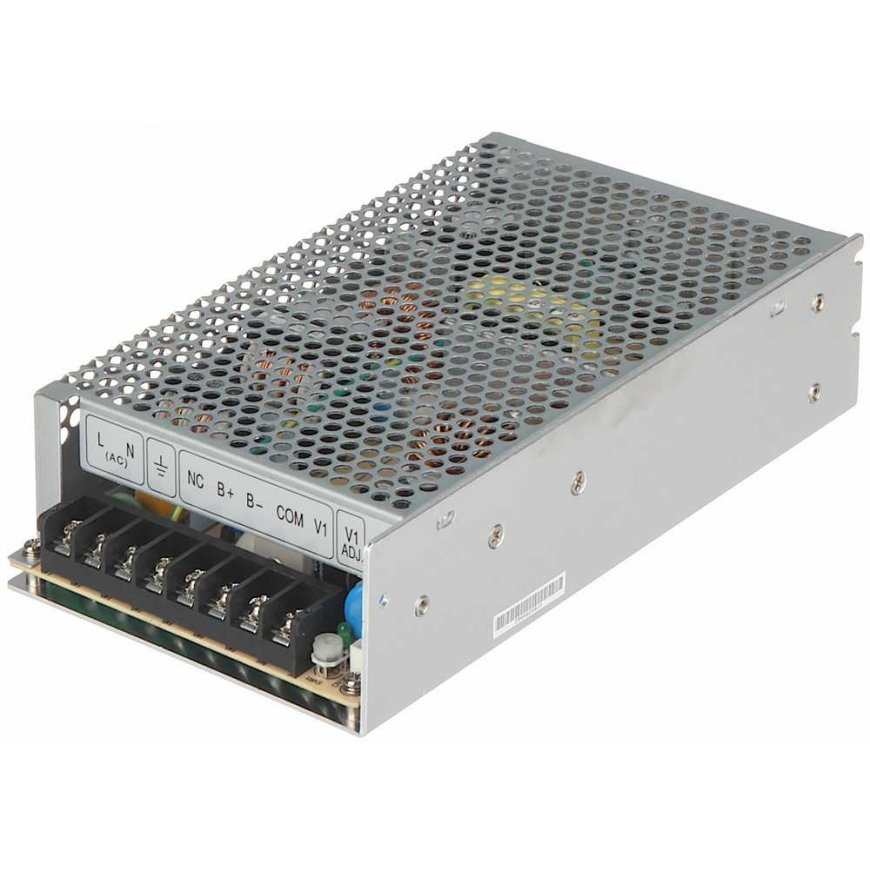

Ubiquiti AD-155A BUFFER POWER SUPPLY
149,00 €
Мес. плата от 4.74 €
2389070 AD-155A
5901643192044
Товар отсутствует на складе
Notify you about this product?
The buffer power supply is designed to power alarm control panels, sensors, code locks, cameras, manipulators, telephone locks and other devices that are part of the alarm system.
Attention! If the power supply is intended for continuous operation (24H), its nominal current must not exceed 80% of the maximum current.
It is necessary to pay special attention to the proper cooling of the power supply during work!.
| Power supply type : | Impulsive |
| Power supply voltage : | 100 ... 240 V AC |
| Output voltage : | 13.8 V DC |
| Output voltage regulation : | 12 ... 14.5 V |
| Power supply current capacity : | 10.5 A |
| Battery charging current : | 0.5 A |
| Power supply : | 145 W |
| Efficiency : | 80% |
| Number of outputs : | 1 pc. |
| Protective measures : | Against overvoltages Protection against overcurrents |
| COLD START Cold start of the power adapter : | ✔ |
| Operating temperature / relative humidity : | -10 °C ... 60 °C / 20 % ... 90 % |
| Relevant standards : | UL60950-1, TUV EN60950-1 |
| EMI is radiated and transmitted by : | Conforms to standard EN55022 (CISPR22), class B. |
| Accordions : | Complies with standard EN61000-3-2,-3 |
| Resistance to EMS : | Complies with standards EN61000-4-2, 3, 4, 5, 6, 8, 11, ENV50204, EN55024, EN61000-6-1 |
| Weight : | 0.8 kg |
| Dimensions : | 199 x 111 x 50 mm |
| Warranty : | 2 years |
