Pulsar AC POWER ADAPTER PSAC-08246 METAL CASE TRANSFORMER
2386764 PSAC-08246
5906881446584
Доставка 1-14 р.д.

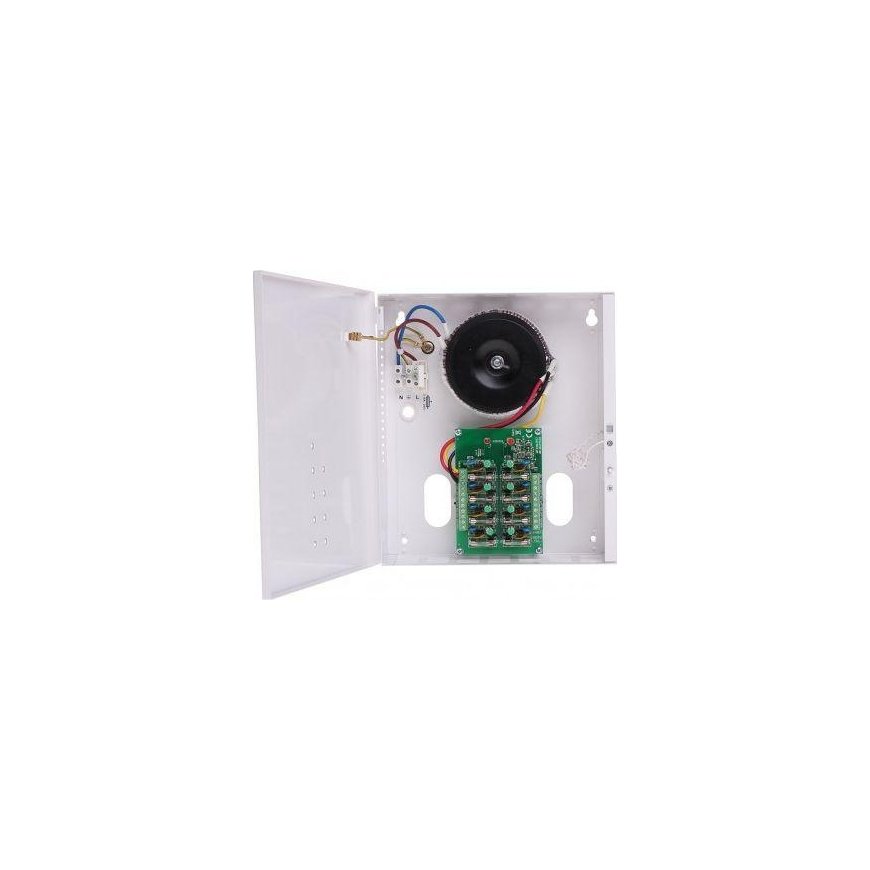

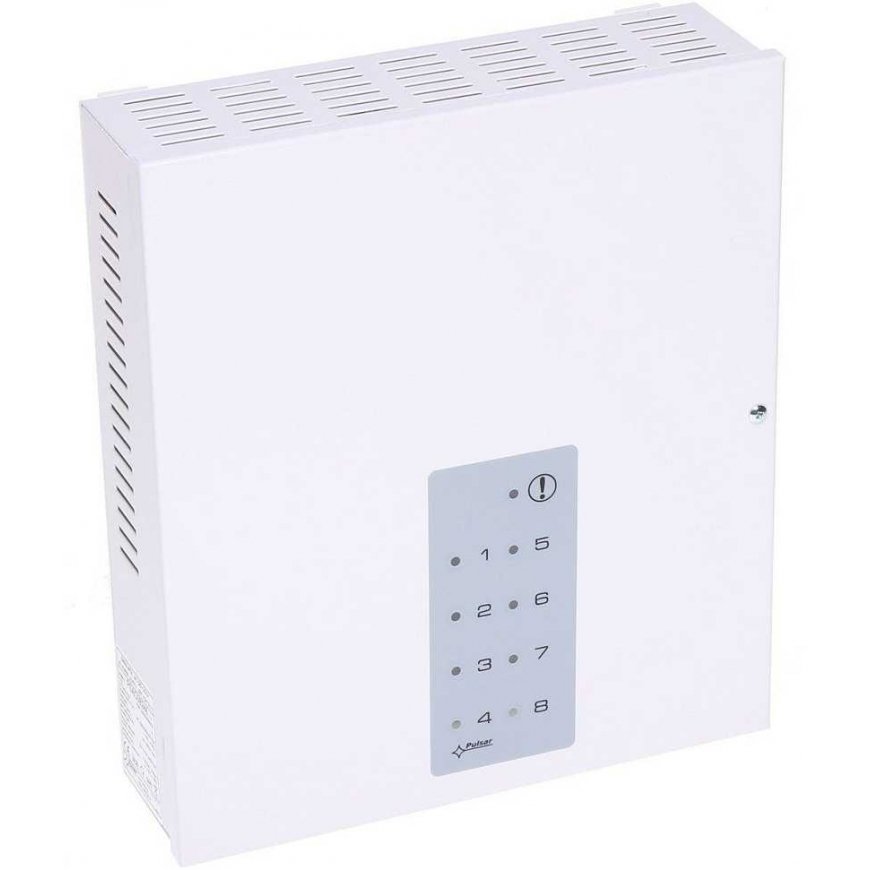

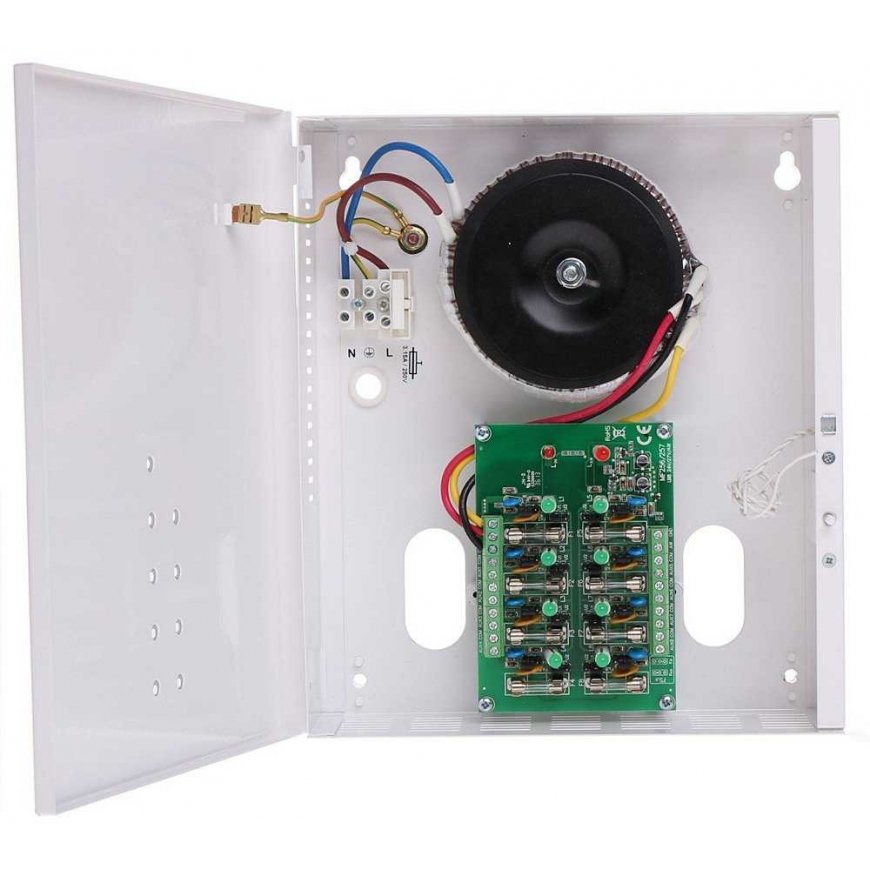

The power adapter is housed in an aesthetic, solidly made metal case.
The output voltage of the power adapter is AC 24V/27V, it serves up to 8 devices.
The maximum load of a single output reaches 0.75A, at the same time it should be noted that the total load of all outputs must not exceed 6A.
Each output is independently protected by a fusible or polymer PTC fuse (jumper optional).
Attention! If the power supply is intended for continuous operation (24H), its nominal current must not exceed 80% of the maximum current.
It is necessary to pay special attention to the proper cooling of the power supply during work!.
| Power supply type : | Transformer |
| Output voltage : | 24 / 27 V AC |
| Output voltage regulation : | ✔ (step adjustment) |
| Maximum output current (total) : | 6 A |
| Single output max. output current : | 0.75 A |
| Output protection : | 1 A Polymer / Fuse |
| LED indication : | ✔ |
| Output AW (emergency) - type OC 50mA, LED signaling about failure of at least one output : | ✔ |
| Protection : | From short circuit From overload Overheating From overvoltage Anti-sabotage |
| Input voltage : | 230V @ 50Hz |
| Power : | 150 VA |
| Number of outputs : | 8 |
| Connection type : | Cable clamps |

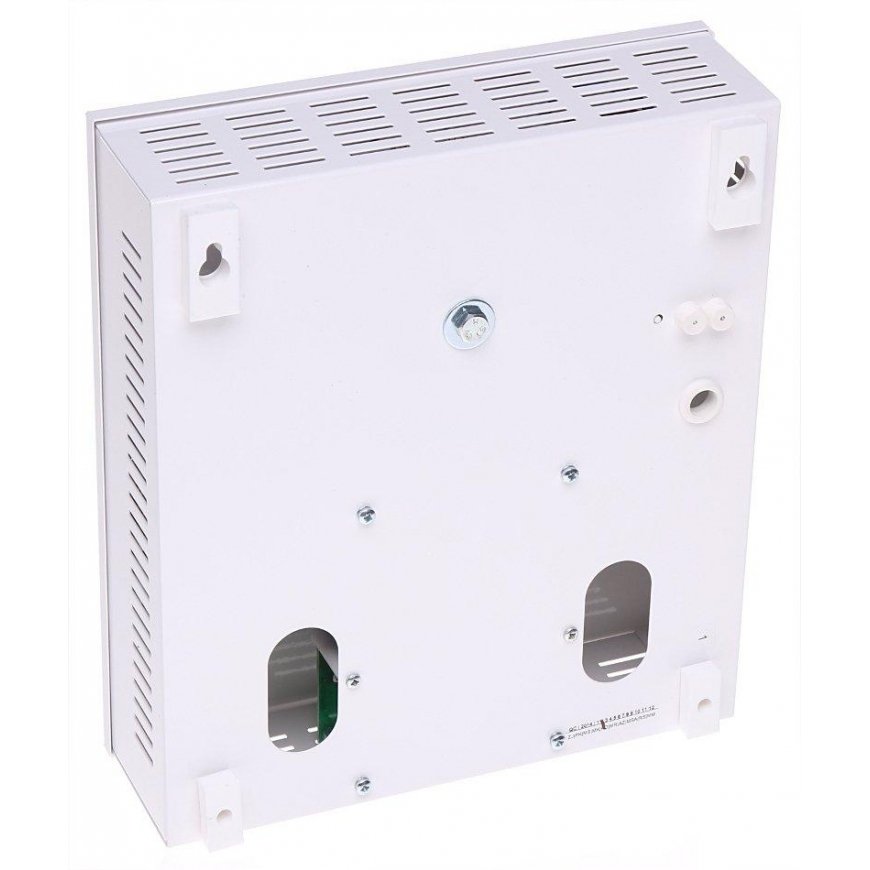

| Packaging type : | Metal, fixed to the wall |
| Lockable with a key : | - |
| Weight : | 3.0 kg |
| Dimensions : | 246 x 215 x 64 mm |
| Manufacturer / Brand : | PULSAR |
| Warranty : | 2 years |
