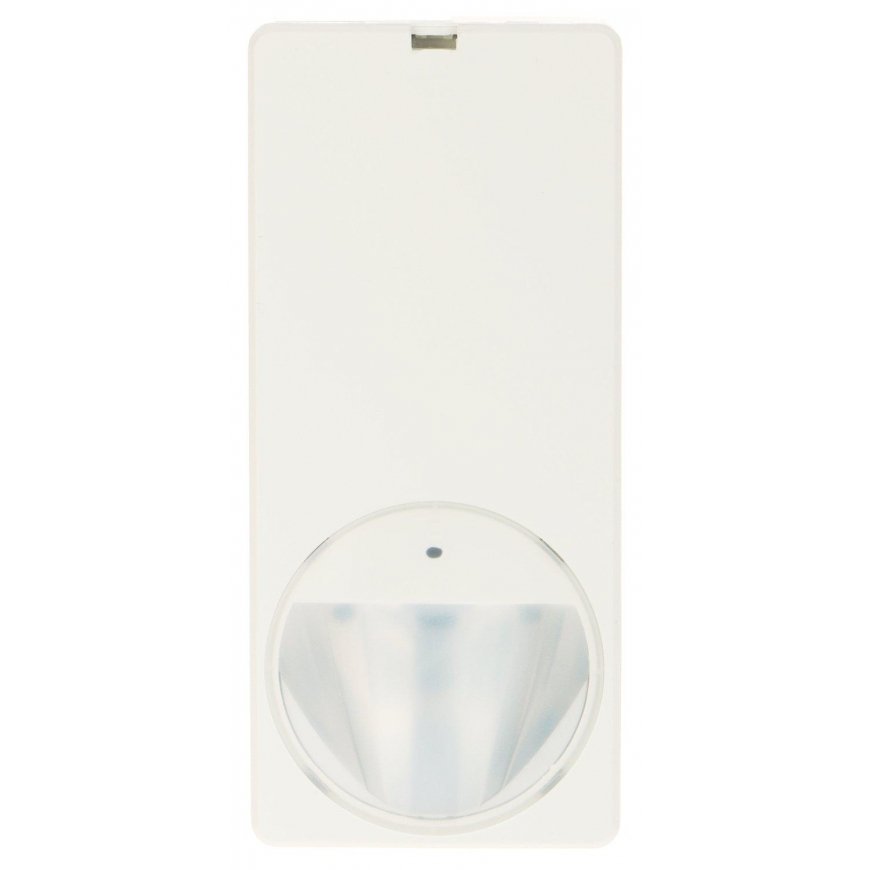

DUAL TECHNOLOGY DETECTOR: MICROWAVE + PIR PDM-IXA12T Vanderbilt
99,00 €
Мес. плата от 3.45 €
2361001 PDM-IXA12T
4025515470489
2026-07-22
Notify you about this product?
Digital dual (PIR + microwave) detector.
The double-mirror optics used in the device ensure equal coverage and sensitivity in all areas of the detection field.
High resistance to false alarms.
| Usage : | For indoor / outdoor conditions |
| Sensor type : | Passive IR (PIR) and microwave (MW) |
| Distance : | 12 x 12 years |
| Alarm output : | NC |

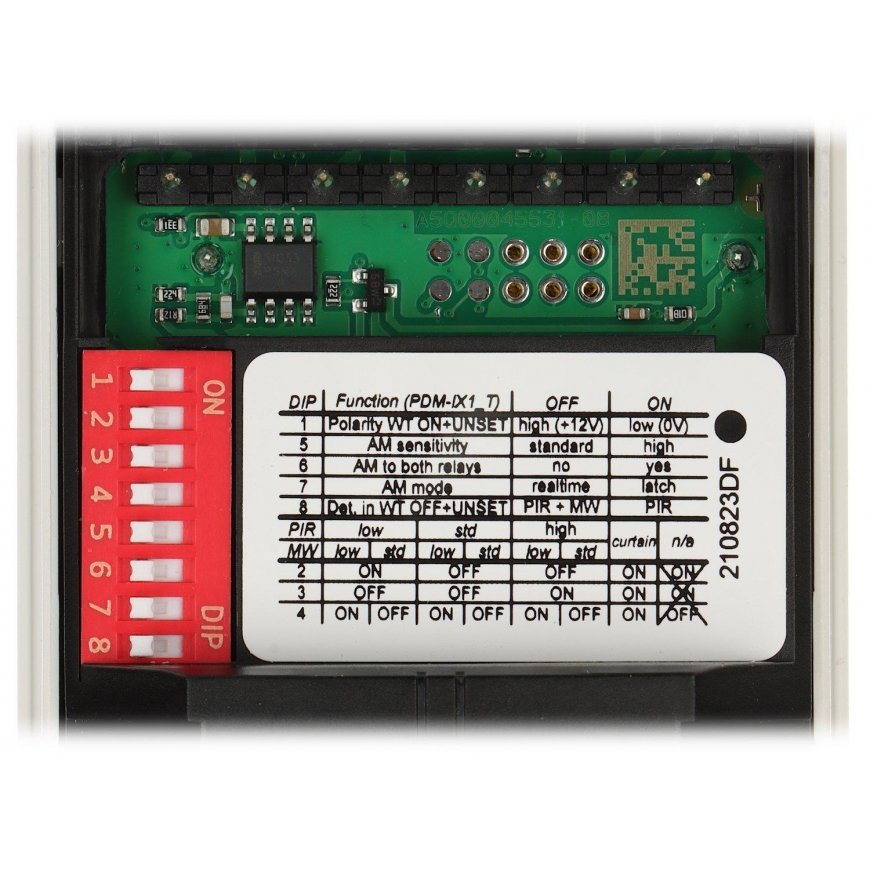

| Sensitivity adjustment : | 6 steps |
| Microwave frequency band : | 10.525 GHz |
| Resistance to animals : | - |
| Active anti-masking IR : | ✔ |
| Maximum output load : | 100 mA / 30 V DC |
| Main features : | Matchtec algorithm Technology MAGIC Mirror Reliable intruder detection High resistance to false alarms Built-in parametric resistors RI: 4.7kΩ 250mW, RF: 2.2kΩ 250mW, REoL: 4.7kΩ 250mW Low current consumption Very easy installation |
| Environmental class : | EN 50131-2-4 Grade 3 |
| Sealing class : | IP41 |
| Mechanical resistance class : | IK02 |
| Meals : | 9 V ... 16 V DC / 10.5 mA (max) |
| Working temperature : | -10 °C ... 55 °C |
| Permissible relative humidity of the environment : | < 95% RH (no condensation) |
| Detectable movement speed : | 0.1 ... 4 m/s |
| Weight : | 0.1 kg |
| Dimensions : | 57 x 128 x 32 mm |
| Manufacturer / Brand : | Vanderbilt |
| Warranty : | 2 years |
