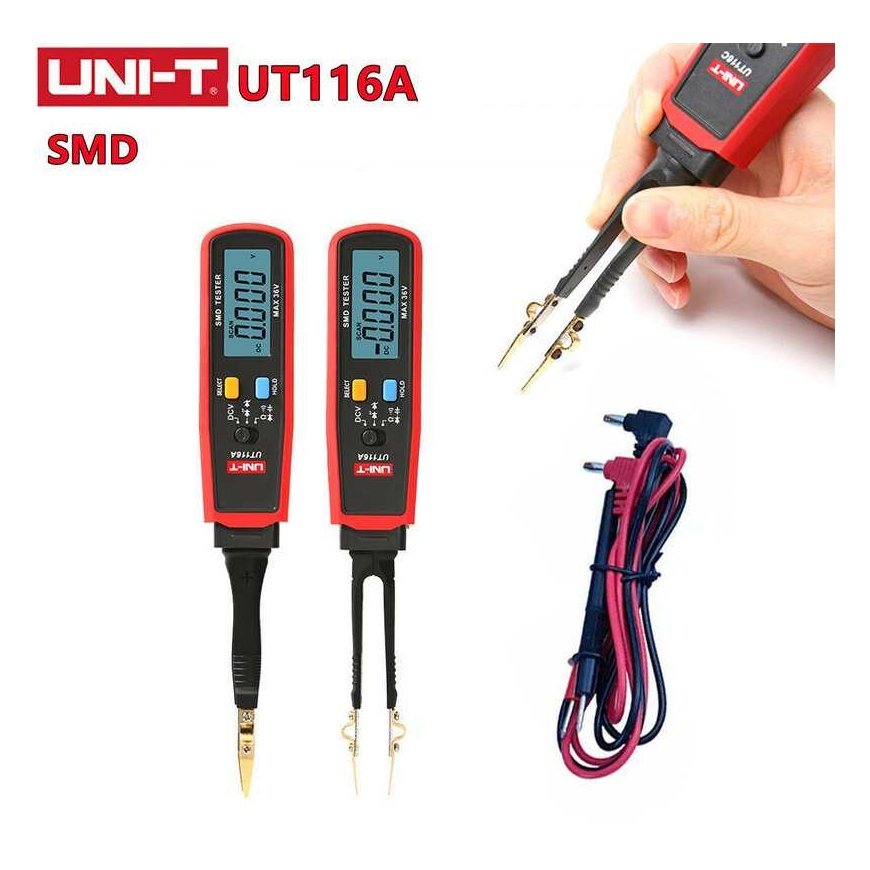

SMD multimeter, 30MΩ 30mF DC V: 36V diode testing, UNI-T
3578697 UT116A
6935750511602
Piegāde 3-5 d.d.
Viss par produktu
UT116 series SMD testers
UT116 series SMD tester is a miniature and integrated utility model measuring instrument, which can automatically detect components such as resistance, capacitance, diode, etc., with LED, voltage regulator, DCV, on-off and battery power measurement functions. SMD resistance, capacitance, diode (RCD) parameter measurement, is a good helper in electronics factories and electronics maintenance companies.
UT116 series models: UT116A, UT116C
Features of UT116 series SMD testers
Certificates: CE, UKCA
● 36 V DC voltage measurement
● Battery measurement (10 mA) (UT116C)
● Zener diode polarity test
● Resistance, capacitance (UT116C: up to 100 mF), continuity, diode measurement
● The pen can be rotated 180 degrees, making it convenient to read and read diodes/LEDs
UT116 Series SMD Tester Specifications
Specifications | UT116A | UT116C |
Show number | 3000 | 6000 |
Resistance | 30MΩ | 60MΩ |
Capacity | 30 mF | 100 mF |
Diode test | 3V | 3.2V |
LED/stabilized voltage | About 21V/1mA | About 21V/1mA |
Continuity test | ＜ 30Ω | ＜ 50Ω |
DCV | 36V | |
Battery test | Load current ≈ 10 mA | |
Automatic range | √ | √ |
Automatic scan identification | √ | |
Automatic power off | √ | √ |
General characteristics | ||
Power supply | 1.5V battery (R03) x 2 | |
Screen | 39mm x 20mm | |
Product color | Red and gray | |
Product net weight | About 80g | |
Product size | 204mm x 33mm x 25mm | |
Standard accessories | Battery | |
Standard individual packaging | Gift box, English manual | |
Standard quantity per box | 60 pcs. | |
Standard cardboard box measurement | 440mm x 420mm x 210mm | |
Standard gross weight of a carton box | About 7.1 kg | |
