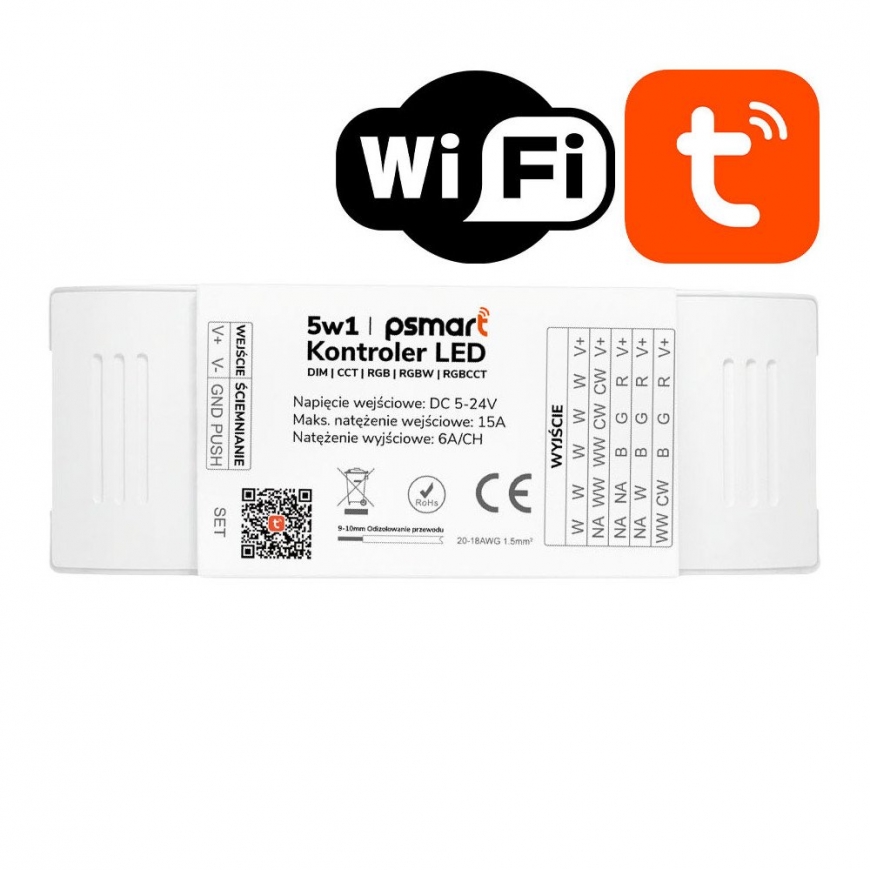

Universal 5-in-1 WiFi Tuya LED Controller

DIM / CCT / RGB / RGBW / RGBCCT | PX Series

DC 5-24V | 15A | 2.4 GHz WiFi | Supports PX Series Remotes

▶️ One Device – 5 Possibilities

Supports all types of LED strips:

• ✅ Single color(DIM)
• ✅ Dual white / Color temperature adjustable(CCT)
• ✅ Multi-color(RGB/RGBW)and(RGBCCT)

ℹ️ SET Switch:Easily change the operating mode with a single button on the housing.

▶️ Smart Tuya Ecosystem

Thesmartphone app (Android/iOS)provides full remote control, including:

• ✅ Schedules
• ✅ Scenes
• ✅ Automations
• ✅ Voice Control

▶️ MESH Technology and RF Control

• Relay Function:Each controller transmits the signal to the next one(range up to 30m).
• MESH Remotes:Supports up to10 PX Series remotessimultaneously.
• Power-off Memory:Configure the controller's behaviorafter a power loss.

▶️ Power and Efficiency

• High Current:Up to6Aper channel and15Atotal load.
• Wide Range:Supports voltages from5Vto24VDC.

▶️ Push-Dim Support (Bell Button)

The controller features a dedicated input for an external momentary(monostable)switch, allowing full control without a remote:

• On/Off:A short press toggles the light state.
• Stepless Dimming:Holding the button smoothly adjusts brightness (up or down).
• Direction Memory:Each subsequent hold reverses the dimming direction (if it was brightening, it will now dim).

ℹ️ Specification

Power Supply & Output

• Working Voltage:DC 5V – 24V
• Max. Output Current:6A / channel (Total max. 15A)
• Control Method:PWM (smooth dimming)
• Standby Power Consumption:< 0.5W

Connectivity & Installation

• Communication:WiFi 2.4GHz + RF 2.4G (MESH)
• RF Range:up to 30m in open space
• Working Temperature:-20°C ~ +60°C
• Dimensions:110 x 45 x 18 mm

Safety

• Reverse Polarity Protection:Protects the device from damage due to incorrect wiring.
• Requirements:For a 15A load, a minimum wire cross-section of 1.5 mm² is required.

Product Code: LC332
