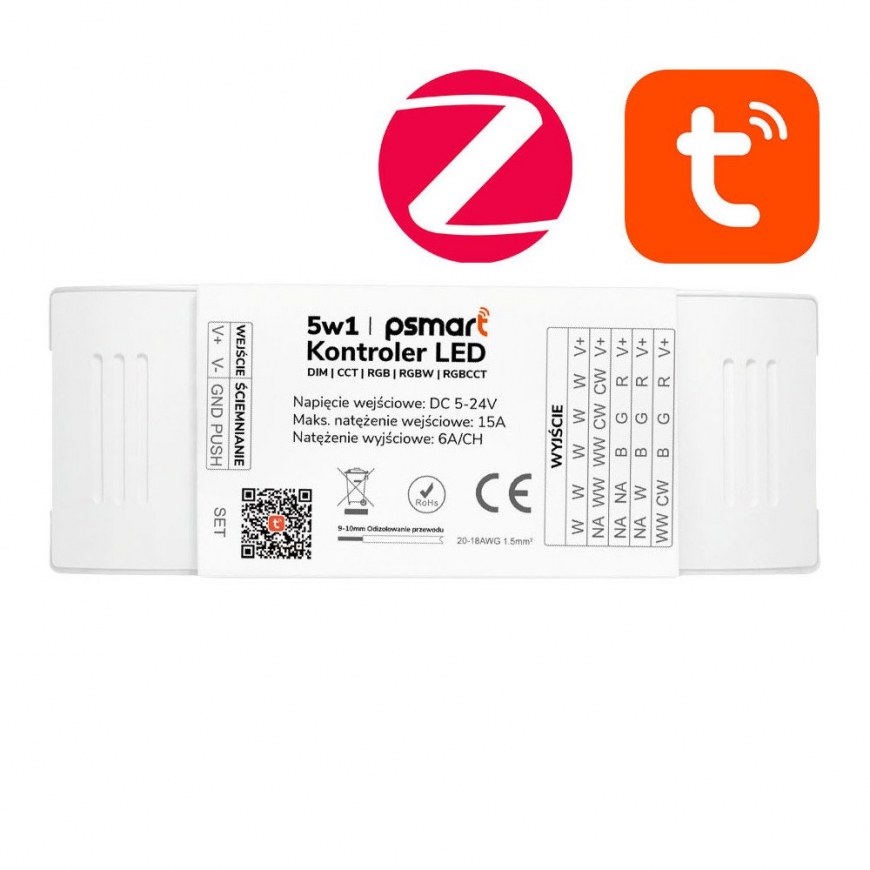

5-in-1 LED Controller ZigBee Tuya

DIM / CCT / RGB / RGBW / RGBCCT | PX Series

DC 5-24V | 15A | Supports PX Remotes

ℹ️ This device requires a ZigBee Gateway!

▶️ One device – 5 possibilities

Supports all types of LED strips:

• ✅ Single color(DIM)

• ✅ Variable color temperature(CCT)

• ✅ Multi-color(RGB/RGBW)and(RGBCCT)

ℹ️ SET Switch:Easy mode changing with a single button on the housing.

▶️ Smart Tuya Ecosystem

Smartphone app (Android/iOS)provides full remote control, including:

• ✅ Schedules

• ✅ Scenes

• ✅ Automations

• ✅ Voice Control

▶️ MESH Technology and RF Control

• Relay Function:Each controller passes the signal to the next one(range up to 30m).

• MESH Remotes:Supportsup to 10 PX Series remotessimultaneously.

• Power-off Memory:Set how the controller should behaveafter a power loss.

▶️ Power and Efficiency

• High Current:Up to6Aper channel and15Atotal load.

• Wide Range:Supports voltages from5Vup to24VDC.

▶️ Push-Dim Support (Bell Button)

The controller has a dedicated input for an external momentary(monostable)switch, allowing full control without a remote:

• On/Off:A short click changes the light status.

• Stepless Dimming:Holding the button adjusts brightness smoothly (up or down).

• Direction Memory:Each subsequent hold reverses the adjustment direction (if it was brightening, it will now dim).

ℹ️ Specification

Power and Output

• Operating voltage:DC 5V – 24V
• Max. output current:6A / channel (Total max. 15A)
• Control method:PWM (smooth dimming)
• Standby power consumption:< 0.5W

Connectivity and Installation

• Communication:ZigBee 3.0 + RF 2.4G (MESH)
• RF Range:up to 30m in open space
• Operating temperature:-20°C ~ +60°C
• Dimensions:110 x 45 x 18 mm

Safety

• Reverse Polarity Protection:Protects the device from burning out in case of incorrect connection.
• Requirements:For a 15A load, a minimum wire cross-section of 1.5 mm² is required.

Product Code: LC331
