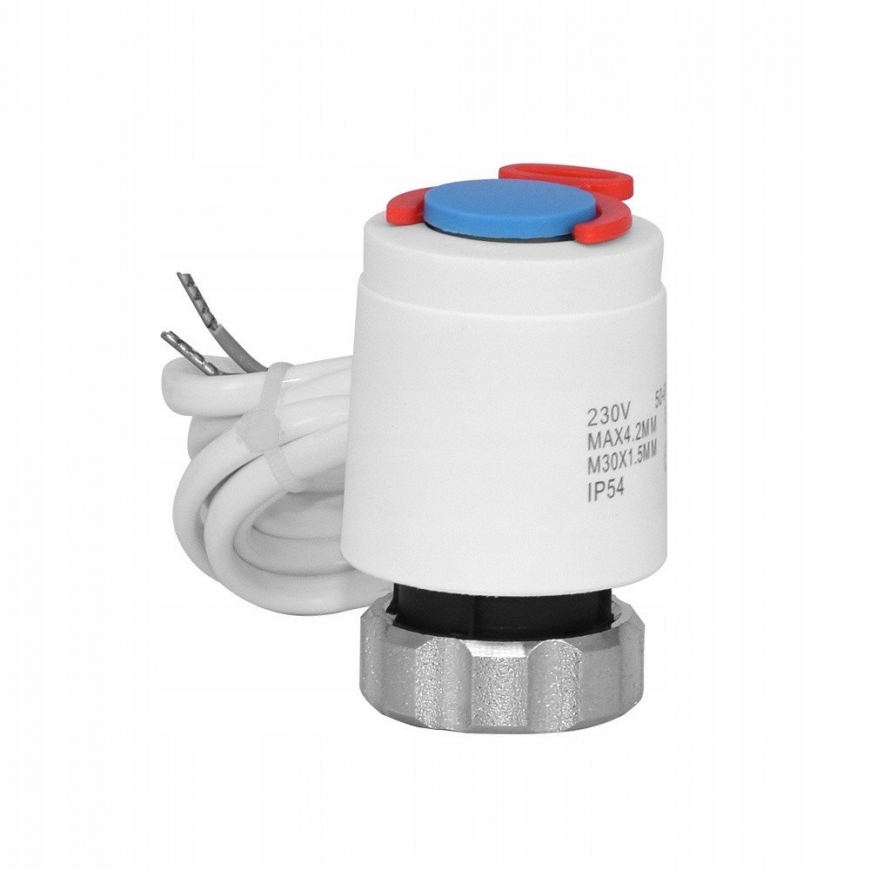

Thermoelectric Actuator NC 230V M30x1.5
49,00 €
Mėn. mokestis nuo 2.16 €
4242956 5904496824995
Pristatymas 1-14 d.d.
Ar jus domina šis produktas?
Thermoelectric Actuator
NC | 230V | M30 x 1.5
▶️ Application:
Used for automatic opening and closing of valves in heating systems.
This includes radiator manifolds and underfloor heating systems. It can be controlled via mounting rails or smart room thermostats 16 A available in our offer.
▶️ Equipped with Electrical Cable
And M30 x 1.5 Threaded Nut
This allows installation directly on the manifold or radiator valve.
Operates inNormally Closed (NC)mode – applying 230V voltage extends the valve opening element.
ℹ️ Note:The indicator color is supplied randomly depending on the delivery (blue or red).
ℹ️ Specifications:
▶️Technical Parameters:
- Connection:Metal nut with M30x1.5 thread
- Opening time:under 3 minutes
- Maximum operating temperature:60°C
- Maximum stroke:4.2 mm
- Protection class:IP54
▶️Power and Force:
- Cable length:1 m
- Power supply:230 VAC
- Thrust force:110 N
- Power consumption:6.5 mA
- Starting current:50 mA
