Remote Controller for LED Mono Dimmable 1 Zone RF 2.4GHz SD Series
69,01 €
Mėn. mokestis nuo 2.68 €
4236783 5906203621040
This product is no longer in stock
Ar jus domina šis produktas?

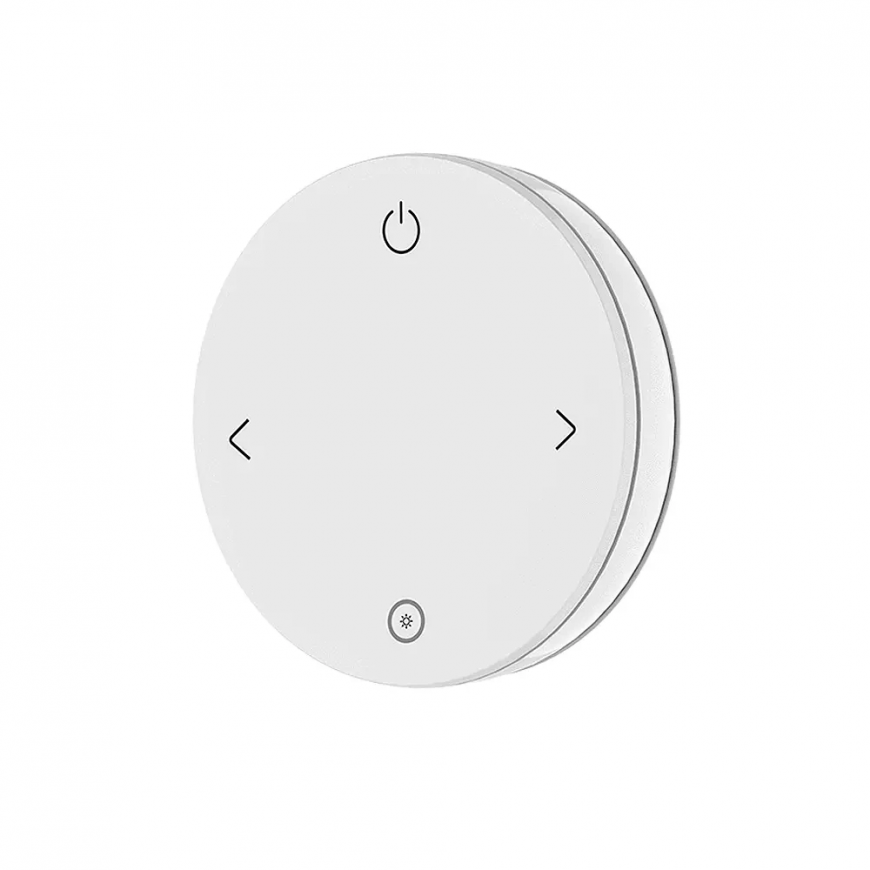

Remote Controller for LED Mono Dimmable 1 Zone RF 2.4GHz SD Series
The radio remote control for the Mono LED controller was created for small lighting installations. The device supports 1 zone consisting of mono LED lighting (e.g. monochromatic, single-color LED strip). The device allows dimming and brightening LED lighting via radio frequency of 2.4 GHz - SD series. This method of communication ensures a range of up to approximately 30 meters in open space, with the possibility of increasing the distance through signal retransmission between the LED receivers used.
Controlling the remote control is very easy and intuitive. The device has 4 buttons that allow you to turn on the lighting, adjust the intensity, and also have a smooth dimming function. This small controller is powered by a CR 2032 battery. Additionally, the device has a magnetic housing that allows for quick installation on metal surfaces anywhere.
Attention! The remote control is compatible with SD series devices ("SD series" in the name).
Main advantages
- Monochrome LED lighting support (on/off/dimming)
- Compatible with SD RF 2.4 GHz series devices
- Possibility to assign multiple SD series LED receivers to the remote control
- Magnetic housing allows you to place the remote control in a convenient place
- The remote control supports 1 zone
- The remote control range is approximately 30 meters (in open space)
- Controller powered by CR 2032 battery (not included)
- Handy and compact design
- Quick assembly and installation
Description of the remote control operation
Button 1.Light on and off button.
Button 2.Reduce brightness, short press reduces lighting by 10%. A long press causes the brightness to decrease continuously.
Button 3.Increase brightness, short press increases illumination by 10%. Long press to continuously increase brightness.
Button 4.Change the brightness between 10% and 100% power intensity.
Create an extremely advanced lighting system with the SD series!
Search for other remote controls in our SD series offer
Specification
- Remote control intended for MONO installations (single color)
- Lighting control system:PWM
- Lighting control method:radio (2.4 GHz SD series)
- Number of supported zones/channels:1 zone
- Power supply:1 x 3V CR 2032 battery (not included)
- Communication type:one-way
- Remote control range:up to about 30 meters in open areas
- Working temperature:from -30 to + 55°C
- Tightness class:IP20
- Built-in magnet for easy attachment to wall mounting bracket
Dimensions:
⌀75mm x height 18mm
Included:
- Pilot
- Mounting bracket
- Instruction
Product code:PLD069
